IP Surveillance System

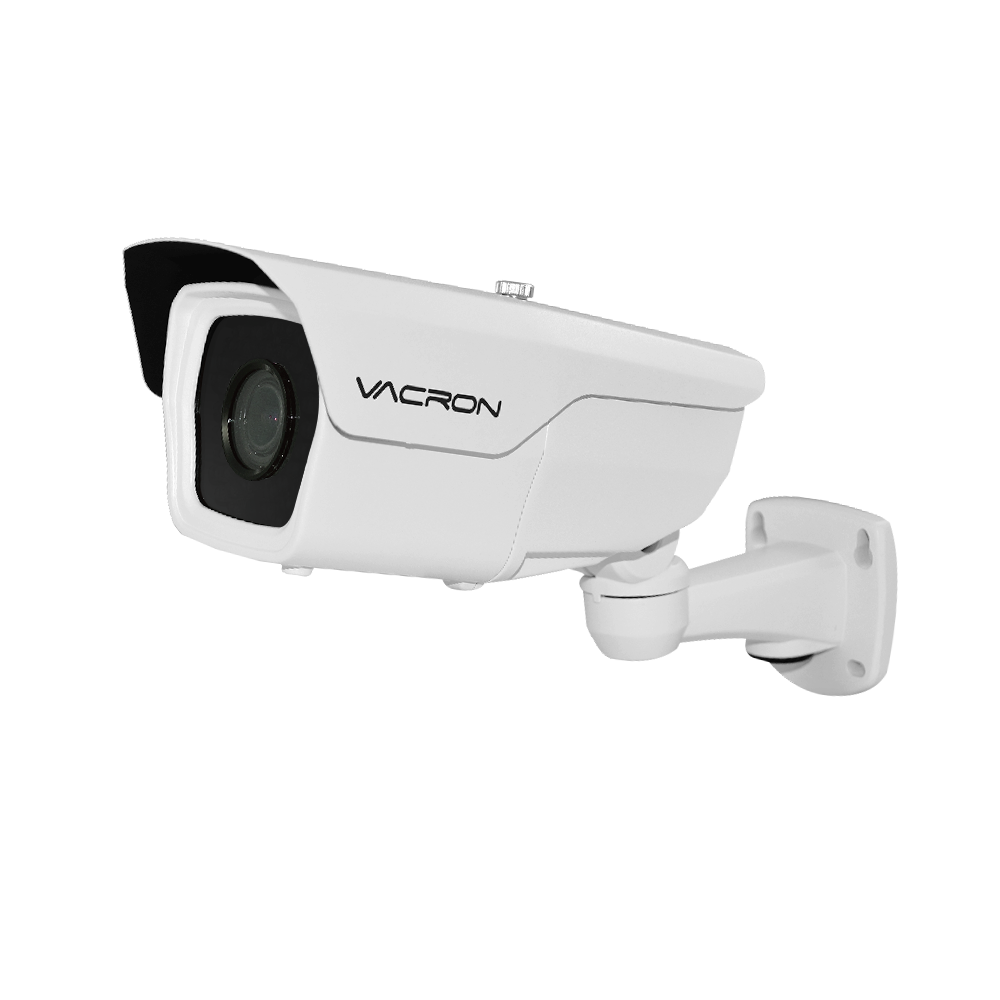

IP Camera


1080P / IP66 / Bullet / H.265+ / Starlight Color

  • 0.01 LUX

  • P.O.E

  • 1/2.8"CMOS

  • LENS 4.0mm

  • 0~45°C

Download Catalog

Product Features

  • SONY 2M Pixels 1/2.8" CMOS Sensor with excellent image quality
  • Real timeH.265+/H.264 /MJPEG Multi-mode compression (Dual Codec)
  • Resolution 1920*1080 @ 30fps/s
  • Starlight full color day and night. Colorful image with starlight F1.0 Hi
    Resolution Lens.
  • Support ONVIF international standard, best compatibility and integration
System Flash:16MB
Sensor Full HD High Quality 1/2.8” SONY CMOS Image Sensor
Lens Board Lens 4.0 mm F1.0
IR Cut Built-in IR filter
Lux 0 .01Lux(Star Light . colorful in the night)
Compression H.265+: 1920x1080 at 30fps
H.265+: 1280x720 at 30 fps
H.265+: 640x480 at 30fps
H.265+、H.264、JPEG Multi-mode
compression (Dual Codec)
Multi-mode compression streaming
Video Adjustment Resolution、Quality and bit rate
Time、Date or custom text and it’s position
Brightness, Contrast, Saturation and Sharpness
Network Interface 10 /100 Mbps RJ-45
Browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm & Event notification Motion Detection
E-mail notification or upload file to FTP
User Max. 8 users for live view simultaneously
User Authorization
OTA OTA for Firmware upgrade
I/O Port RJ-45, DC12V
Power DC12V or PoE IEEE802.3af Class 0 (Optional)
Power Consumption 3.6W(IR OFF)、7W(IR ON)
Weight N.W.:1050g
Dimension 195mm x 100mm x 85mm
Operating Environments 0 ~ 45 °C
IP Rating IP66
