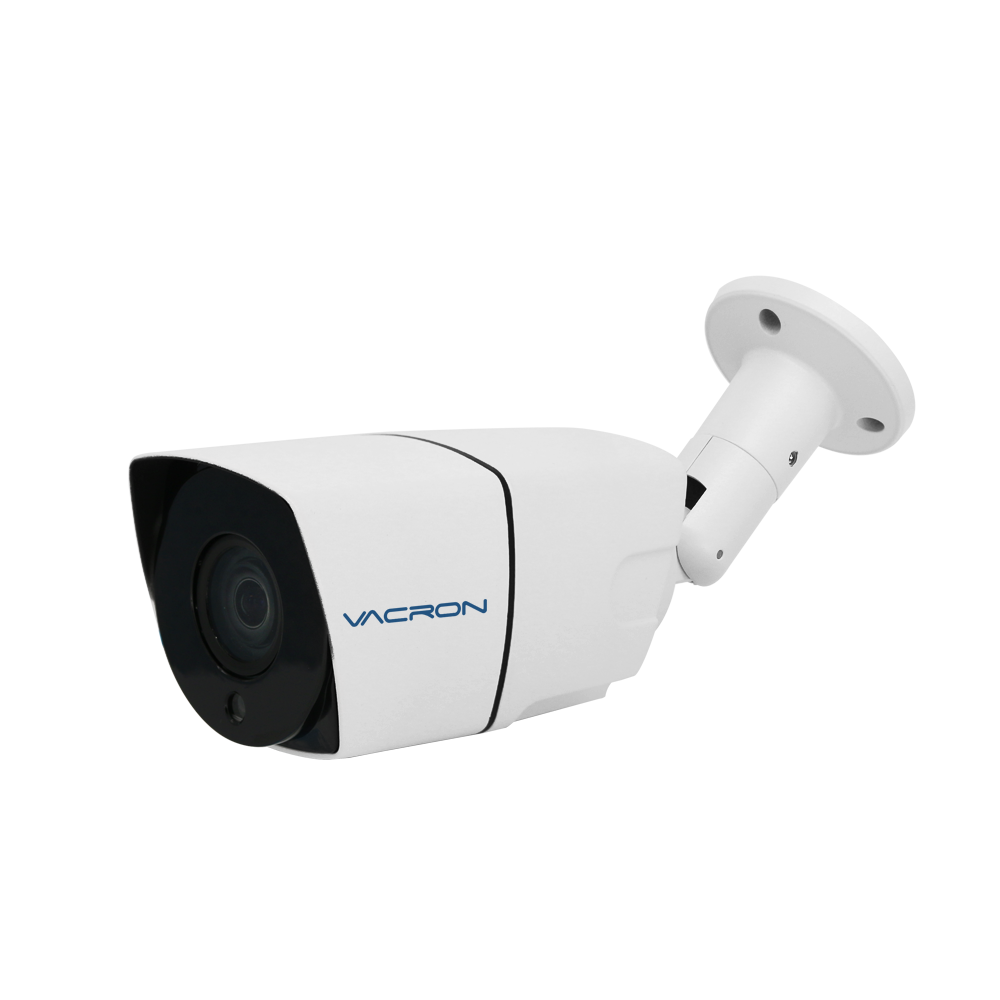

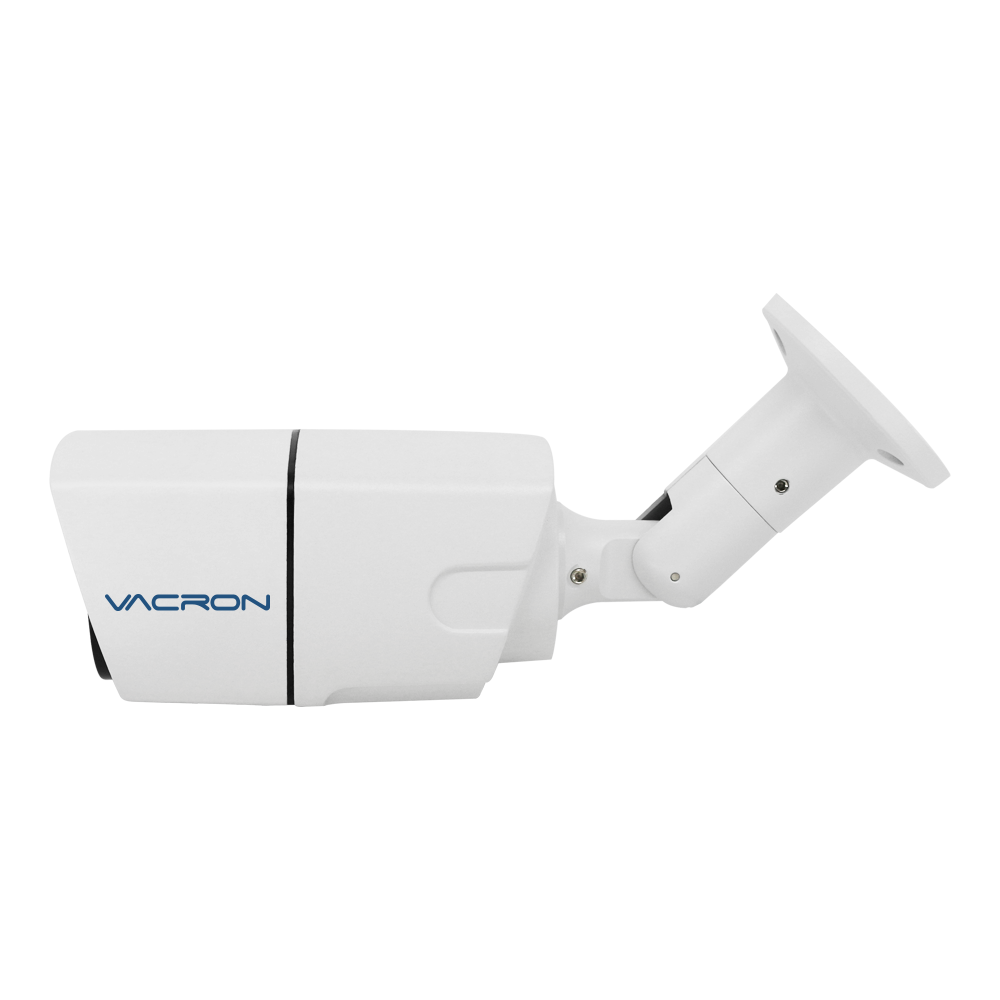

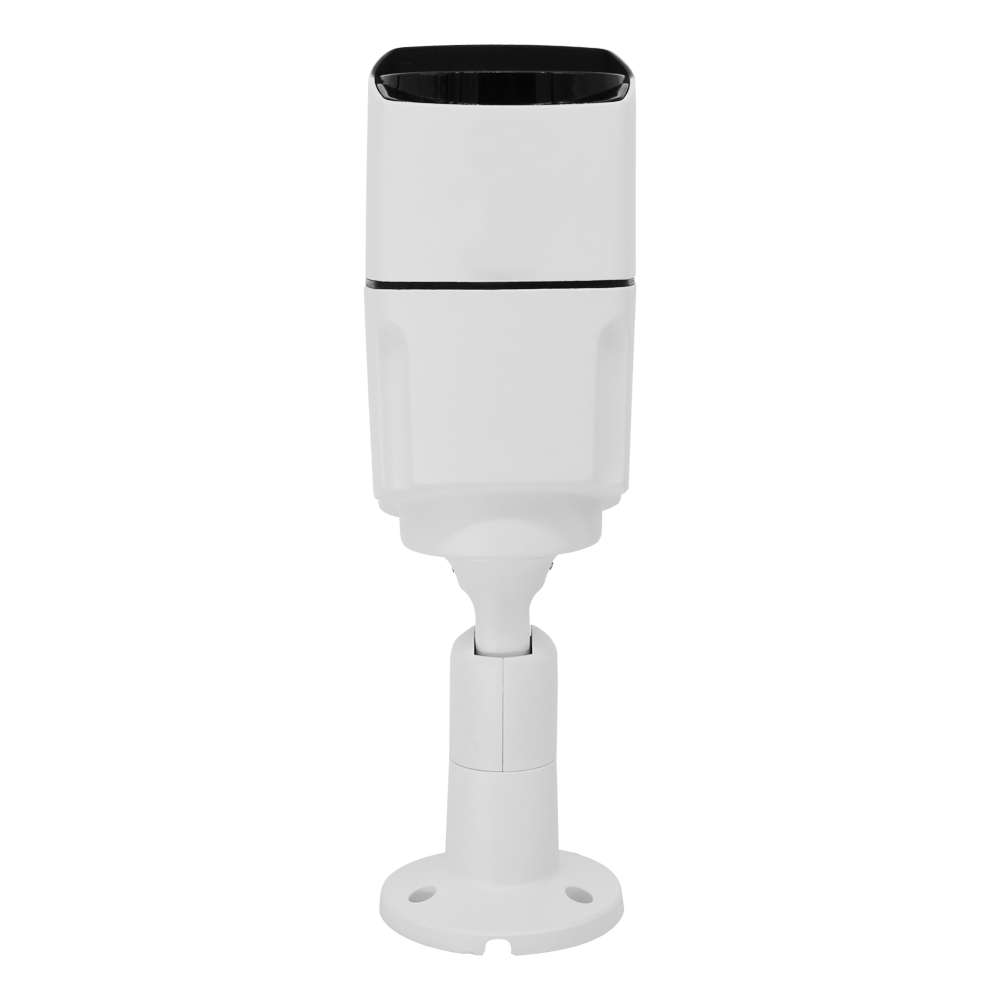

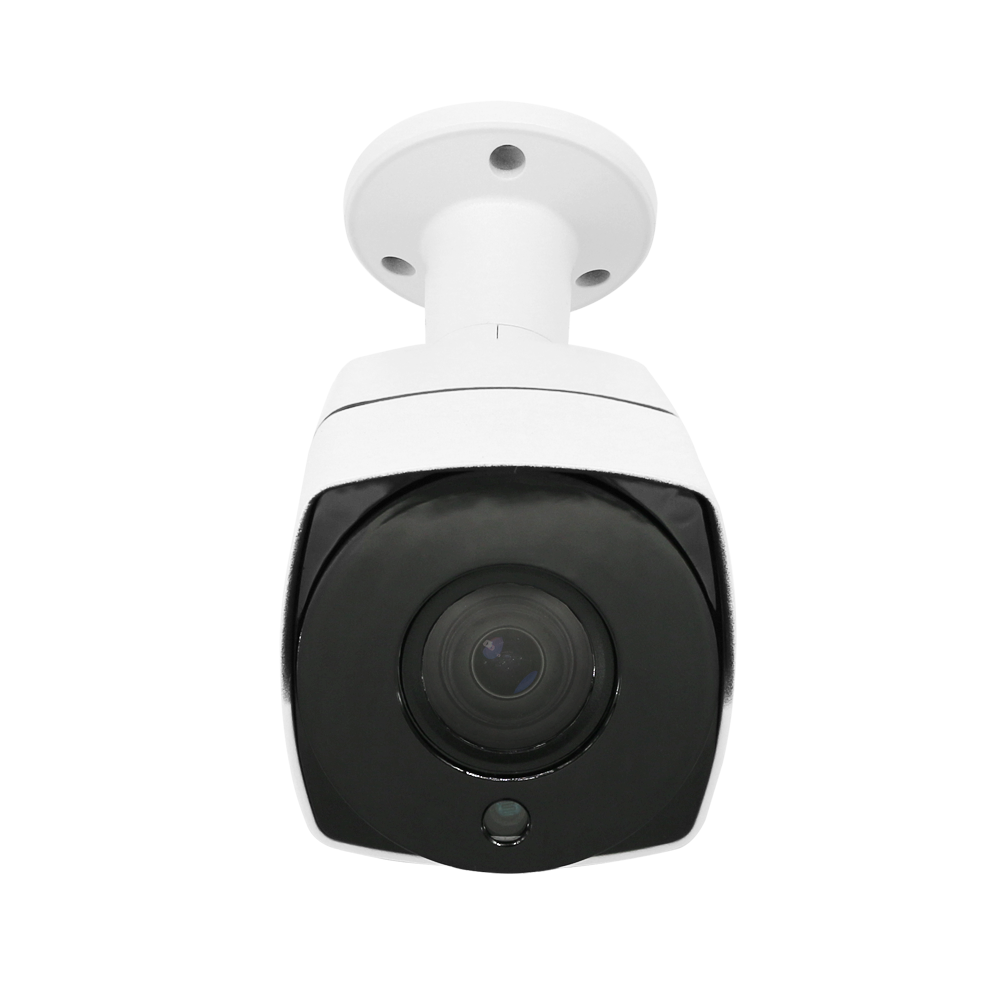

IP Camera
1080P / IP66 / Bullet / H.265+ / Starlight Color
P.O.E
1/2.8"CMOS
0.001LUX
LENS 4.0mm
0~45°C
Product Features
System | Flash:16MB | |
RAM:256MB | ||
Sensor | SONY FullHD High Quality 1/2.8” CMOS Image Sensor | |
Lens | Board Lens 4.0 mm F1.0 | |
IR Cut | Removable IR-cut filter for day & night function | |
Lux | 0.001Lux Starlight full color | |
Compression | H.265+: 1920x1080 at 30fps | |
H.265+: 1280x720 at 30 fps | ||
H.265+: 640x480 at 30fps | ||
H.265+、H.264、JPEG Multi-mode compression (Dual Codec) Multi-mode compression streaming |
||
Video Adjustment | Resolution、Quality and bit rate Time、Date or custom text and it’s position Brightness, Contrast, Saturation and Sharpness AGC、AWB、AES、BLC、WDR |
|
Network Interface | 10 /100 Mbps RJ-45 | |
Protocol | IPv4,TCP/IP, DHCP, HTTP, RTSP,SNTP,DNS | |
Browser | Microsoft Internet Explorer 6.0 or above Safari, Chrome or Firefox |
|
Alarm and Event Management- | Motion Detection | |
E-mail notification or upload file to FTP | ||
Users | 8 clients on-line monitoring at the same time | |
Multi-level user access control with password protection | ||
Maintenance | Supports online firmware upgrade | |
I/O Port | DC12V RJ-45 Ethernet x 1,DC12V | |
Power | DC12V or PoE IEEE802.3af Class 0 (optional) | |
Power Consumption | 3.6W(IR OFF)、7W(IR ON) | |
Weight | N.W.:1050g | |
Dimension | 195mm x 100mm x 85mm | |
Operating Environments | 0 ~ 45 °C | |
IP Rating | IP66 |
Update Date 2022/01/26 | VIG-US760T-D6 | VIG-US760VT-D6 | VIG-US760VT-D2 |
Resolution | 5MP | 5MP | 1080P |
Pick Up Element | 1/2.8 CMOS | ||
Lens | Auto Varifocal 2.8-12mm | Auto Varifocal 5-50mm | |
LEDS | 8 HI-P LEDS | ||
IR | ✓ | ||
IR Range | 30M | ||
Sensitivity | 0.01 LUX | ||
AF | ✓ | ||
Waterproof | IP66 |
Update Date 2022/01/26 | VIG-US760T | VIG-US760T-D2 | VIG-US760-D4 |
Resolution | 1080P | ||
Pick Up Element | 1/2.8" Sony Exmor CMOS | 1/2.8" CMOS | |
Lens | Auto Varifocal 2.8-12mm | Board Lens 4.0 mm | |
LEDS | 8 HI-P LEDS | ||
IR | ✓ | ||
IR Range | 30M | ||
Sensitivity | 0.01 LUX | ||
Starlight Color | ✓ | ||
AF | ✓ | ||
Waterproof | IP66 |
*If the above specifications are different, please refer to the latest date
