IP Surveillance System

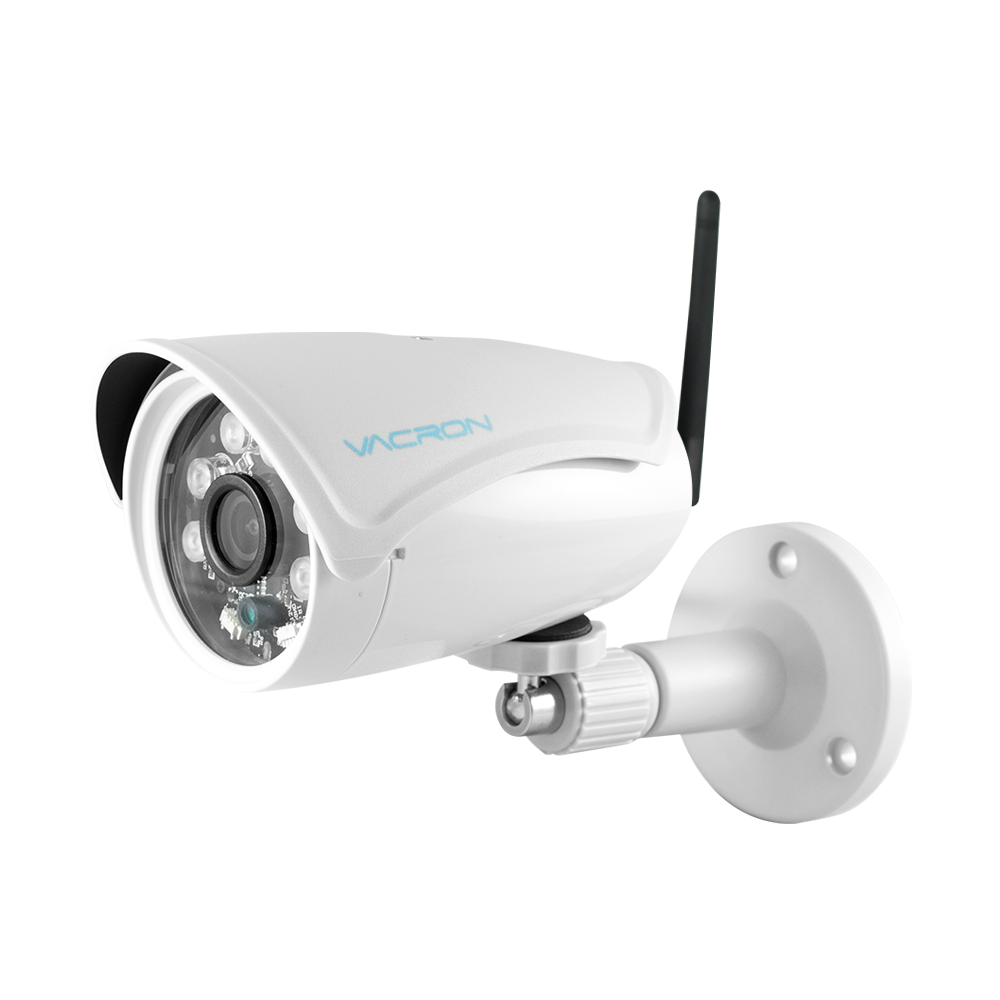

IP Camera

VIG-UJ736AW-Z5

1080P / IP66 / Bullet / H.265+ / WIFI

  • DC12V

  • LENS 3.6mm

  • 30M

  • 0 LUX

  • 8 LEDs

  • 1/3CMOS

  • 0~45°C

Download Catalog

Product Features

  • 2M Pixel 1/3" CMOS Sensor with excellent image quality
  • Real time H.265+/H.264 /MJPEG Multi-Mode compression (Dual Codec)
  • Resolution 1920*1080 @ 30fps/s
  • 8pcs IR LED, IR Distance 30M
  • Support ONVIF international standard, best compatibility and integration
System Flash:16MB
RAM:128MB
Sensor FullHD High Quality 1/3” CMOS Image Sensor
Lens Board Lens 3.6 mm
IR Cut Removable IR Cut filter
Lux 0 Lux(IR ON)
LED HI-P IR LED 8pcs
Compression H.265+: 1920x1080 at 30fps
H.265+: 1280x720 at 30 fps
H.265+: 640x480 at 30fps
H.265+、H.264、JPEG Multi-mode compression (Dual Codec)
Multi-mode compression streaming Resolution、Quality and bit rate
Video Adjustment Time、Date or custom text and it’s position
Brightness, Contrast, Saturation and Sharpness
AGC、AWB、AES、BLC、WDR
Network Interface Wi-Fi、IEEE 802.11n
Protocol IPv4,TCP/IP, DHCP, HTTP, RTSP,SNTP,DNS
Browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm & Event notification Motion Detection
E-mail notification or upload file to FTP
User Max. 8 users for live view simultaneously
User Authorization
OTA OTA for Firmware upgrade
I/O Port DC12V
Power DC12V
Power Consumption 3.6W(IR OFF) 、7W(IR ON)
Weight N.W.:450g
Dimension 150mm x 80mm x 75mm
Operating Environments 0 ~ 45 °C
IP Rating IP66




Simliar Product


*If the above specifications are different, please refer to the latest date
Update Date 2022/02/11 VIG-US736 VIG-UJ736-Z5 VIG-UJ736W-Z5
Resolution 1080P
Pick Up Element 1/2.9" CMOS 1/3" CMOS
Lens Board Lens 3.6 mm
LEDS 8 HI-P LEDS
IR
IR Range 30M
Sensitivity 0 LUX
Waterproof IP66
