IP Surveillance System

NVR

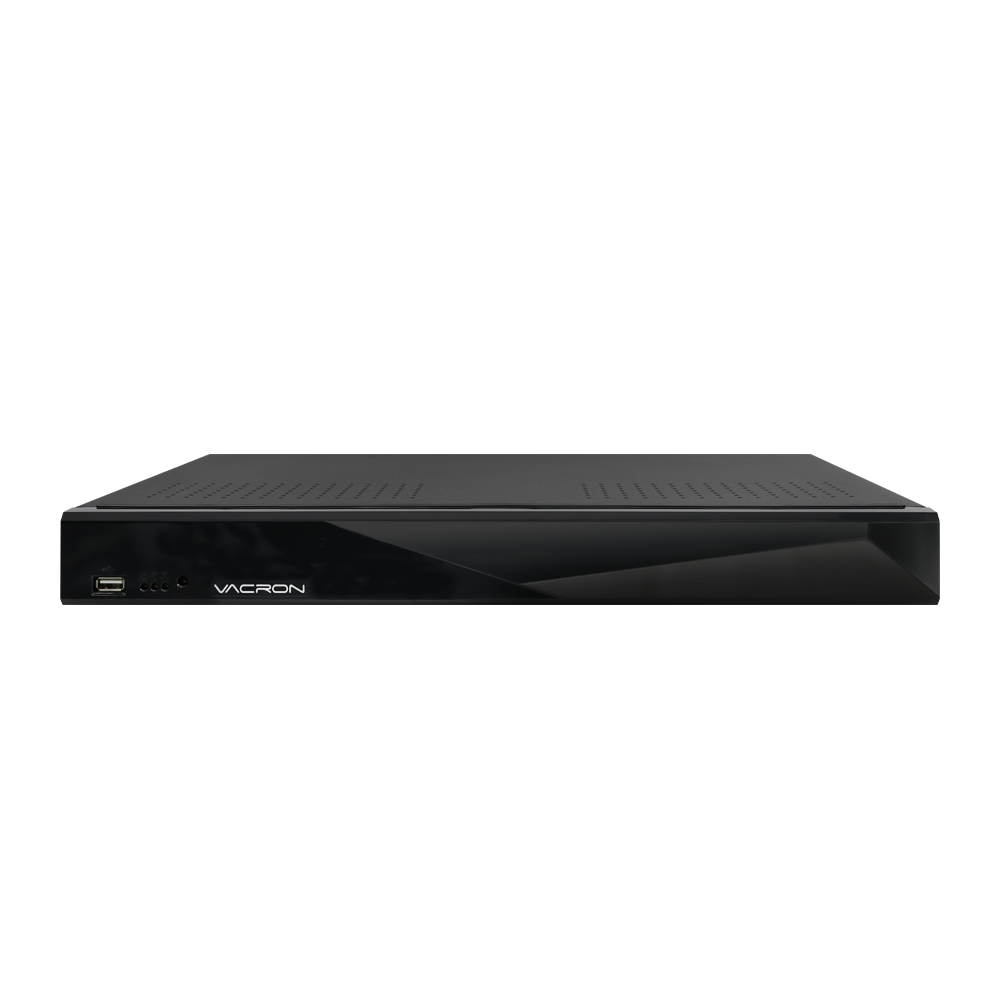

VDH-NK300B

16CH / H.265

  • Remote

  • Motion

  • LAN

  • P.O.E

  • USB

  • CMS

  • Mouse

  • Users

  • Linux系統

  • SATA

  • Multi Function

Download Catalog

Product Features

  • Apply high end NVR dedicate SOC CPU processor , excellent image processing efficiency.
  • Support 2 SATA/SATA II hard disks, Max. 10TB each.
  • H.265 Linux-based embedded standalone NVR, save storage and provides higher image quality.
  • Embedded Linux system, effective avoid viruses and hackers.
  • Support 16CH IP Camera (1080P) (5MP) Surveillance video.
  • USB flozzy disk support for external storage.
  • 3 user login in support for real-time monitoring function by client software or browser
    at same time.
  • Plug and play FUHO IP cam without setting.
  • P2P function, scan QR-Code on the smartphone app to get instant monitoring and playback,
    and increasing information security.
  • Auto support for better user experience.
  • CMS support for Effectively integrate device management operations.
  • Multi streaming support for live monitor /record /playback
  • Provide IPv4/ARP/TCP/UDP/ICMP/SMTP/HTTP/RTP/RTSP/RTCP network protocol
  • 30 FPS mode, capable monitoring Max.16 channel real-time video.
System SoC : Linux SoC operation system:Linux
Storage Built-in SATA interface x2, compatible
with SATA/SATAII/SATAIII Hard disk(Max. 10TB)
Video And Other
I/O Interface		 (1) Dual video output : HD/VGA output
(2) USB 2.0 x2 – connect with usb mouse and flozzy disk
(3) Auto-MDIX. Ethernet x1- 10/100/ 1000
(IEEE 802.3 Type 10Base-T、IEEE 802.3u Type 100Base-TX);
Auto-MDIX
Network Protocol Ipv4 / ARP / TCP / UDP / ICMP / SMTP / HTTP / RTP / RTSP / RTCP
Video Format Support H.265 compression format
Live / Playback (1) VGA at 30 FPS mode, capable monitoring
Max.8 channel real-time video.
(2) 2.5 MP at 15 FPS or 1080P at 30 FPS mode capable,
pmotoring 1 channel real time video.
(3) Video playback support 1 channel 5MP at 15 FPS or
1080P at 30 FPS or 16 channel VGA at 30 FPS.
(4) The real-time monitor screen support channel switch
display—the single channel switch, group channel switch
(5) Record files playback can search by time and event.
(IPCam monition)
(6) Playback speed : Slow motion / fast motion multi-playback
speed, single image format(forward or backward)
(7) Capable doing multi-works as real-time monitoring,
recording and playback at same time
Event Notification Event report content: Camera displacement detection,
camera monition, hard disk damage.
Recording Mode Constant recording
Schedule recording
Motion Detection recording
Backup Management Backup output video format: MP4
USB flash drive removable storage device
System Management (1) Provide remote Client software, capable doing
PC setting, real-time monitor and playback.
(2) Hierarchical user right management, can setting user
access rights or administrator, max. 10 groups account.
(3) Support 3 user login in and use real-time monitoring
function by client software or browser at same time.
(4) Support megapixel IP Camera monitor images.
(5) MS IE11 Browser: Support MS IE11.
Device Support Support megapixel IP Camera monitor images.
Power DC12V / 4.17A
Operating Temperature 0-45 ℃
Net weight About 2.7KG
Dimension 430mm x 314mm x 53mm (W x D x H)
