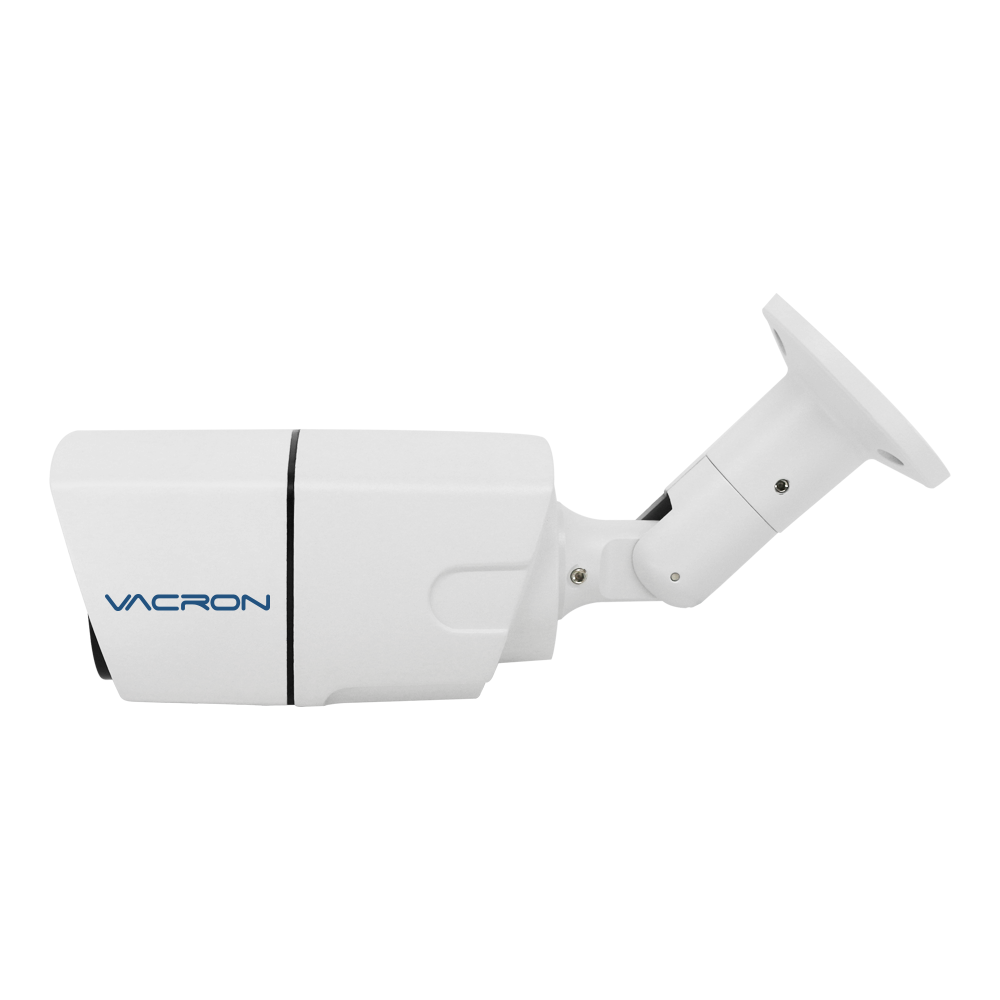

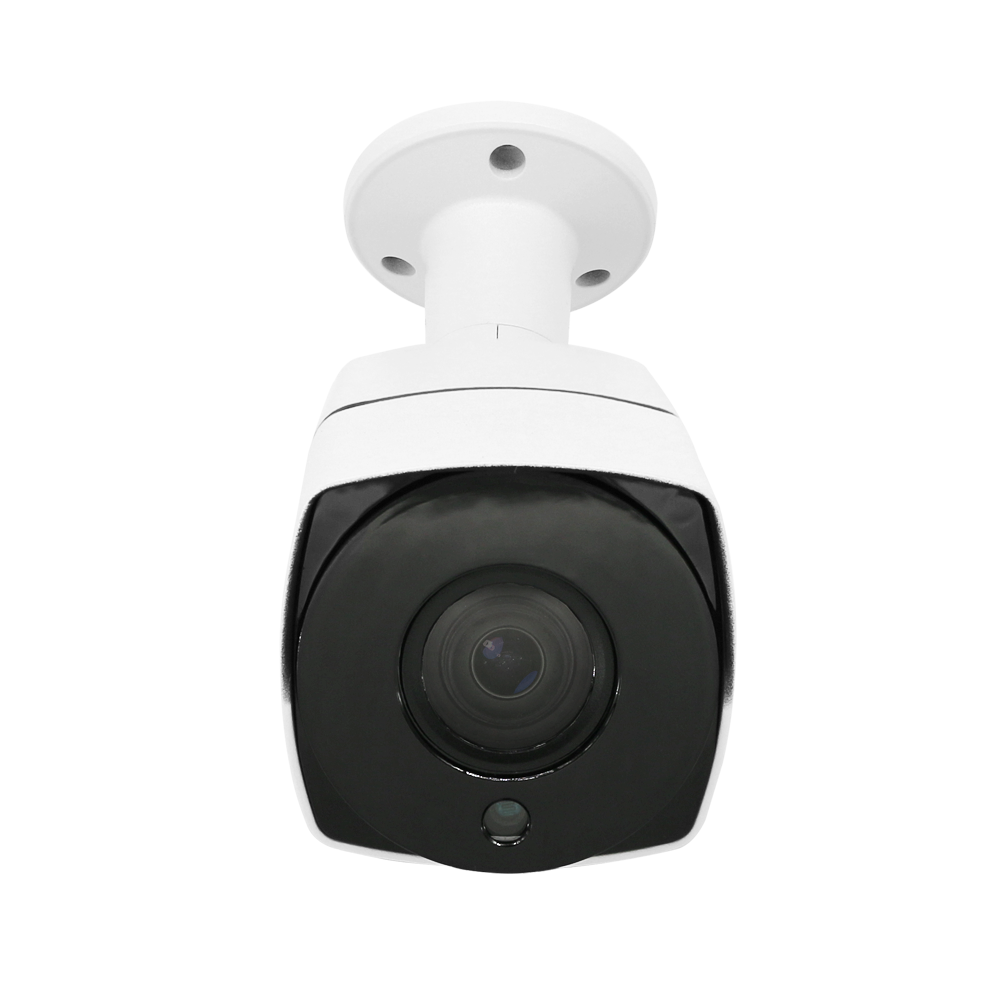

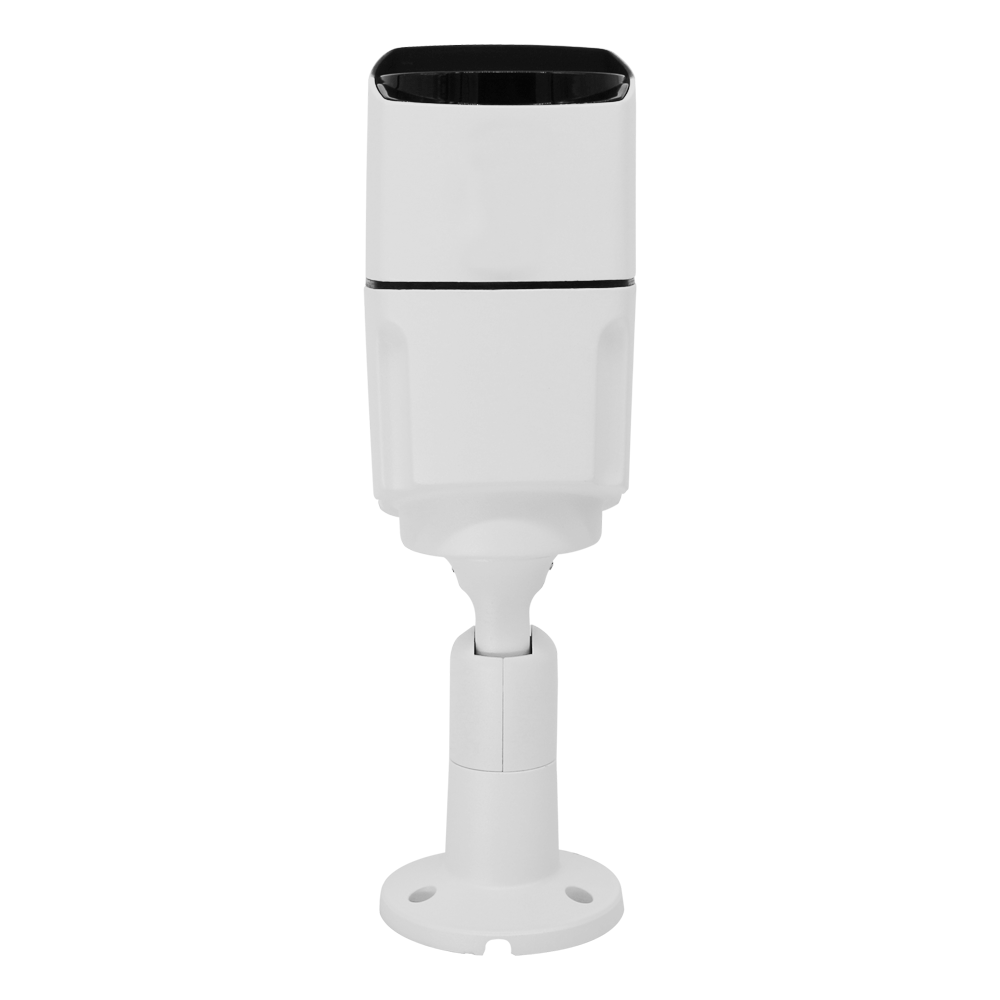

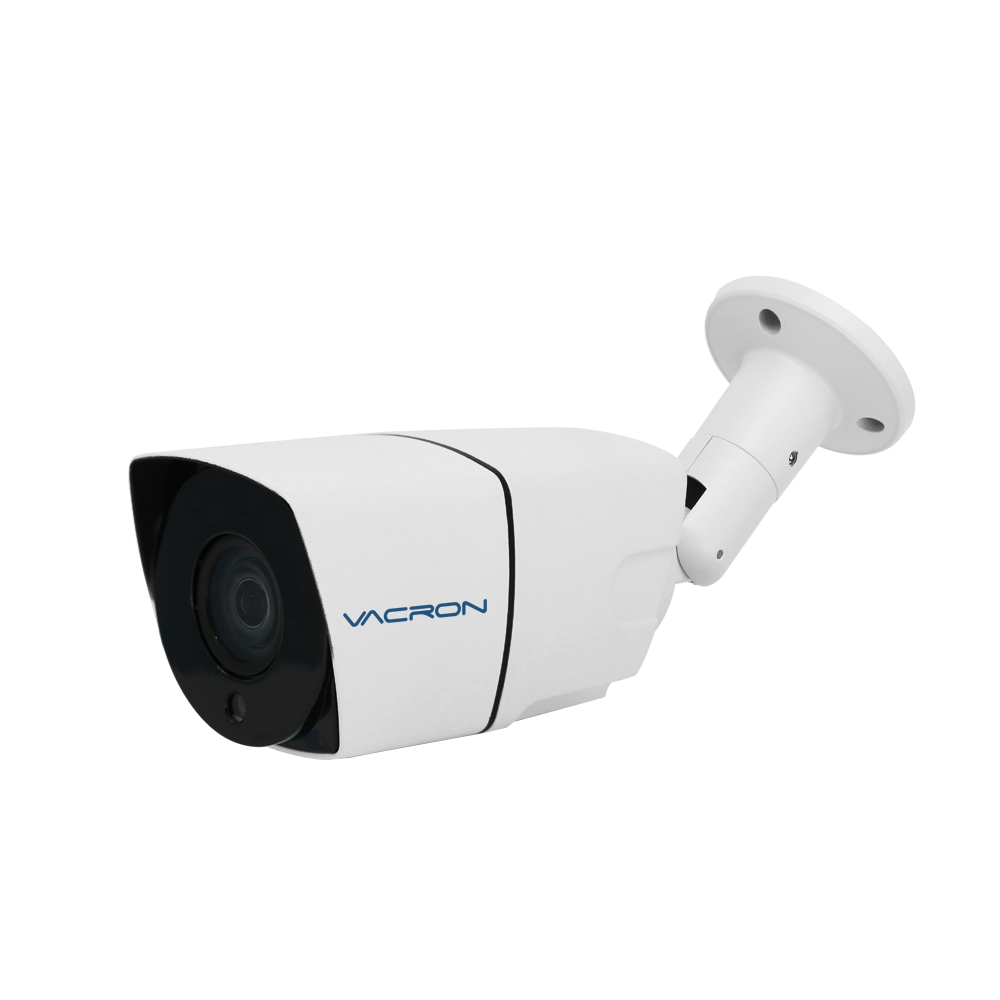

IP Surveillance System

IP Camera

VIN-US760FVTA-E4

1080P / Bullet / IR / H.265 / AI Face Recognition

  • H.265

  • DC12V

  • 0 LUX

  • P.O.E

  • 8 LEDs

  • 1/2.8"CMOS

  • 0~45°C

  • AutoLENS 5-50mm

  • face id

Download Catalog

Product Features

  • The camera is equipped with built-in AI algorithms capable of recognizing facial data for
    identification purposes.
  • With 5mm~50mm motorized motor lens, it is convenient for users to adjust the sharpness
    of the recognition area.
  • Starlight-grade Sony CMOS low-light color image with high resolution for enhanced night-time
    surveillance.
  • Real-time H.265/H.264 multi-mode engine compression technology (Dual Codec) supports
    multiple levels of video quality configuration.
  • This device supports a 256G SD card to store captured pictures and video data, and supports
    remote inquiry of event data.
  • Recognition results are linked to the Vacron video recording system, and face information is
    transmitted to grasp personnel entering and exiting in real-time.
  • Support ONVIF international standard with best compatibility and integration, SDK can be attached
    for background system vendor's integrations.

Face recognition function

Number of Face Recognition It can recognize 5 sets of faces on the monitor screen at the same time.
Recognizable Size of Face The face size on the image screen needs to be 160*160 pixels or more.
Face Recognition Mode The white list can be set on or off.
By setting up a white list, you can control whether it is a passer or a warning person.
(You can edit a large amount of face data and use import software for large amounts of data.
Please refer to the AI face configuration manual for imported data production and instructions.)
Accuracy Settings Adjustments The initial default value is 70. According to the constraints of the installation environment, the recognition strict level setting can be adjusted to avoid misjudgment or relaxation of recognition.
(Mask recognition can lower recognition rate to relax recognition conditions, as well as improve the recognition rate.)
Stranger Detection You can choose to enable or disable the identification and capture record of non-whitelisted personnel.
(Non-whitelisted people are shown in red frames for distinction.)
Set the recognition area Specific area recognition is possible. To delimit irregular-shape areas as specific recognition areas for face recognition when people enter the delimited specific recognition areas.
Alarm Response Time Configurable I/O alarm output time allows the manager to have a response time.
I/O alarm output voltage level can be set to high/low(v) for the back-end alarm system to trigger an alarm or linkage warning.
Turn on stranger detection for linkage trigger every 5 seconds while detecting non-whitelist persons in the monitoring area;(meanwhile, the whitelist trigger is off).
Face Recognition Video Storage You can set up video storage in the SD card of the device itself, or set up a FTP Server to transmit the face recognition results to the server.
Control List Settings Maximum 10,000 face data can be set for management.
Micro SD Card Storage in Device It supports 256GB Micro SD card for face recognition image storage in the device.
It can carry out face recognition image confirmation on the browser page.
(After enabling the snapshot function by the face recognition system, the internal SD card will be formatted and forced to stop live monitoring recording.)
Co-development Please contact FUHO's sales representative to discuss the development and integration of multiple AI system functions.


SPECIFICATIONS

system Flash：256MB
RAM：512MB
Sensor SONY FullHD High Quality 1/2.8 CMOS Image Sensor
Lens Auto Varifocal 5-50mm
Optical Filter Built-in Magnetic Infrared Filter Switcher
Low Illumination 0 Lux (IR ON)
Infrared Light HI-P 8 pcs Infrared LED

Image Performance		 H.265/H.264: 1920x1080 at 60 fps
H.265/H.264: 1280x720 at 60 fps
H.265/H.264: 640x480 at 60 fps
H.265, H.264 multi-mode engine compression technology (Dual Codec)
Support simultaneous transmission of multimode video streams
Video Adjustment Adjustable image size, quality, and bit rate
Time, date or custom text can be displayed on the image,
and the display position can be set
Adjustable brightness, contrast, saturation and sharpness
Support AGC、AWB、AES、BLC、WDR Features
Electronic Shutter 1/2 ~ 1/100,000 Sec
Networking Interface 10 /100 Mbps Ethernet, RJ-45
Communication Protocol IPv4、TCP/IP、DHCP、HTTP、RTSP、SNTP、DNS
browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm Notification High/Low (0-3.3V) alarm signal can be connected to I/O OUT.
Face recognition results are captured and transmitted to FTP or the device's micro SD card for image storage.
Users Up to 8 users can monitor online at the same time.
Hierarchical Management of User Rights.
Maintenance Support online firmware upgrade
I/O Port RJ-45 Network Connection Port,
Power Input Port DC12V,
Sound Input and Output (BNC-RS485 Output),
Alarm Output
Power DC12V or Ethernet PoE IEEE802.3af Class 0 (optional)
Power Consumption 3.6W(IR OFF) 、12W(IR ON)
Weight N.W. :1190g
Dimension 255mm x 75.3mm x 75mm
Operating Environments 0℃ ~ 45℃
Waterproof and Dustproof Level IP66
