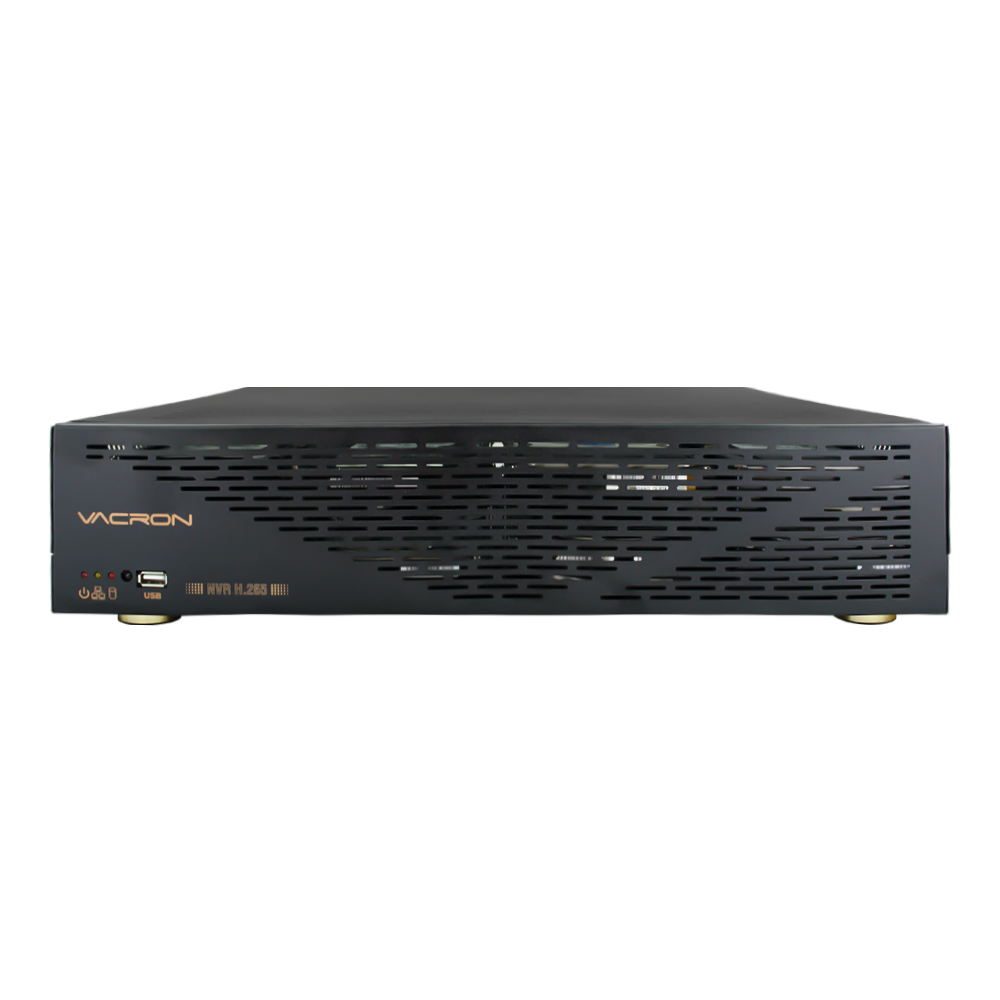

IP Surveillance System



64CH / 1080P / H.265 / HDD

  • Remote

  • Alarm

  • Motion

  • LAN

  • USB

  • CMS

  • Mouse

  • Users

  • Linux系統

  • Multi function

  • SATA

Download Catalog

Product Features

  • Apply high level Hisilicon NVR dedicate doC CPU, excellent image processing efficiency
  • Support 8 SATA hard disks, Max. 10TB each.
  • Apply new generation H.265 compression technology, effective save lots of hard disk storage space.
  • Apply Embedded Linux system, effective avoid viruses and hackers.
  • Support 64CH IP Camera(1080P) Surveillance video
  • Support 4K(8MP) high resolution output.
  • With P2P function, scan QR-Code on the smartphone app to get instant monitoring and
    playback, and high information security.
  • USB flash drive storage device.
  • Support 3 user login in and use real-time monitoring function by client software or
    browser at same time
  • Support Fuho plug-n-play IP Cam.
  • Support 4G dongle
  • Support for automatic firmware updates.
  • Supporting AHD, CVI, TVI, CVBS, and digital IP signals.
System SoC operation system:Linux
Storage Built-in SATA interface x8,
compatible with SATA/SATAII/SATA III Hard disk( Max. 10TB)
Video And Other Dual video:HD OUT/VGA
I/O Interface USB 2.0 *2 – connect with mouse and USB device
USB 3.0 *1
Alarm input x 16/ alarm output x 4
Audio output x1
Ethernet x1 – 10/100/1000 (IEEE 802.3 Type 10Base-T /IEEE 802.3u Type 100Base-TX / I);Auto-MDIX
Network Protocol Ipv4 / ARP / TCP / UDP / ICMP / SMTP / HTTP / RTP / RTSP / RTCP
Video Format H.265 compression format
Live / Playback VGA at 30 FPS mode, capable monitoring Max.64 channel real-time video.
1080P capable monitoring 4 channel real-time video.
Max.4 channel video playback by 1080P at 30FPS, Max.16 channel VGA at 30 FPS.
The real-time monitor screen support channel switch display—the single
channel switch, group channel switch.Record files playback can search by time and event. (IPCam displacement)
Playback speed: Slow motion / fast motion multi-playback speed, single image format (forward or reverse)
Capable doing multi-works as real-time monitoring, recording and playback at same time.
Event Notification Event report content: Camera displacement detection, camera disconnection, hard disk damage
Recording Mode Constant recording
Schedule recording
(Include movement detected recording), capable save the video records 3 sec before event and 60 min after event.
Force recording
Recording without real-time monitor (as user permission )
Backup Management Backup output format: MP4
USB flash drive storage device
System Management Provide remote Client software, capable doing PC setting, real-time monitor and playback.
Hierarchical user right management, can setting user access rights or administrator, max.10 groups account
Support 3 user login in and use real-time monitoring function by client software or browser at same time.
Browser: MS IE11 above
Device Support Support megapixel IP Camera monitor images
Power Input: 115/230VAC, 8/4A, 50-60Hz, Output: 350W
Operating Temperature 0-55℃
Weight About 6kg ( without HDD and Power Adapter)
Size 446mm x 367mm x 102mm (W x D x H)
