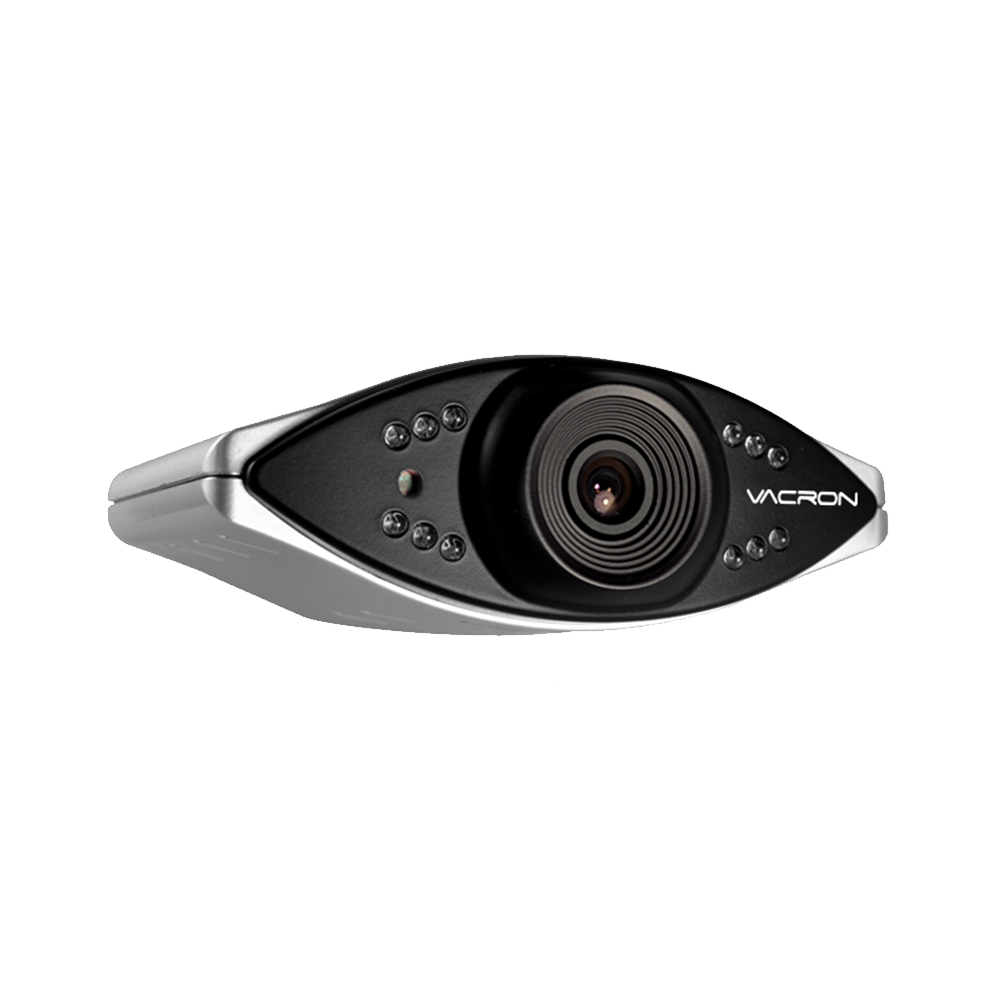

IP Camera
Product Features
| SYSTEM | FLASH：16MB | |
| RAM：INTERNAL DDR3 32BIT / 1GBIT | ||
| IMAGE SENSOR | 1 MEGA PIXEL 1290HX732V 1/4" CMOS SENSOR | |
| SENSITIVITY | 0 LUX (IR ON) | |
| LENS | BOARD LENS 4.2MM F1.8 | |
| IR FILTER | REMOVABLE IR-CUT FILTER FOR DAY & NIGHT FUNCTION | |
| VIDEO | H.264,H.265+: 1280X720 AT 30FPS | |
| H.264,H.265+: 640X480 AT 30FPS | ||
| COMPRESSION: H.264,H.265+, MJPEG | ||
| STREAMING: DUAL CODEC (H.264、H.265+、JPEG) SELECTABLE | ||
| SUPPORT SIMULTANEOUS MULTIPLE STREAMS | ||
| IMAGE SETTINGS | ADJUSTABLE IMAGE SIZE, QUALITY, AND BIT RATE | |
| TIME/DATE STAMP AND TEXT CAPTION OVERLAY. | ||
| CONFIGURABLE BRIGHTNESS, CONTRAST, SATURATION, SHARPNESS, WHITE BALANCE AND EXPOSURE | ||
| AGC / AWB / AES / BLC | ||
| WIRELESS LAN | STANDARDS | IEEE 802.11 B/G/N |
| ANTENNA TYPE | EXTERNAL ANTENNA (2DBI) | |
| WIRELESS SECURITY | WPA-PSK(TKIP), WPA-PSK(AES), WPA2-PSK(TKIP), WPA2-PSK(AES) | |
| SUPPORTED PROTOCOL | TCP/IP, HTTP, UDP, FTP, ICMP, ARP, DHCP, NTP, DNS, RTP, RTSP, RTCP,IGMP,IPV4, 802.1X | |
| SUPPORTED BROWSER | MICROSOFT INTERNET EXPLORER 6.0 OR ABOVE | |
| AUDIO | BUILT-IN MICROPHONE | |
| LOCAL STORAGE | SD CARD | |
| I/O PORT | MINI-USB 1.1 PORT, WPS BUTTON | |
| ALARM AND EVENT MANAGEMENT | MOTION DETECTION | |
| EVENT NOTIFICATION USING SMTP, OR FTP | ||
| POWER SUPPLY | DC5V | |
| WEIGHT | 500G | |
| DIMENSION | 90 X 110 X 60 MM (L * W * H) | |
| OPERATING ENVIRONMENTS | TEMPERATURE: 0 ~ 45 °C HUMIDITY: 90% | |
Download support
Software Support
| Product Model | Download | Explanation |
| VIG-SOIH42-VG&UG-3XX | V1.0.20 |  |
