CCTV Surveillance System

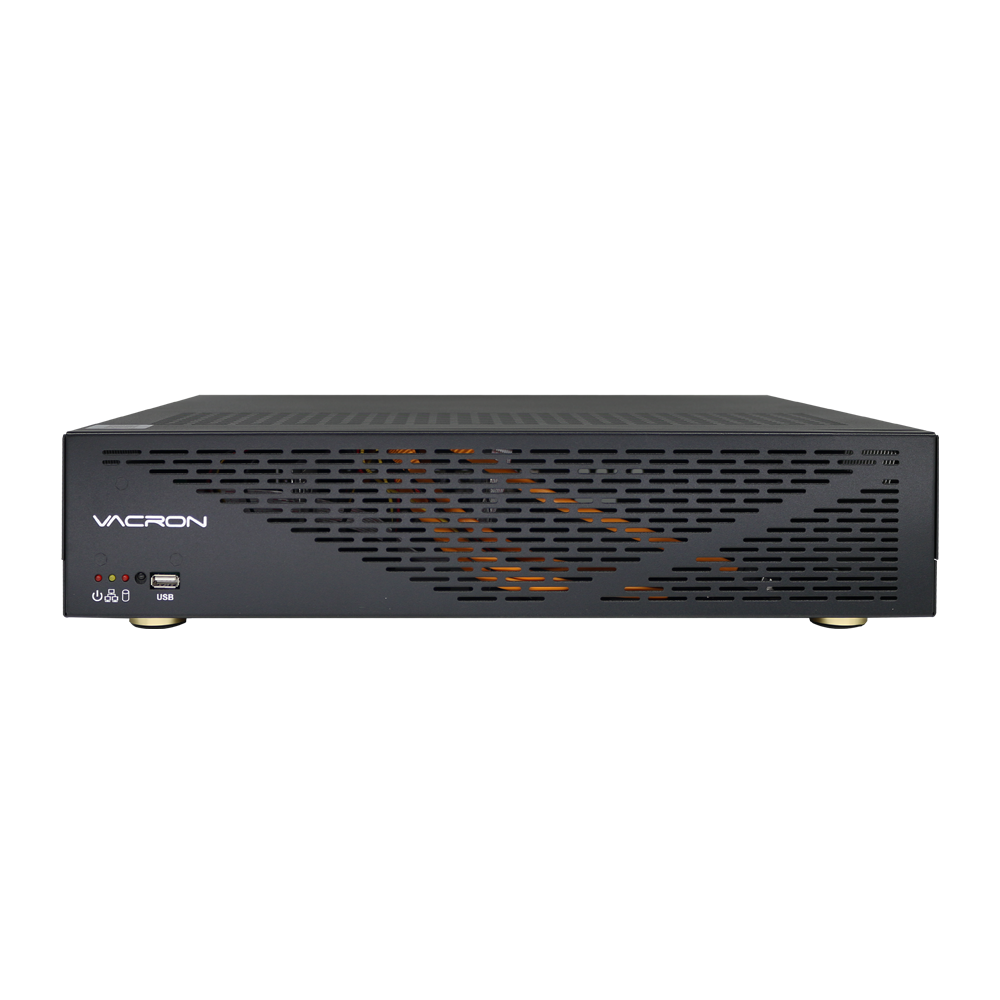

DVR

VDN-DKE616D

16CH / 5MP / H.265 / HDD

  • Motion

  • LAN

  • CMS

  • GUI

  • Users

  • PTZ

Download Catalog

Product Features

  • Pentaplex Operation: which can Record / Playback / Remote Connection /mobile phone watch.
  • Hard Drive support 8TB.
  • Support HD super high quality output.
  • Remote IE browsing, with video monitoring and playback functions.
  • Support HTTP、 DHCP、 DDNS、 NTP、 SMTP、 FTP、 DNS、 UPNP、 PPPoE、 IP search and other
    network protocol.
  • Support iPhone and Android for live monitoring and playback.
  • Support CMS (Central Management System)
  • It can be set as a Hybrid function to connect traditional analog signals and digital IP
    signals at the same time, and the IP channel can be set arbitrarily.
  • With P2P function, APP can scan QR-Code for real-time monitoring and playback,
    increasing information security.
  • Set the IPCAM mode on the host, and use FUHO IPCAM to plug and play.
  • Support automatic update.
  • Support AHD, TVI, CVI, CVBS, IP signal input.
Video Input 16 sets of BNC
Video Output VGA Resolution
High Definition(HD)
CVBS
Audio Input 4CH Input
Audio Output 1CH Output
Audio Compression G.711US
Alarm Input 4CH Input, Normal Open/ Close(Option)
Alarm Output 1 alarm output(optional)
Resoluation 1080P
Digital Zoom Random mouse drag to zoom in
platform
 Yes
Video Compression H.265
Recording Frame 16 CH 5MP @6FPS/CH
16CH 1080P @30FPS/CH
Recording Mode- Continuous / Schedule / Motion
Motion Detection Zones: 192(16×12 grid)
Pre-Record
 1-30 second
Post-Recording 10-300 second
Display Mode Single, Quad, 8-Split, 9-Split, 16-Split, Sequence
File Format MP4
Media Interface USB/Network
Playback YES
Network Protocol HTTP、DHCP、DDNS、NTP、SMTP、FTP、DNS、
UPNP、PPPoE、IP Authority、IP Search
Browser IE
Storage HDD Interface SATA
Maximum support capacity Maximum 8TB HDD
Internal HDD 4 pcs
File System stable and reliable self-developed file system
S.M.A.R.T HDD error detecting
Menu Display GUI interface；VGA & HD out& CVBS can
simultaneously display
Input Method Mouse
PTZ & Controller Pelco-D / Pelco-P ( RS-485)
Network Ethernet 1*RJ-45
Web Monitoring Live, Search/Playback, Backup, PTZ, Upgrade
Internal Buzzer Start Bee when power on
Language English / Simple Chinese/ Traditional Chinese
/ Japanese
Firmware Update USB, Network Remote Upgrade
Mobile Surveillance iPhone, Android
Mobile App supports Live video& audio,and playback
Central Management Software(CMS) Support
Hybrid(Digital & Analogue) Support
Operating Environment Temperature 0~+46ºC, Humidity: 20~80%
Power Supply DC 12V / 3A(AC100V~240V 50/60HZ)
Net Weight About 4.8kg (without HDD and Power Adapter)
Dimension 430mm x 370mm x 96mm (WxDxH)
