DVR
Product Features

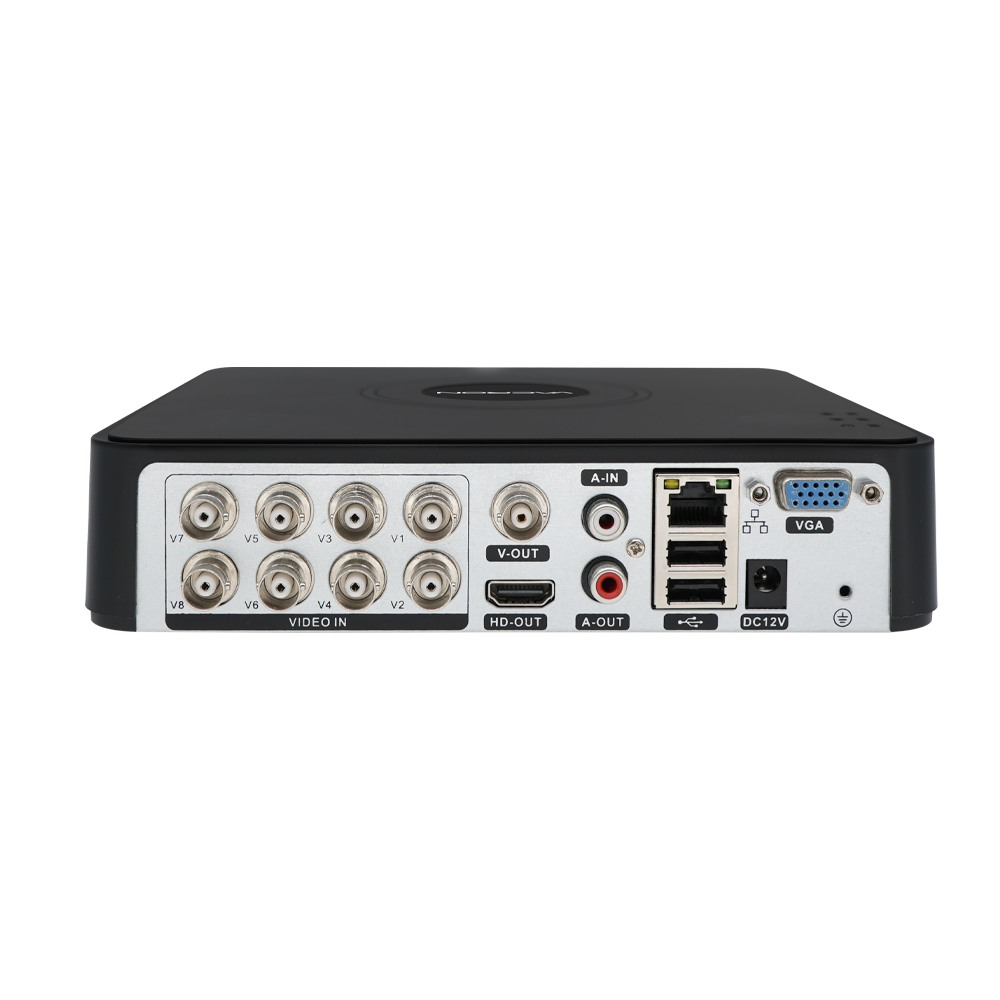

Video Input | 8 sets of BNC |
Video Output | VGA (Max. 1920x1080) HD Digital (Max. 1920x1080) CVBS |
I/O Interface |
RJ-45*1, 10/100 Base-T USB 2.0*2 |
Audio Input | 1 Input Channel |
Audio Output | 1 Output Channel |
Audio Compression | G.711U |
Resoluation | 1080P |
Digital Zoom | support |
Sequence | 5 seconds Auto-Seq |
Video Compression Format | H.264/H.265 |
monitoring | Under 1080P@15 frames per second mode, it can achieve real-time monitoring of 1 channel. Under 5MP@6 frames per second mode, it can achieve real-time monitoring of 1 channel. Or 4 channels of real-time monitoring in VGA resolution. |
Recording Mode- | Continuous, Scheduled, Displacement. |
Motion Detection | Grid setting, can set up 192 detection zones (16x12) |
Playback | Video playback up to 1 channel 5MP@6 frames per second 1 channel 1080P@15 frame/second or 8 channel VGA playback |
Display Mode | Single Screen/4-Split/9-Split/Sequence. |
File Format | MP4/self-defined format |
Media Interface | USB/Network |
Network Playback | YES |
Network Services | HTTP、DHCP、DDNS、NTP、SMTP、FTP、DNS、 UPNP、PPPoE、IP Authority、IP Search |
Browser | IE |
Web side |
Live video, search/playback, backup, remote configuration/update |
Hard Drive Interface | SATA |
Maximum Supported Capacity | Maximum 8 TB per single drive |
Number of Internal Hard Drives | 1 pcs |
External Storage | Supports real-time synchronized recording to USB storage devices. |
File System | Stable and reliable self-developed file system |
S.M.A.R.T | Hard Disk Error Check |
Operation Menu | Graphical User Interface (GUI); Supports simultaneous display on VGA, HD out, and CVBS |
Input Method | Mouse |
Daylight Saving Time |
support |
Multilingual | English, Traditional Chinese, Simplified Chinese, Japanese |
Software Update | USB Update, Remote Network Update |
Network Time Protocol | support |
App Monitoring | Supports monitoring (including audio) and playback on iPhone and Android. |
CMS (Central Management System) | support |
Hybrid Functionality(Digital & Analog) | support |
Operating Environment | Celsius 0 ~ 50 degrees, humidity 10 ~ 90% |
Power Source | DC 12V / 3A(AC100V~240V 50/60HZ) |
Net Weight | Approximately 0.45kg (excluding HDD and Power Adapter) |
Dimension | 197mm x 197mm x 43mm (Length x Width x Height) |
