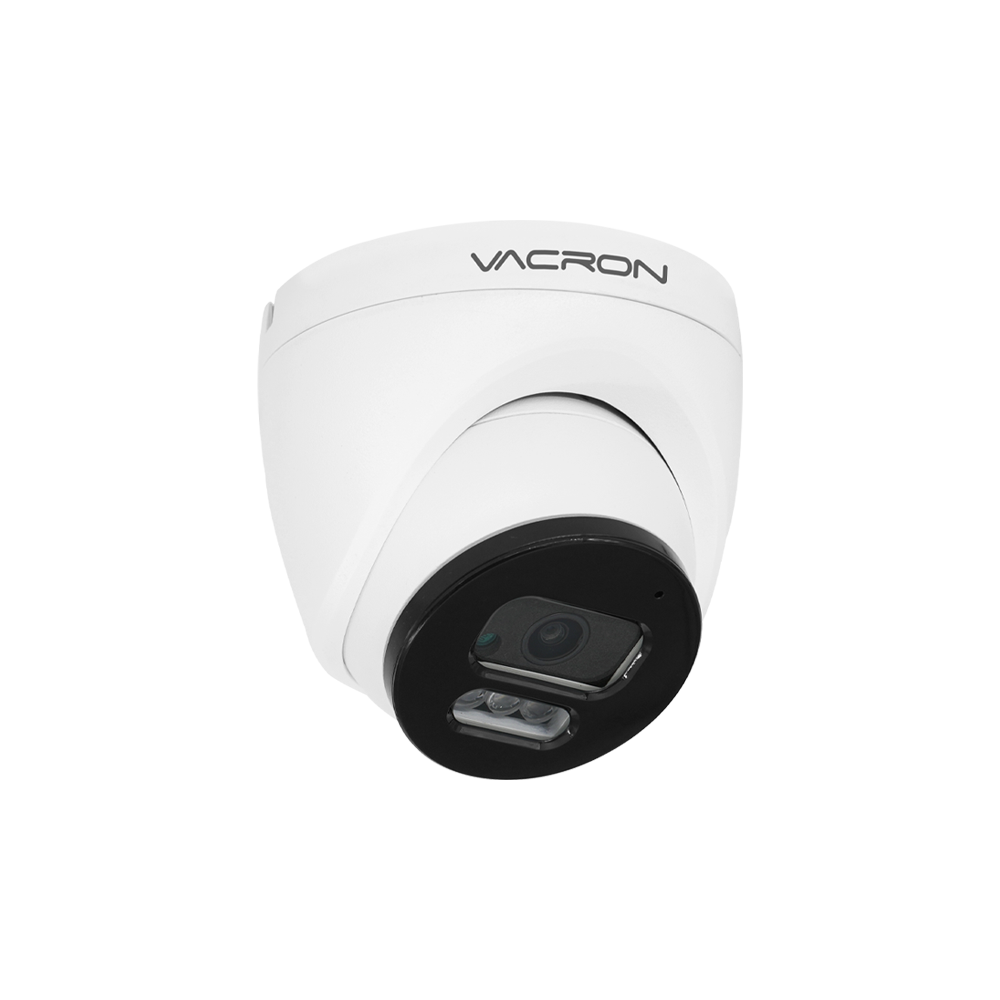

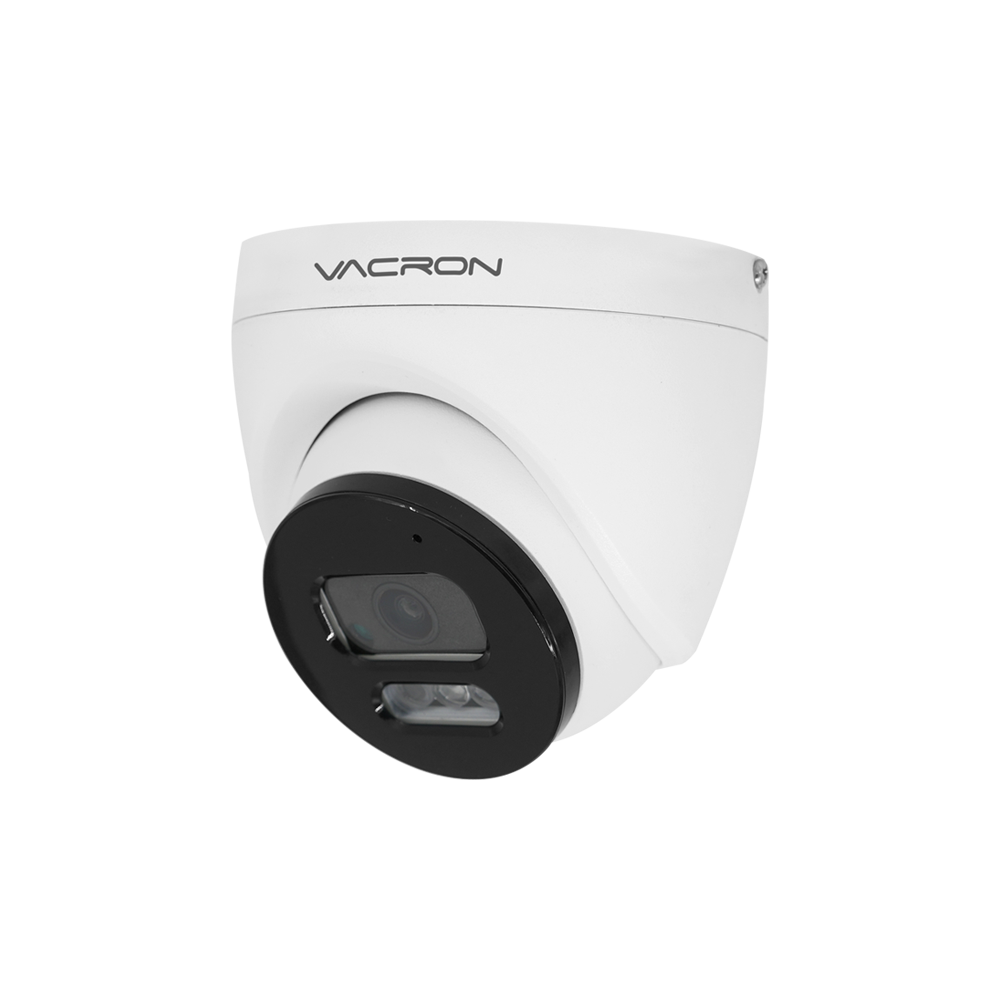

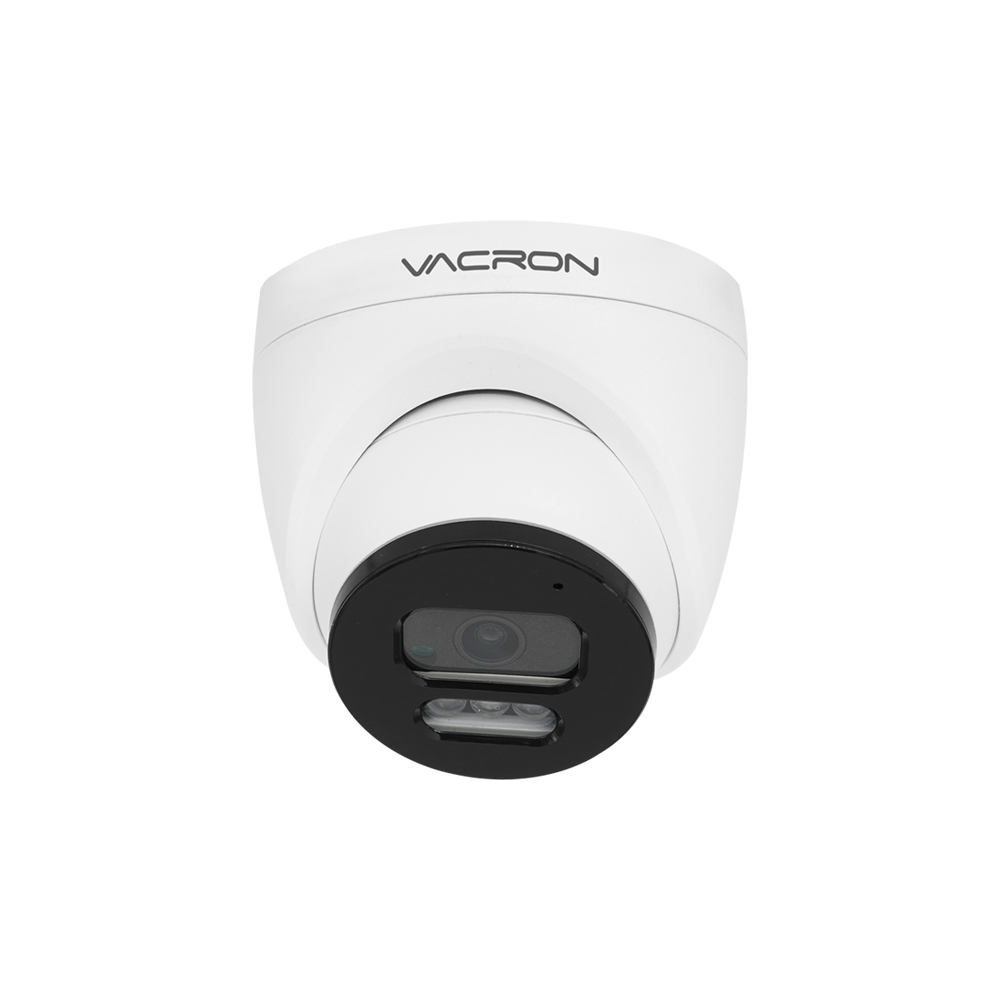

CCTV Camera
5MP / IR
LENS 3.6mm
15M
0.1 LUX
1/3CMOS
-20~50°C
DC 8~28V
55 dB
3 LEDs
Product Features
|
Pick Up Element |
1/3" CMOS sensor |
|
Video System |
NTSC / PAL |
|
Image Signal Process |
Digital Signal Processor |
|
Lens |
3.6mm |
|
Number Of Pixel |
2560 (Horizontal) x 1944(Vertical) |
|
Horizontal Resolution |
5MP@20fp/12.5fp |
|
Power Supply |
DC 8~28V |
|
Power Consumption |
120mA (IR Off)；200mA (IR On) |
|
ICR |
Support |
|
Format |
25FPS / 30FPS / PAL / NT |
|
Audio |
TVI support(with microphone) |
|
S/N Ratio |
≧55dB |
|
White Balance |
Auto |
|
Gain Control |
Auto |
|
Gamma correction |
Auto |
|
Day Night Auto Switch |
Support |
|
LEDs |
3 PCS |
|
IR Range |
15M |
|
IR Wavelength |
850nm |
|
Minimum Illumination |
0.1Lux |
|
OUTPUT |
AHD or CVBS or TVI or CVI (Default setting: TVI Mode) |
|
Language |
English / Simplified Chinese / Traditional Chinese |
|
Operating Temperature |
-20℃~50℃ |
|
Dimensions (H×W×D) |
Φ 96.23mm x 85.5 mm |
|
Weight |
About 270g |
