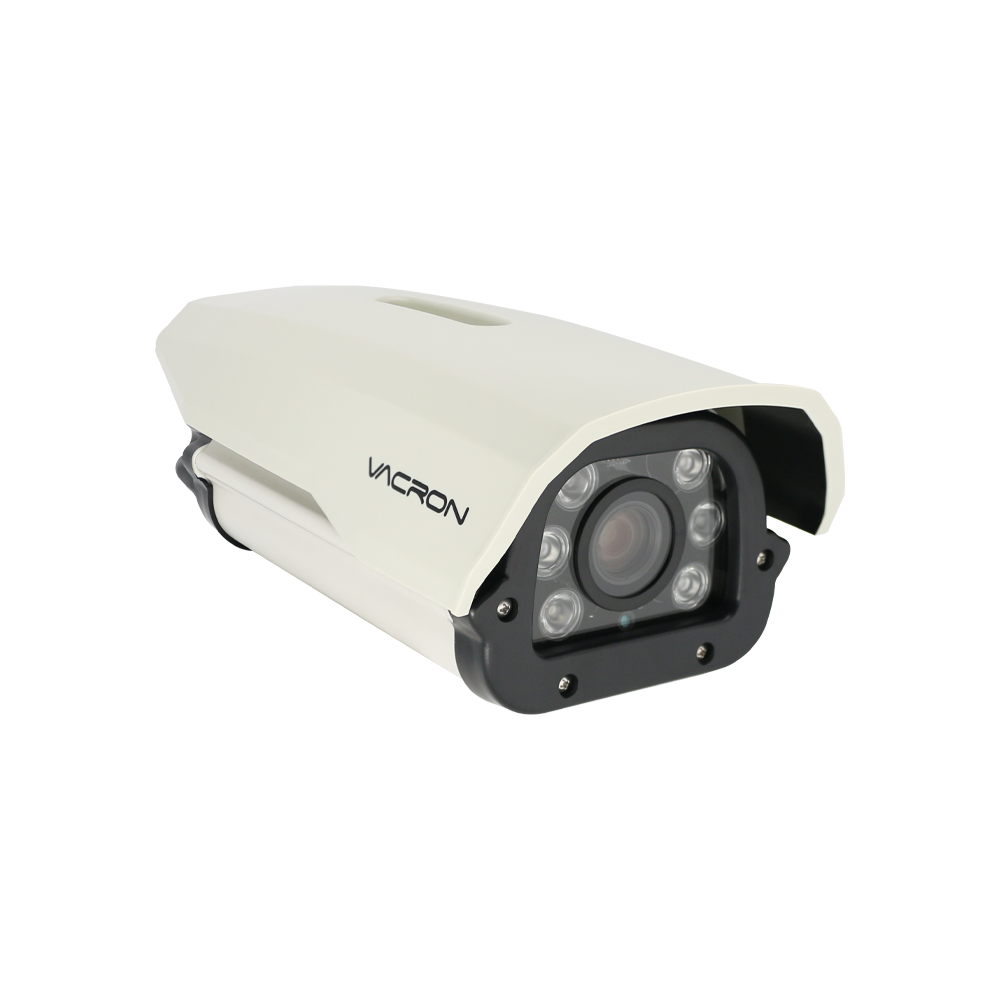

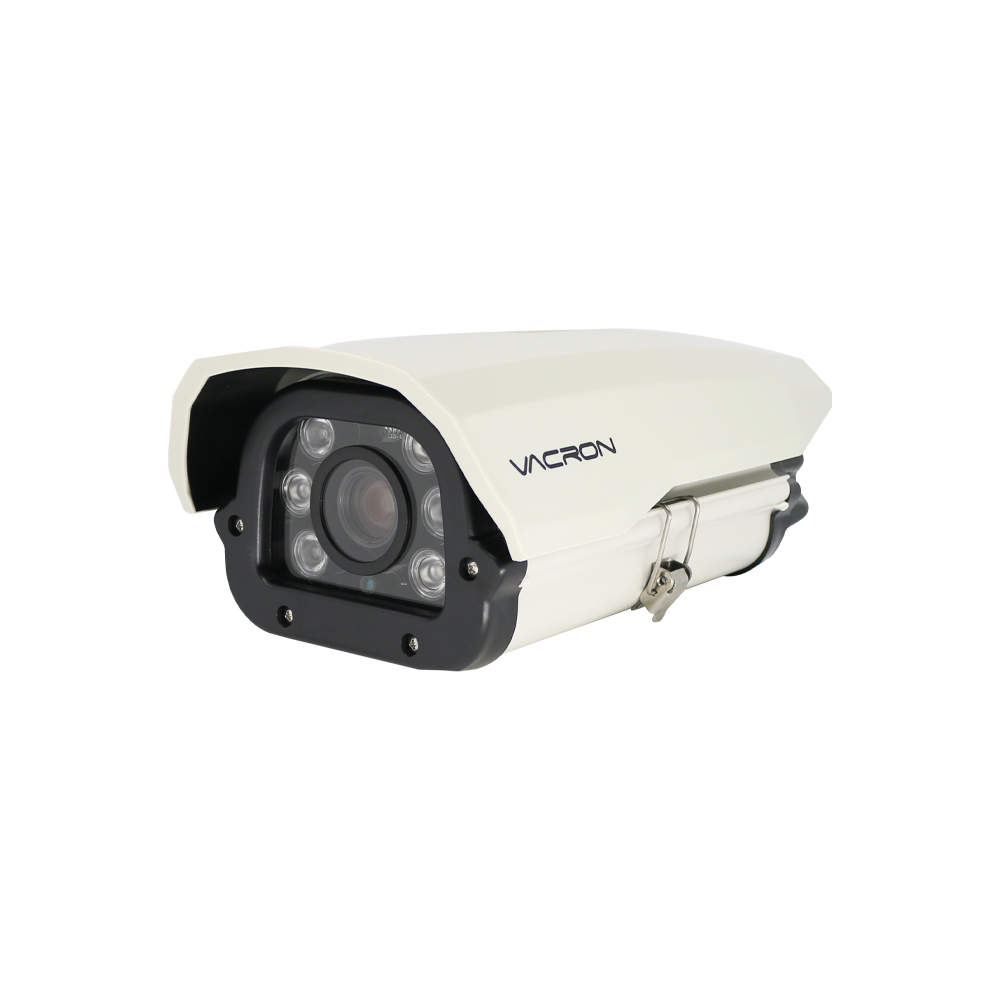

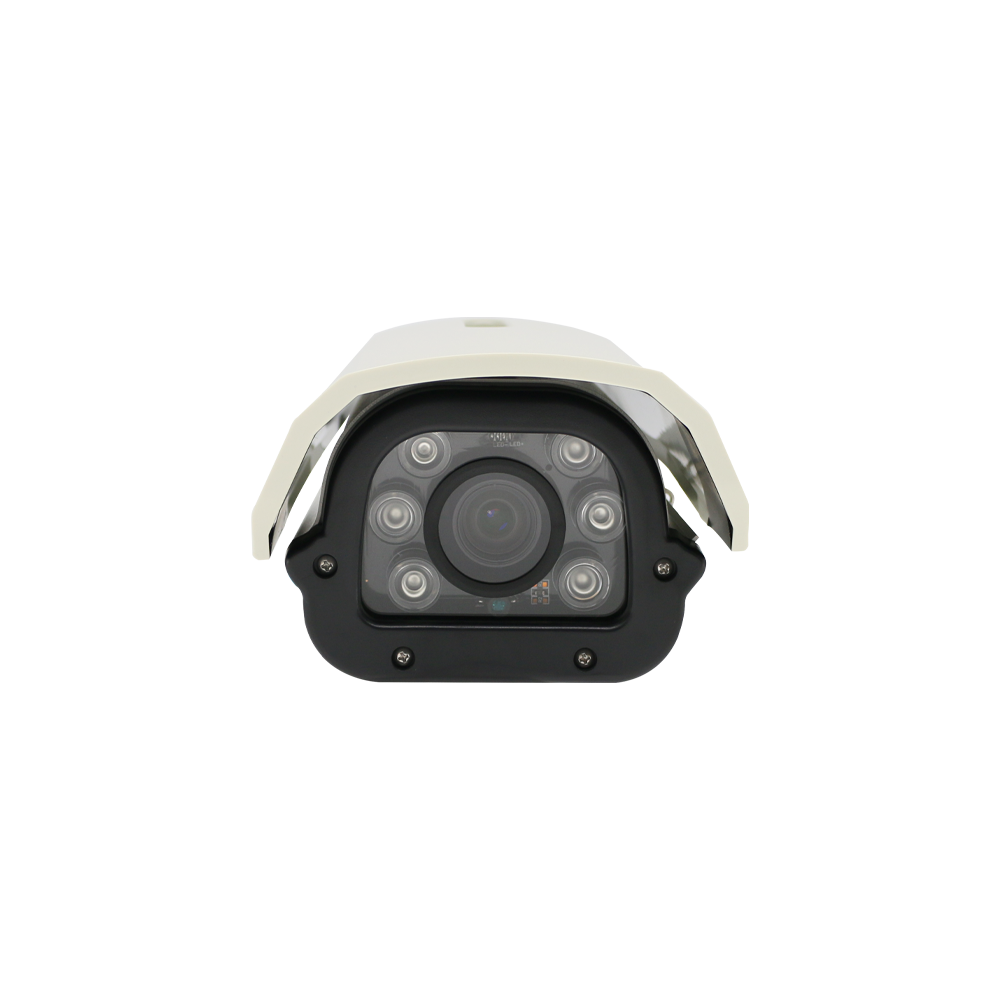

CCTV Surveillance System

CCTV Camera

VCF-5M63H

5MP / Bullet / IP66 / IR

  • DC12V

  • 6 LEDs

  • 0 LUX

  • 50dB

  • 60M

  • LENS2.8~12MM

  • 1/3CMOS

  • -20~50°C

Download Catalog

Product Features

  • 1/2.8" CMOS sensor
  • 5MP video quality transmission, up to 2592 x 1944 pixels
  • 2.8-12 mm lens
  • AHD or CVBS or TVI or CVI output switch
  • IP Rating: IP66
Pick Up Element 1/2.8" CMOS sensor
Video System NTSC/PAL
Image Signal Process Digital Signal Processor
Lens 2.8-12mm
Number Of Pixel 2592 (Horizontal) x 1944 (Vertical)
Horizontal Resolution 5MP@20fps
Power Supply DC 12 ± 1V
Power Consumption 120mA(IR Off)；800mA(IR On)
ICR Support
Electronic Shutter Auto
White Balance Auto
Gain Control Auto
S/N Ratio ≥50dB
Day Night Auto Switch Support
LEDs 6 PCS
IR Range 60M
IR Wavelength 850nm
Minimum Illumination 0 Lux
OUTPUT AHD or CVBS or TVI or CVI
(Default setting: AHD Mode)
Language English / Simplified Chinese / Traditional Chinese / Polish/ Italian / Portuguese
IP Rating IP66
Operating Temperature -20℃~+50℃
Dimensions (H×W×D) 320mm x 160mm x 110mm
 Weight About 1000g

Version updating is not going to inform, please check the on-going updating information
