IP Surveillance System

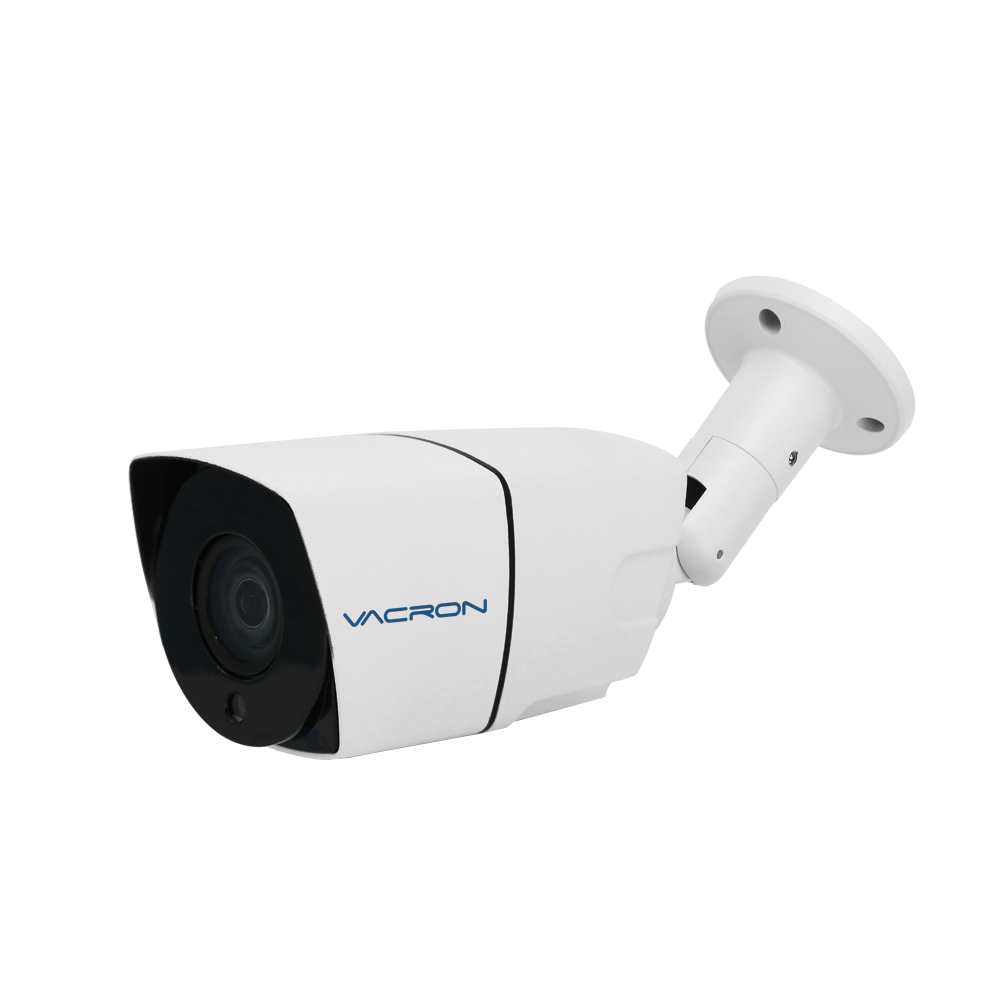

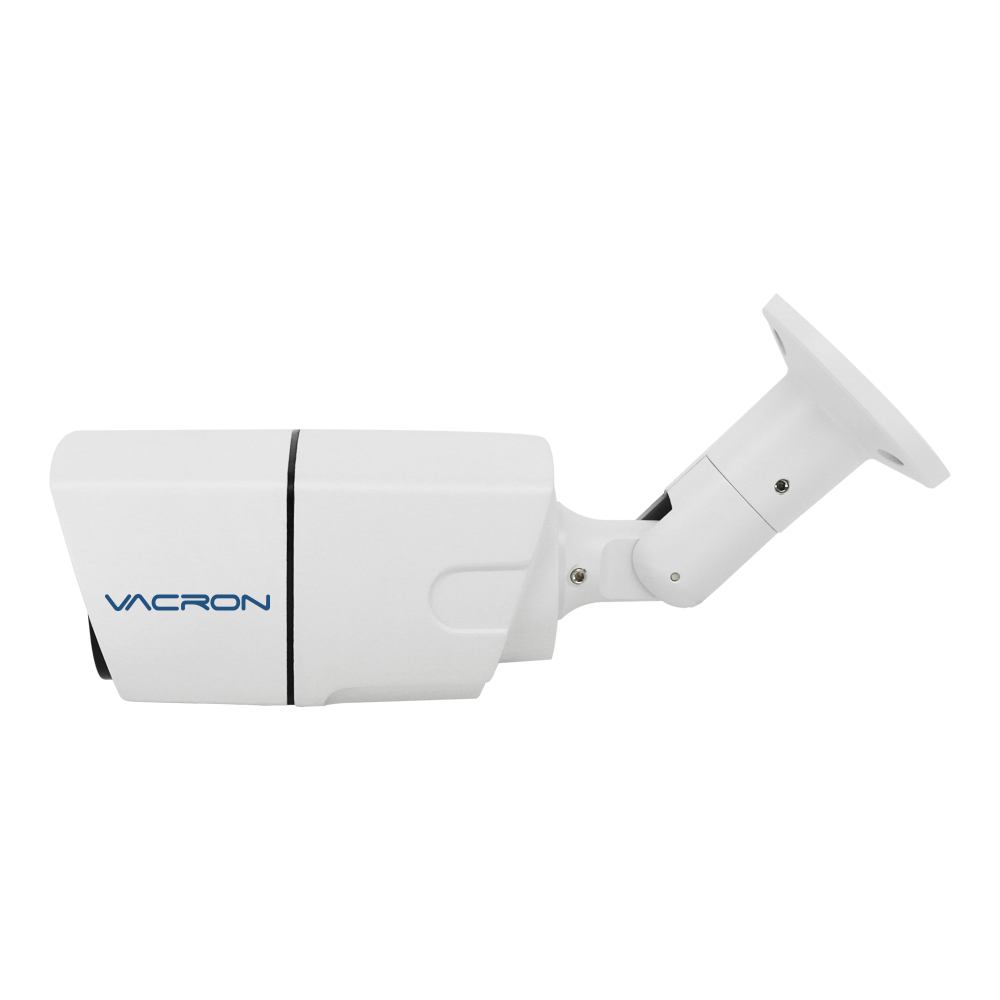

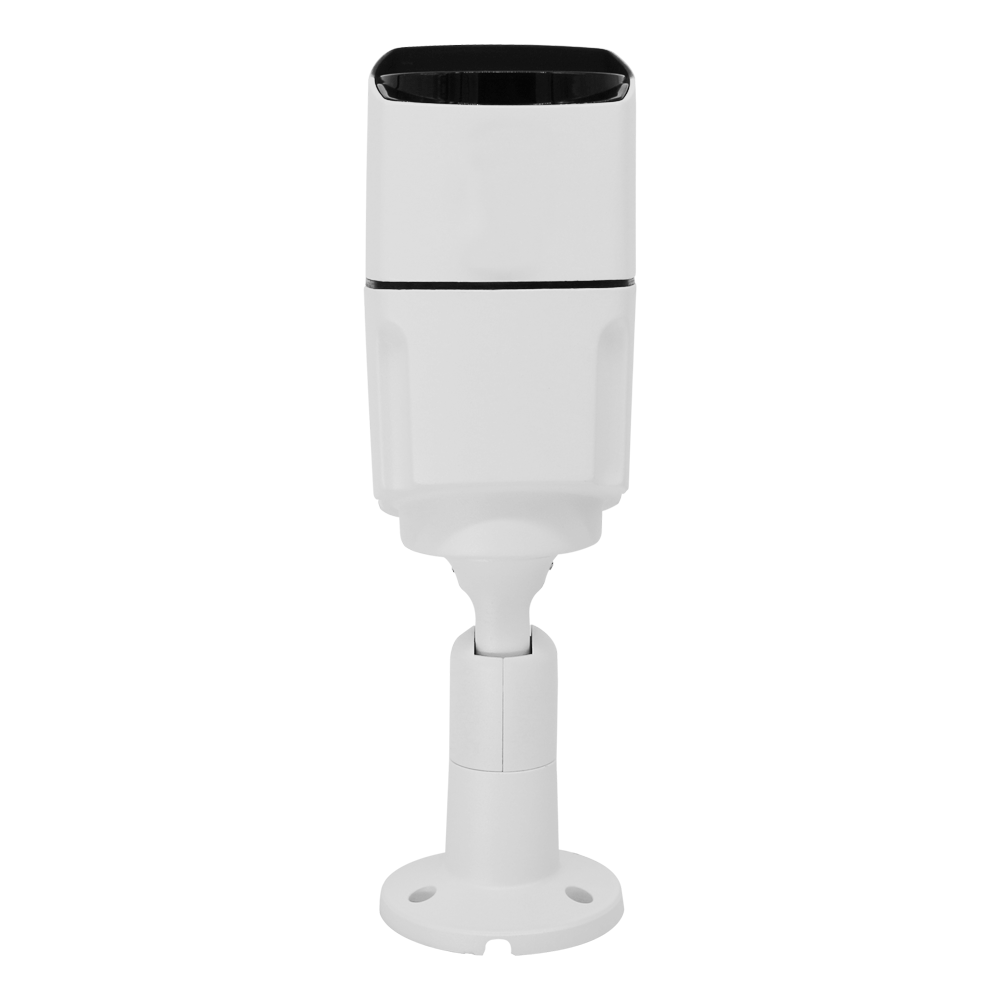

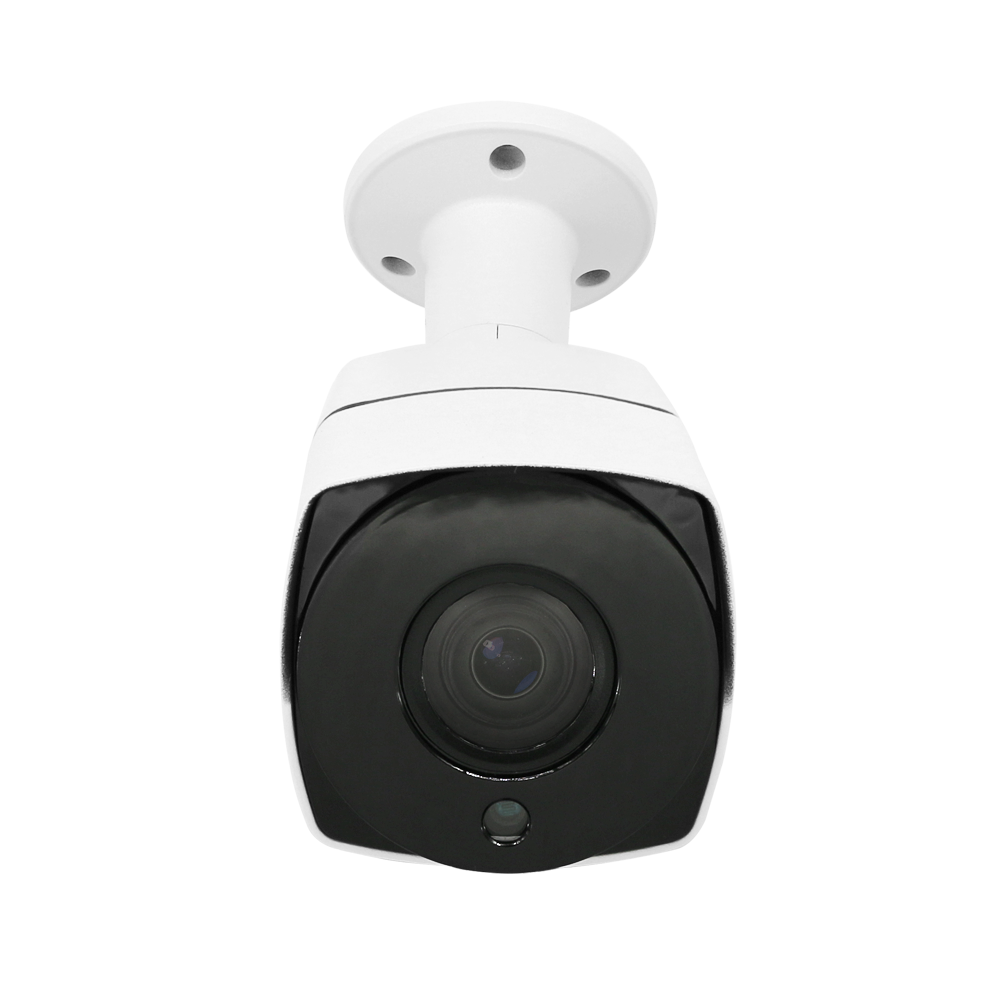

IP Camera


5MP / IP66 / Bullet / H.265+ / IR / AF

  • 0.01 LUX

  • P.O.E

  • LENS2.8~12MM

  • 1/2.8"CMOS

  • 0~45°C

Download Catalog

Product Features

  • Sony 5MP 1/2.8” COMS Image Sensor
  • Built in electronic auto AF Lens motor, user friendly for remote config
  • Real-time H.264,H.265+,Mjpeg Compression(dual codec)
  • Highest Resolution 2560x1920 @15 fps
  • HI-POWER LED 8PCS , 30M IR ranges
  • Support ONVIF international standard, best compatibility and integration
System Flash:16MB
Sensor SONY FullHD High Quality 1/2.8” CMOS Image Sensor
Lens Auto Varifocal 2.8-12mm f1.4
IR Cut Removable IR-cut filter for day & night function
Lux 0.01Lux
Compression H.265+:2560x1920 at 15fps
H.265+: 2048x1536 at 20fps
H.265+: 1920x1080 at 30 fps
Compression: H.264, H.265+,MJPEG Streaming:
Dual Codec Selectable
Support Simultaneous multiple streams
Video Adjustment Adjustable image size,quality, and bit rate
Time/Date stamp and text caption overlay
Configurable brightness, contrast, saturation, sharpness,
white balance and exposure
Have: AGC、AWB、AES、BLC、WDR Features
Network Interface 10 /100 Mbps RJ-45
Browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm and Event Management- Motion Detection
Event notification using SMTP or FTP
Users 8 clients on-line monitoring at the same time
Multi-level user access control with password protection
Maintenance Supports online firmware upgrade
I/O Port DC12V RJ-45 Ethernet x 1,DC12V
Power DC12V or PoE IEEE802.3af Class 0 (optional)
Power Consumption 3.6W(IR OFF)、7W(IR ON)
Weight Net weight:650g
Dimension 255mm x 75.3mm x 75mm
Operating Environments 0 ~ 45 °C
IP Rating IP66
