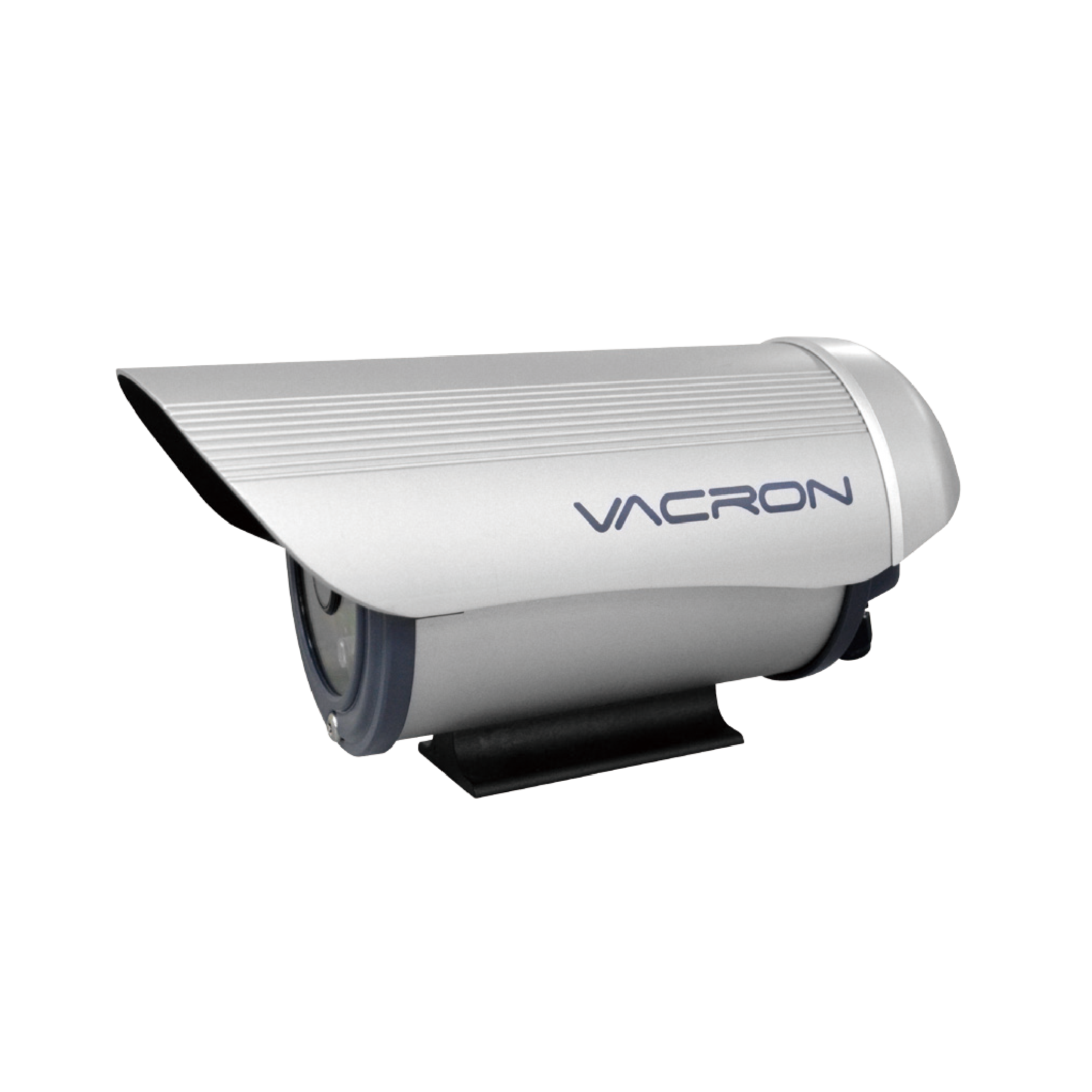

IP Surveillance System

IP Camera


1080P / Bullet / IP66 / IR / H.265+

  • 0.01 LUX

  • P.O.E

  • LENS2.8~12MM

  • 1/2.8"CMOS

  • 0~45°C

Download Catalog

Product Features

  • SONY 2M Pixels 1/2.8" CMOS Sensor with excellent image quality
  • Strengthen night monitoring. Excellent low-light sensitivity
  • Built-in electronic auto focus (AF) lens motor, user friendly for remote config
  • Real-time H.265+, H.264, MJPEG compression (Dual codec)
  • Maximum resolution 1920x1080 at 30 fps
  • 8 Hi-Power Led, 30M IR range
  • Support ONVIF international standard, best compatibility and integration
Video System Flash:16MB
Image Sensor SONY Full HD High Quality 1/2.8” CMOS Image Sensor
Lens Auto Varifocal 2.8-12mm f1.4
IR-cut Removable IR-cut filter for day & night function
Low Lux 0.01Lux
Video H.265+: 1920x1080 at 30 fps
H.265+: 1280x720 at 30 fps
H.265+: 640x480 at 30 fps
H.265+、H.264、JPEG Multi-mode compression (Dual Codec)
Support Simultaneous multiple streams
Image Settings 1.Adjustable image size, quality, and bit rate
2.Time/Date stamp and text caption overlay
3.Configurable brightness, contrast, saturation, sharpness,
white balance and exposure
4.Have: AGC、AWB、AES、BLC、WDR Features
Networking Interface 10 /100 Mbps RJ-45
Communication Protocol IPv4, TCP/IP, DHCP, HTTP, RTSP, SNTP, DNS
Browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm and Event Management Motion Detection
Event notification using SMTP or FTP
Users 8 clients online monitoring simultaneously
Multi-level user access control with password protection
Maintenance Support online firmware upgrade
I/O RJ-45 Ethernet x 1, DC12V
Power DC12V or PoE IEEE802.3af Class 0 (optional)
Max. Power Consumption 3.6W(IR OFF)、7W(IR ON)
Weight Net weight: 965g
Dimensions 245mm x 120mm x 120mm
Operating Temperature 0 ~ 45 °C
IP Rating IP66
