IP Surveillance System

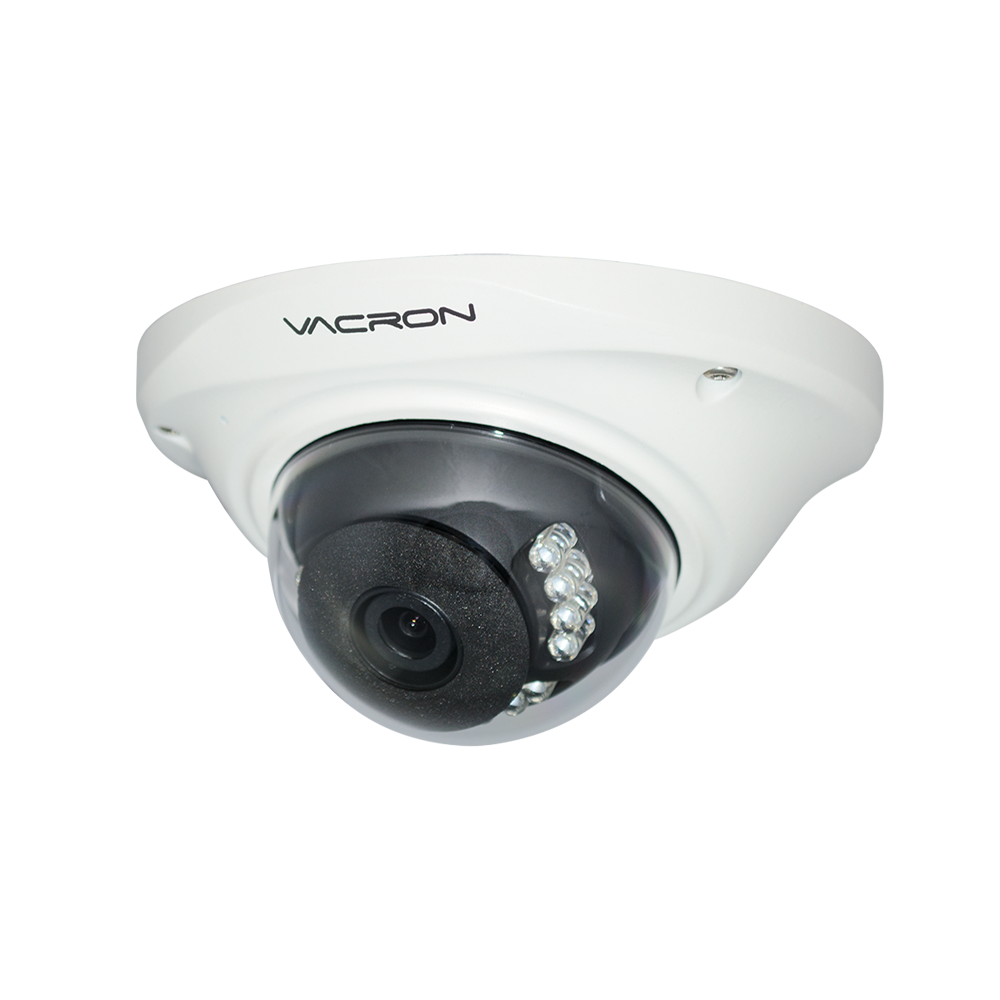

IP Camera

VIG-DJ782A-Z5

1080P / Dome / IR / H.265+

  • DC12V

  • 1/2.9"CMOS

  • LENS 3.6mm

  • 12 LEDs

  • 15M

  • P.O.E

Download Catalog

Product Features

  • 2M Pixel 1/3" CMOS Sensor with excellent image quality
  • Real time H.265+ / H.264 / MJPEG Multi-Mode compression (Dual Codec)
  • Resolution 1920*1080 @ 30fps
  • 12pcs IR LED, IR Distance 15M
  • Support ONVIF international standard, best compatibility and integration
Video System Flash:16MB
RAM:128MB
Sensor FullHD High Quality 1/3” CMOS Image Sensor
Lens Board Lens 3.6 mm F2.0
IR cut Removable IR Cut filter
Lux 0 Lux(IR ON)
IR LED IR LED 12pcs
Compression H.265+: 1920x1080 at 30 fps
H.265+: 1280x720 at 30 fps
H.265+: 640x480 at 30 fps
H.265+、H.264、JPEG Multi-mode compression (Dual Codec)
Multi-mode compression streaming
Video Adjustment 1.Adjustable image size, quality, and bit rate
2.Time、Date or custom text and it’s position
3.Brightness, Contrast, Saturation and Sharpness
4.Have: AGC、AWB、AES、BLC、WDR Features
Networking Interface 10 /100 Mbps RJ-45
Protocol IPv4, TCP/IP, DHCP, HTTP, RTSP, SNTP, DNS
Browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm and Event Management Motion Detection
E-mail notification or upload file to FTP
Users Max. 8 users for live view simultaneously
User Authorization
OTA OTA for Firmware upgrade
I/O Port RJ-45 , DC12V
Power DC12V or PoE IEEE802.3af Class 0 (optional)
Power Consumption 3.6W(IR OFF)、7W(IR ON)
Weight 450g
Dimensions Φ 120 x 60 mm
Operating Temperature 0 ~ 45 °C
