CCTV Surveillance System

DVR

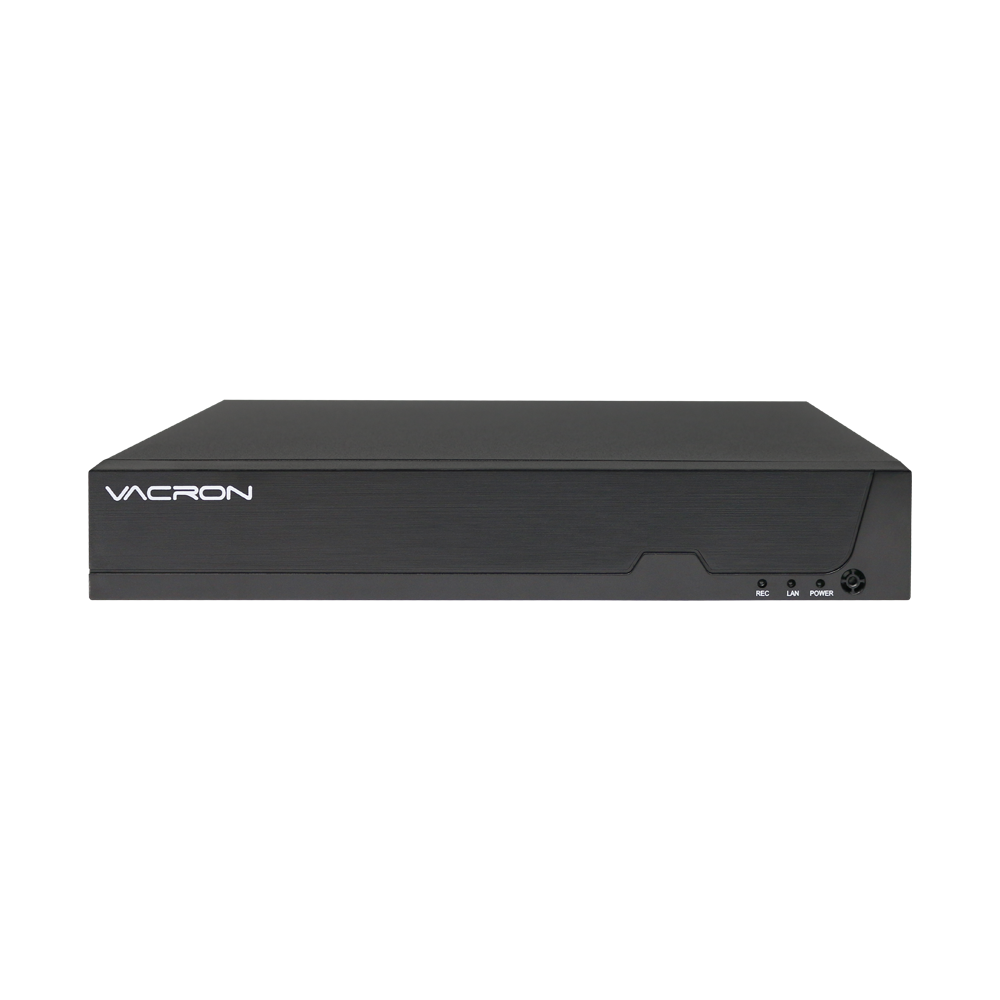

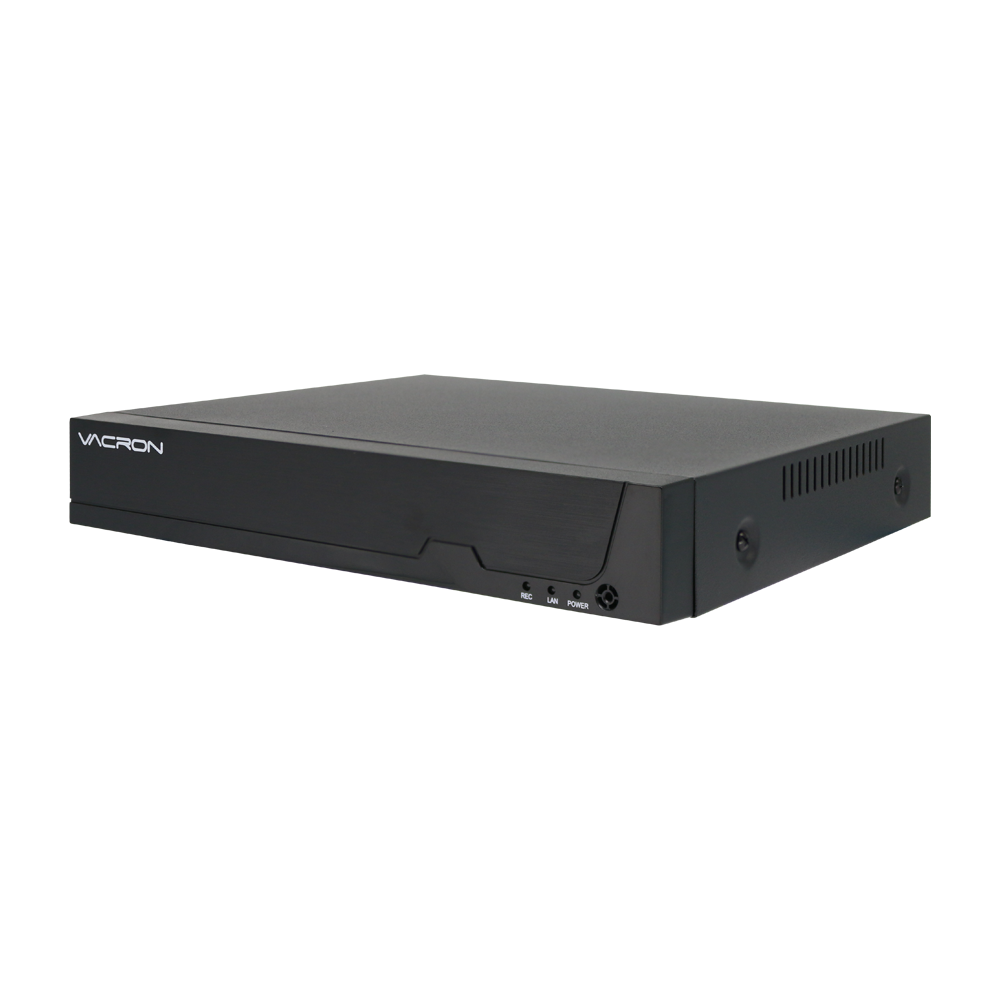

VDF-DKZ604C

5MP / 4CH / 4G / H.265 / HDD

  • Motion

  • LAN

  • CMS

  • GUI

  • Users

Download Catalog

Product Features

  • Pentaplex Operation: which can Record / Playback / Remote Connection / mobile phone watch
  • Single hard drive can be up to 10TB.
  • Support HD output
  • Support IE. On-line recording/playback and user management are available.
  • Support HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, IP rights, IP search
    and other Internet services.
  • Support iPhone, Android, including live video monitoring, playback.
  • Support CMS(Central Management System).
  • Back-up to USB storage at the same time when recording.
  • Various modes supported , both analog & digital IP signal can be connected to DVR as hybrid features.
  • With P2P function, scan QR-Code on the smartphone app to get instant monitoring and playback, and high information security
  • Set NVR on IPCAM mode to get an auto connection on Fuho plug-n-play IP Cam.
  • Support 4G dongle.
  • Support for automatic firmware updates.
  • Supporting AHD, CVI, TVI, CVBS, and digital IP signals.
Video Input 4CH Input / BNC(1Vp-p 75Ω)
Video Output VGA Resolution
High Definition(HD)
4CH Input 1CH Input
Audio Output 1CH Output
Audio Compression G.711A
Resoluation 1080P
Digital Zoom Area selected by mouse dragging
Auto Sequence Duration yes
Video Compression H.265
Frame 4CH 5M @6fps/CH ;
4CH 1080P @15fps/CH ;
Recording Mode- Continuous/ Schedule/ Motion
Motion Detection Zones: 192(16×12 grid)
Pre-Record 1-5 sec
Post-Recording 10 ~ 300 sec
Display Mode Single, Quad, Sequence
File Format MP4
Media Interface USB/Network
Playback YES
Communication Protocol HTTP、DHCP、DDNS、NTP、SMTP、FTP、DNS、
UPNP、PPPoE、IP Authority、IP Search
IE
Browser IE
Storage HDD Interface SATA
Maximum support capacity Maximum 10TB HDD
Internal HDD 1 pcs
File System stable and reliable self-developed file system
S.M.A.R.T HDD error detecting
Menu Display GUI interface；VGA & HD outsimultaneously
Input Method Mouse
PTZ & Controller Pelco-D / Pelco-P ( RS-485)
Network Ethernet 1*RJ-45, 10/100 Base-T
Web Monitoring Live, Search/Playback, Backup,
Remote Setup/Upgrade
Internal Buzzer Beep warning sound on system start
Multi Language English, Simplified Chinese, Traditional Chinese, Japanese
Firmware Update USB, Network Remote Upgrade
Network Time Protocol(NTP) Yes
4G Mobile Phone iPhone, Android, Mobile App supports Live video
& audio, and playback.
Intelligent Video Analytics YES. Motion detection, removals, entry/
exiting detection
Central Management Software(CMS) Yes
Hybrid(Digital & Analogue) Yes
Operating Environment Temperature 0~46ºC, Humidity: 20~80%
Power DC 12V / 3A(AC100V~240V 50/60HZ)
Weight About 0.8kg ( without HDD and Power Adapter)
Dimension 260mm x 215mm x 42mm (W x D x H)
