CCTV Surveillance System

CCTV Camera

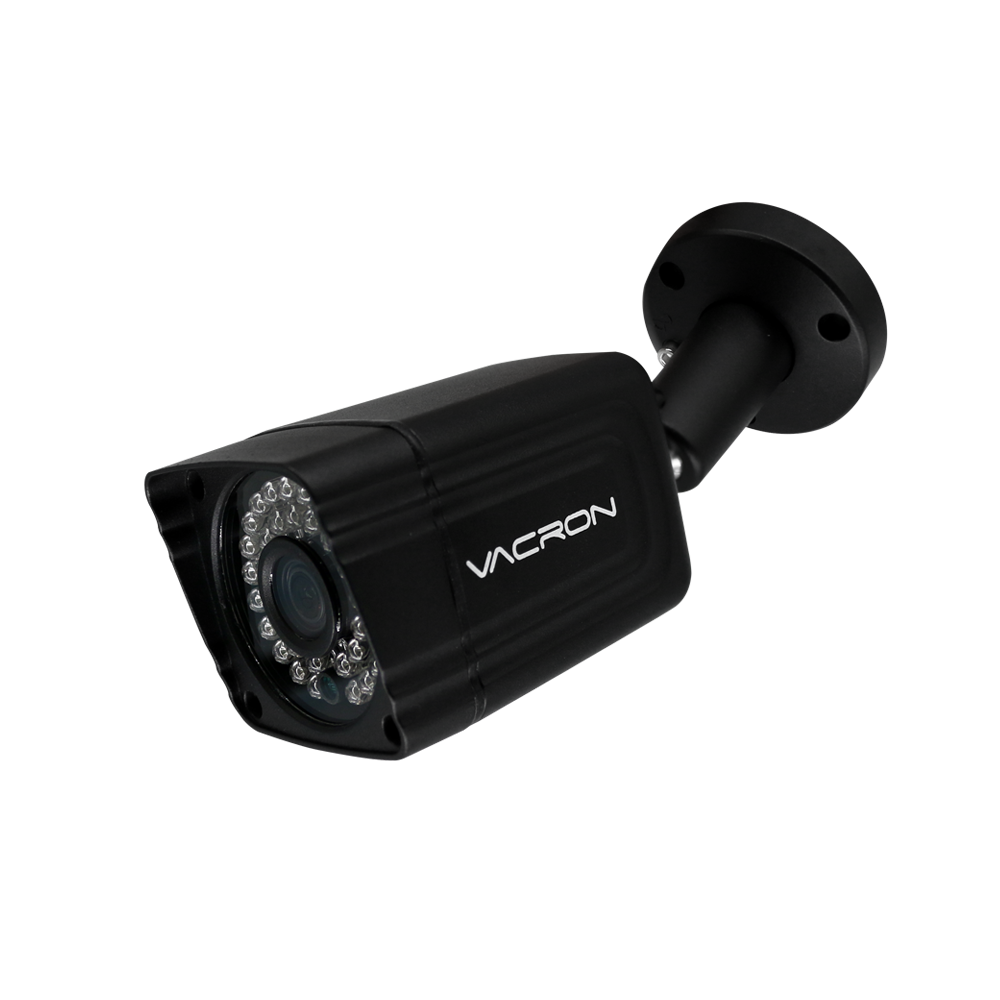

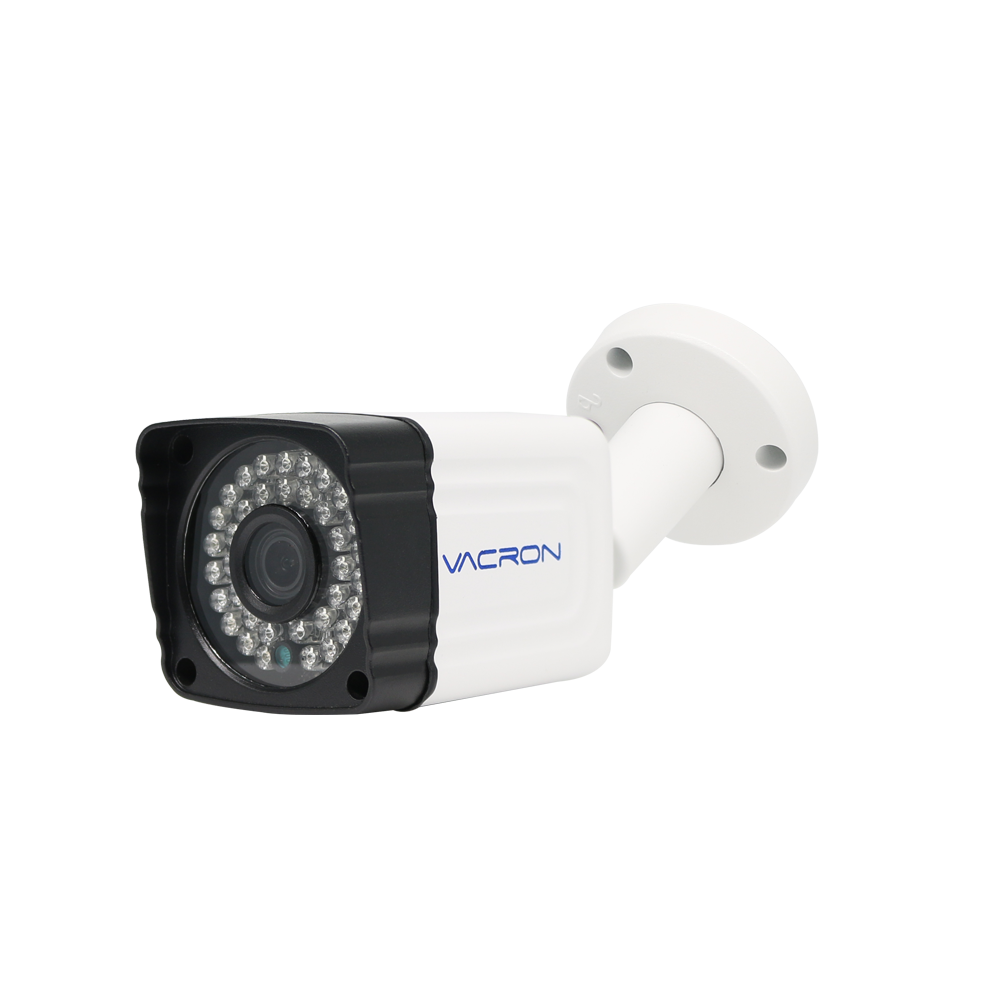

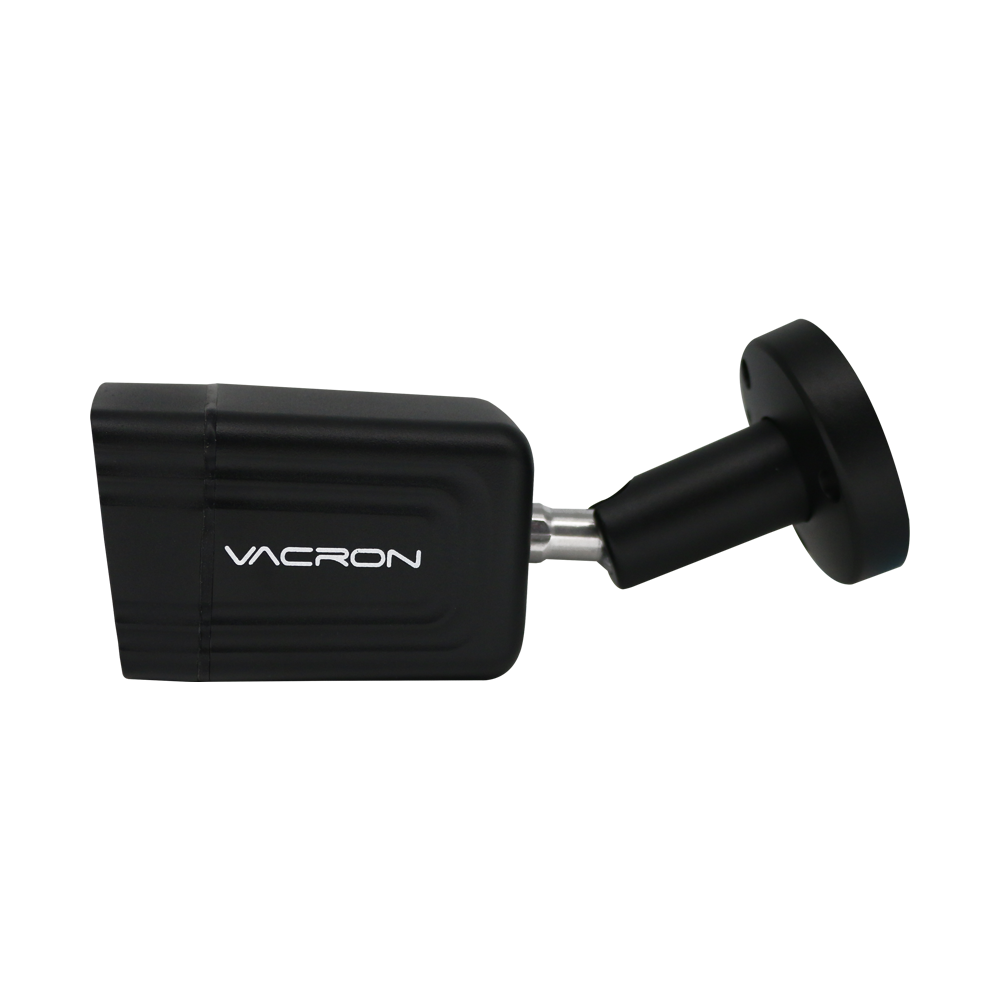

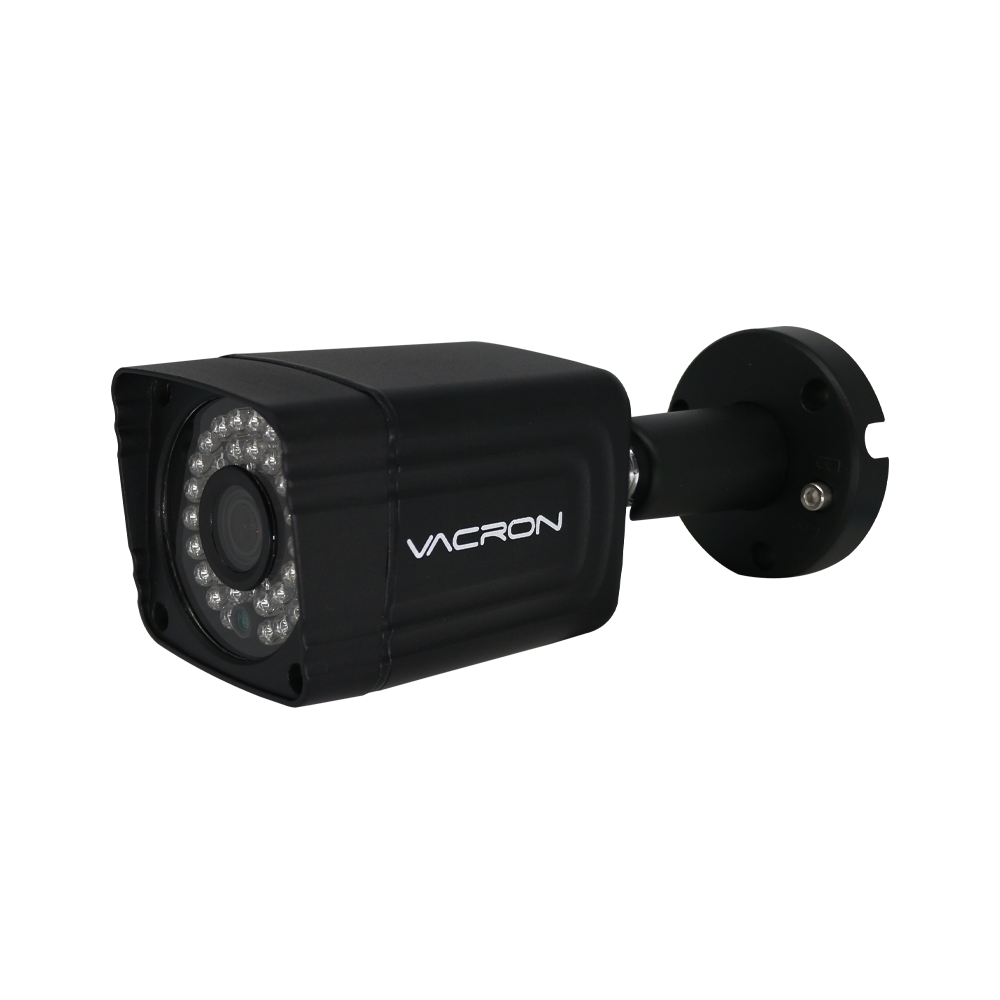

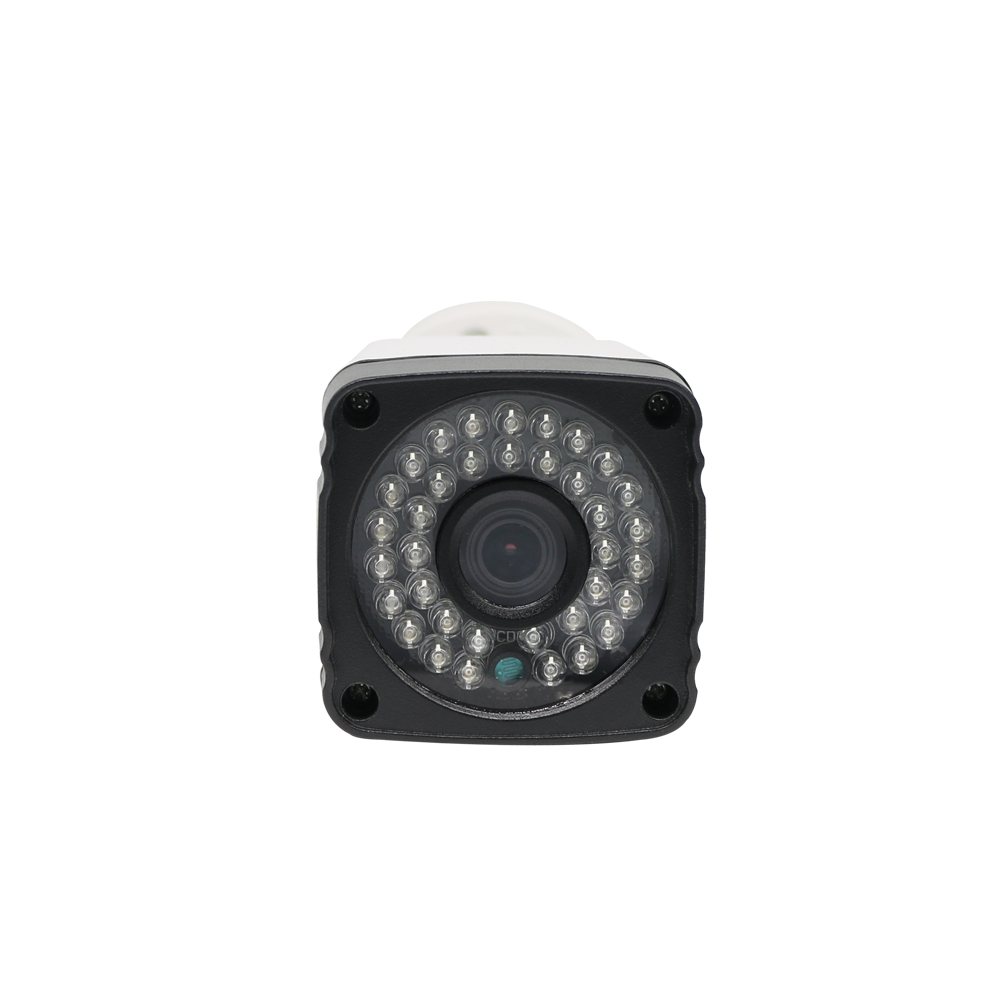

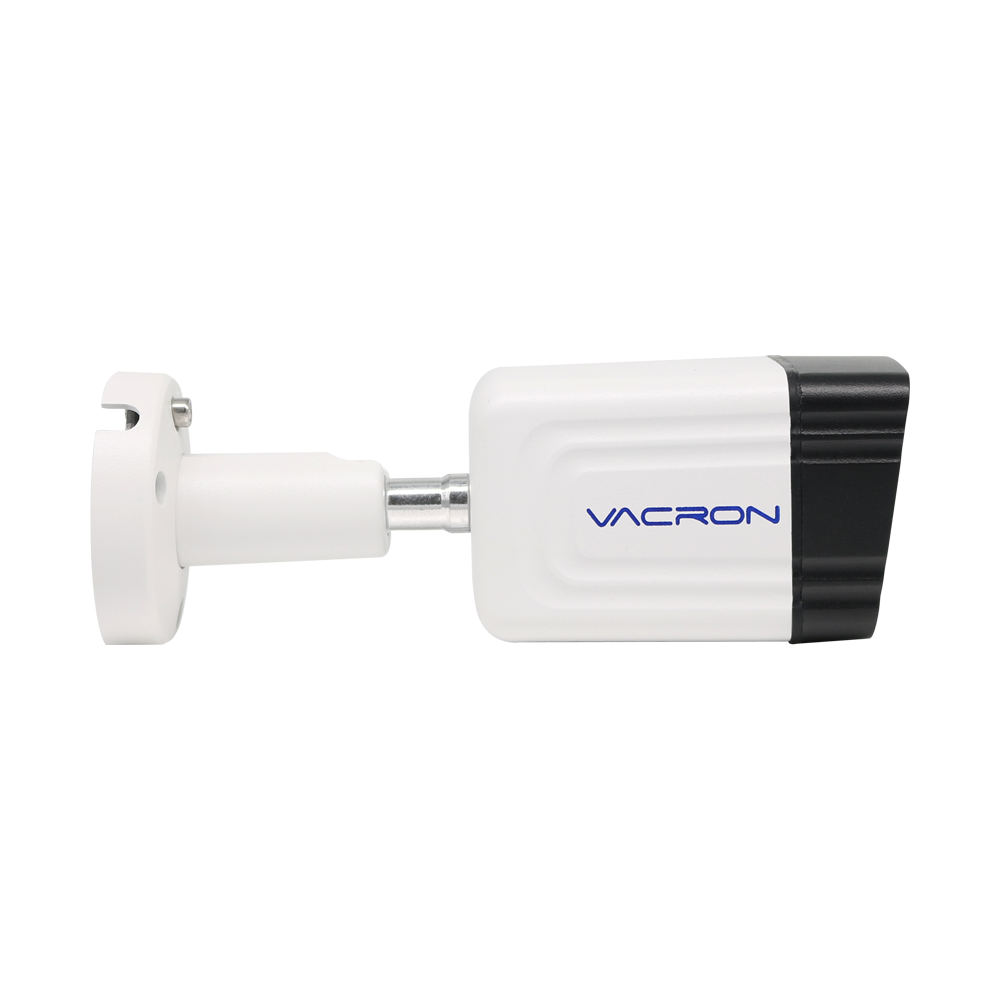

VCF-5K60Q

5MP / Bullet / IP66 / IR

  • DC12V

  • LENS 3.6mm

  • 50dB

  • 35 m

  • 36 LEDs

  • 0.2 LUX

  • -20~85°C

  • CMOS 1/2.5"

Download Catalog

Product Features

  • 1/2.5" CMOS sensor.
  • AHD 5MP high video quality transmission, up to 2608 x 1952 pixels.
  • AHD or CVBS or TVI or CVI output switch.
  • IP Rating: IP66

Pick Up Element

1/2.5" CMOS sensor

Video System

NTSC / PAL

Image Signal Process

Digital Signal Processor

Lens

3.6mm

Number Of Pixel

2608 (Horizontal) x 1952(Vertical)

Horizontal Resolution

5M@20fps

Power Supply

DC 12 ± 1V

Power Consumption

120mA (IR Off)；800mA (IR On)

ICR

Support

Electronic Shutter

Auto

White Balance

Auto

Gain Control

Auto

S/N Ratio

≥50dB

Day Night Auto Switch

Support

LEDs

36 PCS

IR Range

35M

IR Wavelength

850nm

Minimum Illumination

0.2Lux

OUTPUT

AHD or CVBS or TVI or CVI
(Default setting: AHD Mode)

Language

English / Simplified Chinese / Traditional Chinese /
Russian / Italian / Portuguese

IP Rating

IP66

Operating Temperature

-20℃~85℃

Dimensions (H×W×D)

200mm x 63mm x 63mm

Weight

About 310g

Download support

Download Manual

　 　 　 　 　 　 　 　 　 　
Product Model DownloadExplanation
VCF-5K60Q V.01
