IP Surveillance System

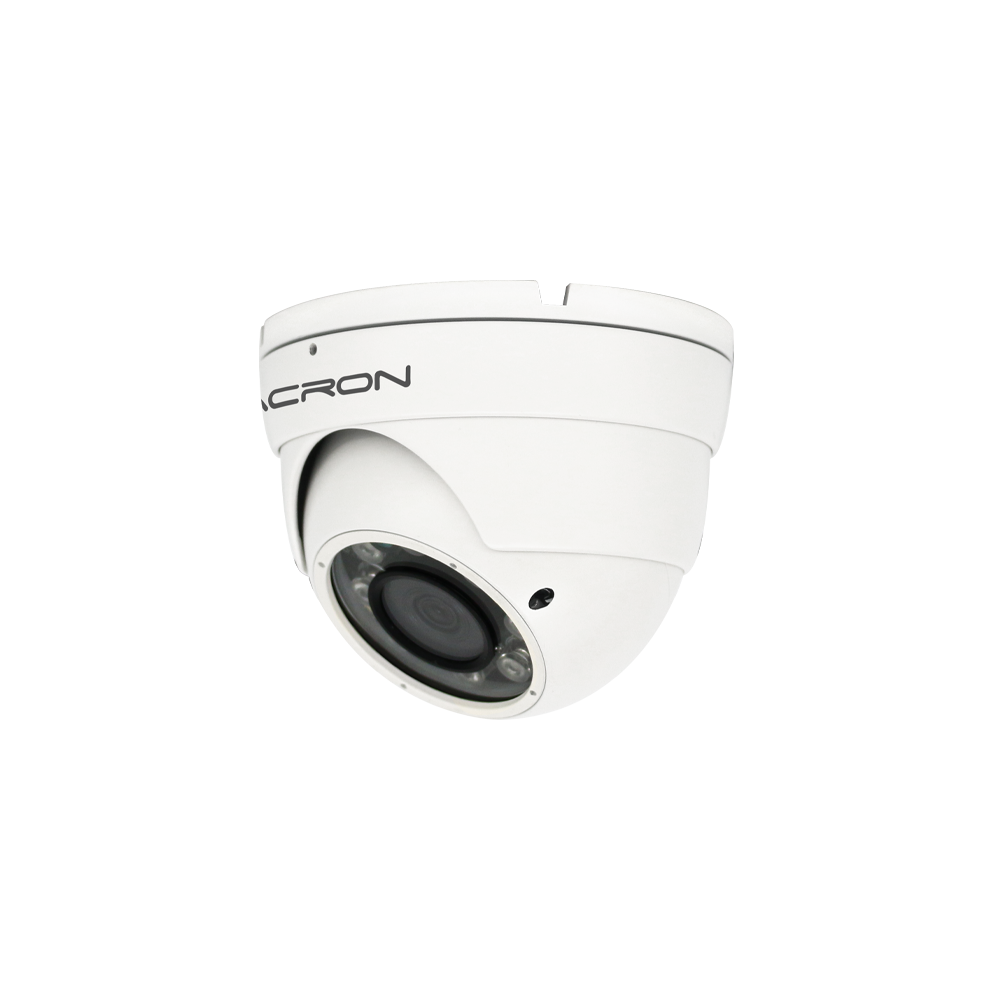

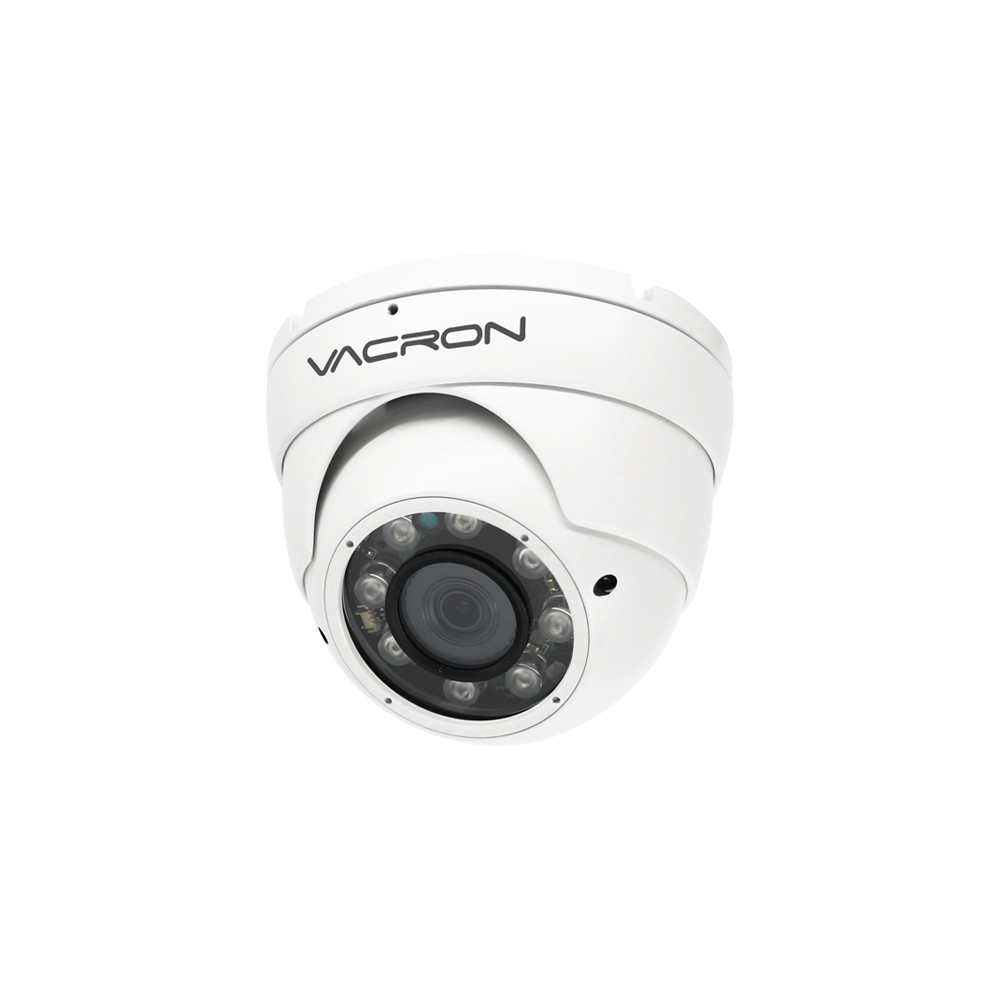

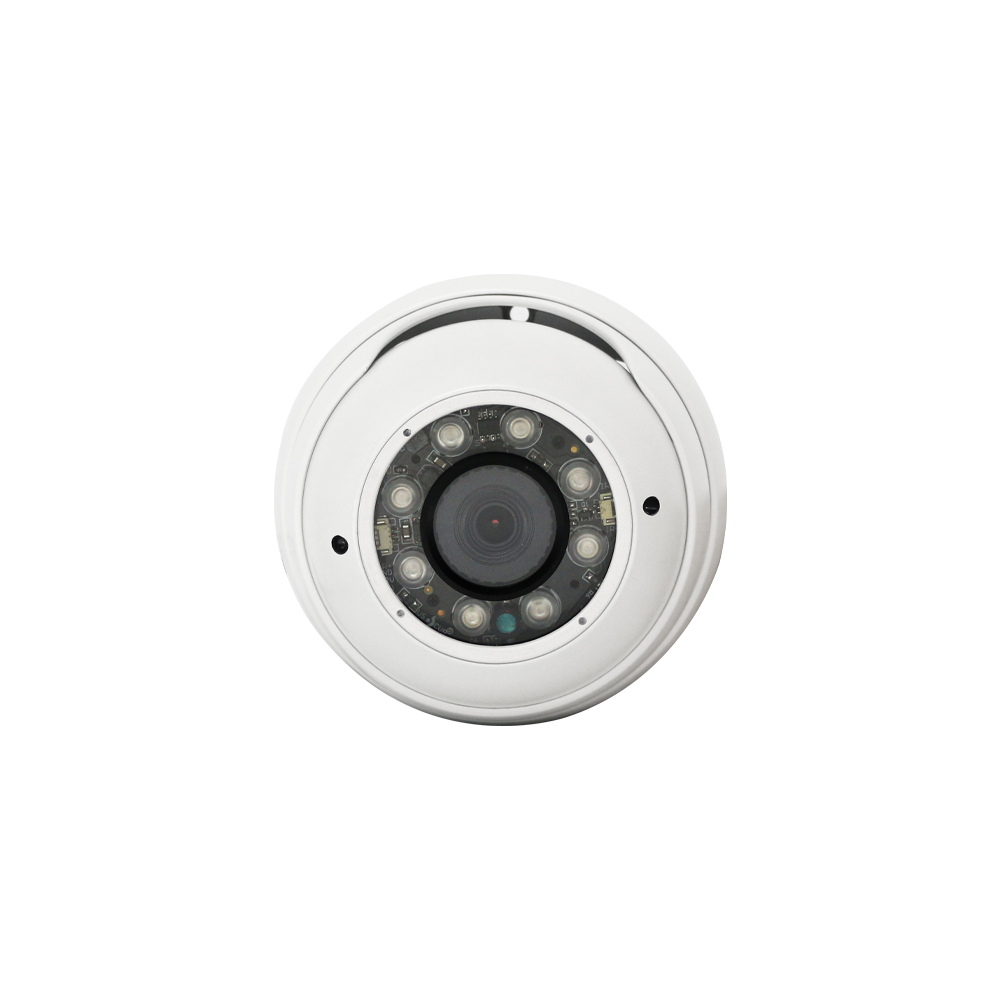

IP Camera

VIG-DS752-D2

1080P / Dome / IR / H.265+

  • LENS 3.6mm

  • 30M

  • 0 LUX

  • P.O.E

  • 8 LEDs

  • 1/2.8"CMOS

  • 0~45°C

Download Catalog

Product Features

  • 2M Pixels 1/2.8" CMOS Sensor with excellent image quality
  • Real time H.265+/H.264 /MJPEG Multi-Mode compression (Dual Codec)
  • Resolution 1920*1080 @ 30fps
  • HI-P 8pcs IR LED, IR Distance 30M
  • Support ONVIF international standard, best compatibility and integration
Video System Flash:16MB
RAM:256MB
Sensor Full HD High Quality 1/2.8” CMOS Image Sensor
Lens Board Lens 3.6 mm
IR cut Removable IR Cut filter
Low Lux 0 Lux(IR ON)
IR LED HI-P 8pcs IR LED
Compression H.265+: 1920x1080 at 30fps
H.265+: 1280x720 at 30 fps
H.265+: 640x480 at 30fps
H.265+、H.264、JPEG Multi-mode compression (Dual Codec)
Multi-mode compression streaming
Video Adjustment Resolution、Quality and bit rate
Time、Date or custom text and it’s position
Brightness, Contrast, Saturation and Sharpness
AGC、AWB、AES、BLC、WDR
Networking Interface 10 /100 Mbps RJ-45
Protocol IPv4, TCP/IP, DHCP, HTTP, RTSP, SNTP, DNS
Browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm and Event Management Motion Detection
E-mail notification or upload file to FTP
Users Max. 8 users for live view simultaneously
User Authorization
OTA OTA for Firmware upgrade
I/O RJ-45 , DC12V
Power DC12V or PoE IEEE802.3af Class 0 (optional)
Power Consumption 3.6W(IR OFF)、18W(IR ON)
Weight N.W.:630g
Dimensions W:Φ120mm H:85mm
Operating Temperature 0 ~ 45 °C
