Mobile Surveillance

Car Cameras

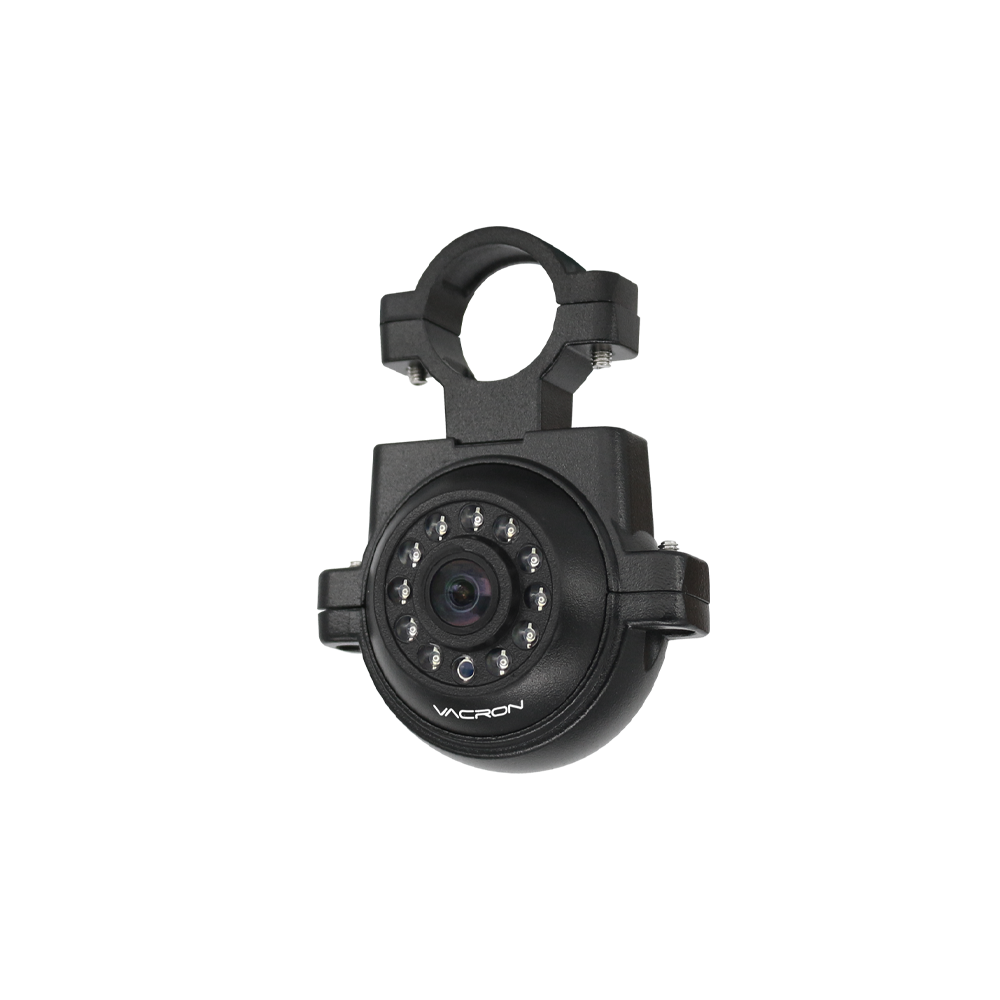

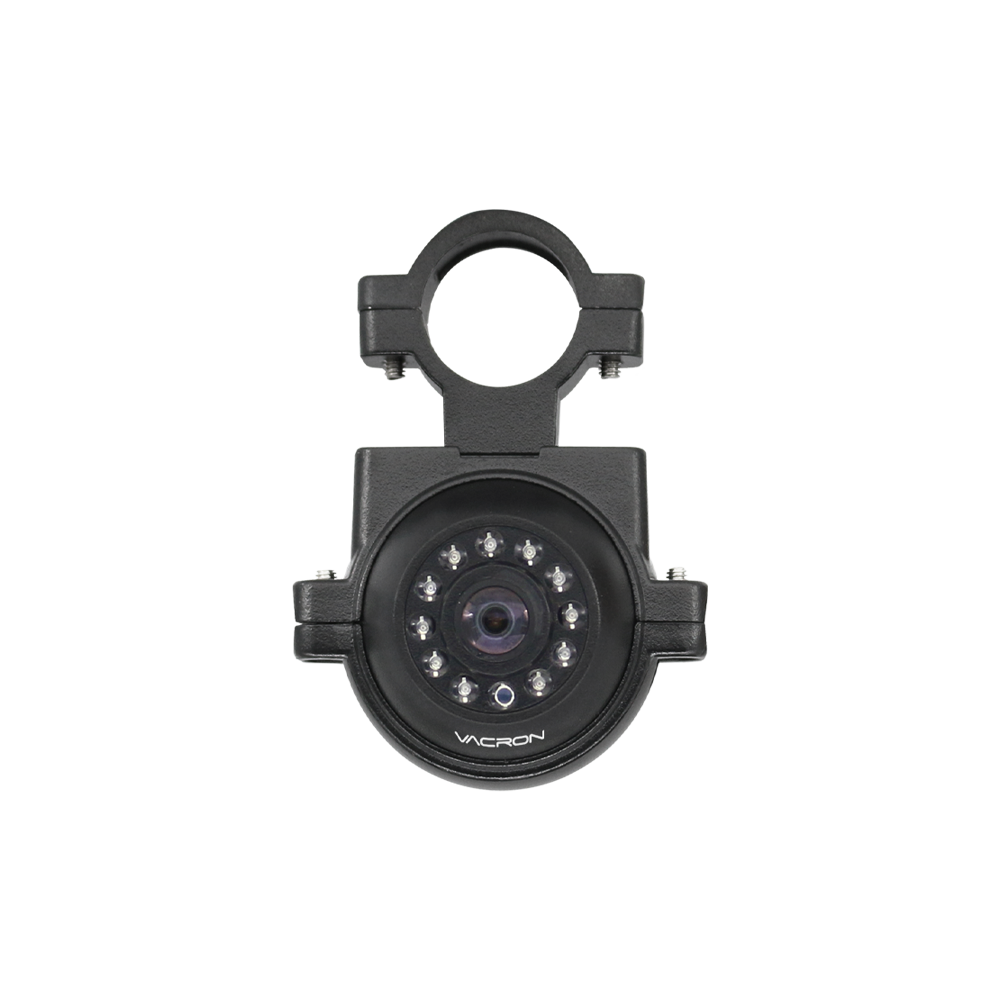

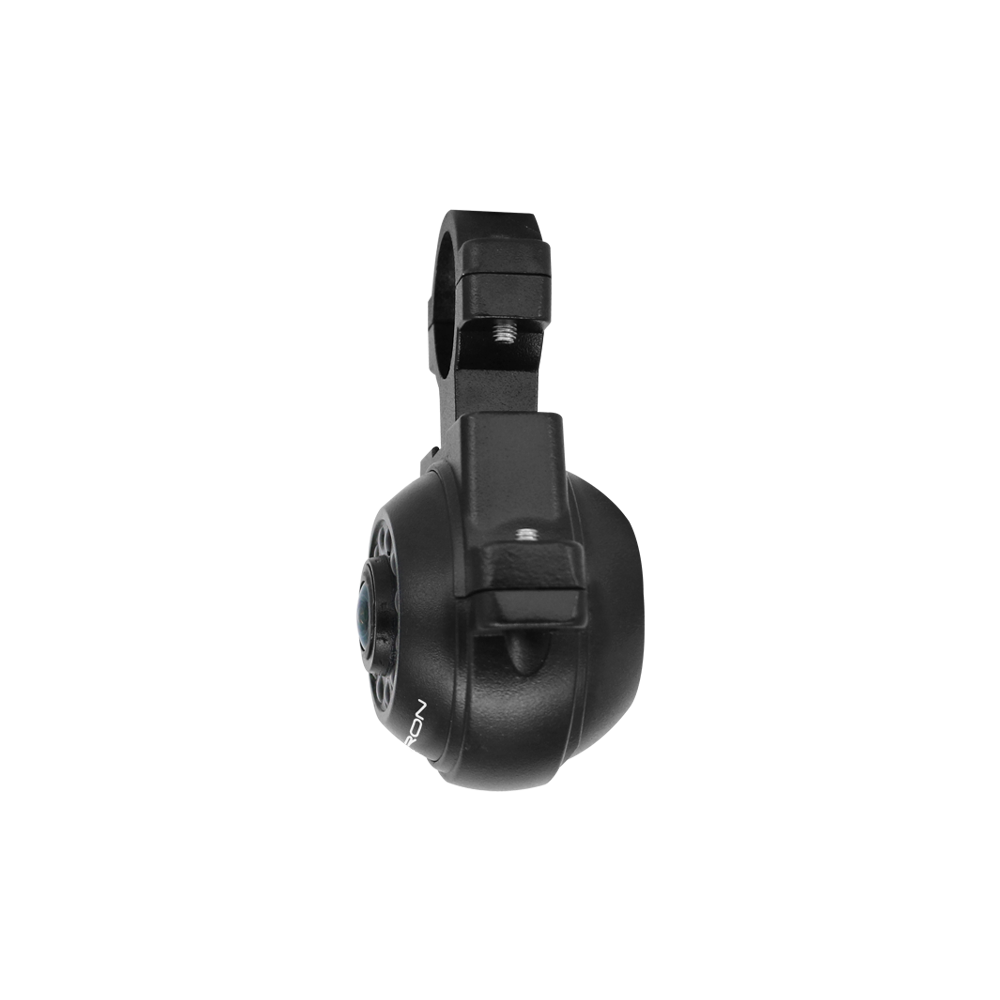

AVM-F228C

1080P / IP68 / IR

  • DC12V

  • 0.1 LUX

  • 50dB

  • Mirror

  • 1/3CMOS

  • LENS 2.9/2.19mm

  • 115º/150º

  • 11 LEDS

Download Catalog

Product Features

  • 1/3”CMOS Sensor
  • 2.9/2.19mm Lens
  • Suitable for trucks and buses monitoring
  • Waterproof IP68, suitable to install at any places
  • Video adjustable for mirroring if in need (Optional)

Video System

NTSC / PAL

Pick Up Element

1/3”CMOS Sensor

Number Of Pixel

1920 (Horizontal) x 1080(Vertical)

Effective Pixels

2.0 Mega Pixel

Resolution

1080P

Sync System

Internal

Scanning system

2 : 1 Interlace

Sensitivity

0.1Lux

S/N Ratio

≥50dB

Auto Gain Control

AUTO

Mirroring

Optional(BV)

White Balance

Auto

Electronical Shutter

Auto: 1/30NTSC(1/25 PAL)s TO 1/50,000s

Video Output

1 Vp-p Composite Video Output, 75 Ohms

Power Supply

DC 12.0V

Power Consumption

120mA (IR Off);270mA (IR On)

Lens

2.9mm / 2.19mm

View Angle

H115 ° / H:150°

Operating Temperature

- 10° C ~ + 60°C

Dimensions (H x W x D)

95.5mm x 71.6mm x 43.7mm

LEDs

11PCS

IR Range

3~5M

IR Wavelength

850nm

Waterproof

IP68
