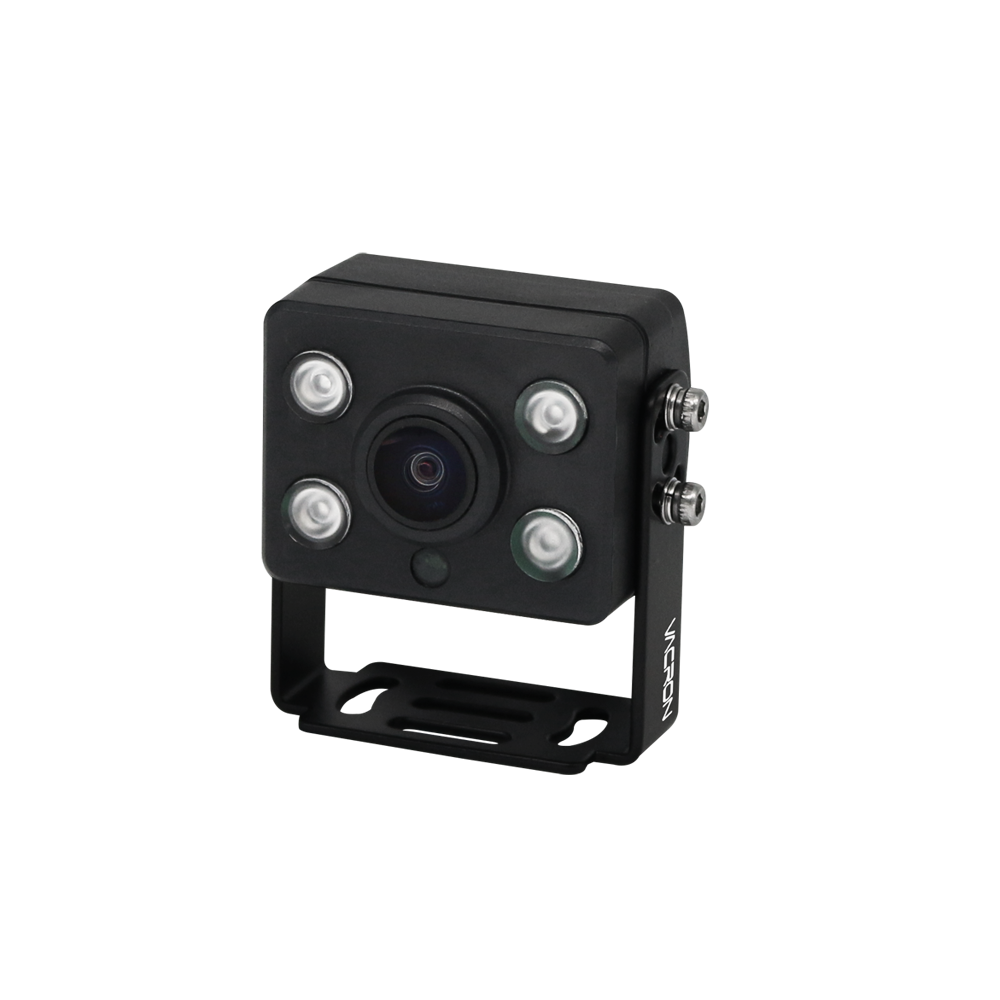

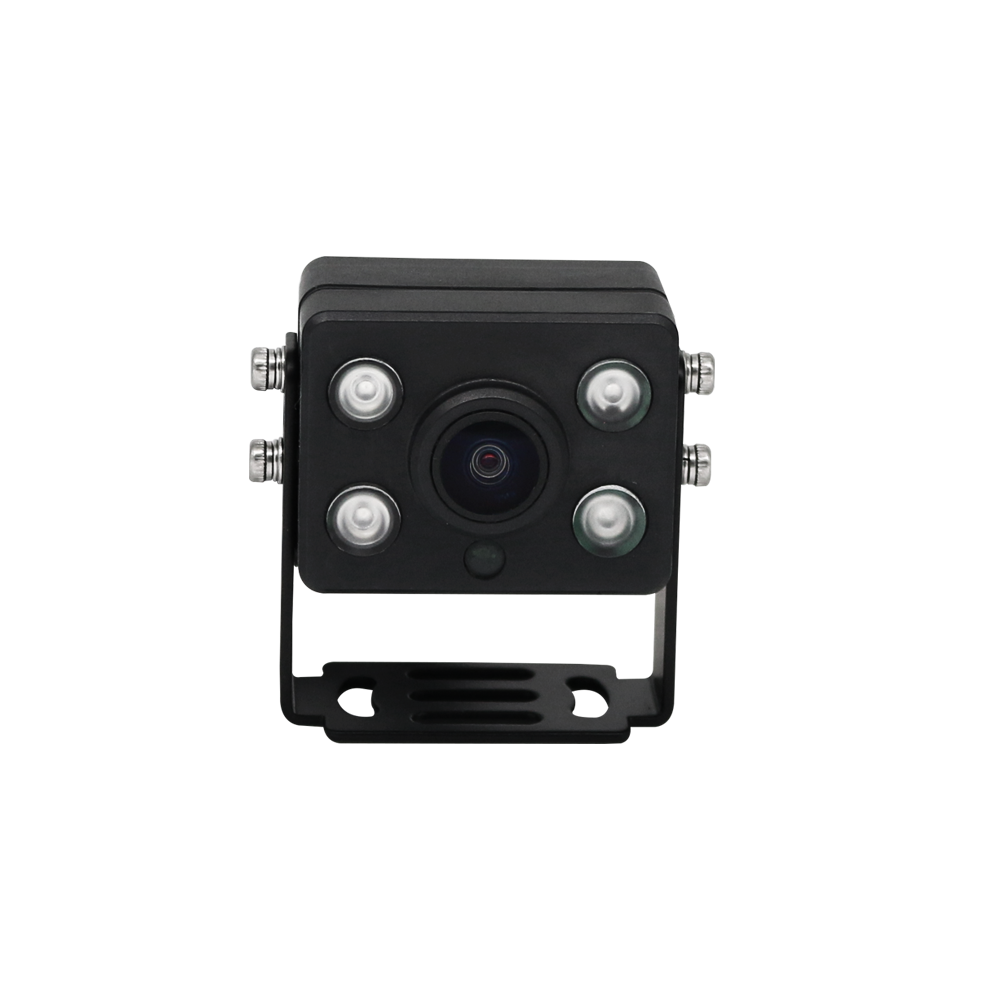

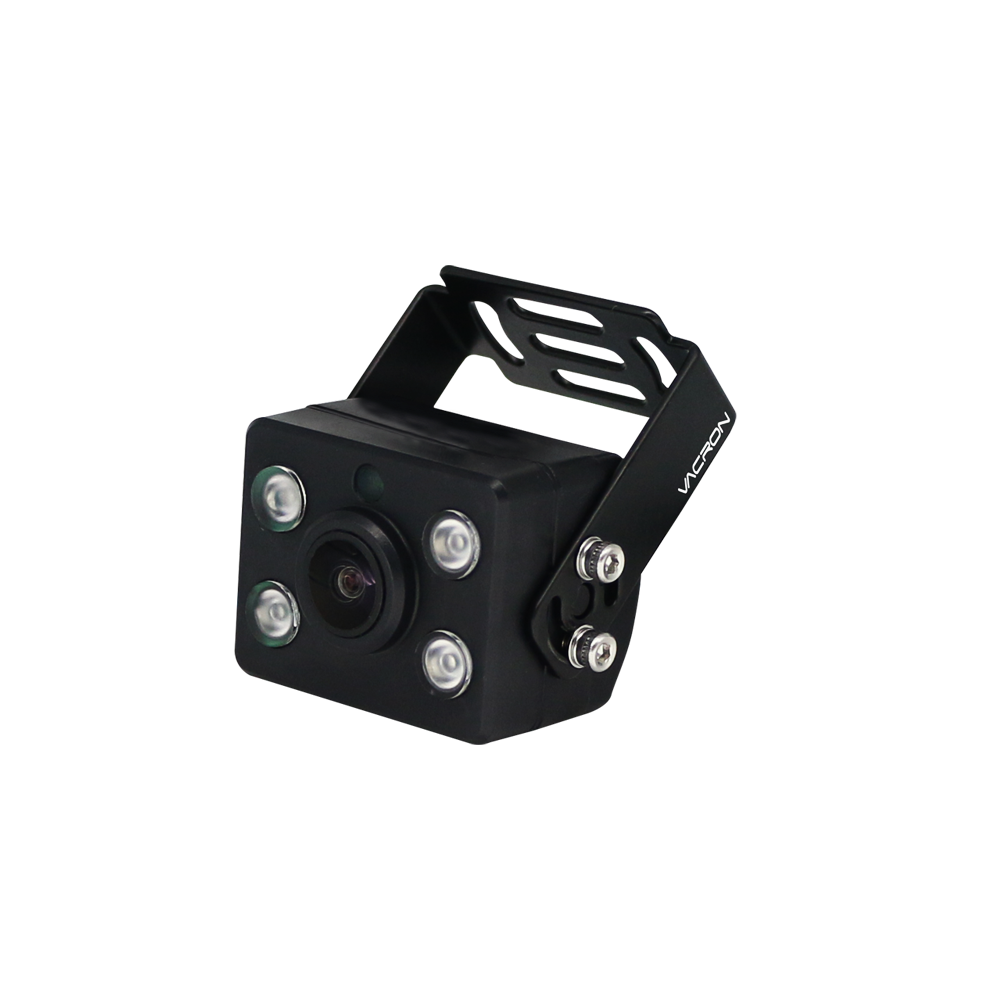

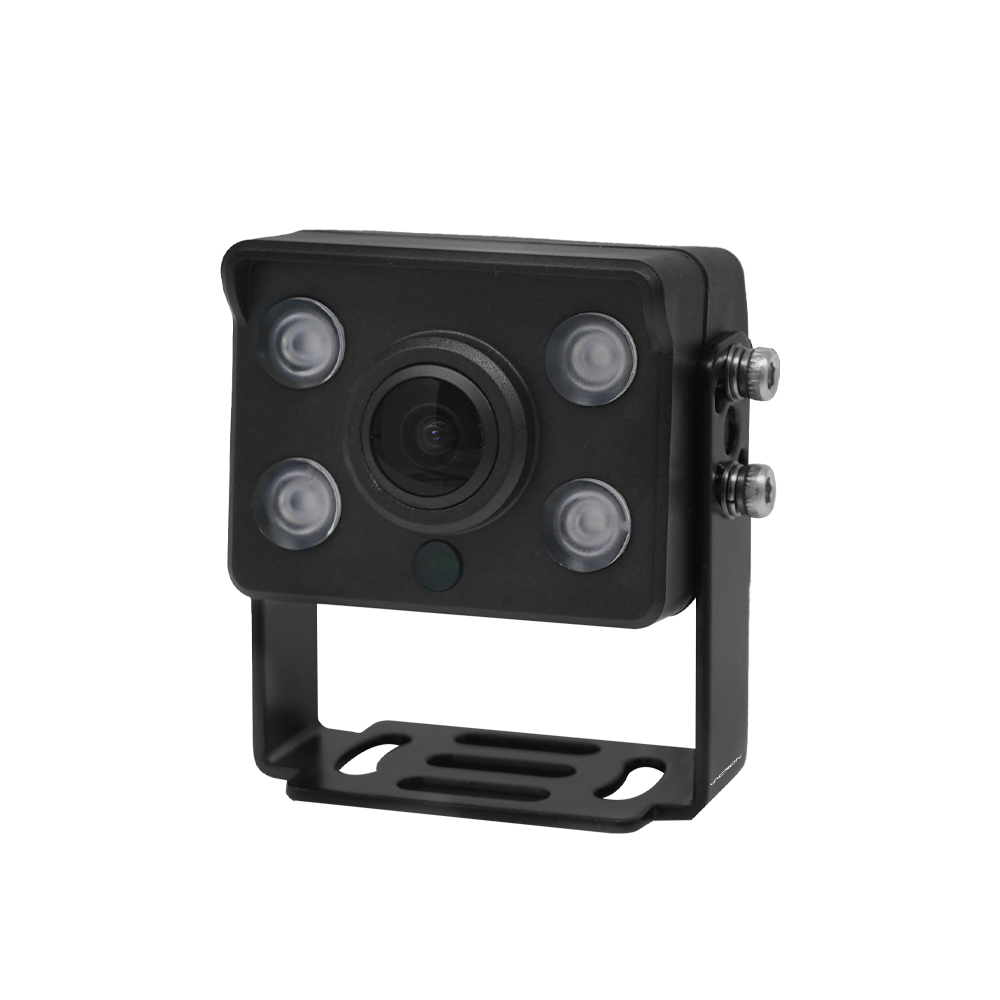

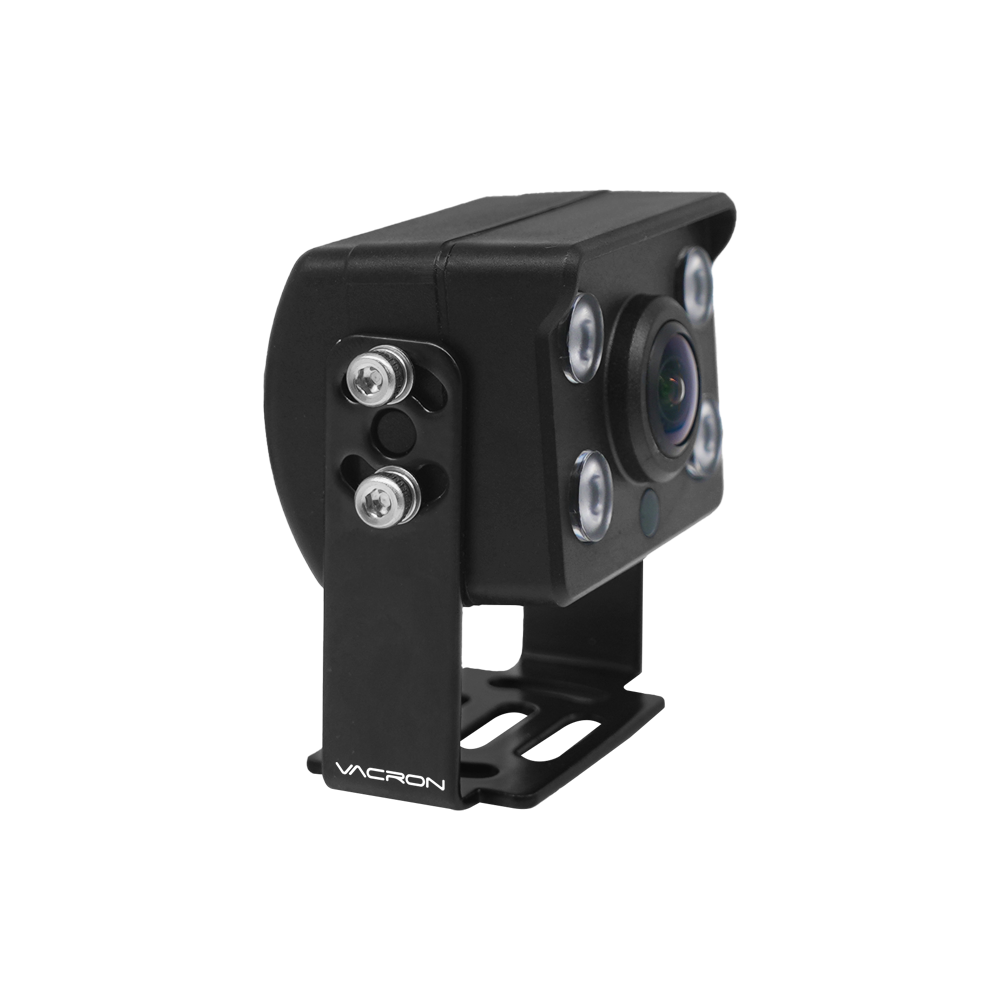

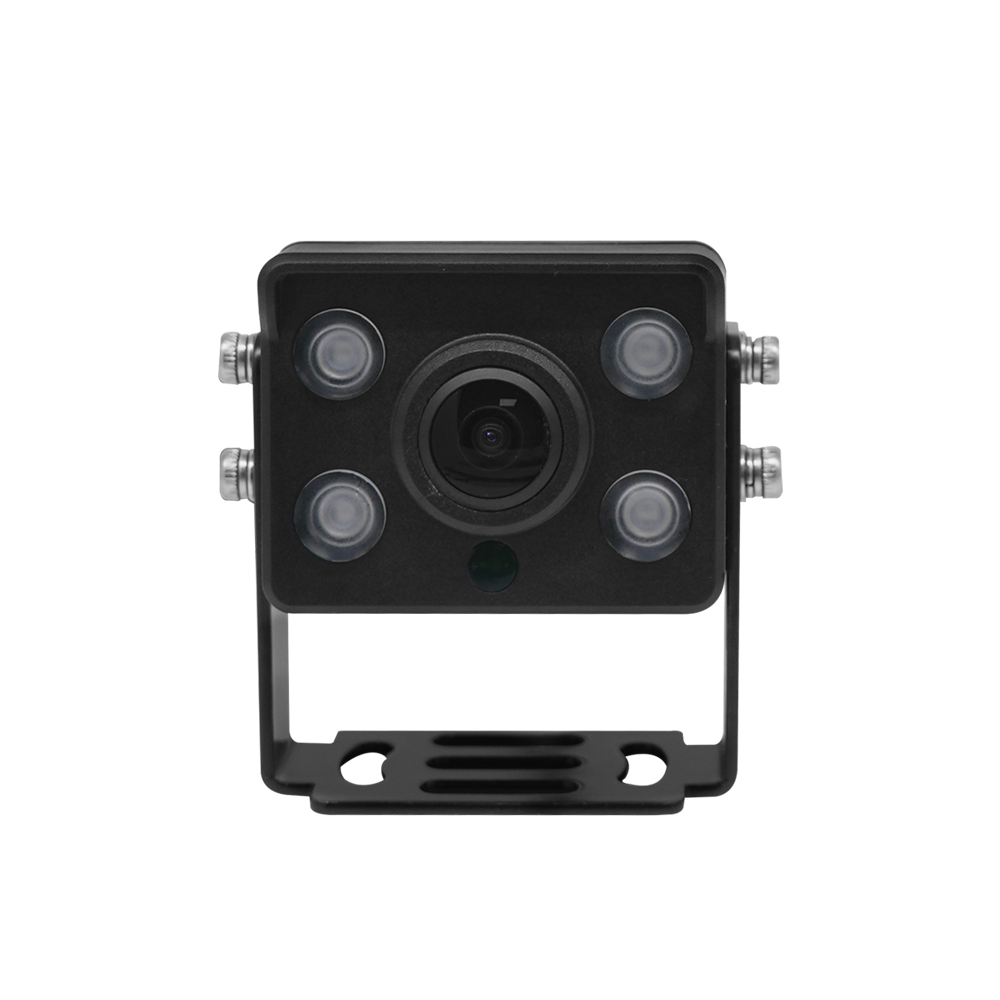

Car Cameras | AVM-S339C

Product Features

Video System	NTSC / PAL
Pick Up Element	1/2.8" CMOS sensor
Number Of Pixel	1920 (Horizontal) x 1080(Vertical)
Effective Pixels	2.0 Mega Pixel
Resolution	1080P
Sync System	Internal
Scanning system	2 : 1 Interlace
Sensitivity	0.01Lux
S/N Ratio	≥50dB
Auto Gain Control	AUTO
Mirroring	Optional(BV)
White Balance	Auto
Electronical Shutter	Auto: 1/30NTSC(1/25 PAL)s TO 1/50,000s
Video Output	1 Vp-p Composite Video Output, 75 Ohms
Power Supply	DC 12.0V
Power Consumption	120mA (IR Off)；270mA (IR On)
Lens	2.9mm / 2.19mm
View Angle	H115 ° / H:150°
Operating Temperature	- 10° C ~ + 60°C
Dimensions (H x W x D)	56.8mm x 57.8mm x 40mm
LEDs	4PCS
IR Range	3~5M
IR Wavelength	850nm
Waterproof	IP68
