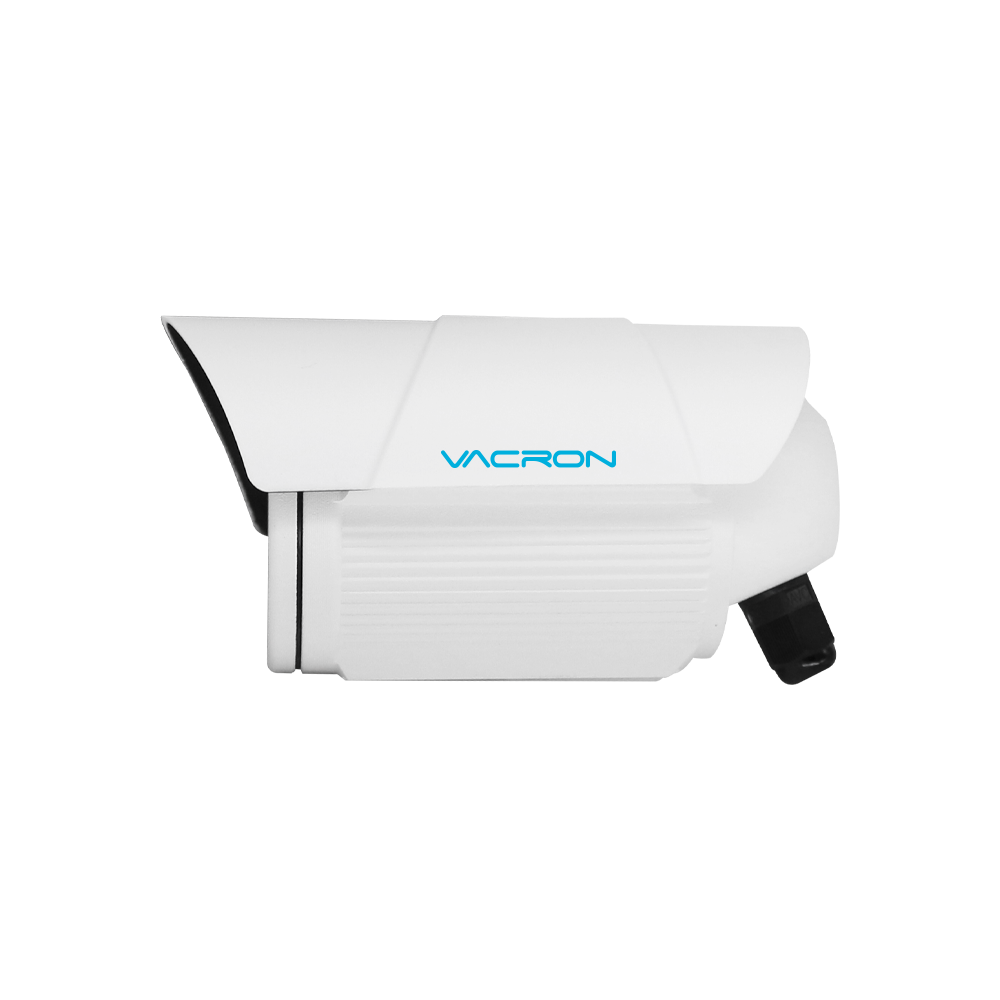

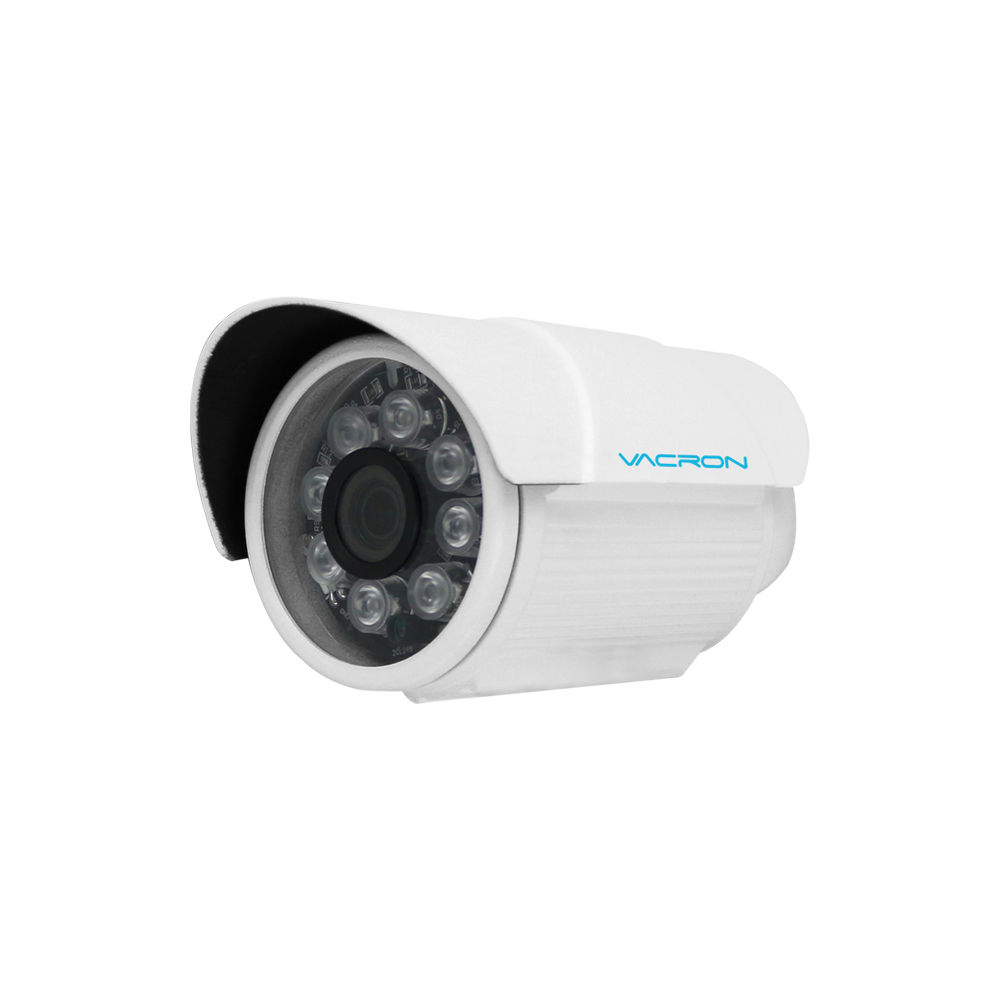

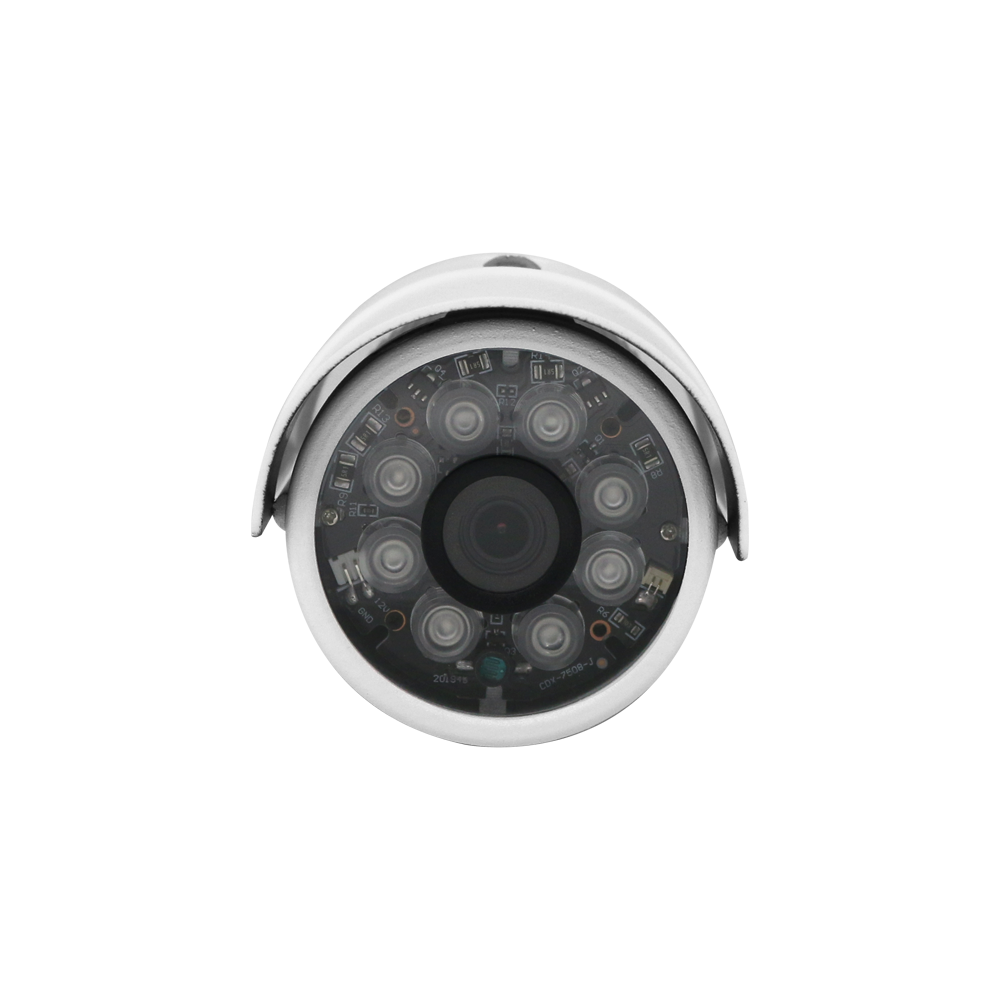

IP Camera
5MP / Bullet / IP66 / H.265+ / IR
DC12V
LENS 3.6mm
30M
0 LUX
P.O.E
8 LEDs
CMOS 1/2.5"
Product Features
System | Flash:16MB | |
RAM:128MB | ||
Sensor | FullHD High Quality 1/2.5” CMOS Image Sensor | |
Lens | Board Lens 3.6 mm | |
IR Cut | Removable IR Cut filter | |
Lux | 0 Lux(IR ON) | |
LED | HI-P IR LED 8pcs | |
Compression | H.265+: 2560x1920 at 15fps | |
H.265+: 2048x1536 at 20fps | ||
H.265+: 1920x1080 at 30fps | ||
H.265+、H.264、JPEG Multi-mode compression (Dual Codec) Multi-mode compression streaming |
||
Video Adjustment | Resolution、Quality and bit rate Time、Date or custom text and it’s position Brightness, Contrast, Saturation and Sharpness AGC、AWB、AES、BLC、WDR |
|
Electronic Shutter | 1/2 ~ 1/100,000 Sec | |
Network Interface | 10 /100 Mbps RJ-45 | |
Protocol | IPv4,TCP/IP, DHCP, HTTP, RTSP,SNTP,DNS | |
Browser | Microsoft Internet Explorer 6.0 or above Safari, Chrome or Firefox |
|
Alarm & Event notification | Motion Detection | |
E-mail notification or upload file to FTP | ||
User | Max. 8 users for live view simultaneously | |
User Authorization | ||
OTA | OTA for Firmware upgrade | |
I/O Port | RJ-45, DC12V | |
Power | DC12V or PoE IEEE802.3af Class 0(Optional) | |
Power Consumption | 3.6W(IR OFF) 、7W(IR ON) | |
Weight | N.W.:350g | |
Dimension | 78mm x 83mm x 136.5mm | |
Operating Environments | 0 ~ 45 °C | |
IP Rating | IP66 |
*If the above specifications are different, please refer to the latest date
