Mobile surveillance

Product Features

H.264 video compression does not distort the picture, supports 2-way video input, and is
equipped with a head-up display.
Simultaneous audio and video recording with microphone.
Built-in gold capacitor automatically delay recording when the engine is turned off, and ensure
that data is written back to the memory card.
Vehicle power supply, low power consumption, good heat dissipation, no built-in lithium battery,
no fear of high temperature, no burst doubts.
The device will automatically boot and then loop-record after vehicle engine is started;
automatically archive and then turn off after vehicle engine is stopped.
Real-time video and audio recording and video data uploading to the cloud server.
Real-time video playback remotely via smartphones and computers.
Driver behavior analysis can be done through the analysis and recording of driving track data.
With a wireless network card (LTE or WiFi) module and FUHO's vehicle background system,
the driving status can be controlled remotely at any time.(Optional)

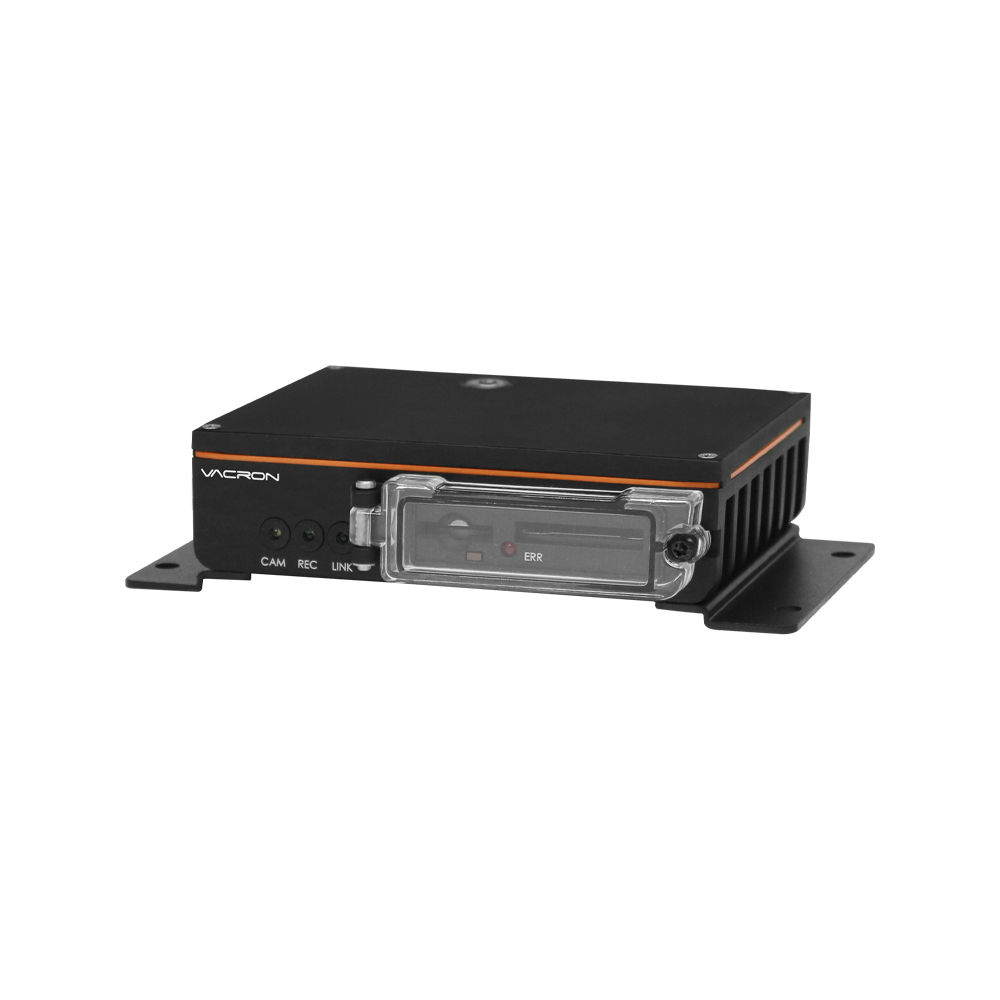

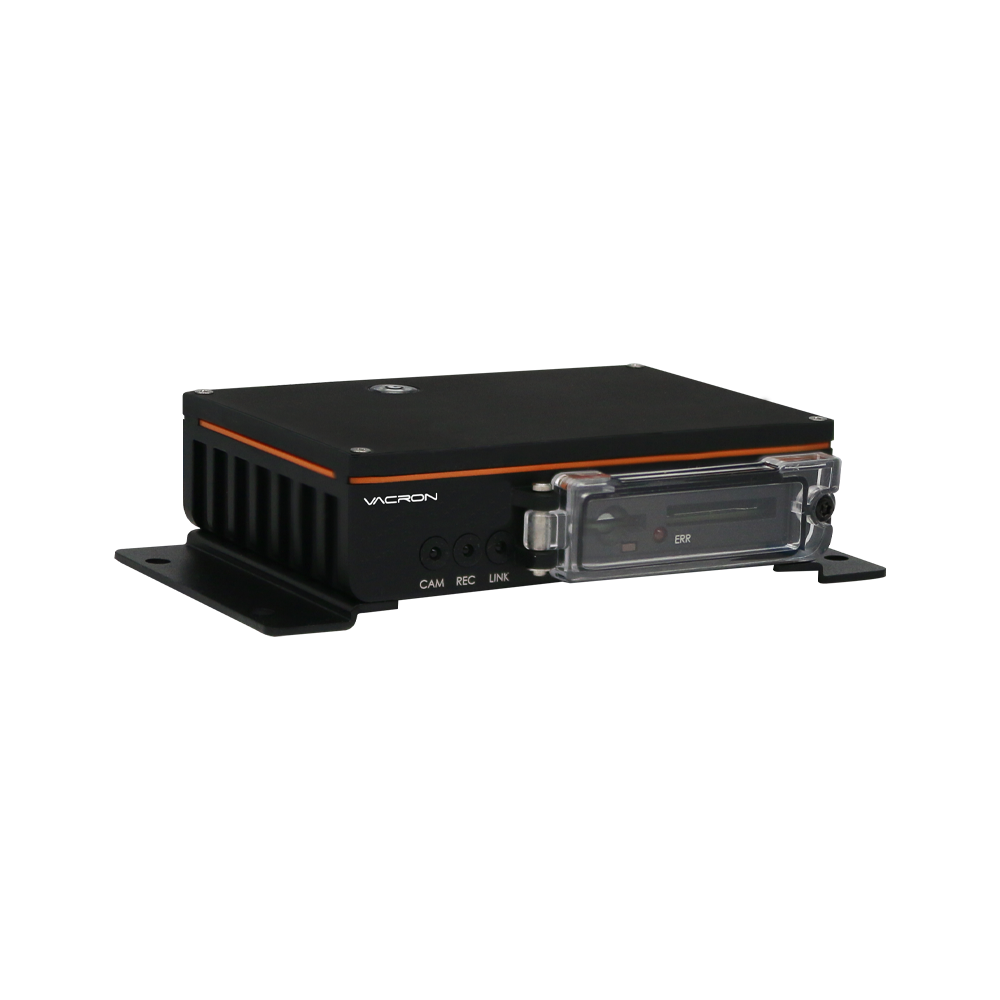

DVR Host

Model	VVG-MDE67A	VVG-MDE67C	VVG-MDE67B
Recording Frame	1CH 1080P@30Fps	２CH 1080P@30Fps	２CH 720P@30Fps
Resolution Display	1920x1080	1920x1080	1280x720
Video Resolution	1920x1080	1920x1080	1280x720
Display Mode	Single Screen	Dual Screen	Dual Screen
Simplex Mode	video record/playback
Backup	SD card (Max 128GB)
Alert Light	REC、CAM、LINK、SD Error
Interrupted detection	YES
G-SENSOR	YES
4G	Optional
System Monitoring	Recording automatically when power is on
Gold Capacitor	Built-in 1.5F Gold Capacitor
Power Specifications	DC 8~18V
Operating Tmp	-21℃~60℃
IP Rating	IP66

Head-up Display (Optional)

Vehicle Camera (Optional)

Power	DC5V±10% input Power Consumption 100mA
Resolution	Highest Resolution (Hi-Res)
Image Sensor	1/4” CMOS sensor
View Angle	H:110 °
Temperature Tolerance	Operation：-20℃ ～60 ℃ (In disclosed space) Storing temperature：-40 ℃～85 ℃
Output terminal	Micro Din
Dust & Water proof	IP67
Size	Ø21mm × 23.5mm
