CCTV Surveillance System

DVR

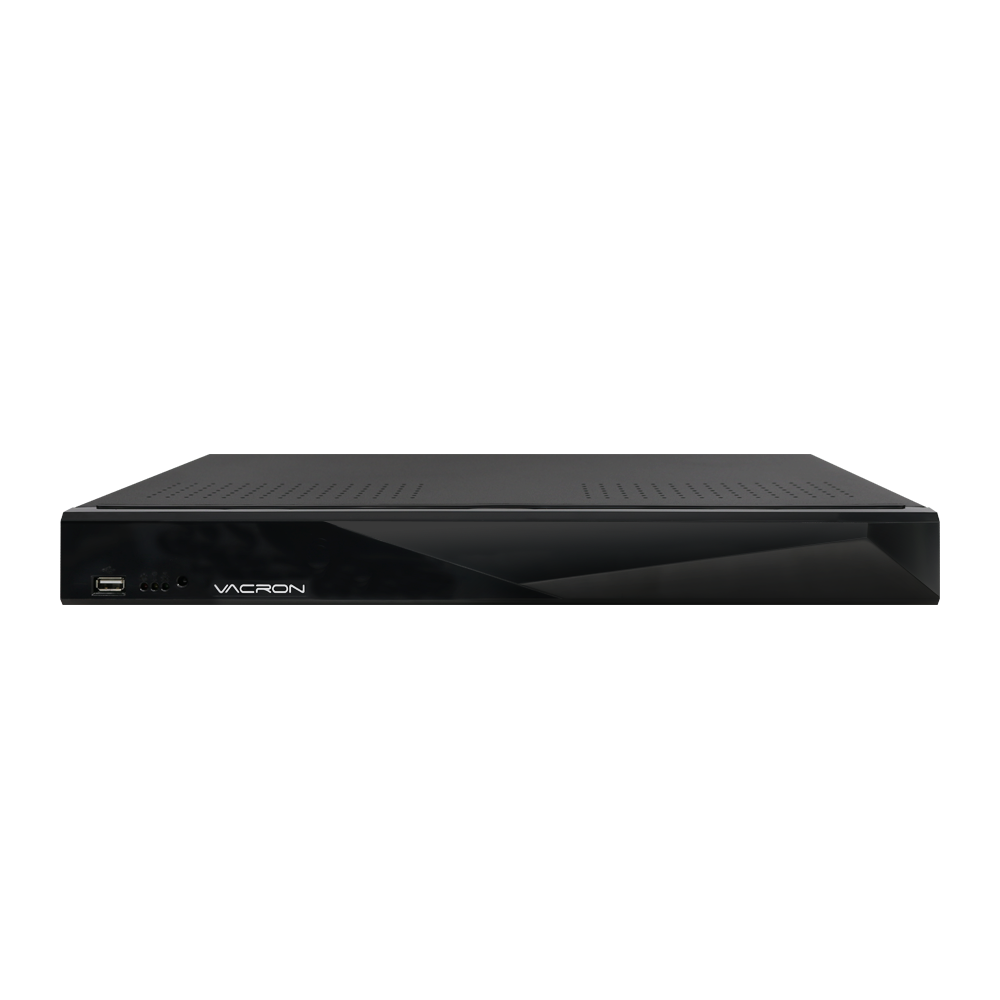

VDN-DKF616D

16CH / 5MP / H.265 / HDD

  • H.265

  • Motion

  • LAN

  • USB

  • CMS

  • GUI

  • Mouse

  • Users

  • Multi function

  • SATA

Download Catalog

Product Features

  • Multitasking: which can Record / Playback / Remote Connection / Mobile phone watch and playback at the same time.
  • The maximum supporting capacity for a single hard disk is 10 TB.
  • Support HD ultra high definition output.
  • It supports remote IE browsing, monitor live footage, and playback simultaneously.
  • Provide HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, and IP authority services.
  • Support iPhone, Android, including live video monitoring, playback.
  • It supports CMS (Central Management System).
  • It can be set as a Hybrid function to connect traditional analog signals and digital IP signals at the same time and the IP channel can be set at will.
  • With P2P function, scan QR-Code through APP for real-time monitoring and playback to increase information security.
  • Set the IP CAM mode on the host, and use FUHO IP Cam to plug and play.
  • Applicable for ONVIF IP cam.
  • Applicable for RTSP IP cam.
  • Supports VACRON recording devices.
  • Support automatic update.
  • It supports AHD, TVI, CVI, CVBS, and IP signal inputs.
Video Input 16 CH of BNC input
Video Output

VGA output (Max. 1920x1080)
HD OUT output (Max. 3840x2160)
CVBS

Audio Input 4CH RCA Input
Audio Output 1CH RCA Output
Audio Compression G.711U
Digital Zoom in Yes
Sequence Yes
Video Compression H.264/H.265
Recording Frame 16CH 5MP @6FPS/CH
16CH 1080P @15FPS/CH
Recording Mode Continuous, Scheduled, Displacement
Motion Detection Zones: 192(16×12 grid)
Playback Video playback up to 1 channel 5MP@6 FPS/sec,
1 channel 1080P@15 FPS/sec, 16 channel VGA
Display Mode Single Screen/ 4-Split/ 9-Split/ 16-Split/ Sequence
Backup File Format MP4/ self-defined format
Backup File Method USB/ WEB
Network Services HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, IP authority
Network Connection Live View, Search/Playback, Backup, and Update
Browser IE, WEB-Client
HDD Storage Interface SATA x2
Maximum Supported Capacity 10TB per unit
Network Socket RJ-45 x1, 10/100/1000 Base-T
USB front plate USB2.0x1 / black plate USB2.0x1 + USB3.0x1
File System Stable and reliable self-developed file system
S.M.A.R.T HDD error detecting
Port RS-485 (Pelco-D / Pelco-P)
Operation menu Graphical User Interface (GUI);
Supports simultaneous display on VGA, HD out, and CVBS
Input Method Mouse
Internal Buzzer Start-up Beep
Languages English / Simple Chinese/ Traditional Chinese/ Japanese
Firmware Update USB update or Network Update(OTA)
APP Monitoring iPhone, Android, Mobile App supports Live view& audio,
playback and back-up
CMS (Central Management System) Supports
Hybrid(Digital & Analogue) Supports
Operating Environment Temperature 0~+46ºC, Humidity: 20~80%
Power Supply DC 12V / 4A(AC100V~240V 50/60HZ)
Net weight About 3kg (without HDD and Power Adapter)
Dimension 430mm x 314mm x 53mm (L×W×H)
