Dash Cam

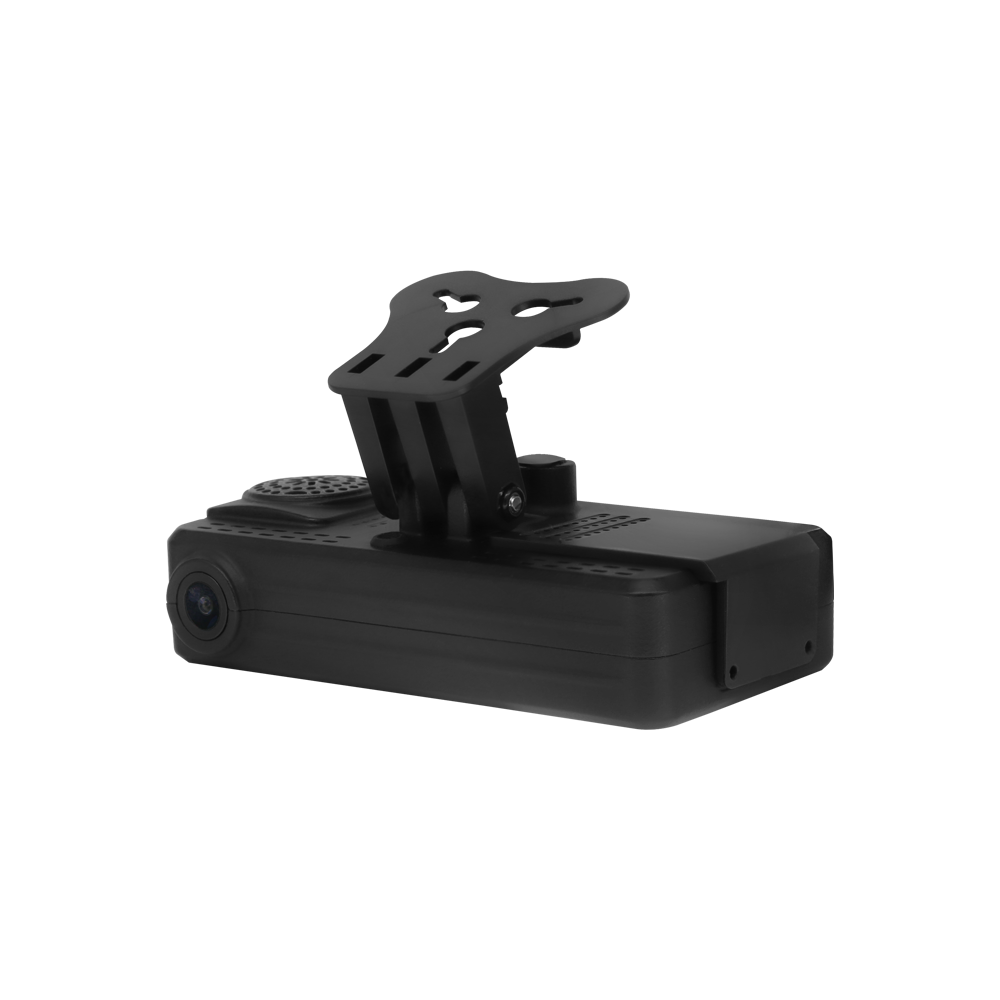

VVA-CBE65

2CH / 1080P / 4G / WIFI / H.265 / Back camera compatible

  • MIC Built-in

  • G-Sensor

  • Alarm

  • USB

  • GPS

  • SD

  • Two-way

  • GMS

  • 105°C/125°C

Download Catalog

Product Features

  • Build-in Ambarella CV28 camera SOC that supports advanced image processing/encoding
    & AI acceleration engine..
  • Build-in road-facing & cabin-facing FHD camera, and support extra 1ch FHD Vacron
    camera(option)
  • Integrated 4G+GPS & WiFi module and external antenna, and support Vacron GMS Cloud
    to enable the remote management of Fleet/Vehicle with live video, location, driving condition,
    collision event/video, and the integration of customs' existing business system(optional)
  • Integrated USB, RS232, and alarm I/O connector to enable the vehicle sensor/tracker/
    gateway…etc integration(optional)
  • Build-in the speaker & microphone to enable audio recording and IP voice communication.
  • Support programable setting on ACC-Off recording for parking mode application

System SOC

Ambarella CV28 Intelligent Vision Processor

Memory

8GB EMMC
Storage 1GB LPDDR4 SDRAM
storage device Vacron SmartInfo Micro SD card (option)
Compatible with SDXC, Class 10 or above ;
minimum support 64GB; maximum support 512GB
Lens (1) build-in Road-facing camera, up to 1080P/30fps,
Sony StarVis IMX307 sensor
FOV(D/H/V): ~120°/105°/55°
(2) build-in Cabin-facing camera, up to 1080P/30fps,
Sony StarVis IMX307 sensor
FOV(D/H/V): ~150°/125°/65°
Support external Vacron 3Ch camera, 1080P/30fps and
5V power supply (optional)
Video function (1) Support H.265 and 1080P/720P/480P resolution on
Road-facing, Cabin-facing and external 3Ch cameras
(2) Support G-Sensor triggered event recording, file
lock and auto-upload function
(3) support ACC-OFF post-recording with software
programable timing.
(4) Support parking monitoring mode: vibration/
movement triggered event recording
Recording content Video, Sound, date/time(auto-calibrated by GPS and GMS),
G-Sensor, GPS location data

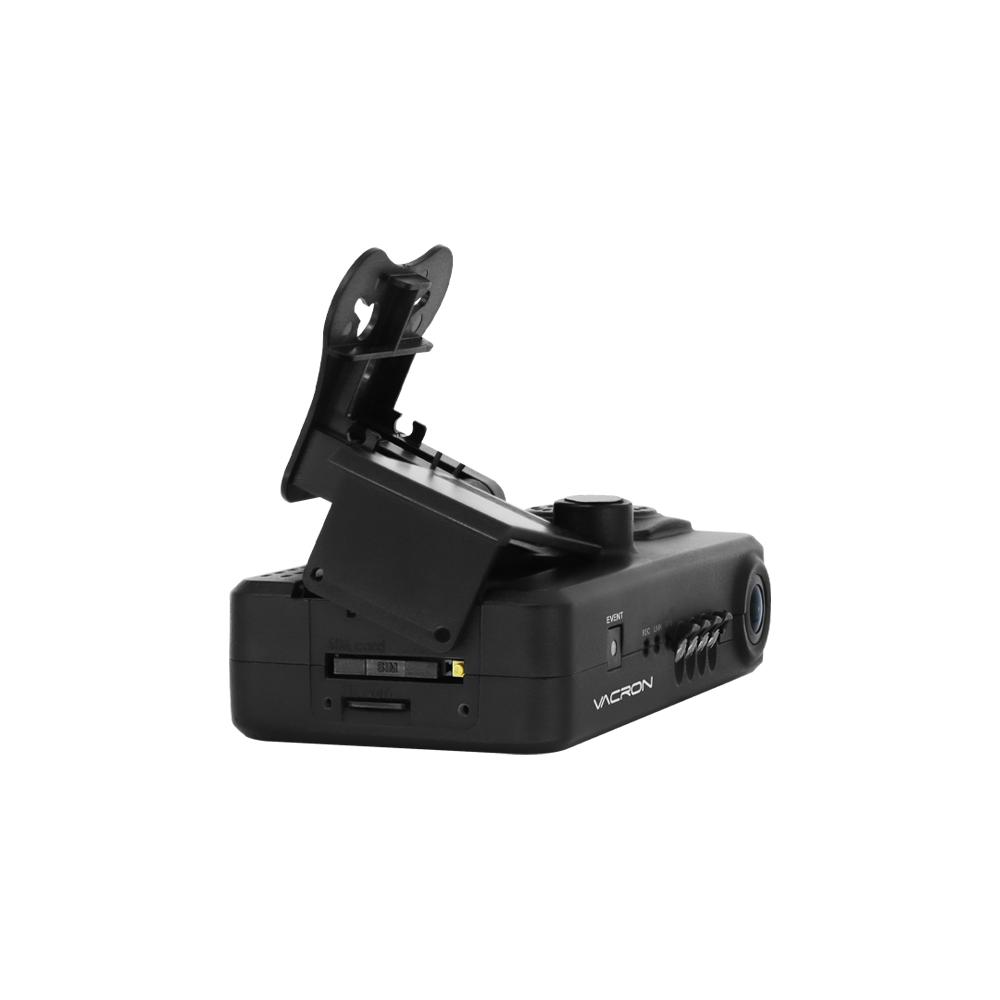

Connector I/O- mini-PCIe slot x1+Micro SD card slot x1
Standard SIM card slot x1+USB x1
Wired I/O Power cable(bare wire of Battery+Ground+ACC) x1 set
External 3ch camera-in(blue micro-DIN) x1
SMA RF external cable: 4G x1 + GPS/GNSS x1
Optional:
(1) CVBS-out(RCA)x1+Alarm I/O(bare wire)x1
(2) RS232(bare wire)x1+USB(type-A female socket)x1
(3) RS232(bare wire)x1+Alarm I/O (bare wire)x1
Illumination 850nm IR LED x4 for cabin-facing camera

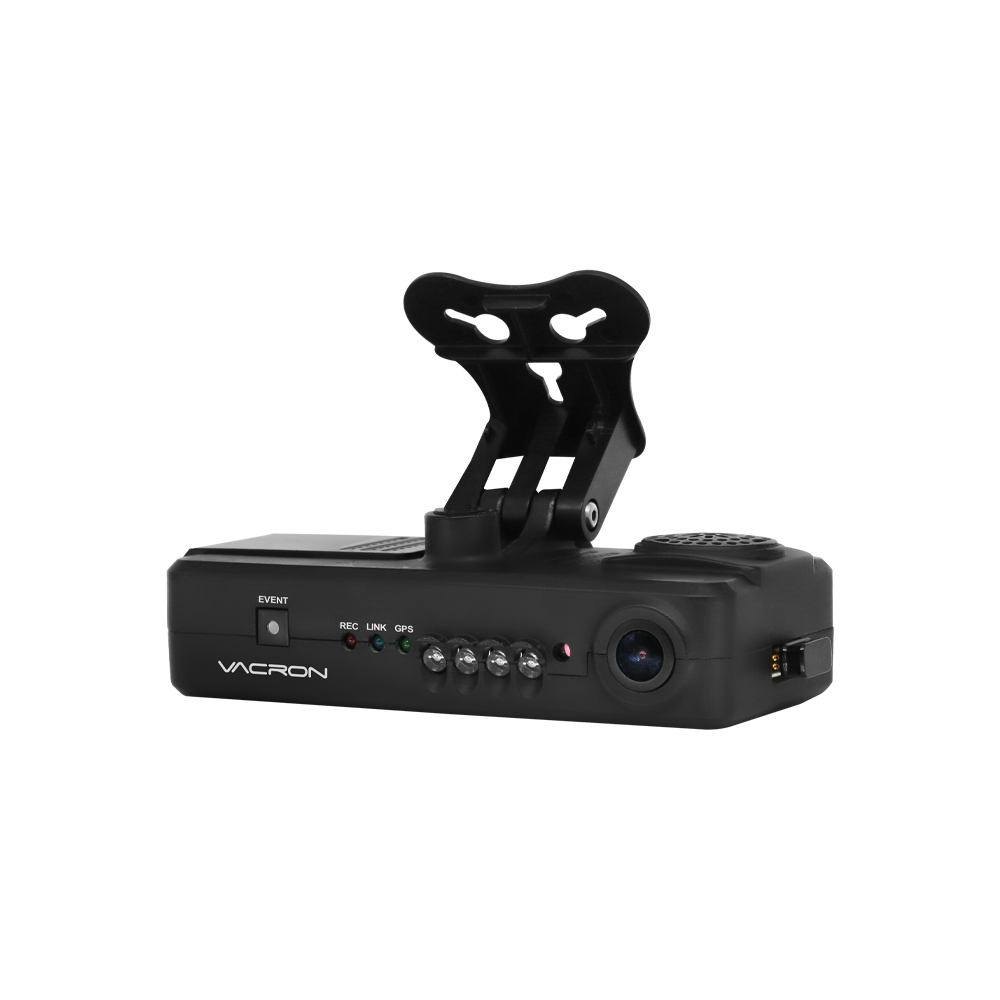

Buttons/LEDs/Sensors Analog microphone MIC x1, Programmable event button x1,
speaker x1, indicator LED x3 (REC+LINK+GPS)
Built-in six-axis Gyro & G-sensor
4G&GPS Support Quectel EC25 series LTE+GPS/GNSS module(optional)
WiFi USB WiFi 4 module with antenna (optional)
Support iOS/Android smartphone P2P connection and
WiFi Internet connection
Software Compliance WiFi Internet connection
(1) Vacron GMS cloud platform: Support customer system
integration with events, devices, media API (on http)
and live video streaming service
(2) Vacron Cloud Protocol (VCP) can quickly connect the
dashcam to the Vacron GMS cloud with live video
streaming functions
(3) Windows version Vacron SD card player application
program
(4) SDK for Android/iOS smartphone application
development
(5) Android/iOS mobile APP: VacronLink
Accessories Mounting bracket x1, screw set x1, Windshield socket x1
3M double-sided tape x1
External global 4G and GPS/GNSS antenna (optional)
5/10/15m micro-DIN extension cable (optional)
Environment Operating temperature: -20℃~+55℃
Storage temperature: -40℃~+85℃
Operating humidity: 20%~80%
Storage humidity: 10%~90%
power Input DC 9V~16V
Regulation compliance FCC/CE
Dimension 127mm x 76.5mm x 35mm(LxWxH)
Weight 250g
