CCTV Surveillance System

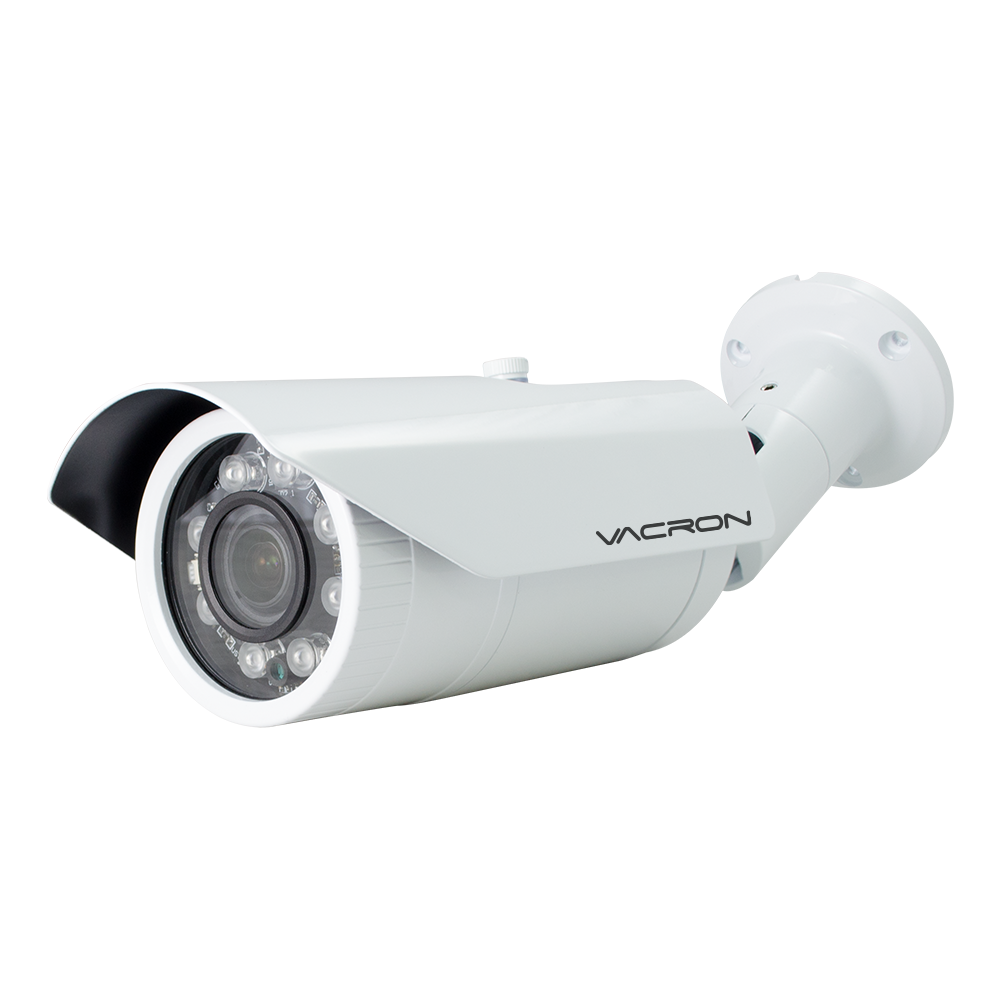

CCTV Camera

VCF-5760U

1080P / IP66 / Bullet / IR

  • DC12V

  • LENS 3.6mm

  • 30M

  • 0.1 LUX

  • 50dB

  • 1/3CMOS

  • 4 LEDs

  • -20~50°C

Download Catalog

Product Features

  • 1/3" CMOS sensor
  • AHD1080P high video quality transmission,up to 1920x1080 pixels
  • 3.6 mm lens.
  • AHD or CVBS or TVI or CVI output switch
  • IP Rating: IP66
Pick Up Element 1/2.5" CMOS sensor
Video System NTSC/PAL
Image Signal Process Digital Signal Processor
Lens 2.8-12mm
Number Of Pixel 2608 (Horizontal) x 1952(Vertical)
Horizontal Resolution 5MP@20fps
Power Supply DC 12 ± 1V
Power Consumption 120mA(IR Off)；400mA(IR On)
ICR Support
Electronic Shutter Auto
White Balance Auto
Gain Control Auto
S/N Ratio ≥50dB
Day Night Auto Switch Support
LEDs 8 PCS
IR Range 30M
IR Wavelength 850nm
Minimum Illumination 0.2Lux
OUTPUT AHD or CVBS or TVI or CVI
(Default setting: AHD Mode)
Language English / Simplified Chinese / Traditional Chinese /
Russian / Italian / Portuguese
IP Rating IP66
Operating Temperature -20℃~85℃
Dimensions (H×W×D) 315mm x 88mm x 87mm
 Weight About 965g
