CCTV Surveillance System

CCTV Camera

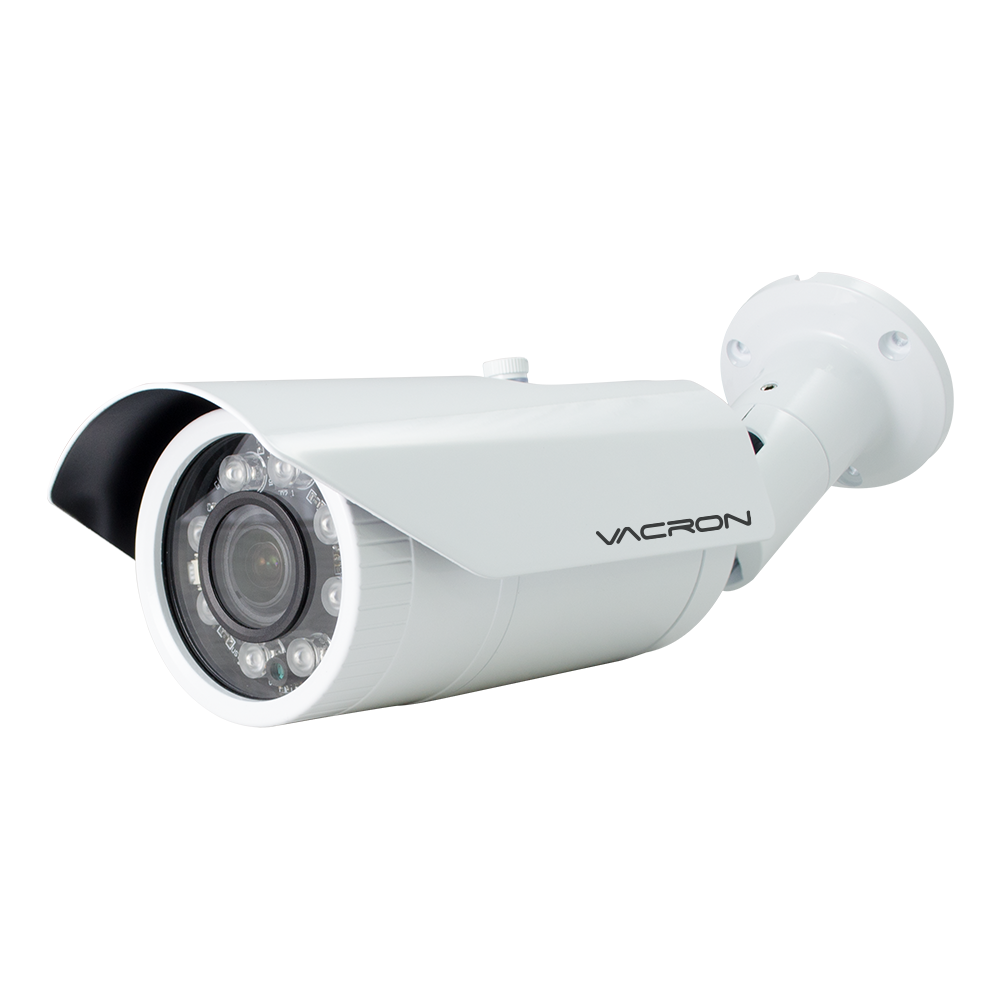

VCF-5K31HV

5MP / IP66 / Bullet / IR

  • DC12V

  • 30M

  • 50dB

  • 8 LEDs

  • LENS2.8~12MM

  • 0.2 LUX

  • -20~85°C

  • CMOS 1/2.5"

Download Catalog

Product Features

  • 1/2.5" CMOS sensor
  • AHD 5MP high video quality transmission, up to 2608 × 1952 pixels.
  • 2.8-12 mm lens
  • AHD or CVBS or TVI or CVI output switch.
Pick Up Element 1/2.5" CMOS sensor
Video System NTSC/PAL
Image Signal Process Digital Signal Processor
Lens 2.8-12mm
Number Of Pixel 2608 (Horizontal) x 1952(Vertical)
Horizontal Resolution 5MP@20fp
Power Supply DC 12 ± 1V
Power Consumption 120mA(IR Off)；400mA(IR On)
ICR Support
Electronic Shutter Auto
White Balance Auto
Gain Control Auto
S/N Ratio ≥50dB
Day Night Auto Switch Support
LEDs 8 PCS
IR Range 30M
IR Wavelength 850nm
Minimum Illumination 0.2 LUX
OUTPUT AHD or CVBS or TVI or CVI
(Default setting: AHD Mode)
Language English / Simplified Chinese / Traditional Chinese /
Russian / Italian / Portuguese
IP Rating IP66
Operating Temperature -20℃~85℃
Dimensions (H×W×D) 315mm x 88mm x 87mm
 Weight About 965g
