CCTV Surveillance System

CCTV Camera

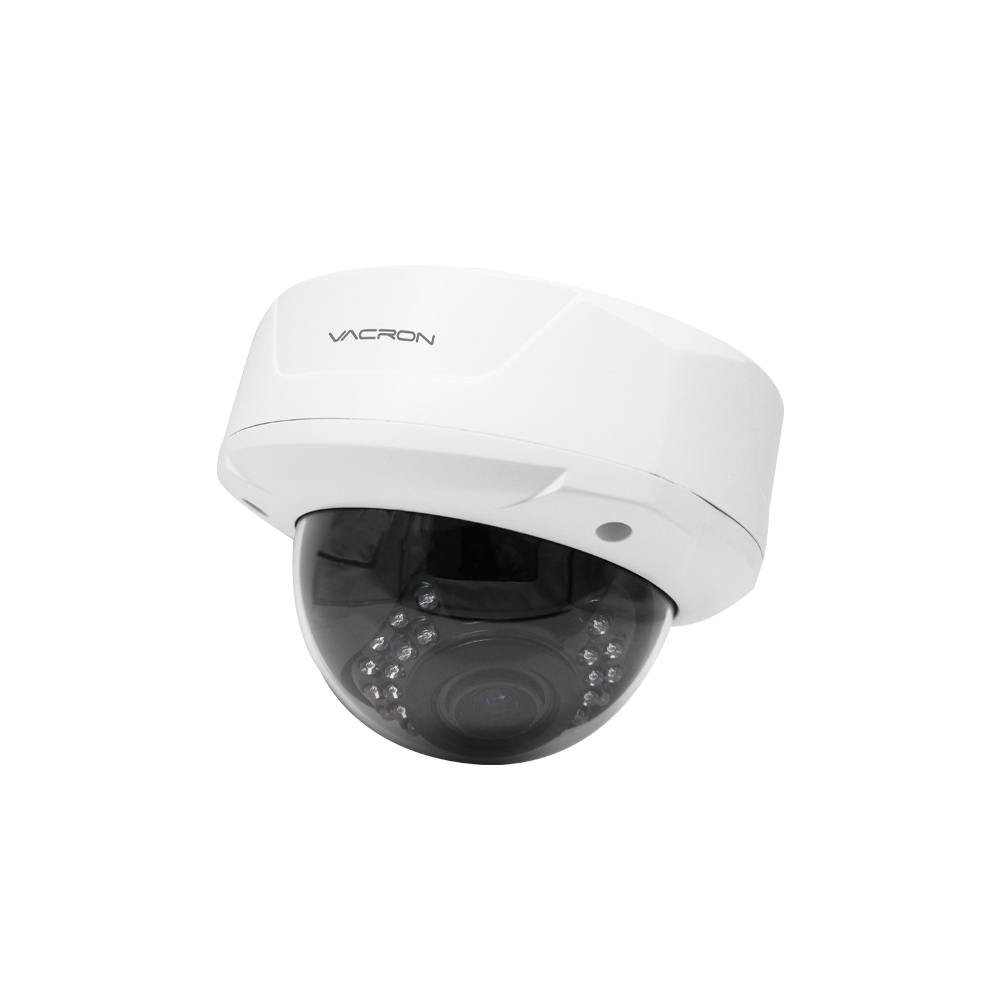

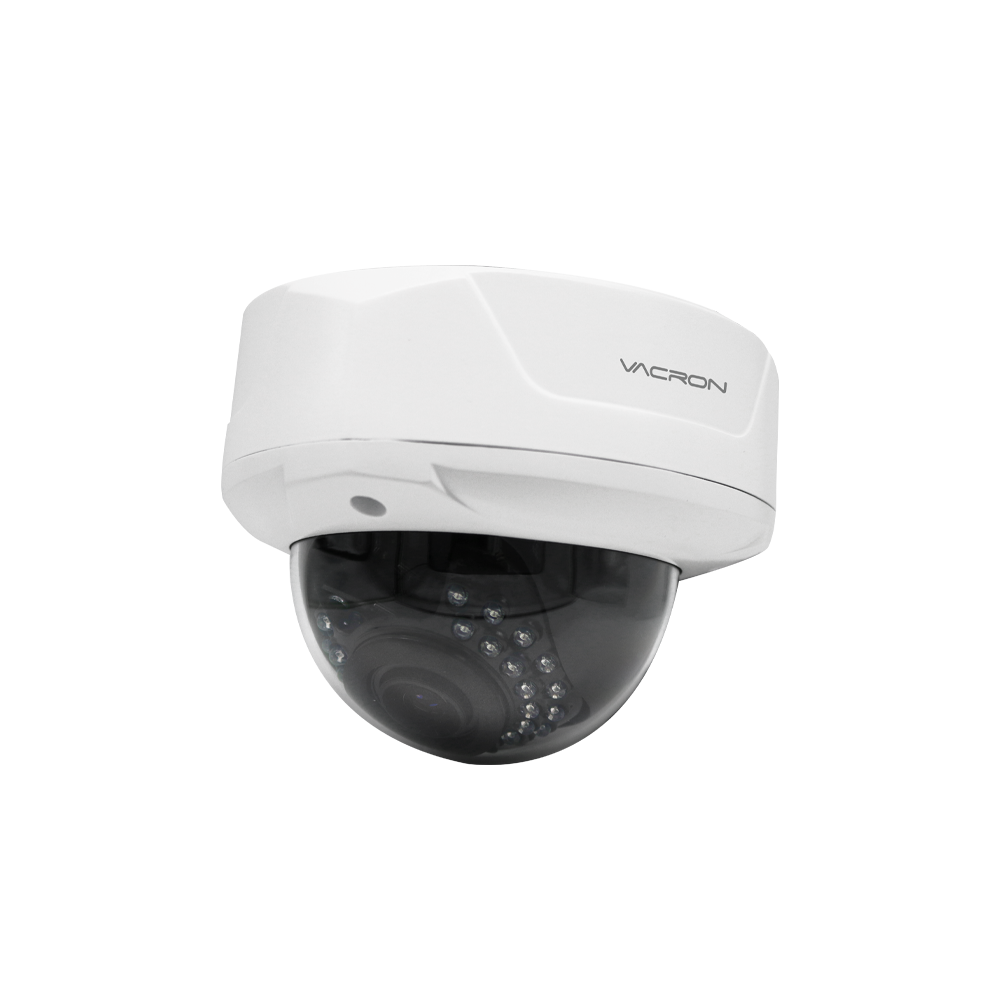

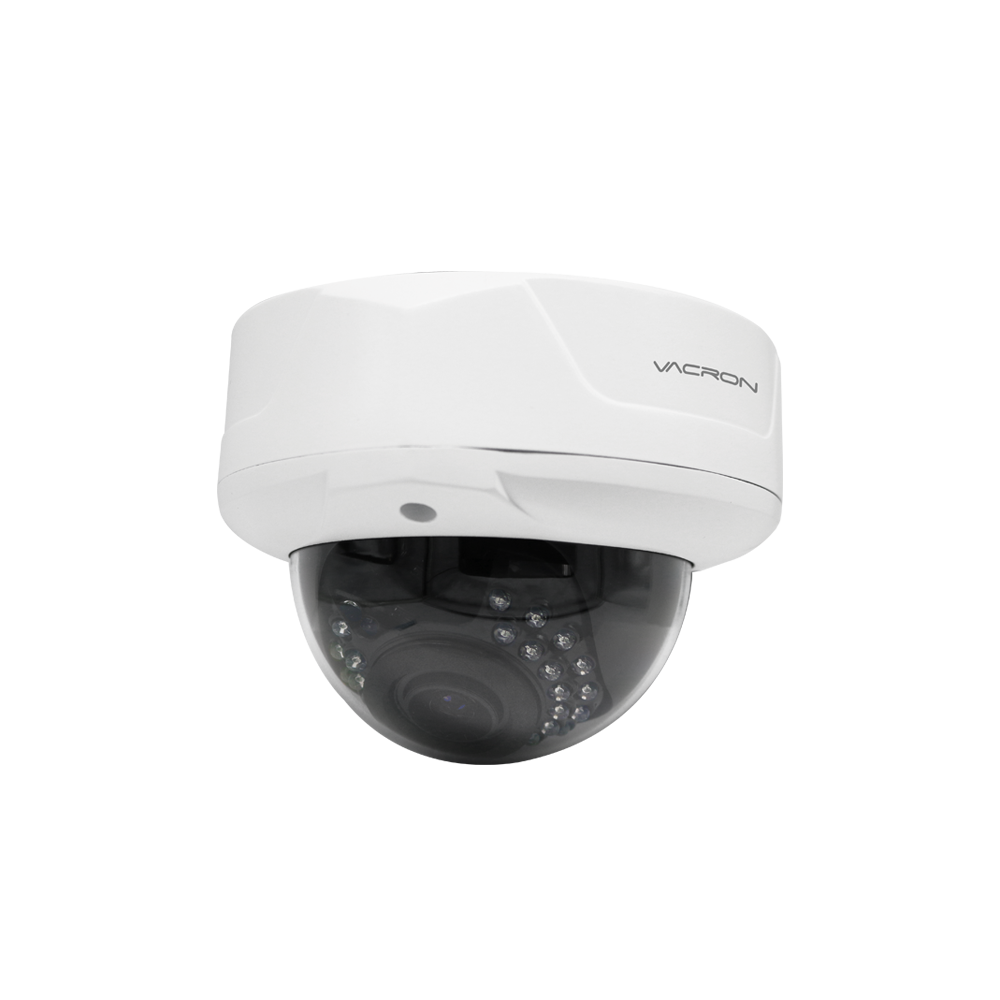

VCN-S5957HD

1080P / Dome / IP66 / IR

  • DC12V

  • 0.01 LUX

  • 50dB

  • LENS2.8~12MM

  • 30LEDs

  • 25m

  • 1/2.8"CMOS

  • -20~50°C

Download Catalog

Product Features

  • 1/2.8" CMOS sensor
  • AHD1080P high video quality transmission,up to 1920x1080 pixels.
  • 2.8-12 mm lens.
  • AHD or CVBS or TVI or CVI output switch
  • IP Rating: IP66

Pick Up Element

1/2.8" CMOS sensor

Video System

NTSC / PAL

Image Signal Process

Digital Signal Processor

Lens

2.8-12mm

Number Of Pixel

1920 (Horizontal) x 1080(Vertical)

Horizontal Resolution

1080P@30fps

Power Supply

DC 12 ± 1V

Power Consumption

120mA (IR Off)；340mA (IR On)

ICR

Support

Electronic Shutter

AUTO/1/50(1/60)sec ~ 1/50,000sec

White Balance

Auto

Gain Control

Auto

S/N Ratio

≥50dB

Day Night Auto Switch

Support

LEDs

30PCS

IR Range

25M

IR Wavelength

850nm

Minimum Illumination

0.01Lux

OUTPUT

AHD or CVBS (Default setting: AHD Mode)

Language

English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish

Operating Temperature

-20℃~+50℃

Dimensions (H×W×D)

Φ143 × 108mm

Weight

About 970g
