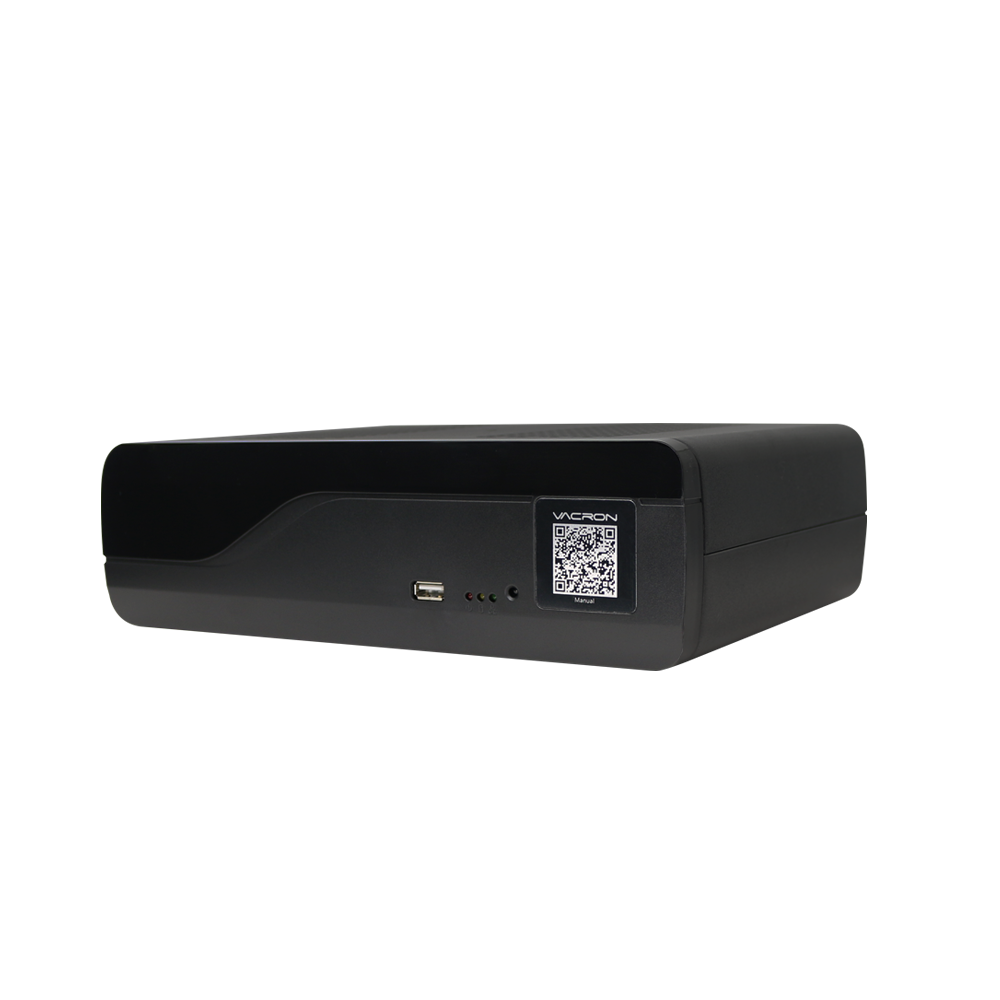

DVR
Product Features
| Video Input | 4CH Input / BNC(1Vp-p 75Ω) |
| Video Output | VGA Resolution |
| High Definition(HD) | |
| Audio Input | 1CH Input |
| Audio Output | 1CH Output |
| Audio Compression | G.711U |
| Resoluation | 1080P |
| Digital Zoom | Area selected by mouse dragging |
| Auto Sequence Duration | YES |
| Video Compression | H.265 |
| Frame | 8CH 5M @6fps/CH ; 8CH 1080P @15fps/CH ; |
| Recording Mode | Continuous/ Schedule/ Motion |
| Motion Detection | Zones: 192(16×12 grid) |
| Pre-Record | 1-5 sec |
| Post-Recording | 10 ~ 300 sec |
| Display Mode | Single, Quad, Sequence |
| File Format | MP4 |
| Media Interface | USB/Network |
| Playback | YES |
| Communication Protocol | HTTP、DHCP、DDNS、NTP、SMTP、FTP、 DNS、UPNP、PPPoE、IP Authority、IP Search |
| Browser | IE |
| Storage HDD Interface | SATA |
| Maximum support capacity | Maximum 8TB HDD |
| Internal HDD | 1 pcs |
| File System | Stable and reliable self-developed file system. |
| S.M.A.R.T | HDD error detecting |
| Menu Display | GUI interface;VGA & HD & CVBS outsimultaneously |
| Input Method | Mouse |
| Ethernet | 1*RJ-45, 10/100 Base-T |
| Web Monitoring | Live, Search/Playback, Backup, PTZ, |
| Remote Setup/Upgrade | |
| Internal Buzzer | Beep warning sound on system start |
| Multi Language | English, Simplified Chinese, Traditional Chinese, Japanese |
| Firmware Update | USB, Network Remote Upgrade |
| Network Time Protocol (NTP) | Yes |
| Mobile Phone | iPhone, Android, Mobile App supports Live video |
| & audio, and playback. | |
| Central Management Software (CMS) | Yes |
| Hybrid(Digital & Analogue) | Yes |
| Operating Environment | Temperature 0~46ºC, Humidity: 20~80% |
| Power | DC 12V / 3A(AC100V~240V 50/60HZ) |
| Weight | About 1kg ( without HDD and Power Adapter) |
| Dimension | 200mm x 276mm x 80mm (W x D x H) |
