CCTV Surveillance System

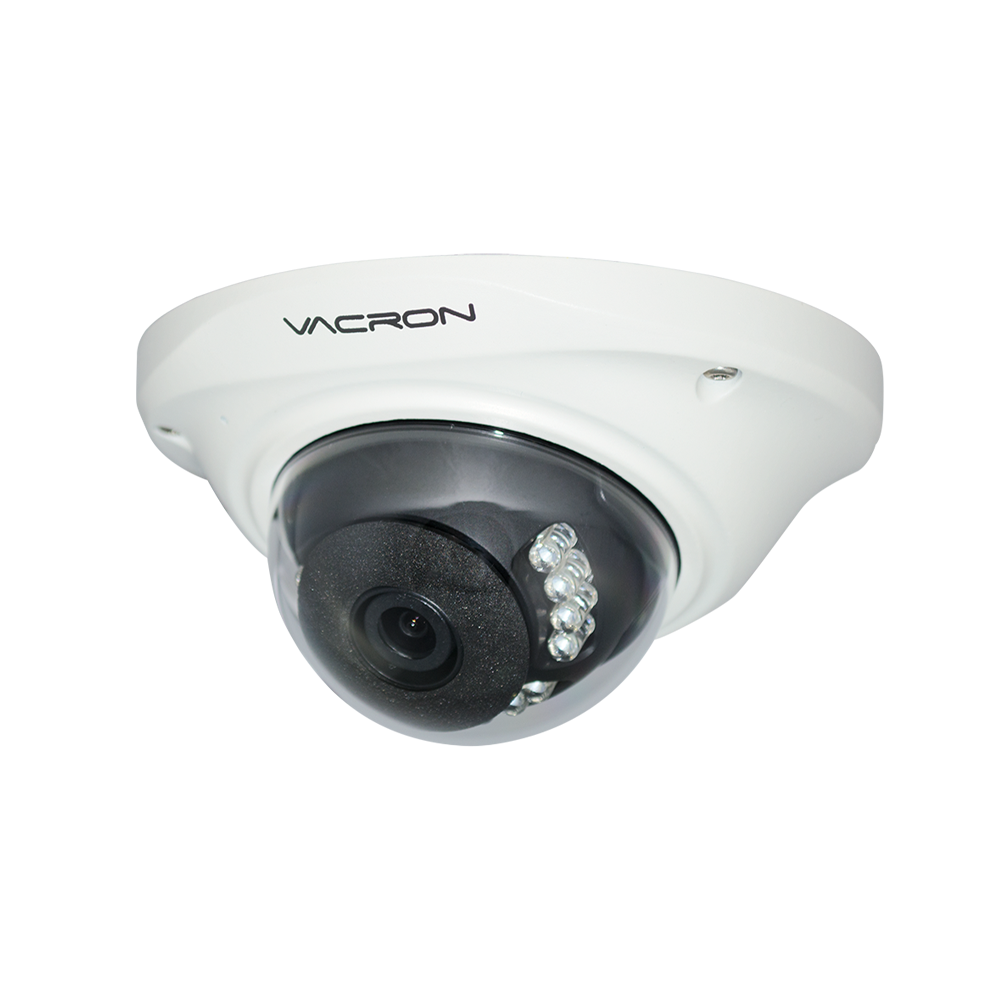

CCTV Camera

VCT-57282HD-A

1080P / IP66 / IR

  • DC12V

  • LENS 3.6mm

  • 12 LEDs

  • 15M

  • 0.1 LUX

  • 1/3CMOS

  • -20~50°C

  • 58dB_2

Download Catalog

Product Features

  • 1/3" CMOS sensor.
  • AHD1080P high video quality transmission,up to 1920x1080 pixels.
  • 3.6 mm lens
  • TVI support coaxial
  • AHD or CVBS or TVI or CVI output swit ch.
  • IP Rating: IP66.

Pick Up Element

1/3" CMOS sensor

Video System

NTSC / PAL

Image Signal Process

Digital Signal Processor

Lens

3.6mm

Number Of Pixel

1920(Horizontal) x 1080(Vertical)

Horizontal Resolution

1080P@30fps

Power Supply

DC 12 ± 1V

Power Consumption

120mA (IR Off)；200mA (IR On)

ICR

Support

Format

25FPS / 30FPS / PAL / NT

Audio

TVI support(with microphone)

S/N Ratio

≧58dB

White Balance

Auto

Gain Control

Auto

Gamma correction

Auto

Day Night Auto Switch

Support

LEDs

12 PCS

IR Range

15M

IR Wavelength

850nm

Minimum Illumination

0.1Lux

OUTPUT

AHD or CVBS or TVI or CVI (Default setting: TVI Mode)

Language

English / Simplified Chinese / Traditional Chinese

IP Rating

IP66

Operating Temperature

-20℃~50℃

Dimensions (H×W×D)

Φ120mm x 60 mm

Weight

About 300g
