CCTV Surveillance System

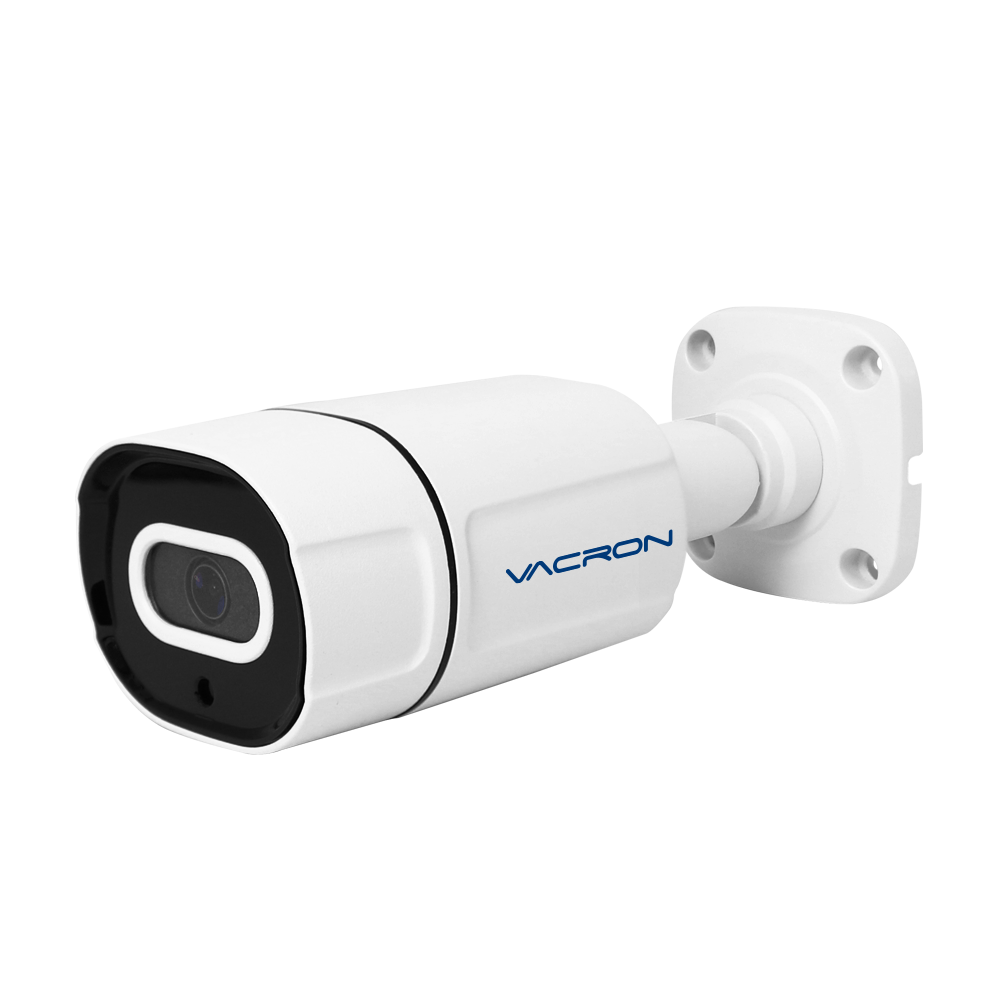

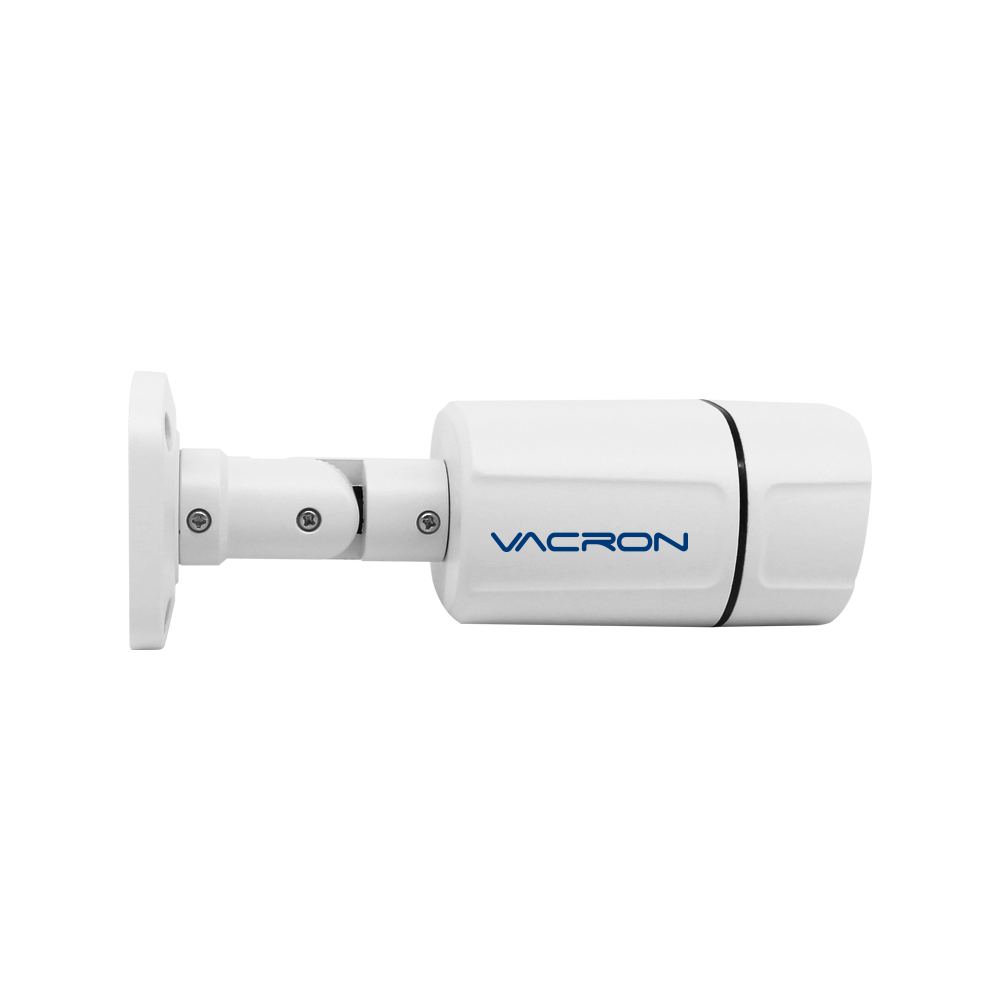

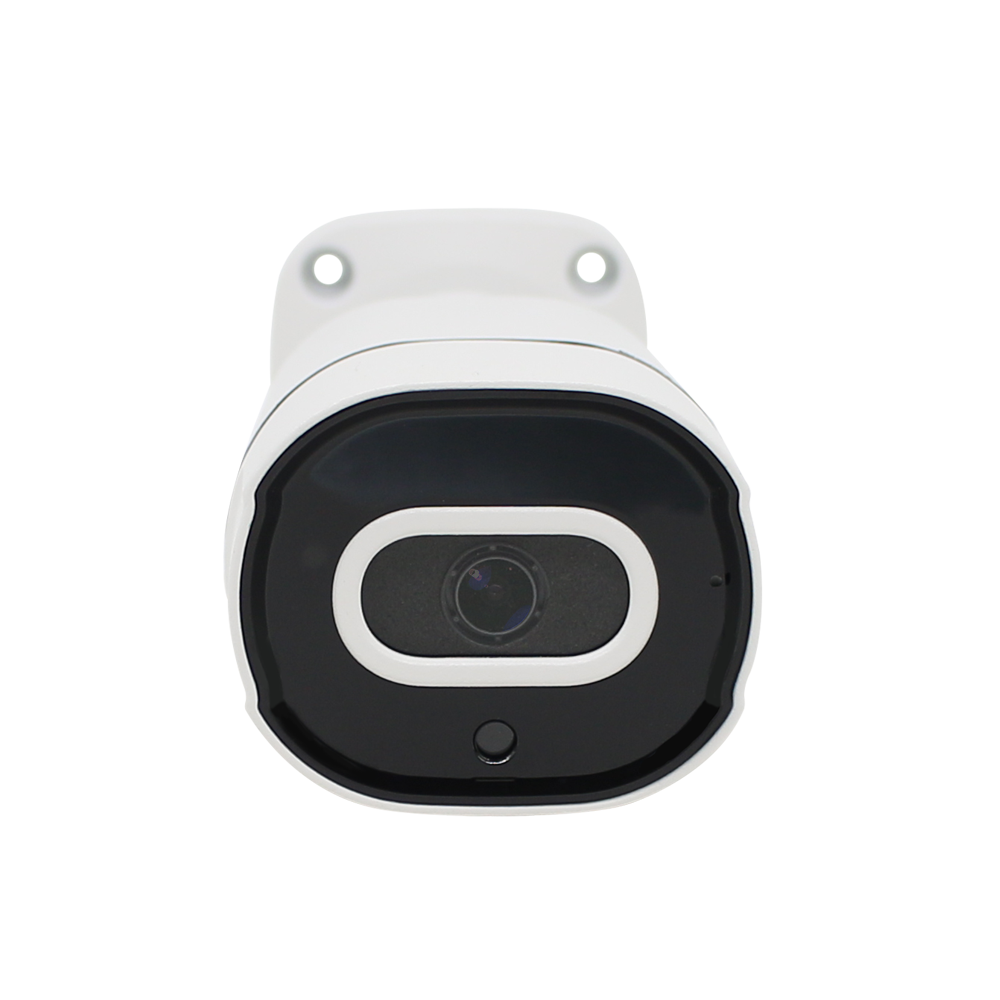

CCTV Camera

VCT-5760U-A

1080P / IP66 / IR

  • DC12V

  • LENS 3.6mm

  • 30M

  • 0.1 LUX

  • 1/3CMOS

  • 4 LEDs

  • -20~50°C

  • 58dB_2

Download Catalog

Product Features

  • 1/3" CMOS sensor.
  • AHD1080P high video quality transmission,up to 1920x1080 pixels.
  • 3.6 mm lens
  • TVI support coaxial
  • AHD or CVBS or TVI or CVI output swit ch.
  • IP Rating: IP66.

Pick Up Element

1/3" CMOS sensor

Video System

NTSC / PAL

Image Signal Process

Digital Signal Processor

Lens

3.6mm

Number Of Pixel

1920(Horizontal) x 1080(Vertical)

Horizontal Resolution

1080P@30fps

Power Supply

DC 12 ± 1V

Power Consumption

120mA (IR Off)；330mA (IR On)

ICR

Support

Format

25FPS / 30FPS / PAL / NT

Audio

TVI support

S/N Ratio

≧58dB

White Balance

Auto

Gain Control

Auto

Gamma correction

Auto

Day Night Auto Switch

Support

LEDs

4 PCS

IR Range

30 M

IR Wavelength

850nm

Minimum Illumination

0.1Lux

OUTPUT

AHD or CVBS or TVI or CVI (Default setting: TVI Mode)

Language

English / Simplified Chinese / Traditional Chinese

IP Rating

IP66

Operating Temperature

-20℃~50℃

Dimensions (H×W×D)

190mm x 71mm x 59 mm

Weight

About 310g
