Mobile Surveillance

Car Cameras

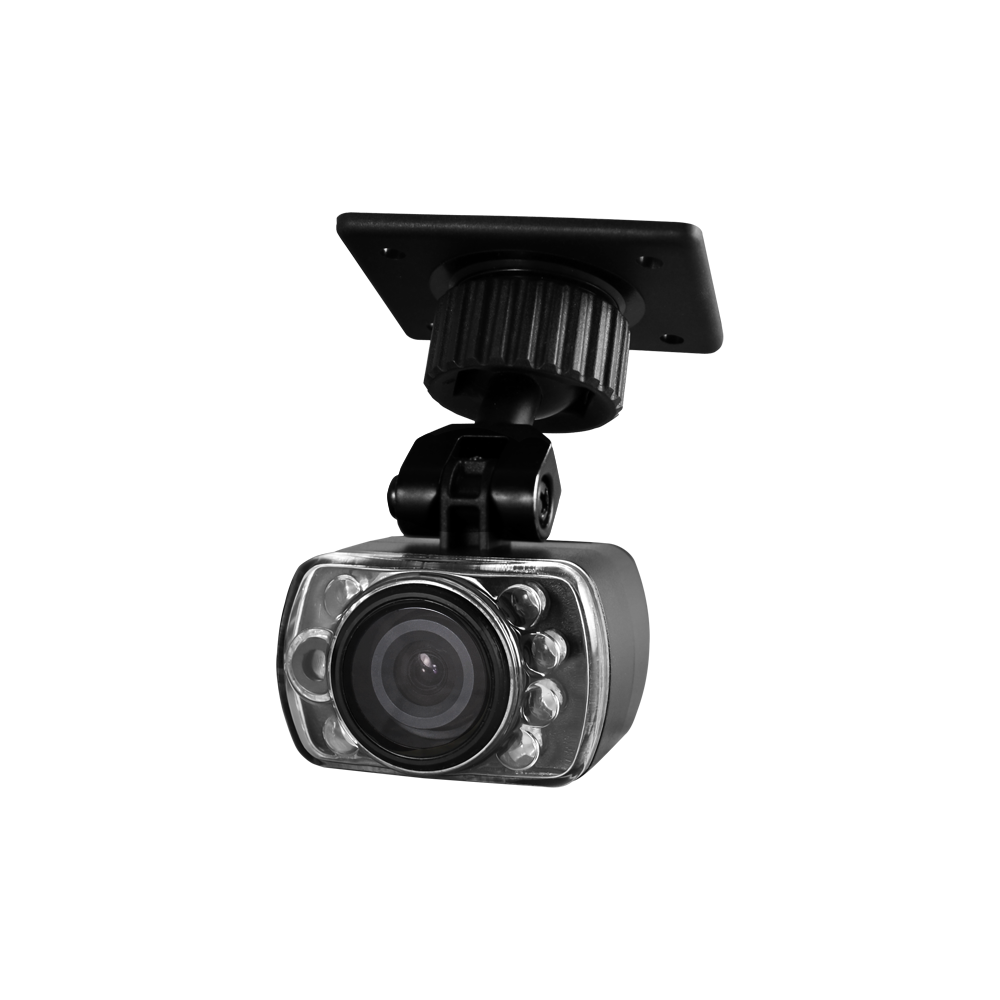

AVM-F251C

1080P / IP68 / IR

  • 110º

  • LENS 2.9mm

  • 6 LEDs

  • 3M

  • 0.1 LUX

  • 50dB

  • Mirror

  • 1/3CMOS

  • DC 5~12V

Download Catalog

Product Features

  • 1/3”CMOS Sensor
  • 2.9mm Lens
  • Use 6 units IR LED, Night vision view improved for safety driving
  • Suitable for trucks and buses monitoring
  • Video adjustable for mirroring if in need (Optional)

Video System

NTSC / PAL

Pick Up Element

1/3”CMOS Sensor

Number Of Pixel

1920 (Horizontal) x 1080(Vertical)

Effective Pixels

2.0 Mega Pixel

Resolution

1080P

Sync System

Internal

Scanning system

2 : 1 Interlace

Sensitivity

0.1Lux

S/N Ratio

≥50dB

Auto Gain Control

AUTO

Mirroring

Optional(BV)

White Balance

Auto

Electronical Shutter

Auto

Video Output

1 Vp-p Composite Video Output, 75 Ohms

Power Supply

DC 5~12.0V

Power Consumption

120mA (IR Off);240mA (IR On)

Lens

2.9mm

View Angle

H: 110° V:55°

Operating Temperature

- 10° C ~ + 60°C

Dimensions (H x W x D)

44mm × 80mm × 48.5 mm

LEDs

6 PCS

IR Range

3 M

IR Wavelength

850nm
