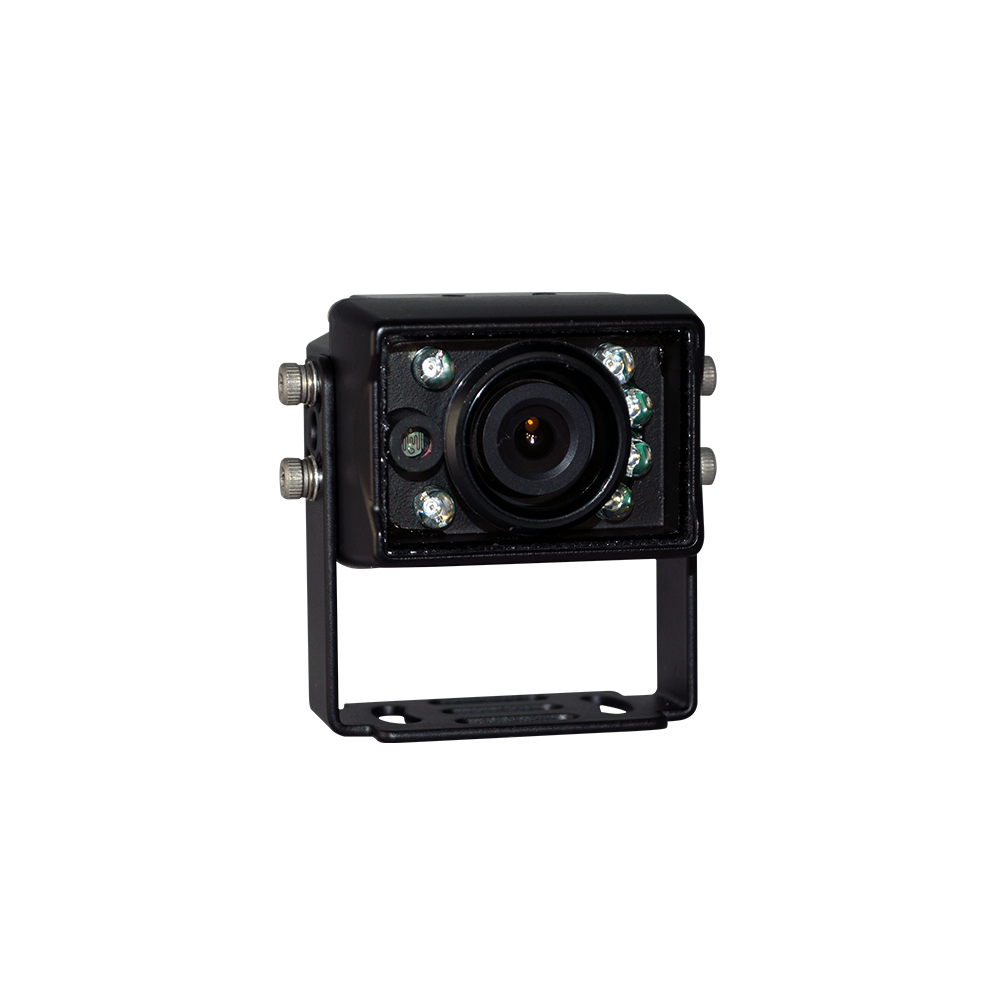

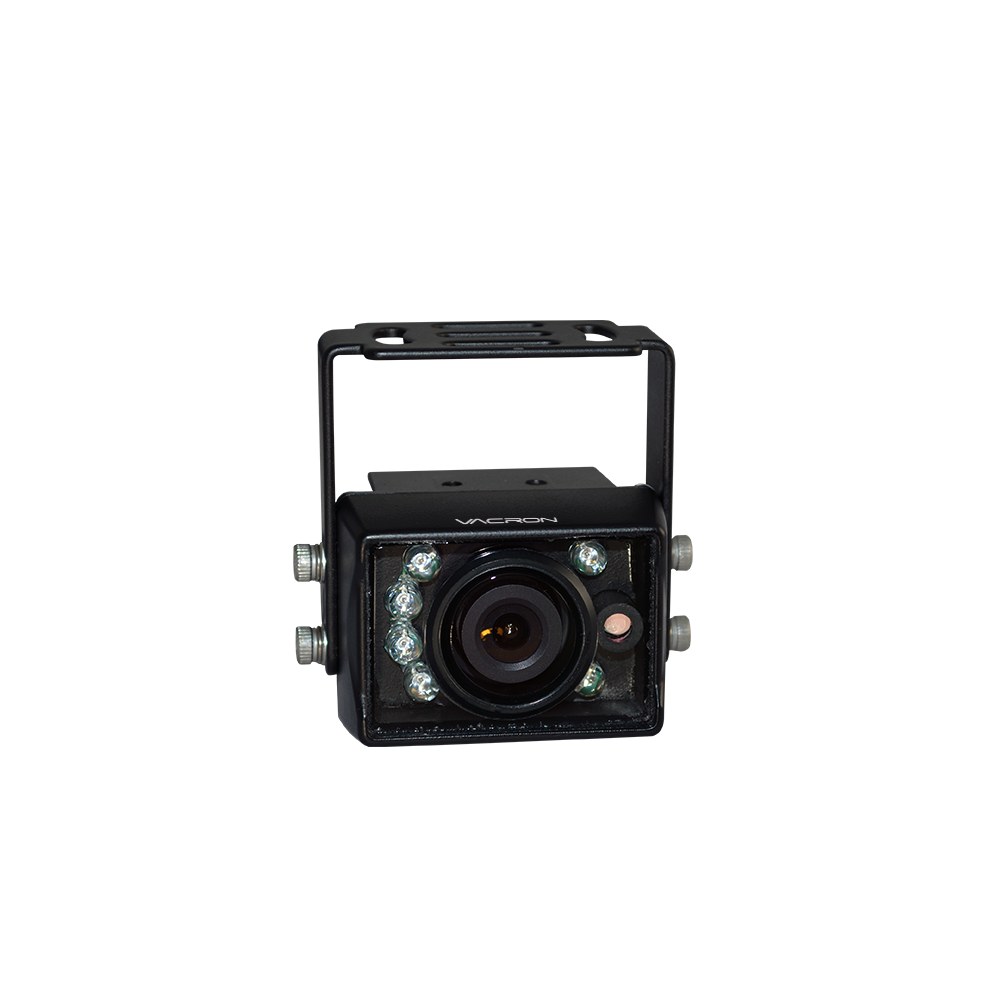

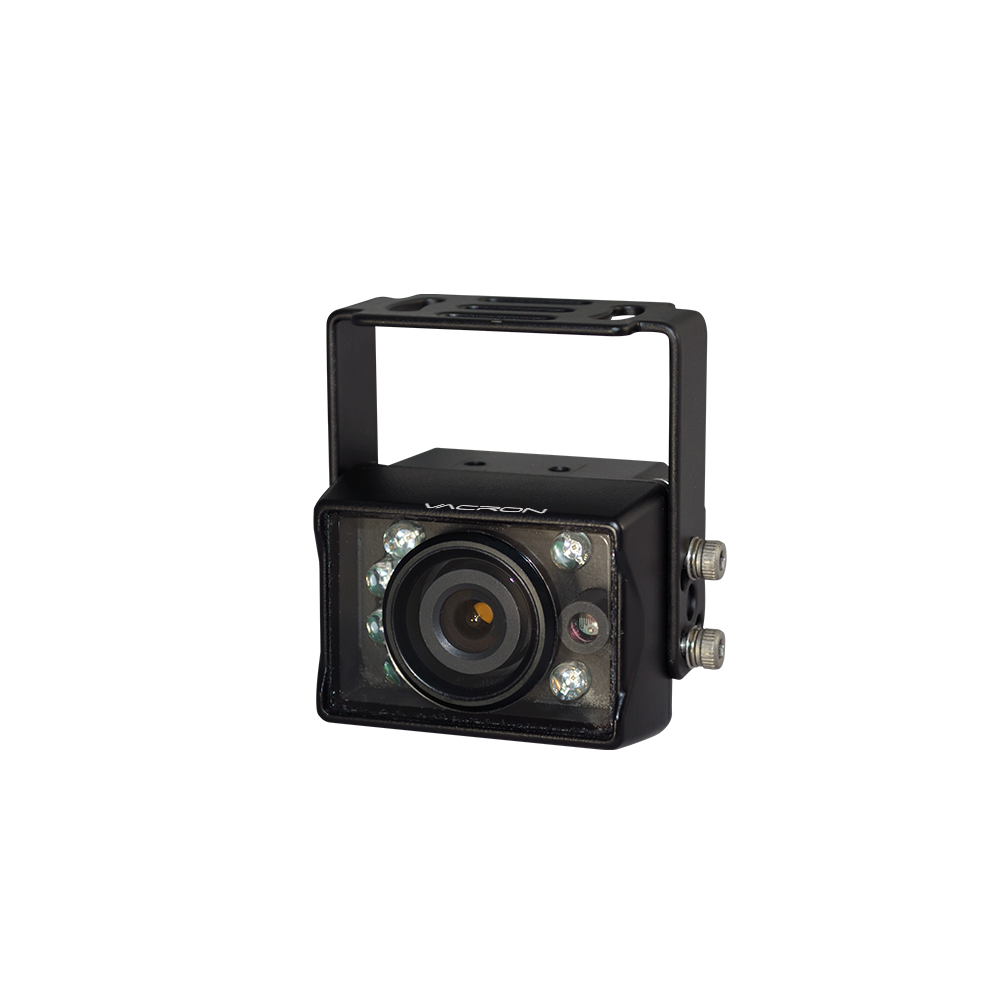

Car Cameras | AVM-F231C

Product Features

Video System	NTSC / PAL
Pick Up Element	1/3" CMOS sensor
Number Of Pixel	1928 (Horizontal) x 1088(Vertical)
Effective Pixels	2.0 Mega Pixel
Resolution	1080P
Sync System	Internal
Scanning system	2 : 1 Interlace
Sensitivity	0.1Lux
S/N Ratio	Max 50dB
Auto Gain Control	Auto
Mirroring	Optional(BV)
White Balance	Auto
Electronical Shutter	Auto
Video Output	1 Vp-p Composite Video Output, 75 Ohms
Power Supply	DC 5V / DC 12V
Power Consumption	120 mA (IR OFF) / 240mA (IR ON) 、 80 mA (IR OFF) / 210mA (IR ON)
Lens	2.8mm
View Angle	H:90°
Operating Temperature	- 10° C ~ + 60°C
Dimensions (H x W x D)	57.6 × 52.4. × 55.5 mm
LEDs	6PCS
IR Range	3M
IR Wavelength	850nm
Waterproof	IP68
