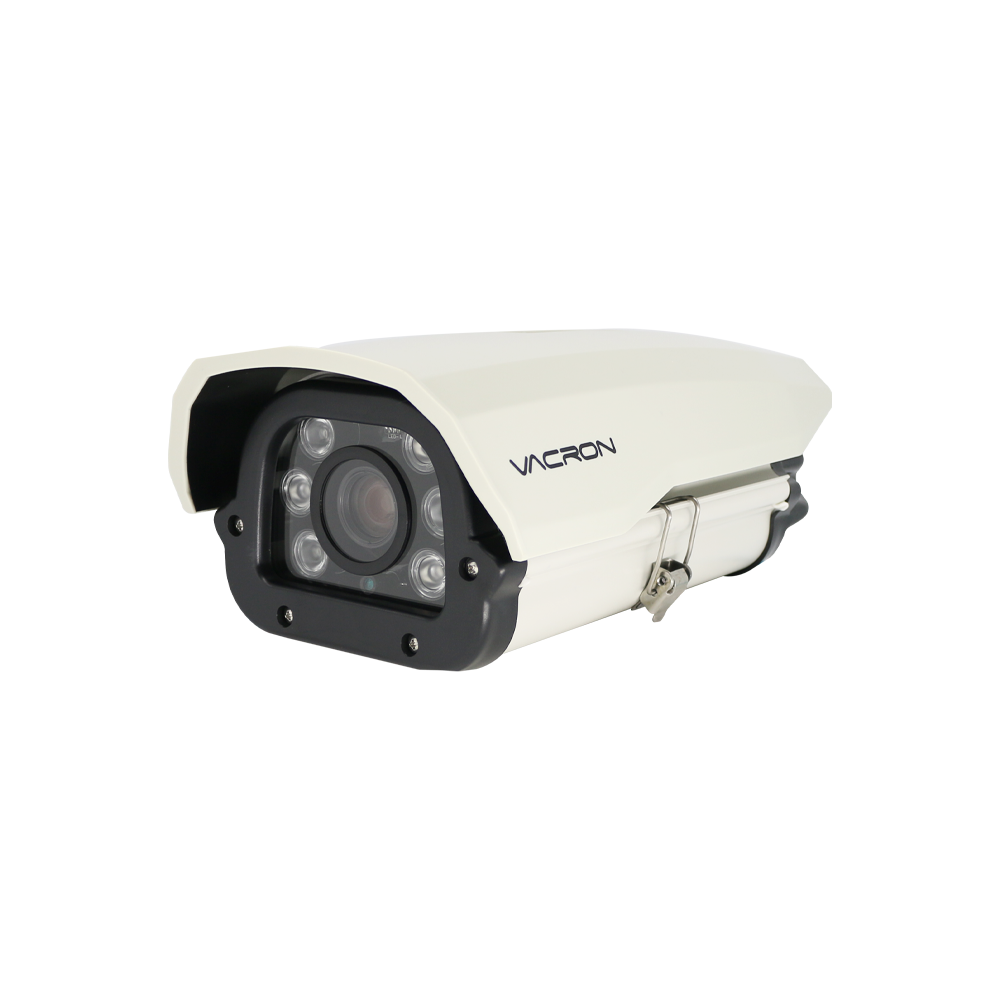

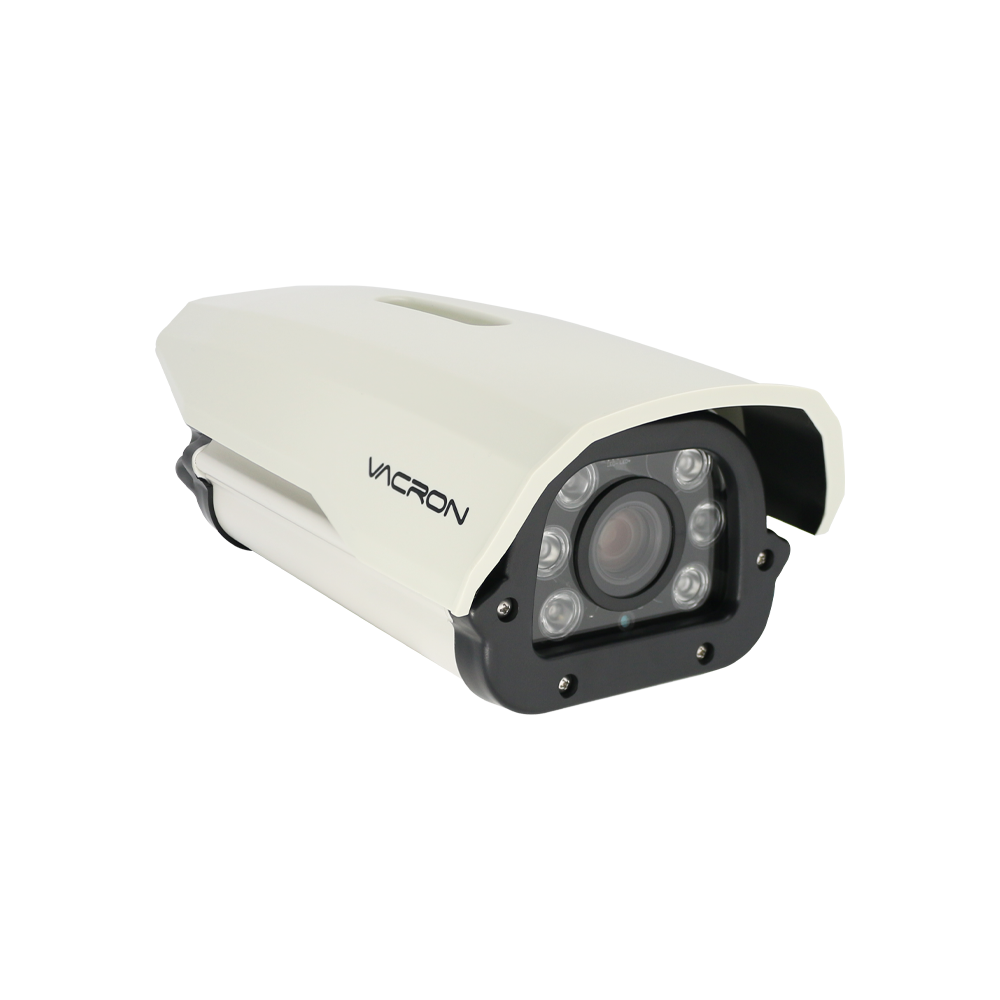

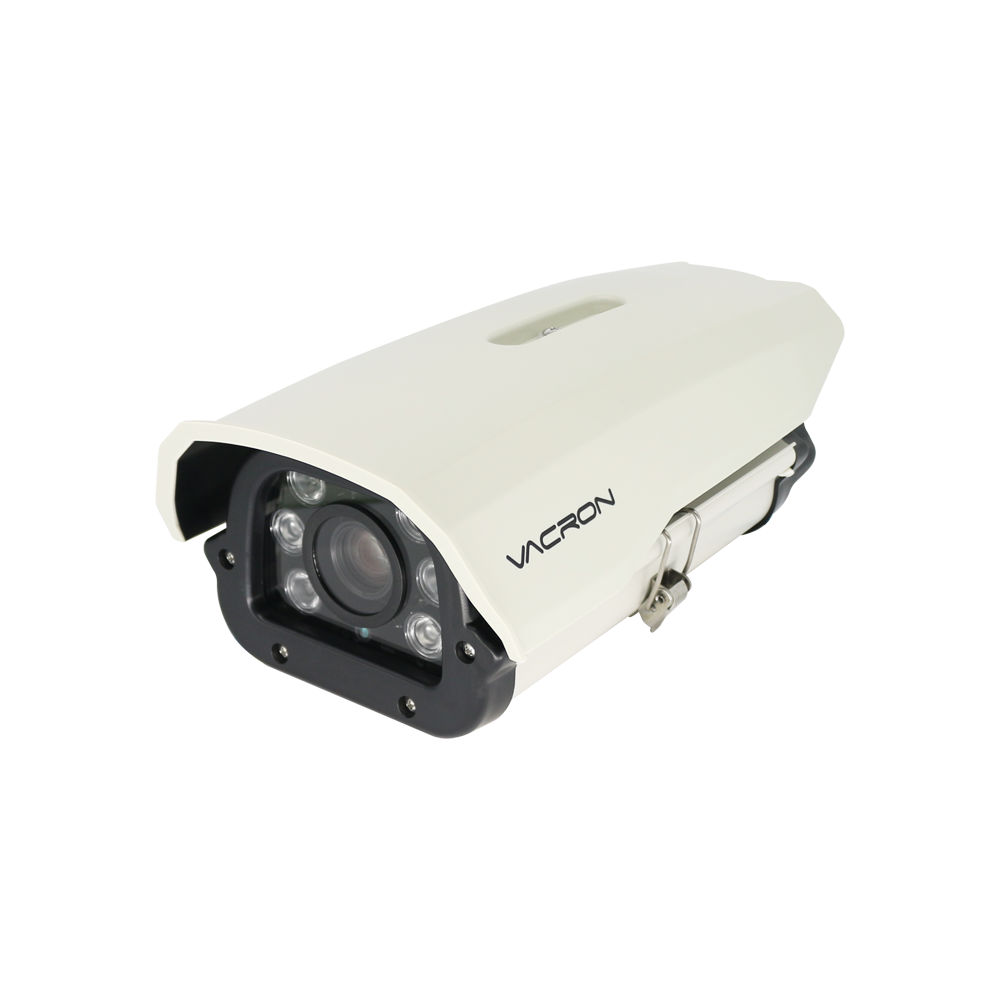

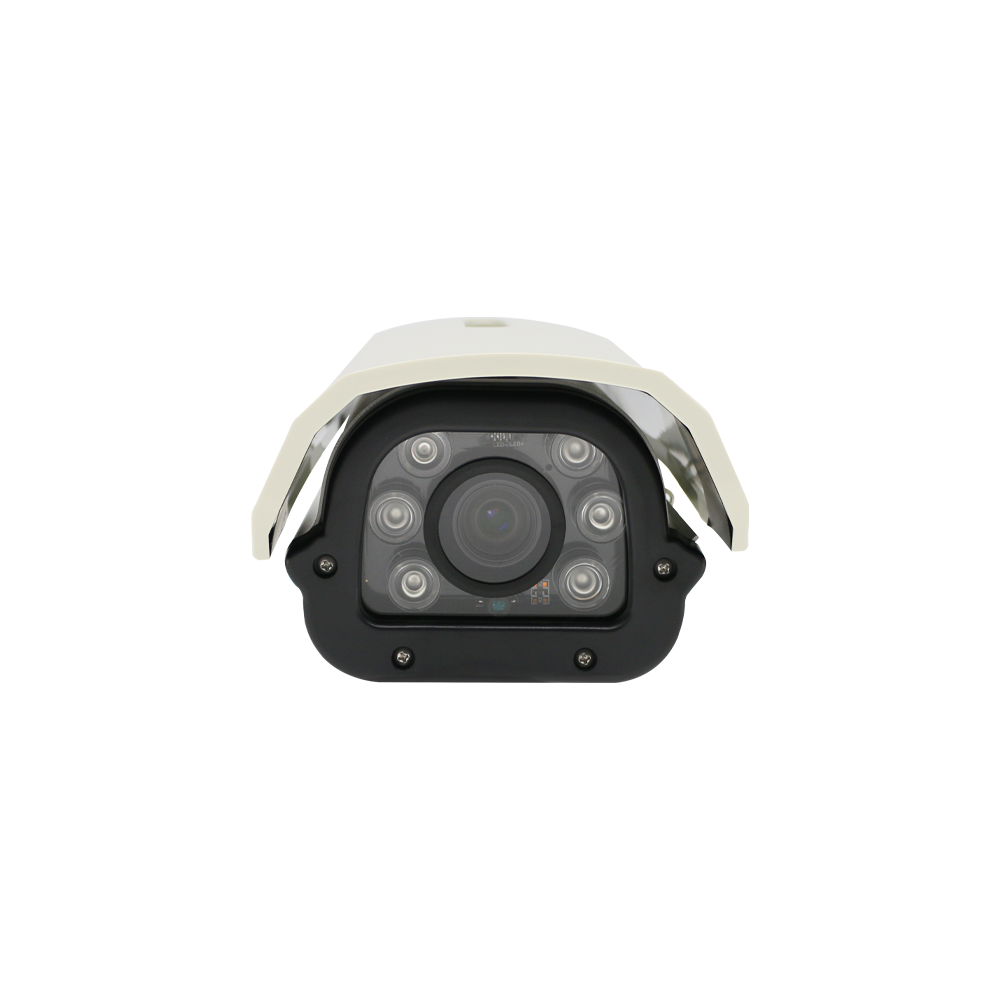

IP Camera
1080P / Bullet / IP66 / IR / H.265 / LPR
DC12V
P.O.E
8 LEDs
1/2.8"CMOS
0.001LUX
0~45°C
ANPR
AutoLENS 5-50mm
Product Features
Licence plate recognition feature
License plate recognition quantity | 5 license plate recognition on CCTV monitor at the same time. |
License plate recognition size | 120 x 80 pixel license plate image required. |
License plate recognition mode | Can setup on or off and white list setup for accessible vehicle or alert vehicle control. |
Accuracy configuration adjustment |
Default low according to installation environment limit recognition rigorous level adjustable for best accuracy. |
License plate alert notification | Connected with IO output high/low w(3.3V~0) alarm signal. Recognition images uploaded to FTP or saved in micro SD card. |
Alert response time | IO alarm time adjustable for security forces time management. Can setup IO alarm output voltage level high/low (3.3V~0) for remote siren or gearing alert. |
License plate recognition image storage |
SD card storage and FTP upload are alternative. 30 seconds an image in condition of same license plate for saving storage and whole system stability. |
Control list setup | Up to 10,000 license plate data control |
Micro SD card storage | Micro SD card 256 GB support for license plate recognition images storage and verification on browser available. SD card will be formatted and normal recording off when license plate recognition system snapshot function activated. |
Cooperative development | Please contact sales for various AI powered system integration and cooperative development |
SPECIFICATIONS
system | Flash:256MB | ||
RAM:512MB | |||
Image Sensor | SONY FullHD High Quality 1/2.8 CMOS Image Sensor | ||
Lens | Auto Varifocal 5-50mm | ||
IR-cut | Removable IR-cut filter for day & night function | ||
Low Lux | 0.001Lux | ||
IR LED | HI-P 6 IR LED | ||
Video | H.265/H.264: 1920x1080 at 60 fps | ||
H.265/H.264: 1280x720 at 60 fps | |||
H.265/H.264: 640x480 at 60 fps | |||
H.265、H.264Multi-mode compression (Dual Codec) | |||
Support Simultaneous multiple streams | |||
Image Settings | Adjustable image size,quality, and bit rate | ||
Time/Date stamp and text caption overlay | |||
Configurable brightness, contrast, saturation, sharpness, white balance and exposure |
|||
Have: AGC、AWB、AES、BLC、WDR Features | |||
Electronic Shutter | 1/2 ~ 1/100,000 Sec | ||
Networking Interface | 10 /100 Mbps,RJ-45 | ||
Protocol | IPv4、TCP/IP、DHCP、HTTP、RTSP、SNTP、DNS | ||
browser | Microsoft Internet Explorer 6.0 or above Safari, Chrome or Firefox |
||
Users | clients on-line monitoring at the same time | ||
Multi-level user access control with password protection | |||
Maintenance | Supports online firmware upgrade | ||
I/O Port | RJ-45 Ethernet port / Power input port 12VDC / Audio input / output / BNC & RS-485 output / Alarm output |
||
Power | DC12V | ||
Max. Power Consumption | 3.6W(IR OFF)、12W(IR ON) | ||
Weight | N.W. :1220g | ||
Dimension | 320mm x 160mm x 110mm | ||
Operating Environments | 0℃ ~ 45℃ | ||
IP Rating | IP66 |
Download support
Download Manual
Product Model | Download | Explanation |
AI License plate recognition | AI License plate recognition |
