IP Surveillance System

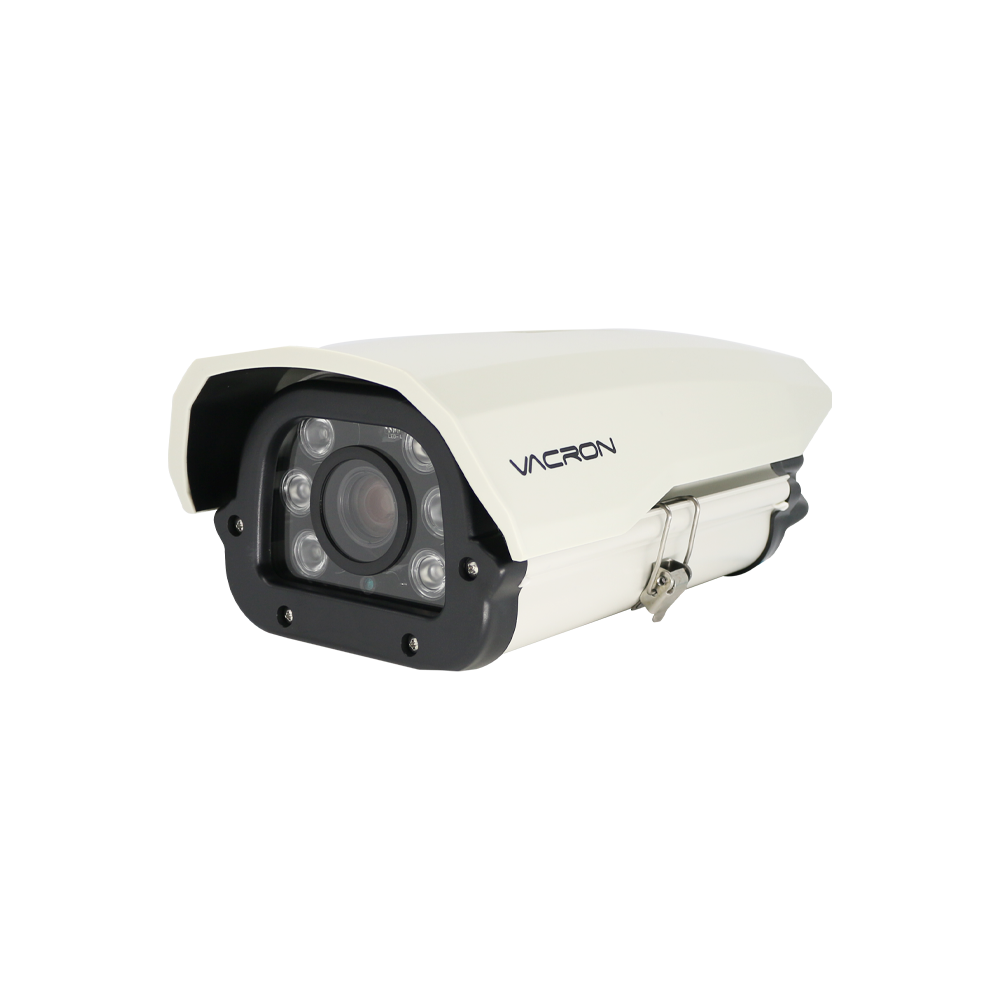

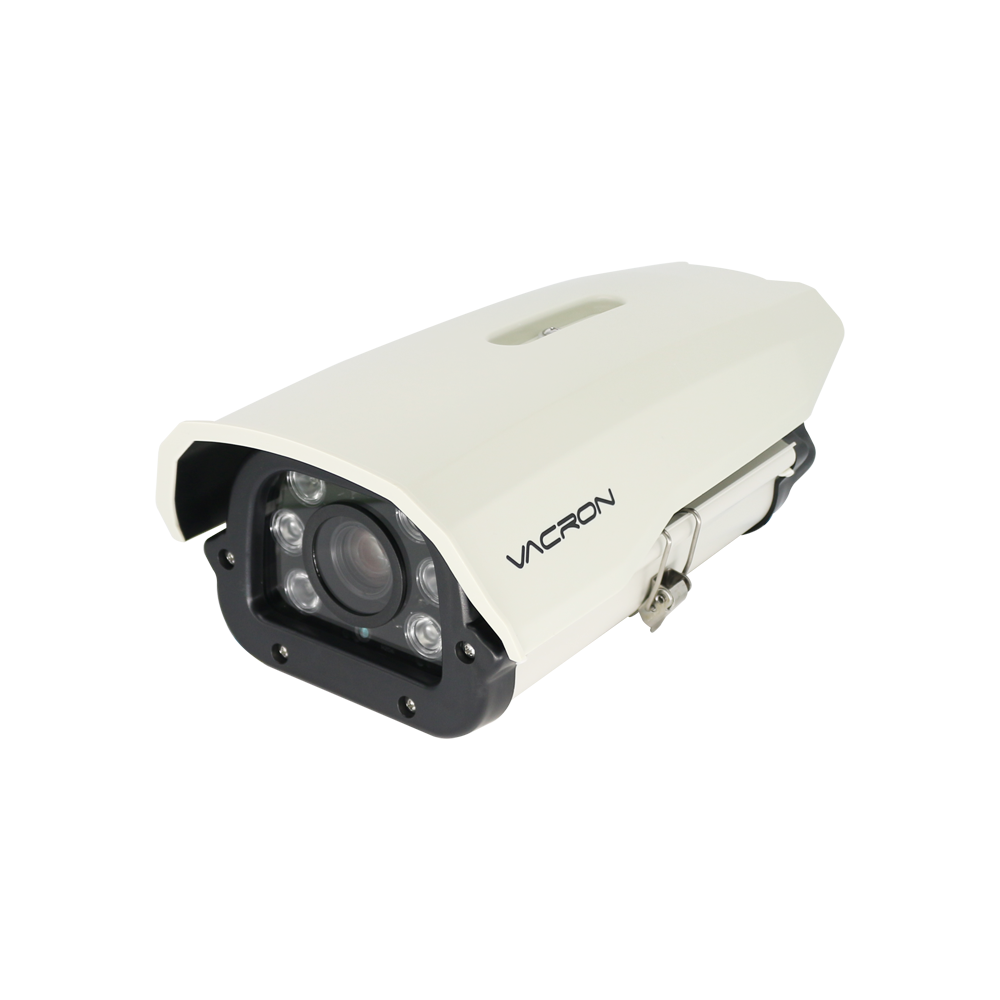

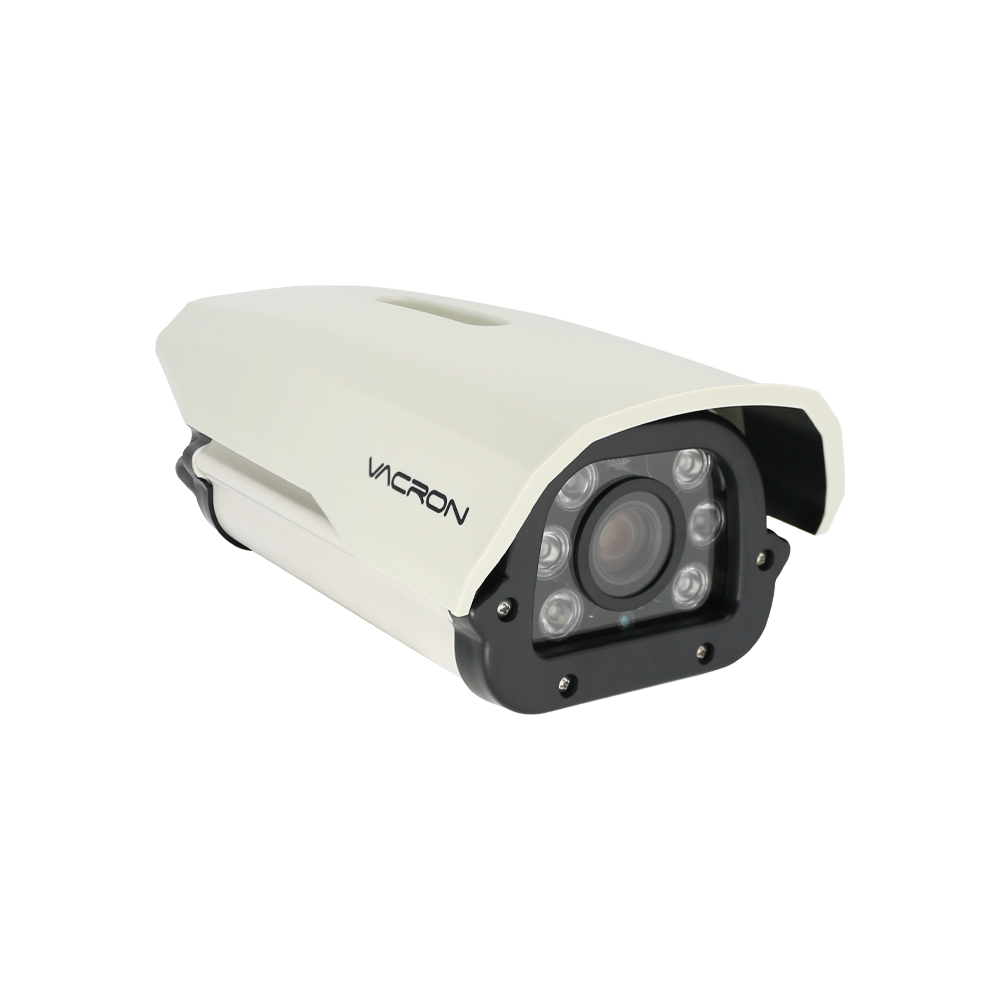

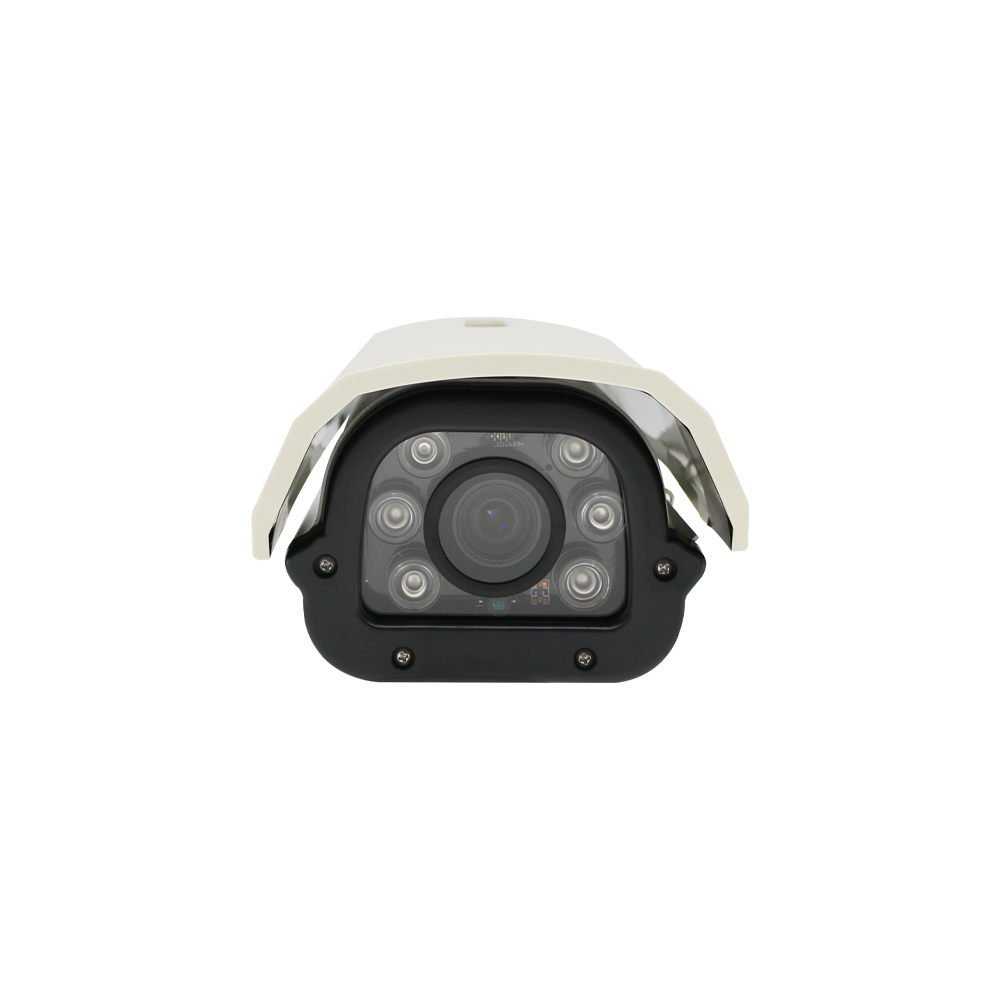

IP Camera

VIN-US763CTA-E4

1080P / Bullet / IP66 / IR / H.265 / LPR

  • DC12V

  • P.O.E

  • 8 LEDs

  • 1/2.8"CMOS

  • 0.001LUX

  • 0~45°C

  • ANPR

  • AutoLENS 2.8-12mm

Download Catalog

Product Features

  • 80% recognition universal LPR learning algorithm built in. 95% + recognition after upgraded
    with license plate snapshot learning evolution thrice.
  • 5mm - 50mm Auto Varifocal lens equipped for sharpness of the recognition zone.
  • Starlight Sony CMOS low illumination color image high resolution night vision enhanced.
  • Real time H.265/H.264 multi mode engine compression technology and multi level image
    quality deployment support.
  • 256 GB SD card storage for snapshot images and video files retrieving remotely for event data.
  • Starlight Sony CMOS low illumination color image high resolution night vision enhanced.
  • Recognition output carried by Vacron recording systems instantly capture vehicle entry and exit.
  • ONVIF compliance best compatibility and integration with open SDK for platform integration.


Licence plate recognition feature

License plate recognition quantity   5 license plate recognition on CCTV monitor at the same time.
License plate recognition size 120 x 80 pixel license plate image required.
License plate recognition mode Can setup on or off and white list setup for accessible vehicle or alert vehicle control.
Accuracy
configuration adjustment		 Default low according to installation environment limit recognition rigorous level adjustable for best accuracy.
License plate alert notification Connected with IO output high/low w(3.3V~0) alarm signal.
Recognition images uploaded to FTP or saved in micro SD card.
Alert response time IO alarm time adjustable for security forces time management.
Can setup IO alarm output voltage level high/low (3.3V~0) for remote
siren or gearing alert.
License plate
recognition image storage		 SD card storage and FTP upload are alternative.
30 seconds an image in condition of same license plate for saving storage and whole system stability.
Control list setup Up to 10,000 license plate data control
Micro SD card storage Micro SD card 256 GB support for license plate recognition images storage and verification on browser available. SD card will be formatted and normal recording off when license plate recognition system snapshot function activated.
Cooperative development Please contact sales for various AI powered system integration and cooperative development


SPECIFICATIONS

system Flash：256MB
RAM：512MB
Image Sensor SONY FullHD High Quality 1/2.8 CMOS Image Sensor
Lens Auto Varifocal 2.8-12mm
IR-cut Removable IR-cut filter for day & night function
Low Lux 0.001Lux
IR LED HI-P 6 IR LED
Video H.265/H.264: 1920x1080 at 60 fps
H.265/H.264: 1280x720 at 60 fps
H.265/H.264: 640x480 at 60 fps
H.265、H.264Multi-mode compression (Dual Codec)
Support Simultaneous multiple streams
Image Settings Adjustable image size,quality, and bit rate
Time/Date stamp and text caption overlay
Configurable brightness, contrast, saturation, sharpness,
white balance and exposure
Have: AGC、AWB、AES、BLC、WDR Features
Electronic Shutter 1/2 ~ 1/100,000 Sec
Networking Interface 10 /100 Mbps,RJ-45
Protocol IPv4、TCP/IP、DHCP、HTTP、RTSP、SNTP、DNS
browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Users clients on-line monitoring at the same time
Multi-level user access control with password protection
Maintenance Supports online firmware upgrade
I/O Port RJ-45 Ethernet port / Power input port 12VDC /
Audio input / output / BNC & RS-485 output /
Alarm output
Power DC12V
Max. Power Consumption 3.6W(IR OFF)、12W(IR ON)
Weight N.W. :1220g
Dimension 320mm x 160mm x 110mm
Operating Environments 0℃ ~ 45℃
IP Rating IP66
