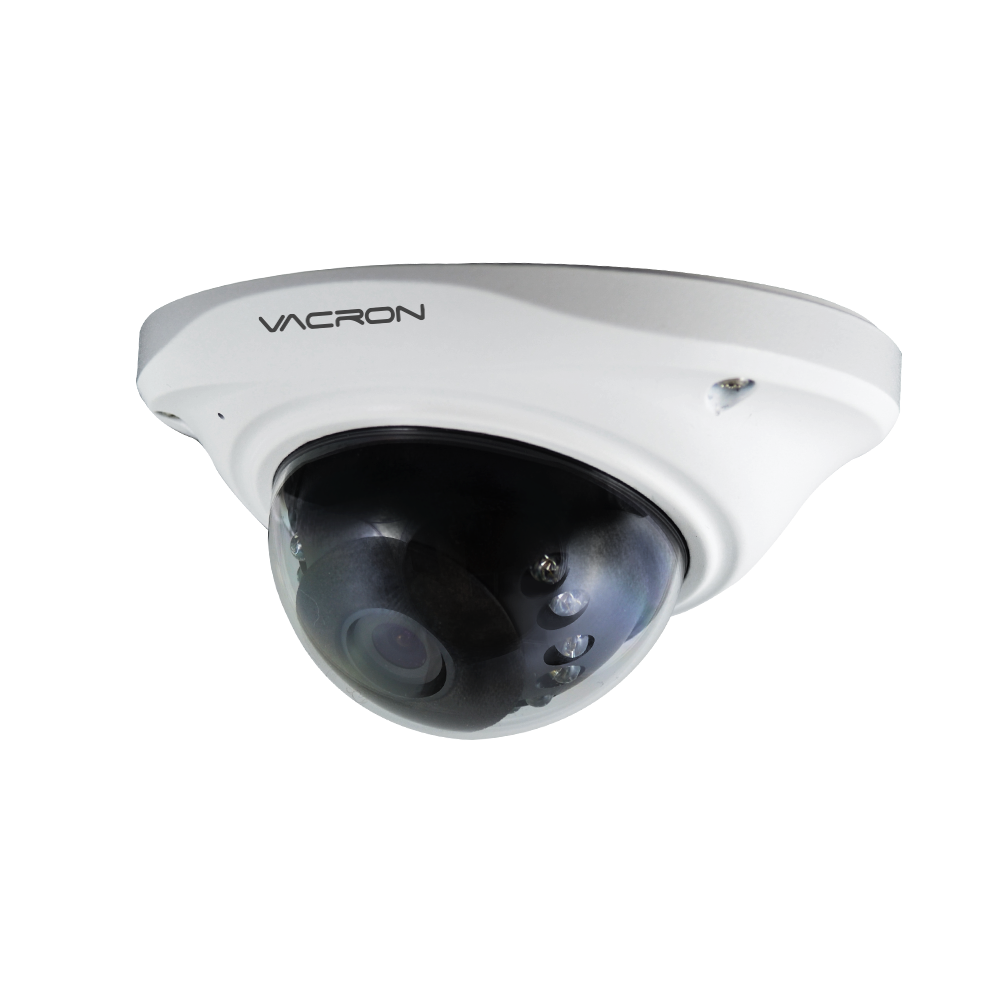

IP Camera
2MP / Dome / IP66 / IR / H.265+
DC12V
LENS 3.6mm
12 LEDs
15M
0 LUX
P.O.E
1/2.8"CMOS
Product Features
|
System |
Flash：16MB |
|
|
RAM：128MB |
||
|
Sensor |
FullHD High Quality 1/2.8" CMOS Image Sensor |
|
|
Lens |
Board Lens 3.6 mm F2.0 |
|
|
IR Cut |
Removable IR Cut filter |
|
|
Lux |
0 Lux(IR ON) |
|
| IR LED |
IR LED 12pcs |
|
|
Compression |
H.265+: 1920x1080 at 30fps |
|
|
H.265+: 1280x720 at 30 fps |
||
|
H.265+: 640x480 at 30fps |
||
|
H.265+、H.264、JPEG Multi-mode compression (Dual Codec) |
||
|
Multi-mode compression streaming |
||
|
Video Adjustment |
Resolution、Quality and bit rate |
|
|
Time、Date or custom text and it’s position |
||
|
Brightness, Contrast, Saturation and Sharpness |
||
|
AGC、AWB、AES、BLC、WDR |
||
| Network Interface |
10 /100 Mbps RJ-45 |
|
|
Protocol |
Microsoft Internet Explorer 6.0 or above |
|
|
Alarm & Event notification |
Motion Detection |
|
|
Users |
Max. 8 users for live view simultaneously |
|
|
User Authorization |
||
|
OTA |
OTA for Firmware upgrade |
|
|
I/O Port |
RJ-45, DC12V |
|
|
Power |
DC12V or PoE IEEE802.3af Class 0(Optional) |
|
|
Power Consumption |
3.6W(IR OFF) 、7W(IR ON) |
|
|
Weight |
N.W.：450g |
|
|
Dimension |
Φ 120 x 60 mm |
|
| Operating Environments |
0 ~ 45 °C |
|
