CCTV Surveillance System

CCTV Camera

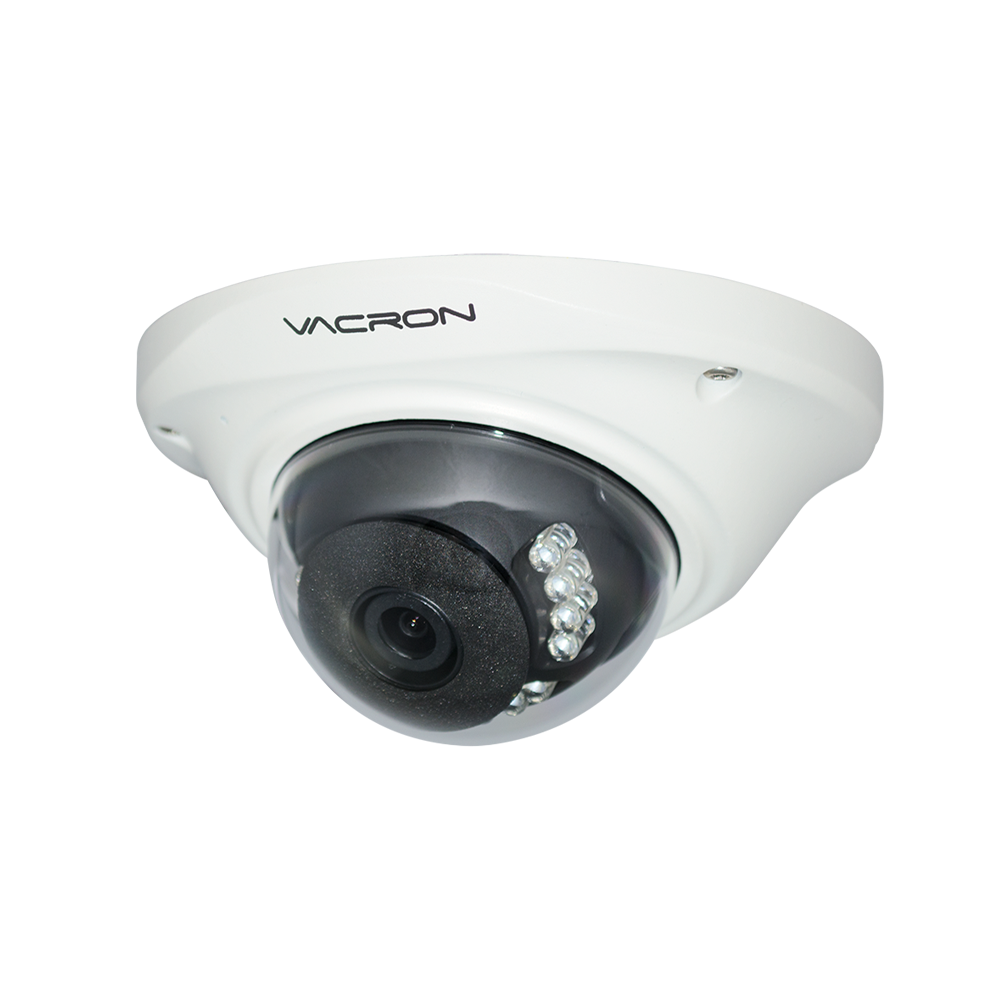

VCF-5K282HD

5MP / dome / IR / IP66

  • DC12V

  • LENS 3.6mm

  • 12 LEDs

  • 15m

  • 50dB

  • 0.2 LUX

  • -20~85°C

  • CMOS 1/2.5"

Download Catalog

Product Features

  • 1/2.5" CMOS sensor
  • AHD 5MP high video quality transmission, up to 2608×1952 pixels
  • 3.6 mm lens
  • AHD or CVBS or TVI or CVI output swit ch
Pick Up Element 1/2.5" CMOS sensor
Video System NTSC/PAL
Image Signal Process Digital Signal Processor
Lens 3.6mm
Number Of Pixel 2608 (Horizontal) x 1952(Vertical)
Horizontal Resolution 5MP@20fps
Power Supply DC 12 ± 1V
Power Consumption 120mA (IR Off)；200mA (IR On)
ICR Support
Electronic Shutter Auto
White Balance Auto
Gain Control Auto
S/N Ratio ≥50dB
Day Night Auto Switch Support
LEDs 12 PCS
IR Range 15M
IR Wavelength 850nm
Minimum Illumination 0.2Lux
OUTPUT AHD or CVBS or TVI or CVI (Default setting: AHD Mode)
Language English / Simplified Chinese / Traditional Chinese /
Russian / Italian / Portuguese
IP Rating
 IP66
Operating Temperature -20℃~85℃
Dimensions (H×W×D) Φ 120 x 60 mm
Weight About 300g
