CCTV Surveillance System

DVR

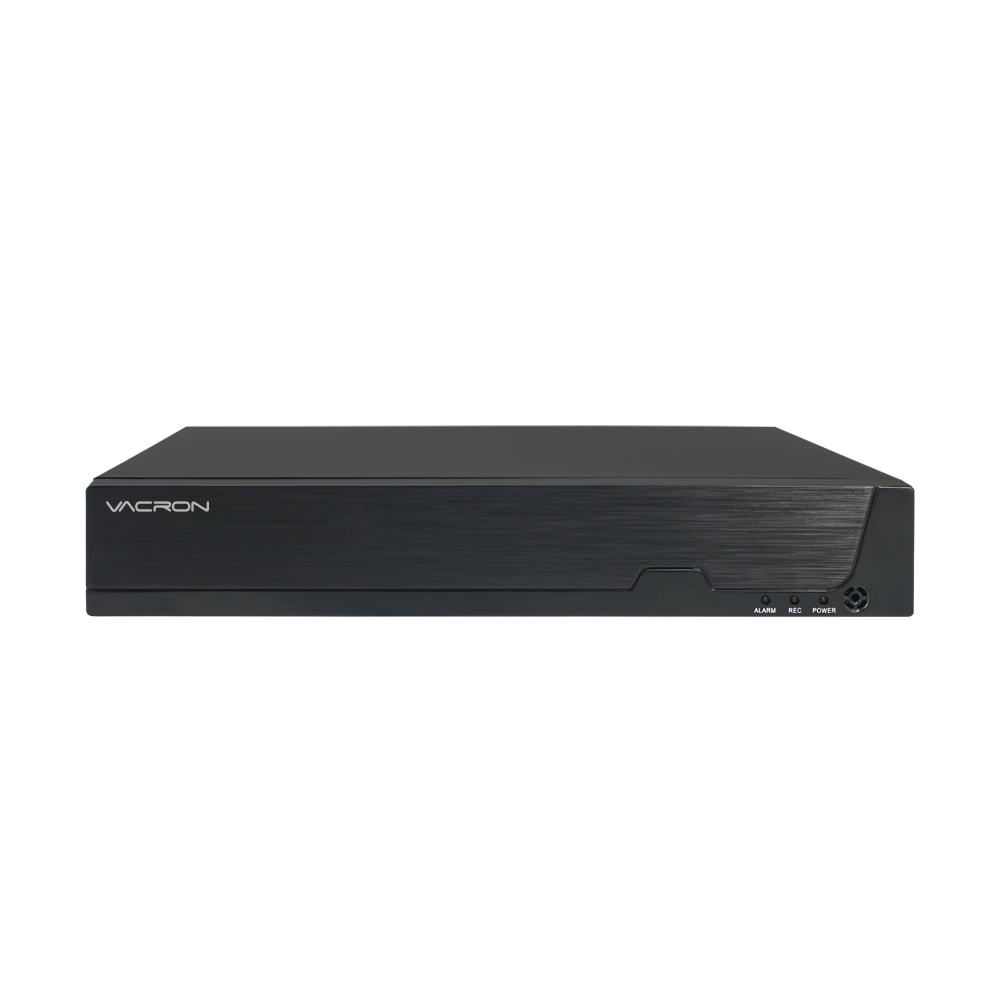

VDN-DKZ604D

4CH / 5MP / H.265 / HDD

  • Motion

  • LAN

  • CMS

  • GUI

  • Users

Download Catalog

Product Features

  • Pentaplex Operation: which can Record / Playback / Remote Connection /mobile phone watch.
  • Hard Drive support 8TB.
  • Support HD super high quality output.
  • Remote IE browsing, with video monitoring and playback functions.
  • Support HTTP、 DHCP、 DDNS、 NTP、 SMTP、 FTP、 DNS、 UPNP、 PPPoE、 IP search and other
    network protocol.
  • Support iPhone and Android for live monitoring and playback.
    CMS support for Effectively integrate device management operations.
  • Various modes supported , both analog & digital IP signal can be connected to DVR as
    hybrid features.
  • With P2P function, APP can scan QR-Code for real-time monitoring and playback,
    increasing information security.
  • Set the IPCAM mode on the host, and use FUHO IPCAM to plug and play.
  • Support WIFI network.
  • Support automatic update.
  • Support AHD, TVI, CVI, CVBS, IP signal input.
Video Input 4 groups of BNC(1Vp-p 75Ω)
Video Output VGA Resolution
High Definition(HD)
CVBS
Audio Input 1CH Input
Audio Output 1CH Output
Audio Compression G.711U
Display Resolution 1080P
Digital Zoom Yes
platform
 5 seconds automatic platform jump
Video Compression H.265
Recording Frame 4CH 5M @6fps/CH
4CH 1080P @15fps/CH
Recording Mode Continuous / Schedule / Motion
Motion Detection Zones: 192(16×12 grid)
Display Mode Single, Quad, Sequence
File Format MP4/Custom Format
Media Interface USB/Network
Playback YES
Network Protocol HTTP、DHCP、DDNS、NTP、SMTP、FTP、DNS、
UPNP、PPPoE、IP Authority、IP Search
Browser IE
Storage HDD Interface SATA
Maximum support capacity Maximum 8TB HDD
Internal HDD 1 pcs
External storage Support real-time synchronous recording
of USB storage devices
File System stable and reliable self-developed file system
S.M.A.R.T HDD error detecting
Menu Display GUI interface；VGA & HD out& CVBS
simultaneously
Input Method Mouse
Network Ethernet 1*RJ-45, 10/100 Base-T
Web Monitoring Live, Search/Playback, Backup, Remote setup,
Upgrade
Daylight Saving Time(DST) Yes
Multi-lingual Yes,(more than 20 languages)
Firmware Update USB and Network Remote Upgrade
Network Time Protocol
 Yes
4G Mobile Phone Monitoring iPhone, Android,
Mobile App supports Live video& audio,and playback.
Central Management Software(CMS) Support
Hybrid(Digital & Analogue) Support
Operating Environment Celsius 0 ~ 50°C, humidity 10~90%
Power Supply DC 12V / 3A(AC100V~240V 50/60HZ)
Net Weight About 0.5kg (without HDD and Power Adapter)
Dimension 255mm x 216mm x 42mm (L x W x H)
