CCTV Surveillance System

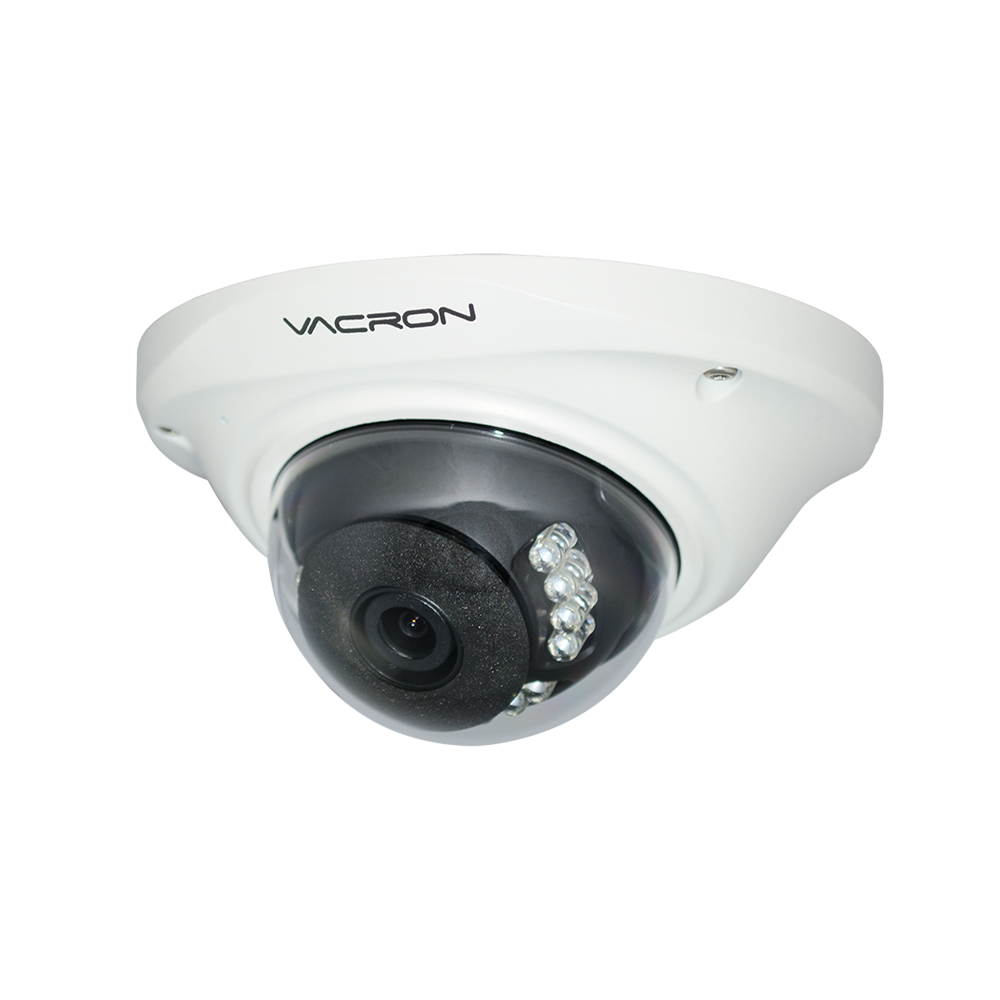

CCTV Camera

VCF-57282HD

1080P / dome / IR / IP66

  • DC12V

  • LENS 3.6mm

  • 12 LEDs

  • 15m

  • 0.1 LUX

  • 50dB

  • 1/3CMOS

  • -20~50°C

Download Catalog

Product Features

  • 1/3" CMOS sensor
  • AHD 1080P high video quality transmission, up to 1920 x 1080 pixels
  • AHD or CVBS or TVI or CVI output swit ch
  • IP Rating : IP66
Pick Up Element 1/3" CMOS sensor
Video System NTSC/PAL
Image Signal Process Digital Signal Processor
Lens 3.6mm
Number Of Pixel 1920 (Horizontal) x 1080(Vertical)
Horizontal Resolution 1080P@30fps
Power Supply DC 12 ± 1V
Power Consumption 120mA (IR Off)；200mA (IR On)
ICR Support
Electronic Shutter Auto
White Balance Auto
Gain Control Auto
S/N Ratio ≥50dB
Day Night Auto Switch Support
LEDs 12 PCS
IR Range 15M
IR Wavelength 850nm
Minimum Illumination 0.Lux
OUTPUT AHD or CVBS or TVI or CVI (Default setting: AHD Mode)
Language English / Simplified Chinese / Traditional Chinese /
Russian / Spanish / French / Polish / Italian /
Portuguese / Japanese / Korean / Greek
IP Rating
 IP66
Operating Temperature -20℃~50℃
Dimensions (H×W×D) Φ 120 x 60 mm
Weight About 300g
