IP Surveillance System

NVR

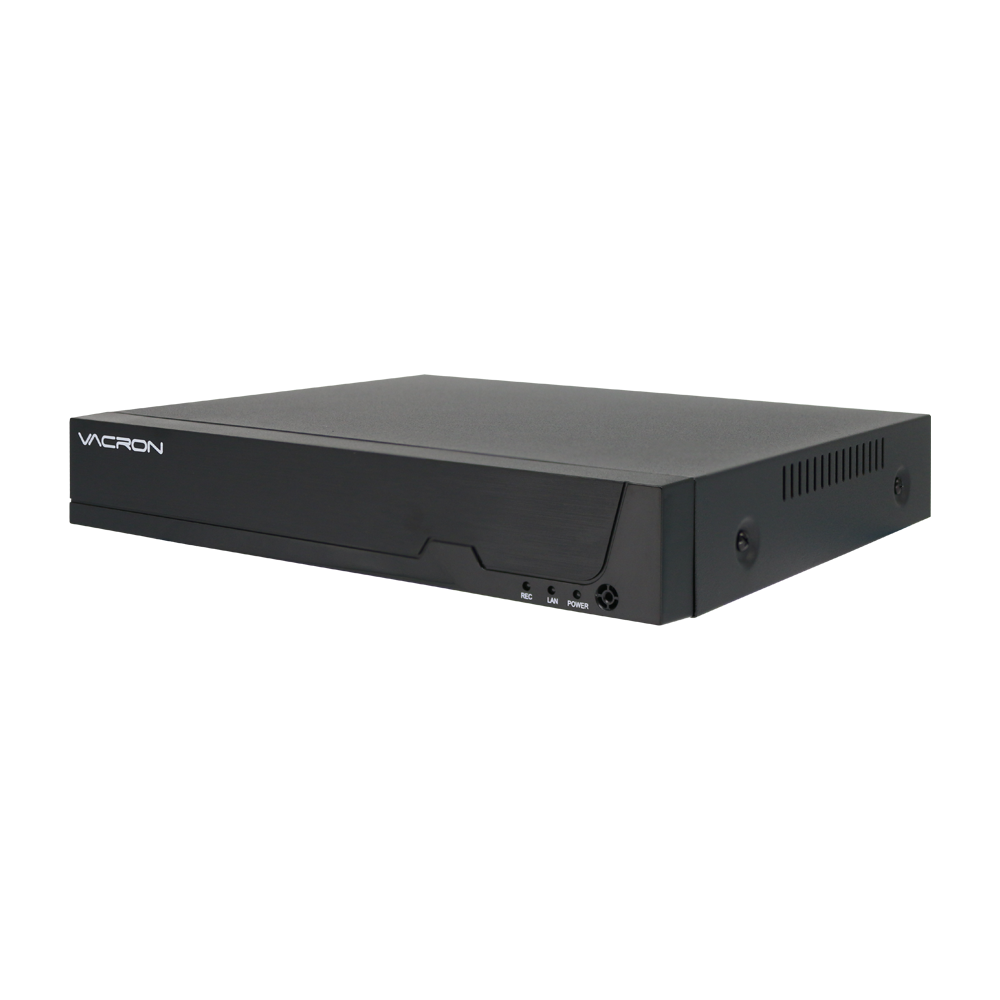

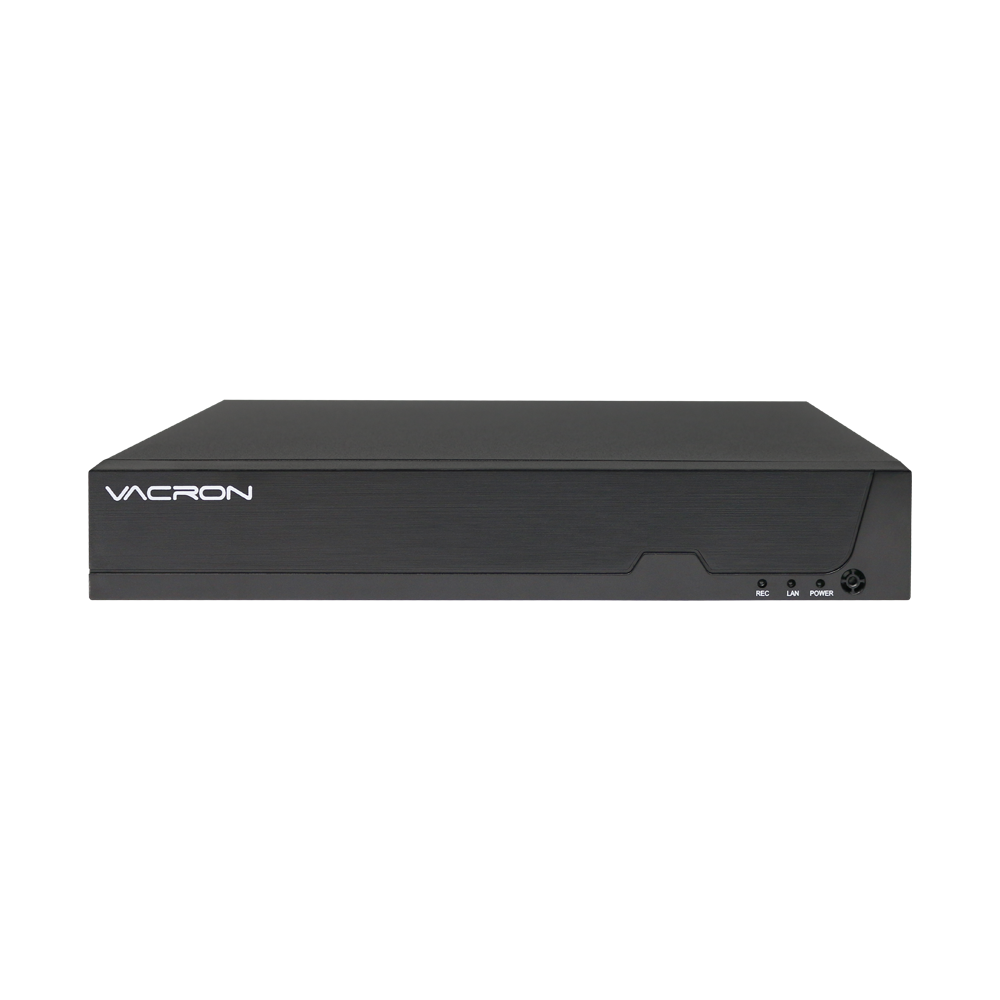

VDN-NKZ804D

4CH / 5MP / H.265

  • Motion

  • LAN

  • USB

  • CMS

  • GUI

  • Users

  • SATA

Download Catalog

Product Features

  • Multi-tasking, simultaneous recording/playback/remote connection/image backup/mobile phone monitoring and playback.
  • The maximum capacity of a single hard drive is 8TB.
  • Support HD super high quality output.
  • Remote IE browsing, with video monitoring and playback functions.
  • Provide HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, IP authority, IP search and other network services.
  • Support iPhone and Android for live monitoring and playback.
  • Support CMS (Central Management System)
  • With P2P function, APP can scan QR-Code for real-time monitoring and playback, increasing information security.
  • Set DVR as IPCAM mode, just plug-n-play with FUHO IP Cam.
  • Support for automatic firmware updates.
Video Input 4CH 1080P
Video Output VGA (Max. 1920x1080)
HD (Max. 1920×1080)
CVBS
I/O Interface
 RJ-45*1, 10 / 100/1000 Base-T
USB2.0*2
Audio Output 1CH Output
Audio Compression G.711U
Display Resolution 1080P
Auto Sequence Duration YES
Image Decoding Methods H.264 / H.265
Monitoring VGA at 30 FPS per second mode, capable monitoring
maximum 4 channel real-time video.
1080P at 15 FPS per second mode, capable monitoring
maximum 1 channel real-time video.
Recording Mode Continuous / Schedule / Motion
Motion Detection Zones: 192(16×12 grid)
Video Playback Video playback support 1 channel 1080P at 15 FPS
per second or 4 channel VGA at 30 FPS per second.
Display Mode Single, Quad, Sequence
File Format MP4/Custom Format
Media Interface USB / Network
Network Playback YES
Network Protocol HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS , UPNP, PPPoE ,
IP authority , IP Search
Browser Internet Explorer (IE)
Web-based Live View Search/Playback, Backup, and Update
Storage HDD interface SATA
Max. Supported Capacity Maximum 8TB HDD
Internal HDD 1 pcs
File System Stable and Reliable Self-Developed File System
S. M. A. R. T. HDD error detecting
Menu display GUI interface
VGA & HD out& CVBS simultaneously display
Input Method Mouse
Internal Buzzer Start-up Beep
Languages English, Simplified Chinese, Traditional Chinese, Japanese
Firmware Update USB and Network Remote Upgrade
APP Monitoring iPhone & Android support monitoring
(with audio) and playback.
Central Monitoring Video
Management System (CMS)		 Support
Operating Environment Temperature 0~55ºC, Humidity: 20~80%
Power DC 12V / 3A(AC100V~240V 50/60HZ)
Net Weight (Gross Weight) About 0.5kg (without HDD and Power Adapter)
Dimensions 255mm x 216mm x 42mm (L x W x H)
*Version updating is not going to inform, please check the on-going updating information
