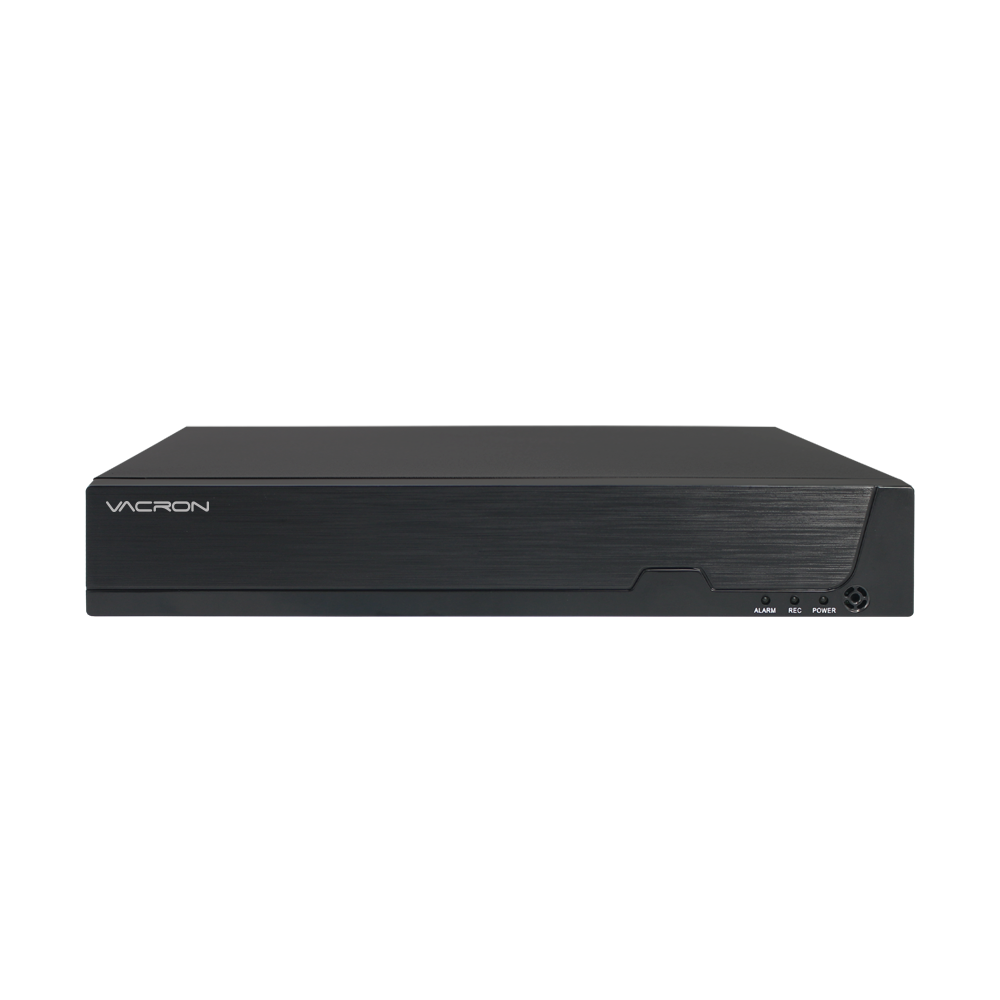

CCTV Surveillance System

DVR

VDN-DKZ608D

8CH / 5MP / H.265

  • Motion

  • LAN

  • CMS

  • GUI

  • Users

Download Catalog

Product Features

  • Multi-tasking capabilities, enabling simultaneous recording/playback, remote connectivity,
    video backup, and mobile monitoring with playback.
  • The maximum capacity of a single hard drive is 8TB
  • Support HD super high quality output
  • It supports remote IE browsing and can monitor live footage and playback simultaneously.
  • Provide HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, IP authority, IP search and
    other network services
  • Support iPhone, Android video monitoring and playback
  • Support CMS (Central Management System).
  • Various modes supported , both analog & digital IP signal can be connected to DVR
    as hybrid features.
  • With P2P function, scan QR-Code on the smartphone app to get instant monitoring and
    playback, and high information security.
  • Set IP-CAM mode on the main device, and plug to start monitoring by FUHO IP-CAM.
  • Support WiFi network
  • Support automatic update
  • Support AHD, TVI, CVI, CVBS, IP signal input
Video Input 8 sets of BNC
Video Output VGA (Max. 1920x1080)
HD Digital (Max. 1920x1080)
CVBS
I/O Interface
 RJ-45*1, 10/100 Base-T
USB2.0*2
Audio Input 1CH Input
Audio Output 1CH Output
Audio Compression G.711U
Resoluation 1080P
Digital Zoom Have
sequence
 5 seconds Auto-Seq
Image Compression H.264/H.265
Video monitoring VGA @30FPS/sec up to 8CH monitoring
Up to 1 channel real-time video monitoring
in 5MP@6 frame/second mode
Recording Mode- Continuous, Scheduled, Displacement
Motion Detection Grid setting,
you can set 192 (16*12) detection areas
video playback Video playback up to
1 channel 5MP@6 frames per second
1 channel 1080P@15 frame/second or
8 channel VGA@30 frame/second playback
Display Mode Single screen / 4 splits / 9 splits sequence
Backup file format MP4/self-defined format
Media Interface USB/Network
network playback Have
Internet service HTTP、DHCP、DDNS、NTP、SMTP、FTP、DNS、
UPNP、PPPoE、IP Authority、IP Search
Browser IE
Web side
 Live video, search/playback, backup,
remote configuration/update
HDD Interface SATA
Maximum support capacity Maximum 8TB per single drive.
Number of internal hard drives 1 piece.
External storage Support USB storage device
real-time synchronous recording
File System Stable and reliable self-developed file system
S.M.A.R.T Hard Disk Error Check
Operation menu Graphical interface; VGA & HD out & CVBS
can be displayed simultaneously
Input Method Mouse
Daylight Saving Time DST Have
Multilingual English, Traditional Chinese,
Simplified Chinese, Japanese
software update USB, Network Remote Upgrade
Network Time Protocol(NTP) Have
APP monitoring iPhone and Android
support monitoring (including sound) and playback
Central Management Software(CMS) support
Hybrid(Digital & Analogue) support
Operating Environment Temperature 0~50ºC, Humidity: 10~90%
Power Source DC 12V / 3A(AC100V~240V 50/60HZ)
Net weight About 0.5kg (excluding HDD and Power Adapter)
Dimension 255mm x 216mm x 42mm (WxDxH)
*Version updating is not going to inform, please check the on-going updating information

Download support

Software Support

　 　 　 　 　 　 　 　 　 　
Product Model DownloadExplanation
VDN-DKZ608D V27

Player

　 　 　 　 　 　 　 　 　 　
Product Model DownloadExplanation
DVR-Client 1.1.0.10
