CCTV Surveillance System

DVR

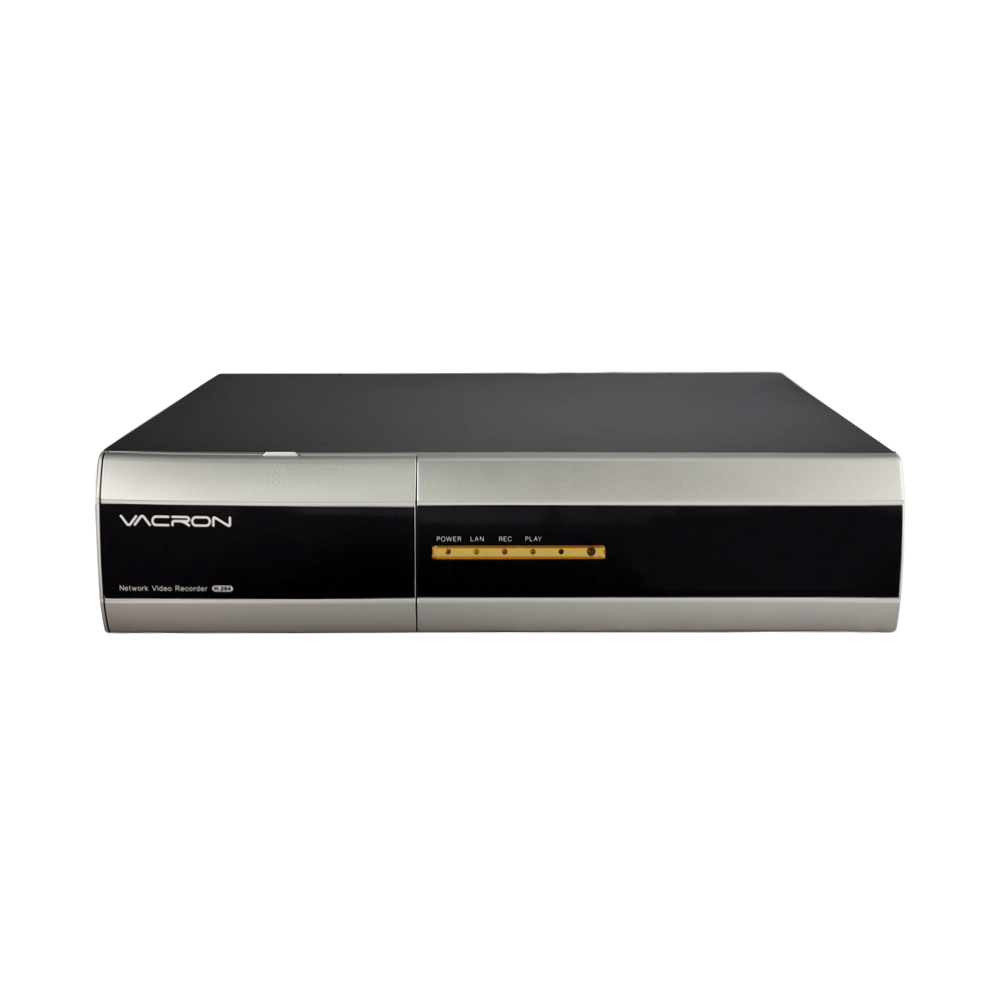

VDN-DKC616D

16CH / 5MP / H.265

  • H.265

  • Motion

  • LAN

  • USB

  • CMS

  • GUI

  • Mouse

  • Users

  • Multi function

  • SATA

Download Catalog

Product Features

  • Multi-tasking capabilities, enabling simultaneous recording/playback, remote connectivity,
    video backup, and mobile monitoring with playback
  • The maximum supported capacity for a single hard disk is 8TB.
  • Support HD super high quality output
  • Remote IE browsing, with video monitoring and playback functions
  • Provide HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, IP authority, IP search
    and other network services
  • Support iPhone and Android for live monitoring and playback
  • Support CMS (Central Management System).
  • Various modes supported , both analog & digital IP signal can be connected to DVR
    as hybrid features.
  • With P2P function, scan QR-Code on the smartphone app to get instant monitoring and
    playback, and high information security.
  • Set IP-CAM mode on the main device, and plug to start monitoring by FUHO IP-CAM.
  • Support automatic update
  • Support AHD, TVI, CVI, CVBS, IP signal input
Video Input 16CH 5MP
Video Output VGA (Max. 1920x1080)
HD Digital (Max. 1920x1080)
CVBS
I/O Interface
 RJ-45*1, 10/100 Base-T
USB2.0*2 / USB3.0*1
Audio Input 4CH Input
Audio Output 1CH Output
Audio Compression G.711U
Alarm input 4 channel input,select able normally
open/normally closed (optional)
Alarm output 1 channel alarm output (optional)
Resoluation 1080P
Digital Zoom Random mouse drag to zoom in
Sequence Yes
Image Compression H.246/H.265
Frame 16CH 5MP @6FPS/CH
16CH 1080P @15FPS/CH
Recording Mode- Continuous, Scheduled, Displacement
Motion Detection Grid setting,
you can set 192 (16*12) detection areas
Display mode
 Single screen / 4 splits / 8 splits /
9 splits / 16 splits / sequence
File Format MP4
media interface USB/NETWORK
playback Have
Internet service HTTP, DHCP, DDNS, NTP, SMTP, FTP,
DNS, UPNP, PPPoE, IP authority, IP search
Browser IE
Web side
 Live video, search/playback, backup,
remote configuration/update
HDD Interface SATA
Maximum support capacity Single maximum 8TB
Number of internal hard drives
 4 piece
File System Stable and reliable self-developed file system
S.M.A.R.T Hard Disk Error Check
User Interface Operation Menu
 Graphical interface; VGA & HD out & CVBS
can be displayed simultaneously
Input Method Mouse
PTZ & Control Keyboard
 Pelco-D / Pelco-P ( RS-485)
Internal Buzzer Initiate beep at power on
Multi Language English, Traditional Chinese,
Simplified Chinese, Japanese
software update USB, Network Remote Upgrade
Network Time Protocol(NTP) Yes
Mobile Phone iPhone and Android
support monitoring (including sound) and playback
Central Management Software(CMS) support
Hybrid(Digital & Analogue) support
Operating Environment Temperature 0~50ºC, Humidity: 10~90%
Power DC 12V / 6A(AC100V~240V 50/60HZ)
Weight About 4.2kg (without HDD and Power Adapter)
Dimension 430mm x 370mm x 120mm (WxDxH)
