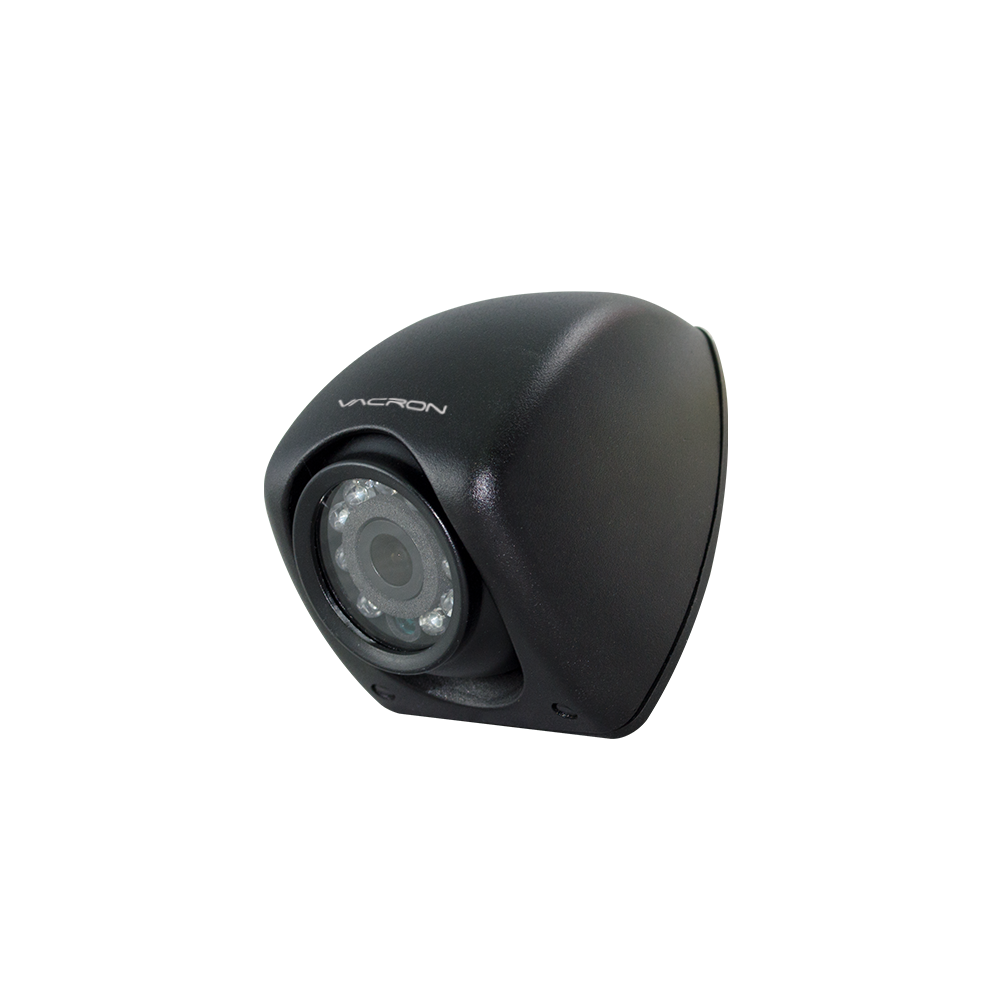

Car Cameras
Product Features
|
Video System |
NTSC / PAL |
|
Pick Up Element |
1/3" CMOS Image Sensor |
| LENS |
4mm LENS |
|
View Angle |
H80 °、45° |
| Number of Pixels |
1928(H)x1088(v) |
|
Effective Pixels |
2.0 Mega Pixel |
|
Resolution |
1080P |
|
Sync System |
Internal |
|
Power Supply |
DC 12 ± 1V |
|
Power Consumption |
80mA(IR OFF)/160(IR ON) |
|
Scanning system |
Progressive Scan |
|
Sensitivity |
0.01 LUX(IR ON) |
|
S/N Ratio |
≥50dB |
|
Auto Gain Control |
AUTO |
|
Mirroring |
Optional(BV) |
|
White Balance |
Auto |
|
Electronical Shutter |
AUTO: 1/60 S TO 1/100,000 S |
|
Output |
1 Vp-p Composite Video Output, 75 Ohms |
| LEDS |
10PCS |
| IR RANGE |
3M |
| IR Wavelength |
850 nm |
|
Operating Temperature |
- 10° C ~ + 60°C |
|
Dimensions (H x W x D) |
32 × 52 × 59 mm |
|
Weight About |
50g |
| Waterproof |
IP66 |
