IP Surveillance System

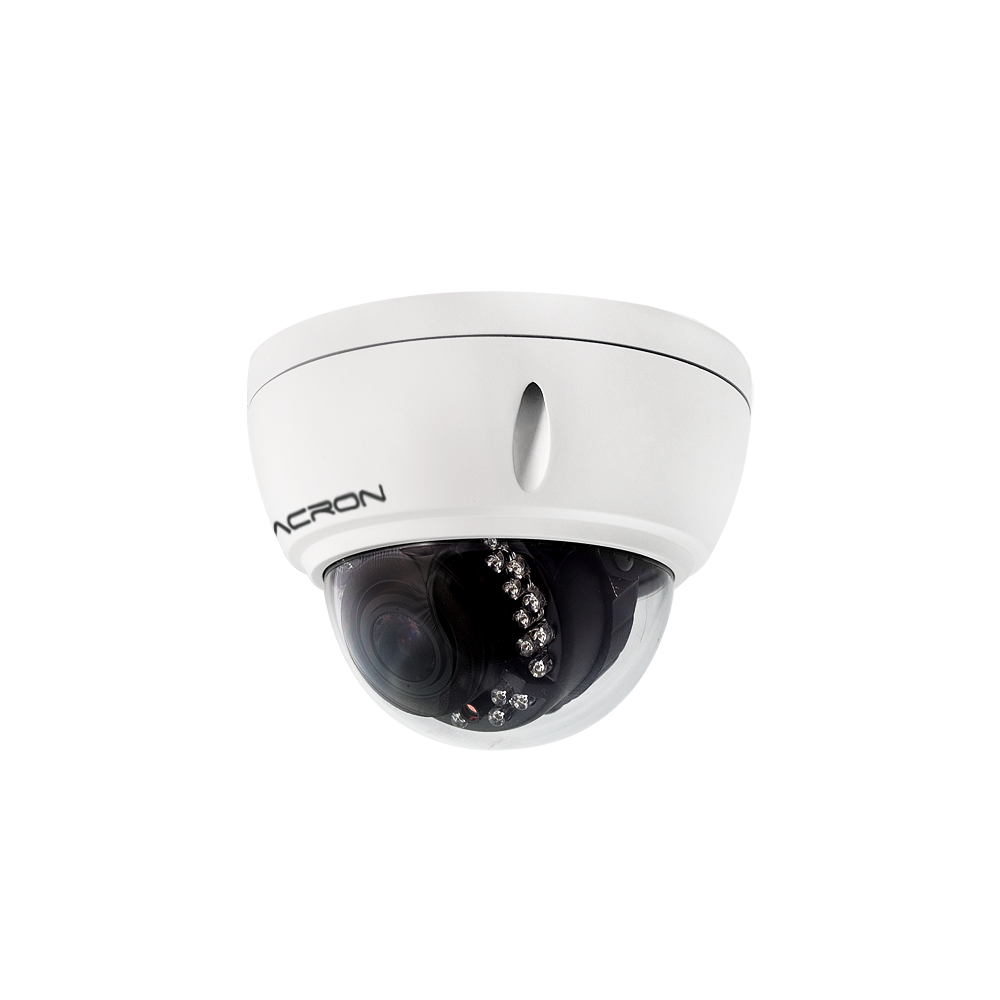

IP Camera


1080P / Dome / IR / H.265

  • DC12V

  • 15M

  • 0 LUX

  • P.O.E

  • LENS2.8~12MM

  • 1/2.8"CMOS

  • 24 LEDs

Download Catalog

Product Features

  • SONY 2M Pixels 1/2.8" CMOS Sensor with excellent image quality
  • Real time H.265/H.264 Multi-Mode compression (Dual Codec)
  • Resolution 1920*1080 @ 60fps/s
  • 24pcs IR LED, IR Distance 15M
  • Support ONVIF international standard, best compatibility and integration


system Flash:256MB
Sensor Full HD High Quality 1/2.8” SONY CMOS Image Sensor
Lens Vari-focal 2.8~12mm
IR-cut Removable IR Cut filter
Lux 0 Lux(IR ON)
LED 24pcs IR LED
Compression H.265/H2.64: 1920x1080 at 60 fps
H.265/H.264: 1280x720 at 60 fps
H.265/H.264: 640x480 at 60 fps
H.265、H.264Multi-mode compression (Dual Codec)
Multi-mode compression streaming
Video Adjustment Resolution、Quality and bit rate
Time、Date or custom text and it’s position
Brightness, Contrast, Saturation and Sharpness
Electronic Shutter 1/2 ~ 1/100,000 Sec
Networking Interface 10 /100 Mbps,RJ-45
browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm & Event notification Motion Detection
E-mail notification or upload file to FTP
User Max. 8 users for live view simultaneously
User Authorization
OTA OTA for Firmware upgrade
I/O Port RJ-45, DC12V
Power VIN-DS755V-E2:DC12V
DC12V or PoE IEEE802.3af Class 0 (optional)
Power Consumption 3.6W(IR OFF) 、10W(IR ON)
Weight N.W. :1050g
Dimension W:Φ135mm H:110mm
Operating Environments 0℃ ~ 45℃
