CCTV Surveillance System

CCTV Camera

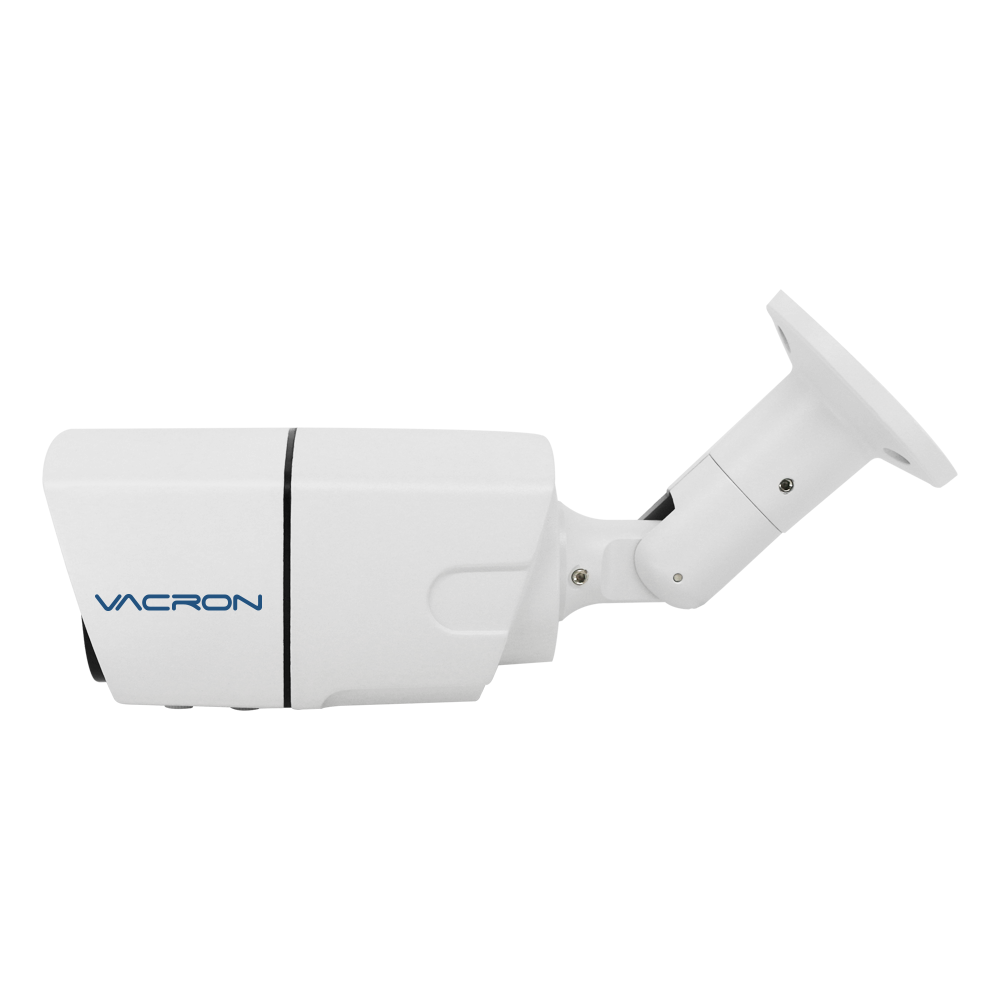

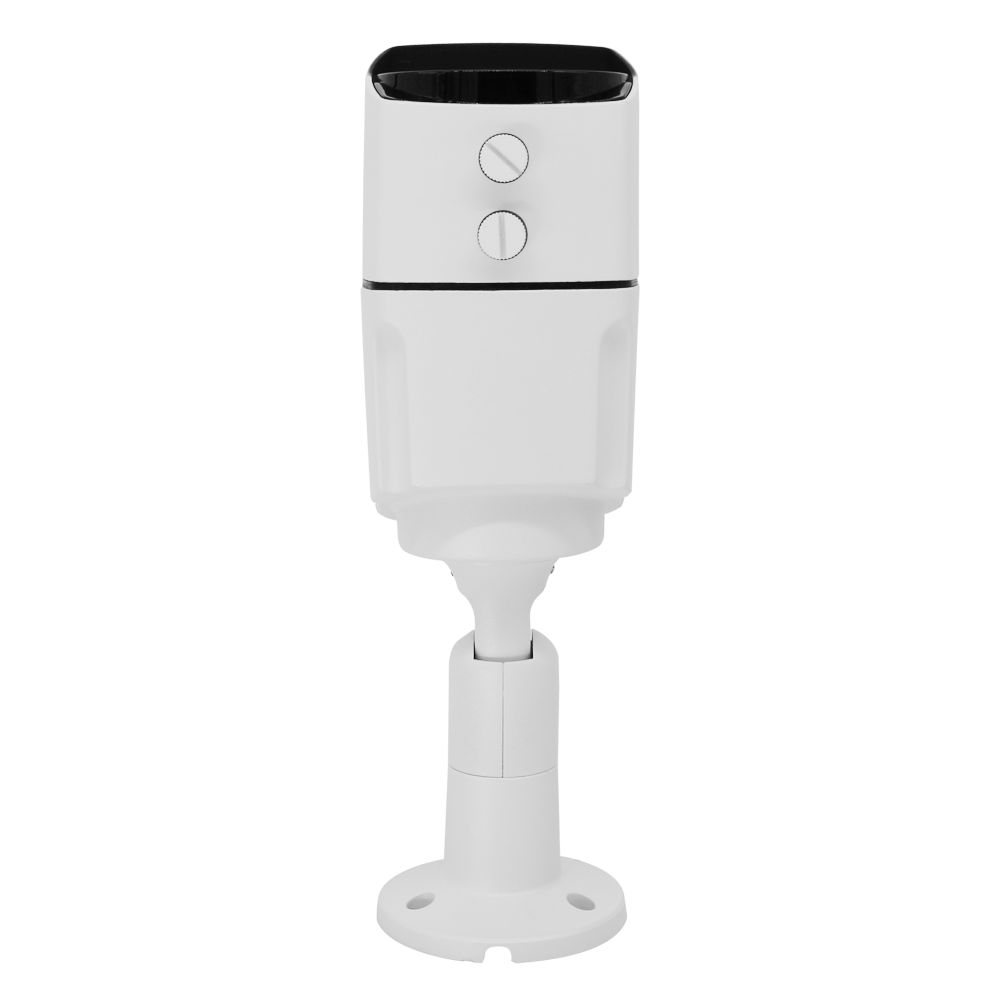

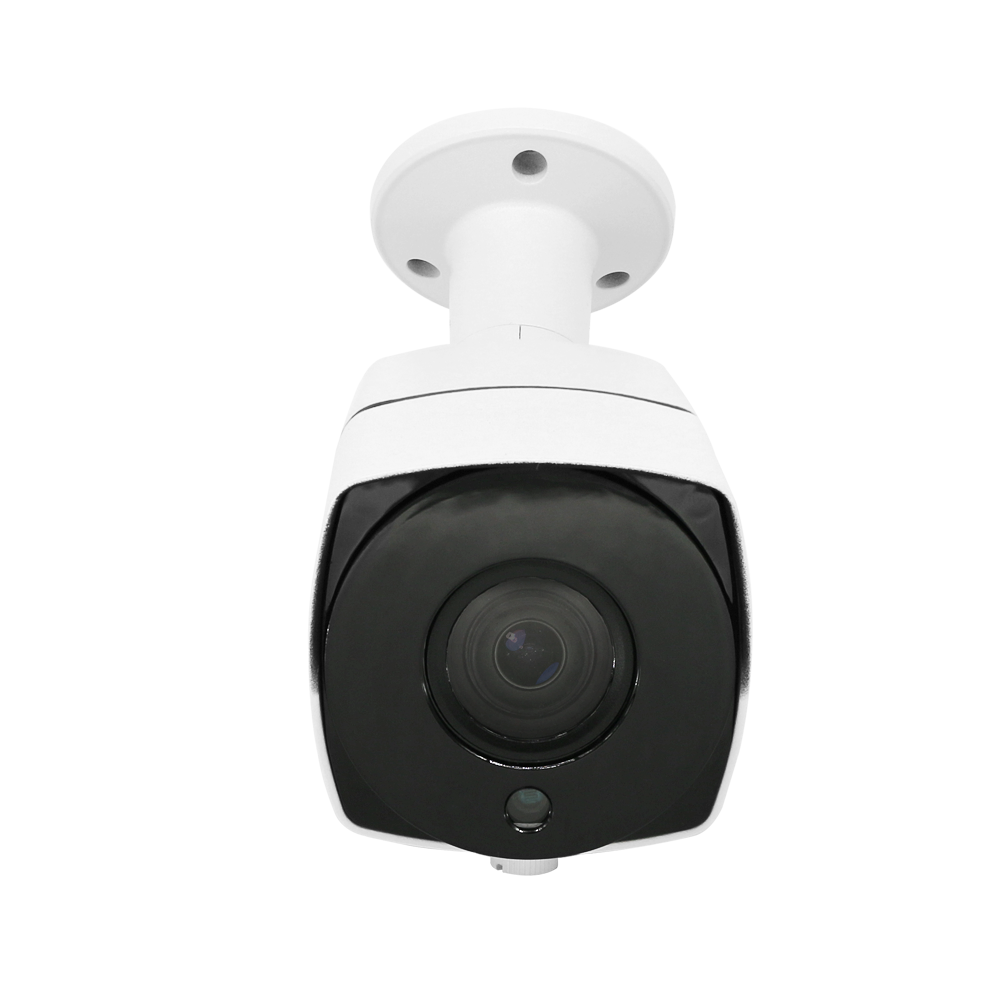

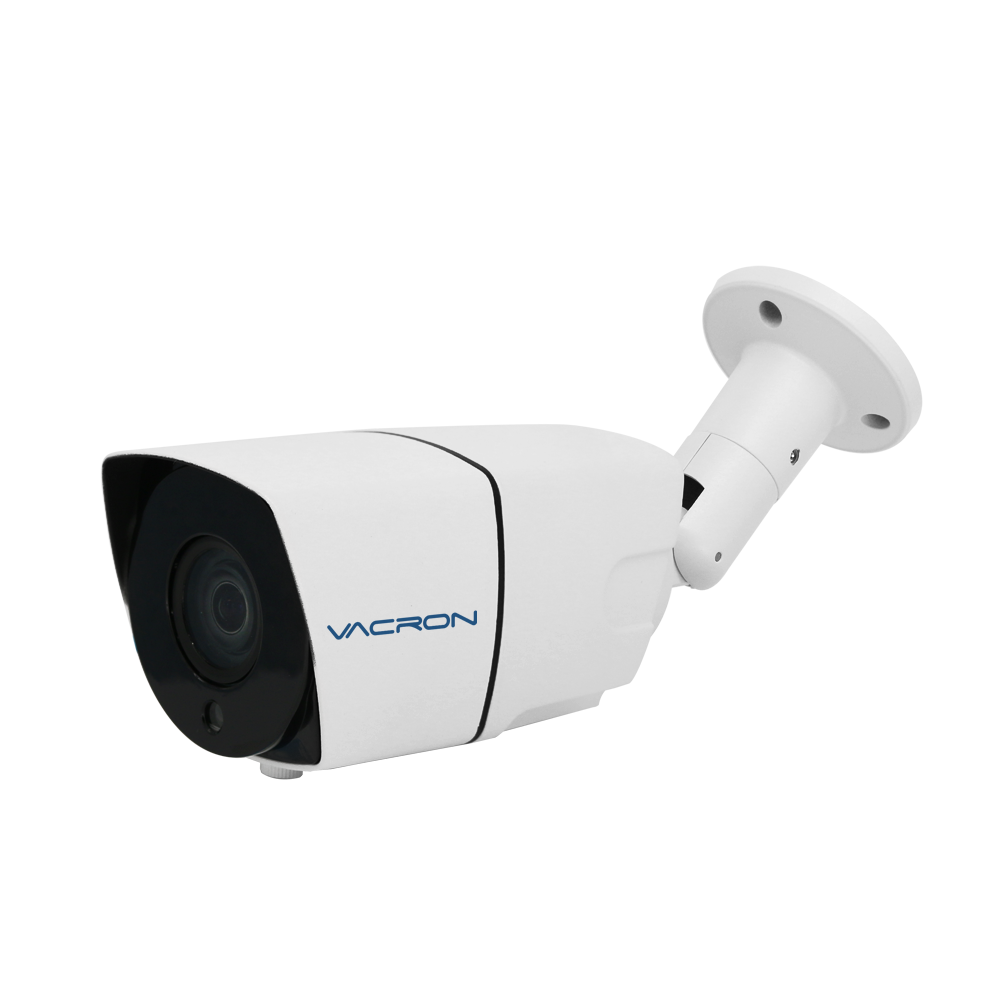

VCF-5775HV

5MP / Bullet / IP66 / IR

  • DC12V

  • 30M

  • 0.1 LUX

  • 50dB

  • 8 LEDs

  • LENS2.8~12MM

  • 1/3CMOS

  • -20~50°C

Download Catalog

Product Features

  • 1/3" CMOS sensor
  • 2.8-12 mm lens
  • AHD or CVBS or TVI or CVI output switch
  • IP Rating: IP66
Pick Up Element 1/3" CMOS sensor
Video System NTSC/PAL
Image Signal Process Digital Signal Processor
Lens 2.8-12mm
Number Of Pixel 1920 (Horizontal) x 1080(Vertical)
Horizontal Resolution 1080P@30fps
Power Supply DC 12 ± 1V
Power Consumption 120mA(IR Off)；500mA(IR On)
ICR Support
Electronic Shutter Auto
White Balance Auto
Gain Control Auto
S/N Ratio ≥50dB
Day Night Auto Switch Support
LEDs 8 PCS
IR Range 30M
IR Wavelength 850nm
S/N Ratio ≥50dB
Minimum Illumination 0.1Lux
OUTPUT AHD or CVBS or TVI or CVI
(Default setting: AHD Mode)
Language English / Simplified Chinese / Traditional Chinese /
Russian / Spanish / French / Polish / Italian / Portuguese
/ Japanese / Korean / Greek
IP Rating IP66
Operating Temperature -20℃~+50℃
Dimensions (H×W×D) 255mm x 75.3mm x75mm
 Weight About 600g

Version updating is not going to inform, please check the on-going updating information
