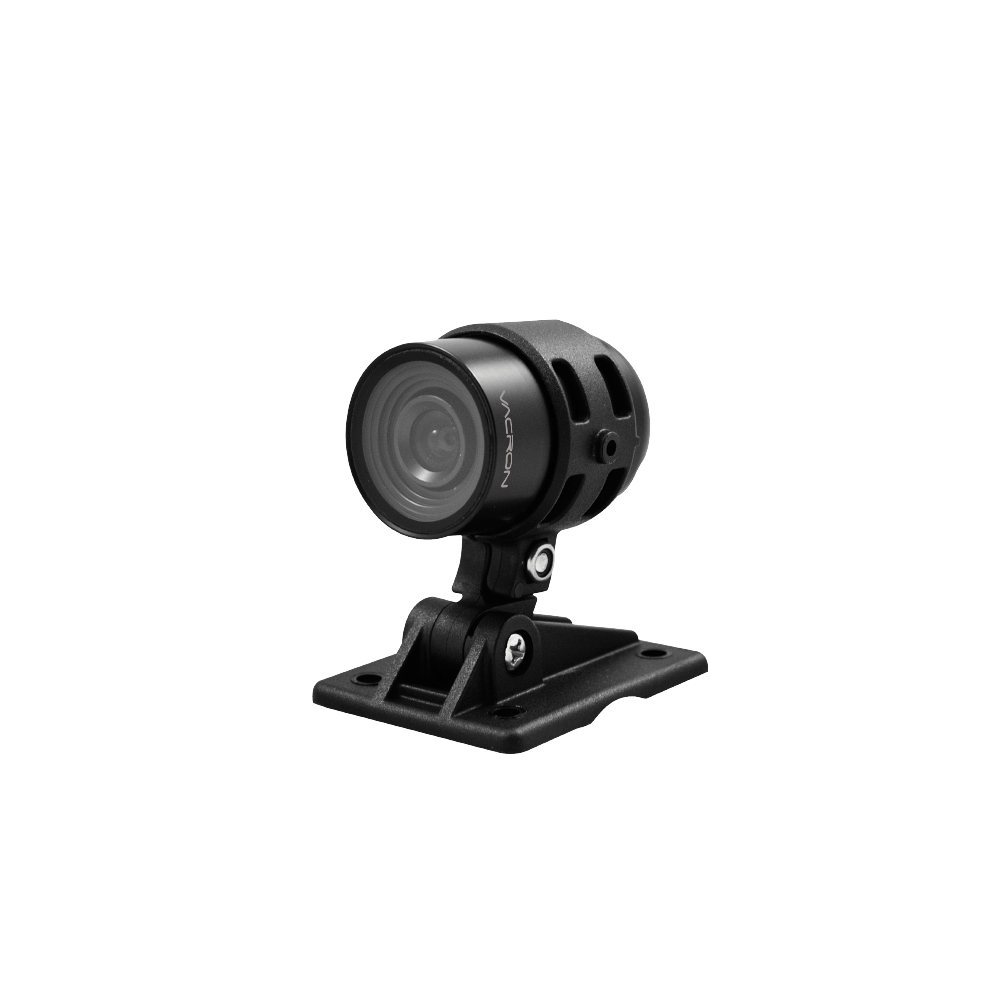

Car Cameras
Product Features
|
Video System |
NTSC / PAL |
|
Pick Up Element |
1/3”CMOS Sensor |
|
Number Of Pixel |
1928 (Horizontal) x 1088(Vertical) |
|
Effective Pixels |
2.0 Mega Pixel |
|
Resolution |
1080P |
|
Sync System |
Internal |
|
Scanning system |
2 : 1 Interlace |
|
Sensitivity |
0.1Lux |
|
S/N Ratio |
Max 50dB |
|
Auto Gain Control |
AUTO |
|
Mirroring |
Optional(BV) |
|
White Balance |
Auto |
|
Electronical Shutter |
Auto: 1/30NTSC(1/25 PAL) Sec TO 1/50,000 Sec |
|
Video Output |
1 Vp-p Composite Video Output, 75 Ohms |
|
Power Supply |
DC 5V / DC 12V |
|
Power Consumption |
120 mA / 80mA |
|
Lens |
2.8 mm |
|
View Angle |
90˚ |
|
Operating Temperature |
- 10° C ~ + 60°C |
|
Dimensions (H x W x D) |
45 x 53 x Ø30 mm |
| Waterproof |
IP66 |
