CCTV Surveillance System

DVR

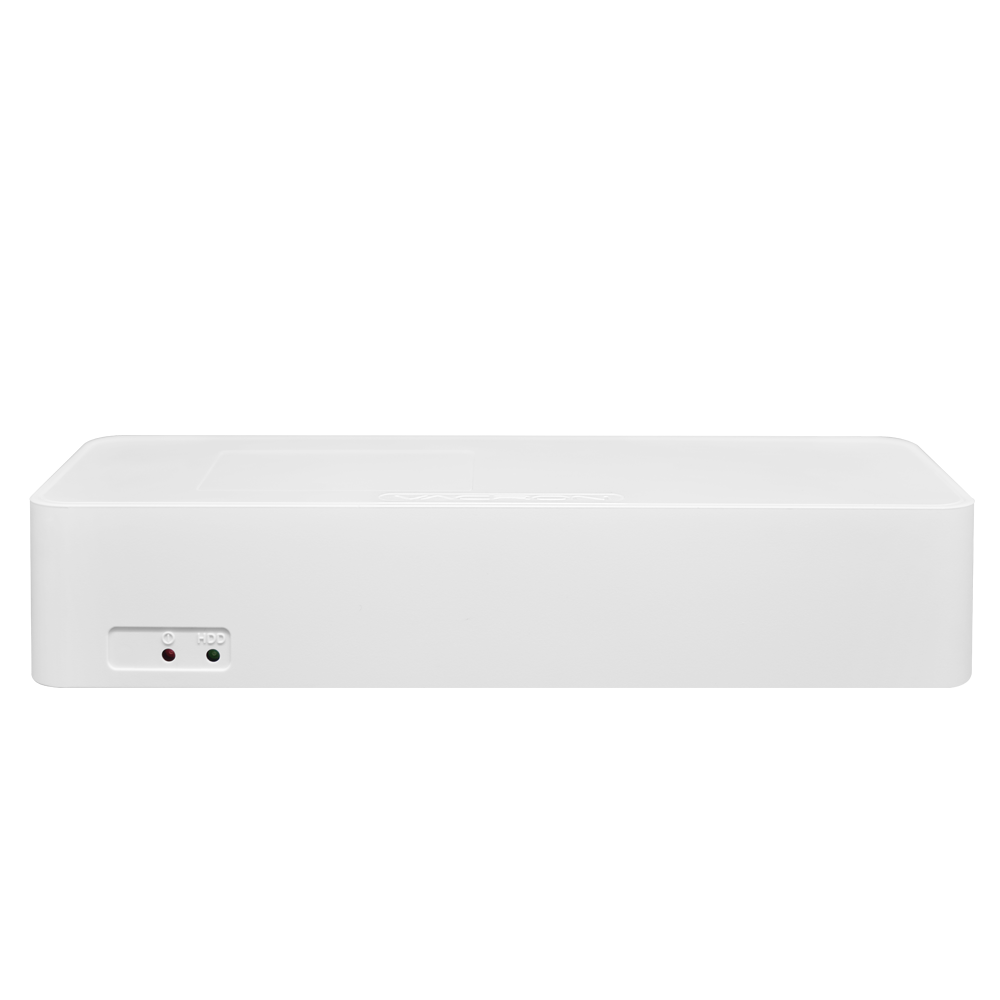

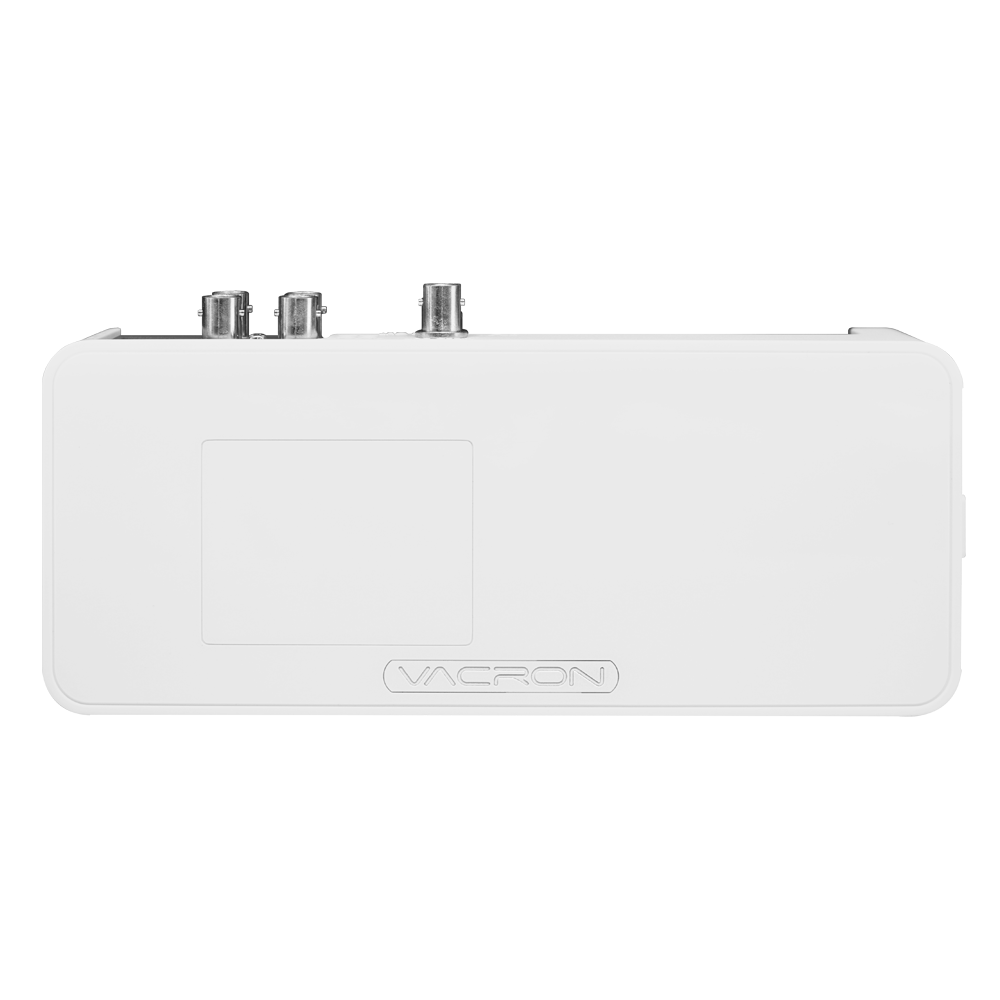

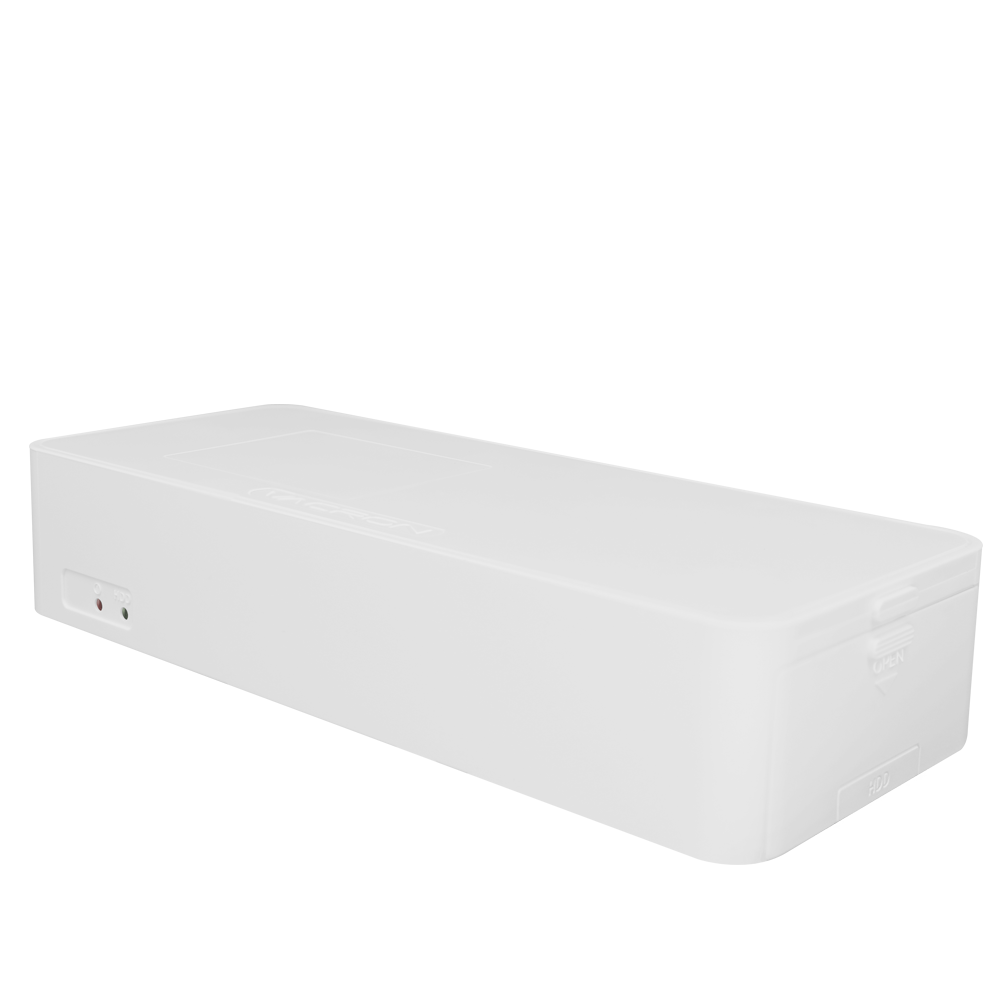

VDN-DKS604ES

4CH / 5MP / H.265/HDD

  • H.265

  • LAN

  • USB

  • CMS

  • GUI

  • Mouse

  • Users

  • SATA

Download Catalog

Product Features

  • Multitasking: which can Record / Playback / Remote Connection / mobile phone watch at the
    same time.
  • Hard Drive supports 2.5 inches SSD 1TB.
  • Support HD ultra high definition output.
  • It supports remote IE browsing, monitor live footage and playback simultaneously.
  • Support HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, IP authority, IP search and
    other network services.
  • Support iPhone, Android video monitoring and playback.
  • CMS support for effectively integrate device management operations.
  • It can be set as a hybrid system, allows simultaneous connections for both traditional analog
    signals and digital IP signals.
  • With P2P function, scan QR-Code through APP for real-time monitoring and playback to
    increase information security.
  • Set the IPCAM mode on the host, and use FUHO IPCAM to plug and play.
  • It supports AHD, TVI, CVI, CVBS, and IP signal inputs.
video input 4 sets of BNC
video output HD (Max. 1920x1080)
HD
I/O Interface RJ-45*1, 10 / 100/1000 Base-T
USB2.0*2 / USB3.0*1
Resoluation 1080P
Digital zoom Yes
sequence 5 seconds Auto-Seq
Image Compression H.264/H.265
Motion Detection Under 1080P@15 frames per second mode, it can
achieve real-time monitoring of 1 channel.
Or under 5MP@6 frames per second mode, it can
achieve real-time monitoring of 1 channel.
Or 4 channels of real-time monitoring in VGA resolution.
Recording Mode Continuous / Schedule / Motion
Motion Detection Zones: 192(16×12 grid)
Playback Video playback up to 1 channel 5MP@6 frames per
second or 1 channel 1080P@15 frame/second or
4 channel VGA playback
Display Mode Single Screen/4-Split/Sequence
Backup file format MP4 / Self-Defined Format
Media interface USB / Network
Network Playback yes
Network Protocol HTTP, DHCP, DDNS, NTP, SMTP, FTP,
DNS, UPNP, PPPoE, IP authority, IP search
Browser IE
Web Live view, search/playback, backup,
remote configuration/update
Storage HDD Interface SATA
Maximum support capacity Supports 2.5 inches SSD 1TB
Number of internal hard drives 1 piece
file system Stable and reliable self-developed file system
S.M.A.R.T Hard Disk Error Check
Operation Menu GUI interface； HD out
input method Mouse
Daylight saving time DST Yes
Multilingual English / Simple Chinese/ Traditional Chinese/ Japanese
software update USB update , network update(OTA)
Network Time Protocol Yes
APP monitoring iPhone, Android, mobile App supports live
view(includes audio) and playback.
CMS (Central Management System) support
Hybrid (Digital & Analog) support
Operating Environment Celsius 0 ~ 50°C , humidity 10~90%
Power Supply DC 5V / 2A(AC100V~240V 50/60HZ)
Net weight About 0.5kg (including HDD but excluding poweradapter)
Dimension 216mm x 97mm x 43mm (Length x Width x Height)

Specifications are subject to change without prior notice.
