IP Surveillance System

IP Camera

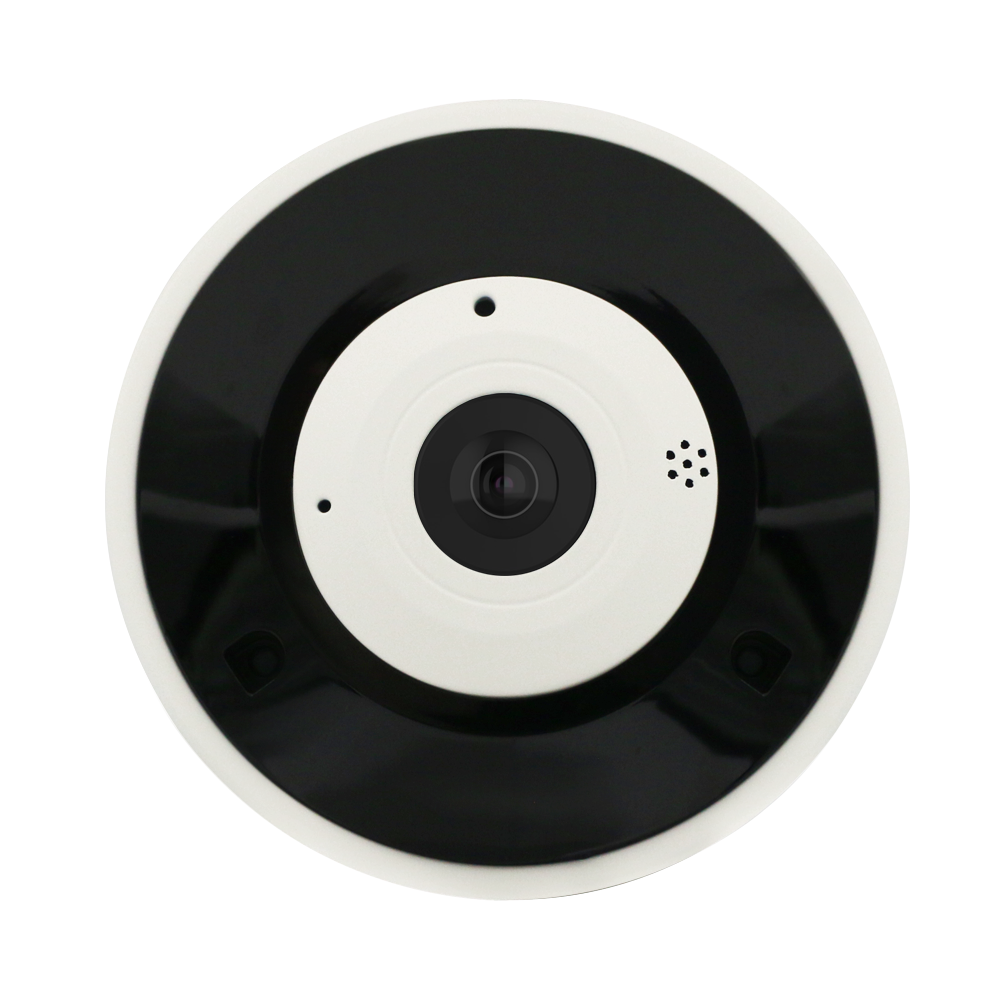

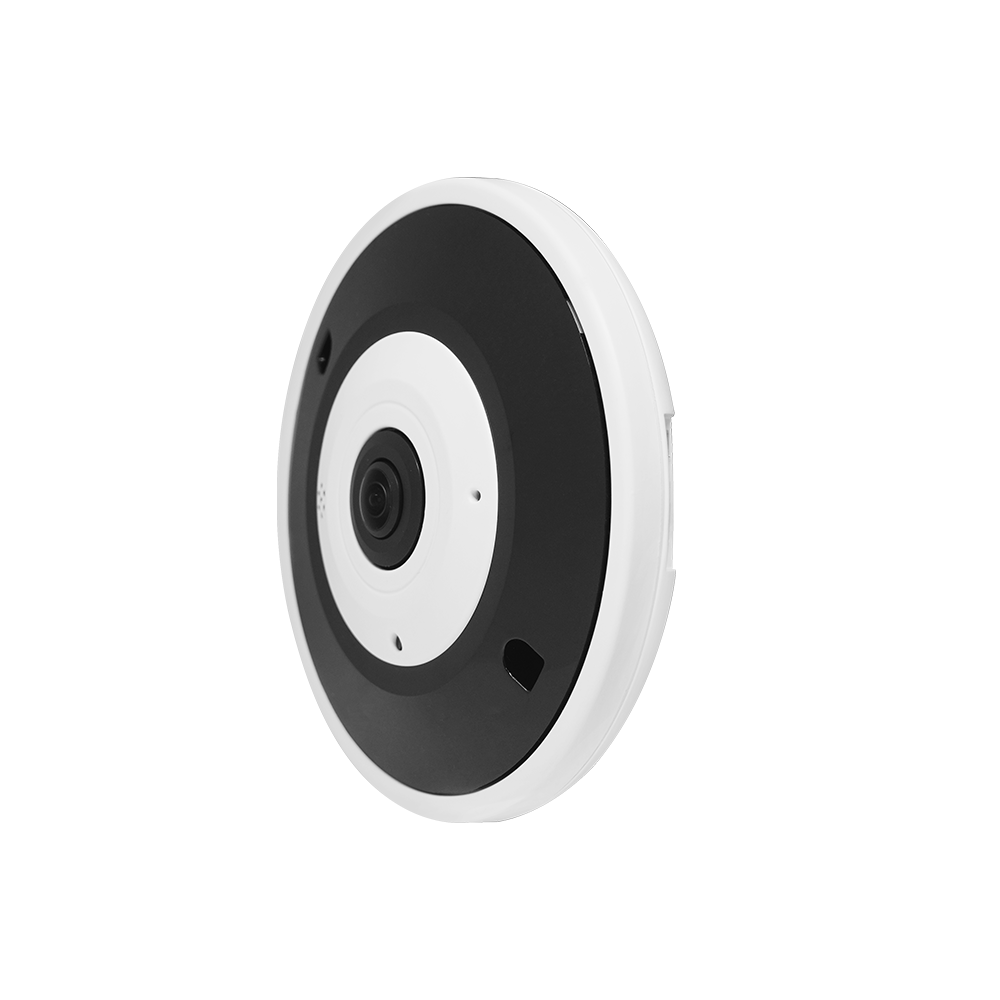

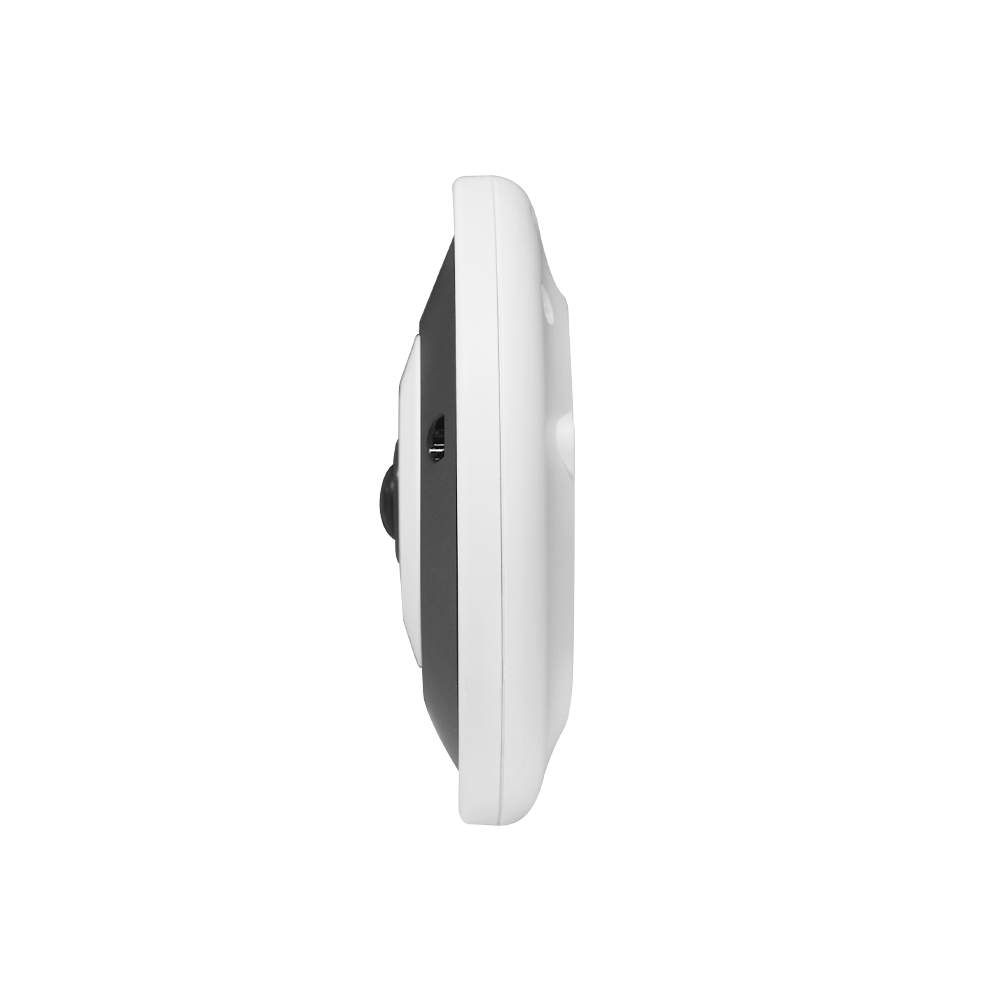

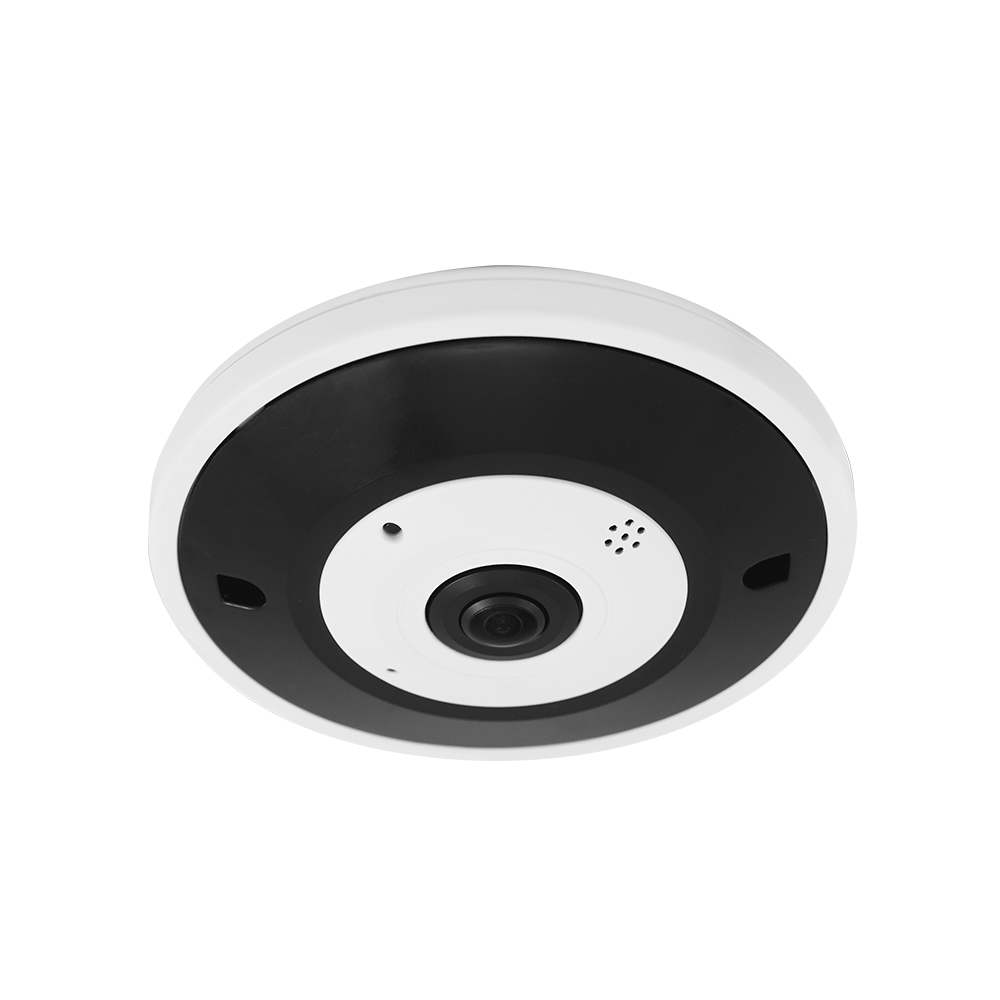

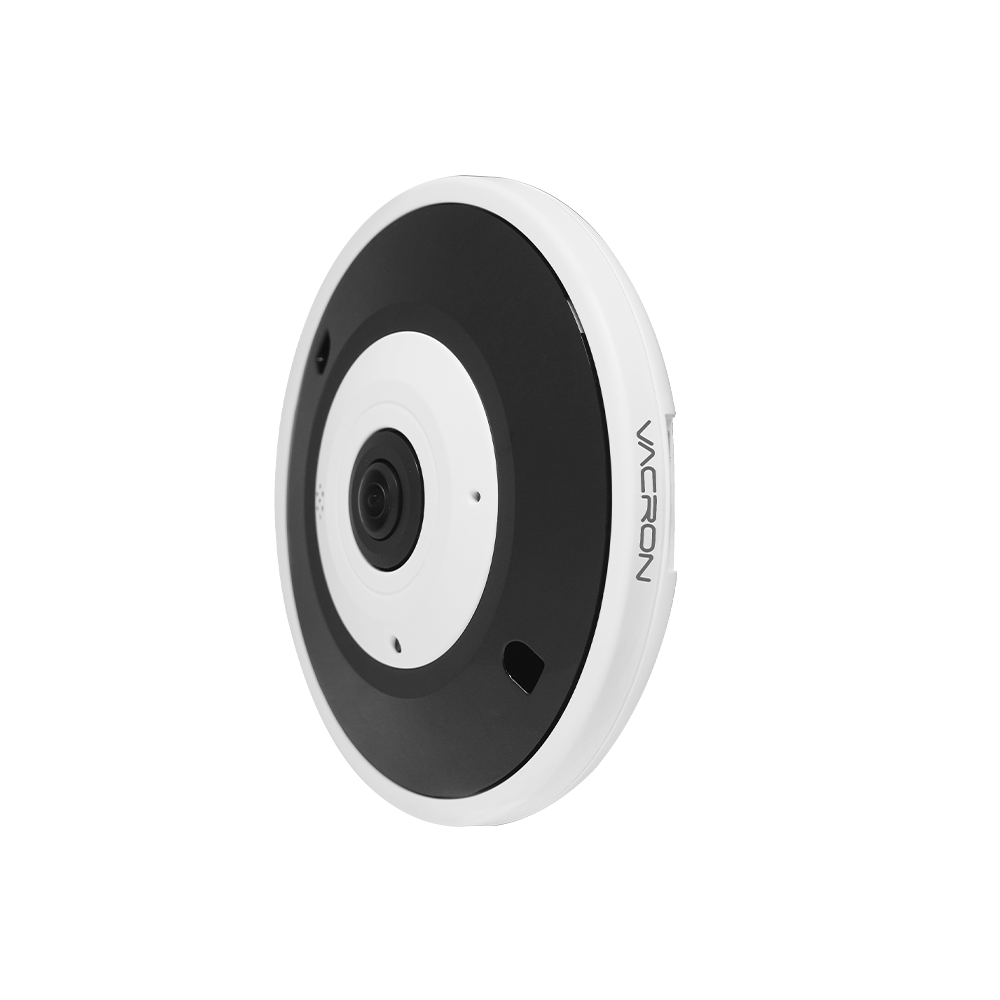

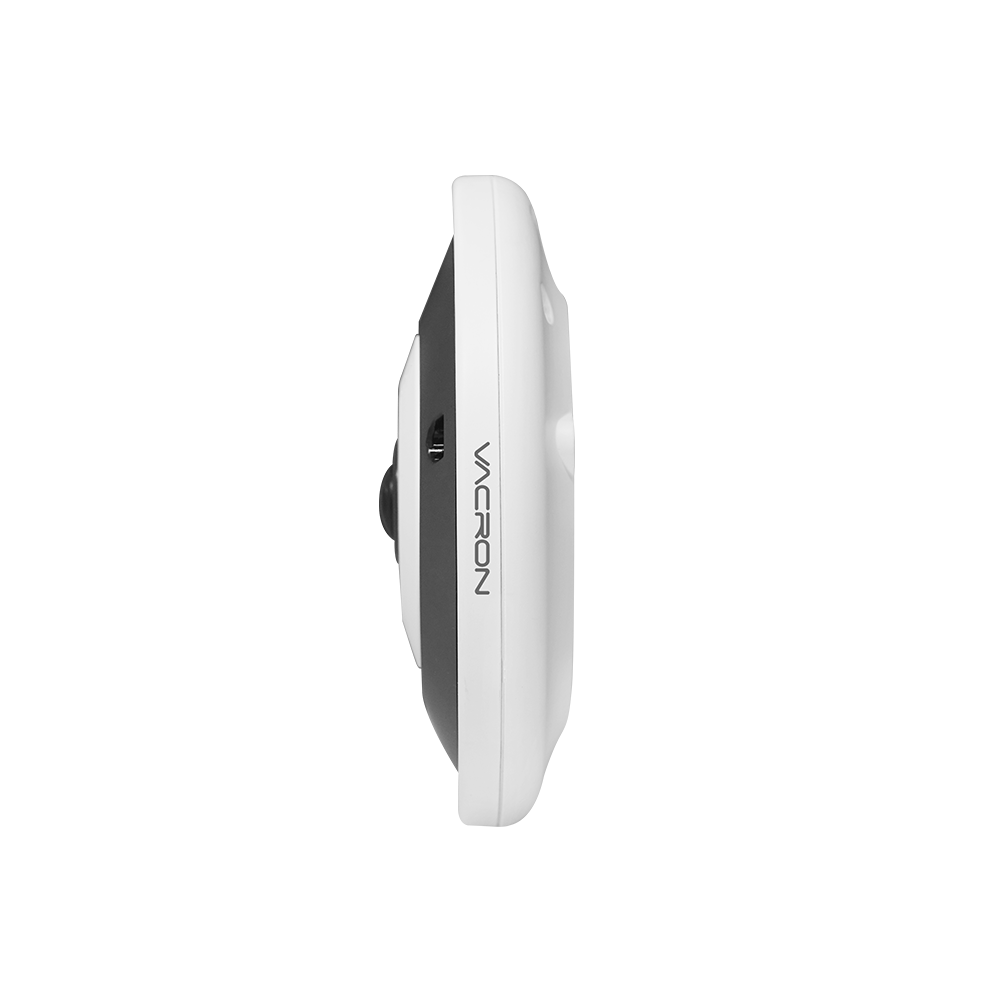

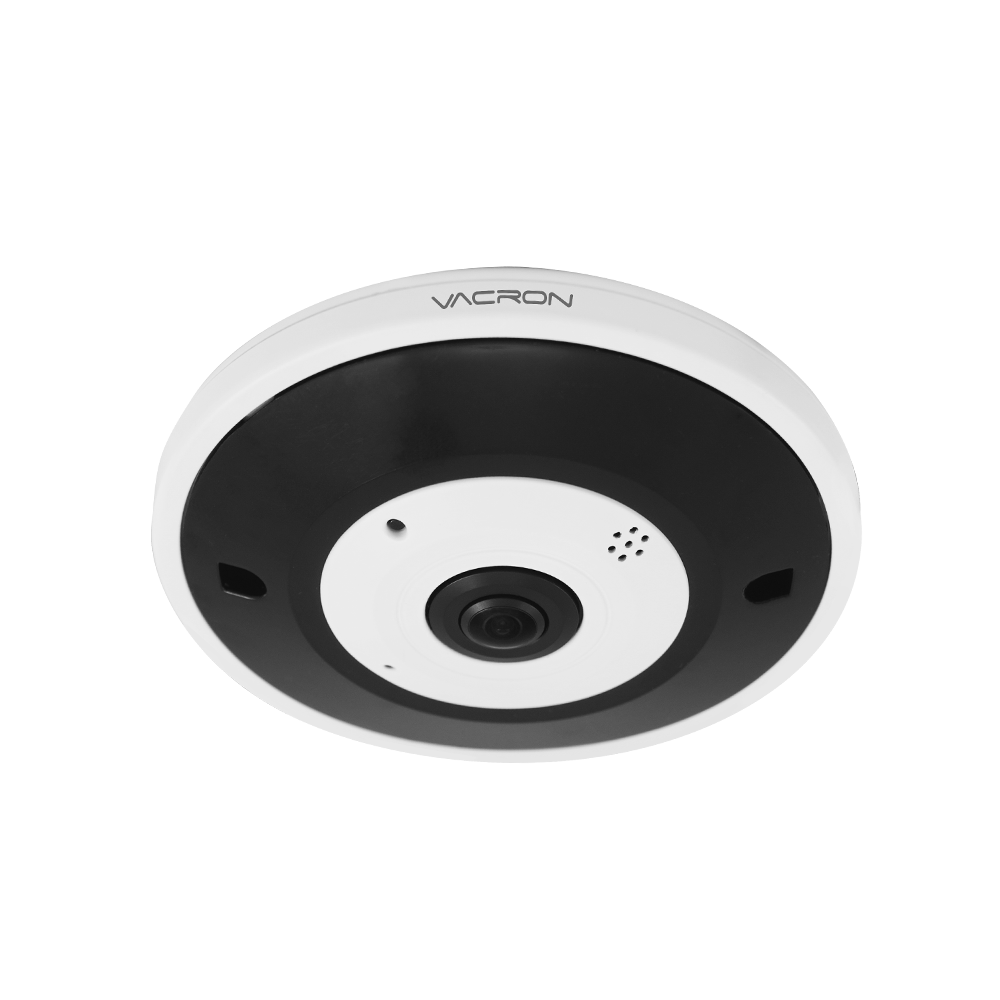

VIN-DS783E-E6

5MP / Dome / H.265

  • H.265

  • 12 LEDs

  • 0 LUX

  • P.O.E

  • 1/2.8"CMOS

  • 0~45°C

Download Catalog

Product Features

  • 5MP 1/2.8" CMOS Image Sensor with excellent image quality.
  • Real-time H.265/H.264 Multi-Mode engine compression technology (Dual Codec).
  • Maximum resolution 2560*1920 at 30 fps.
  • Support ONVIF international standards, providing the best compatibility and ability of integration.
  • Equipped with multiple fisheye flattening algorithms for users to choose from.


SPECIFICATIONS


Video System Flash:256MB
RAM:512MB
Image Sensor SONY FullHD High Quality 1/2.8 CMOS Image Sensor
View Angle 360°
IR-cut Built-in Magnetic Infrared Filter Switch
Low Lux 0 Lux(IR ON)
IR LED 12 PCS
Image Quality H.265: 2560x1920 at 30 fps
H.265: 2048x1536 at 30 fps
H.265: 1920x1080 at 60 fps
H.265+ 、 H.264 、 JPEG Multi-mode compression (Dual Codec)
Support simultaneous multiple streams
Image Settings Adjustable Image Size, Quality, and Transmission Speed
Time, date, or custom text can be displayed on the image
and the display position can be set.
Adjustable brightness, contrast, saturation, and sharpness
Support AGC 、 AWB 、 AES 、 BLC 、 WDR Features
Networking Interface 10 /100 Mbps Ethernet
Protocol IPv4、TCP/IP、DHCP、HTTP、RTSP、SNTP、DNS
browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm & Event notification Motion Detection
E-mail notification or upload file to FTP
User Maximum 8 users online monitoring simultaneously
Multi-level users access control with password protection
Maintenance Supports FOTA
I/O Port DC Jack, RJ45
Power DC 12V
Power Consumption 3.6W(IR OFF) 、10W(IR ON)
Weight N.W. :650g
Dimension 140 x 23H mm
Operating Environments 0℃ ~ 45℃
