Mobile Surveillance

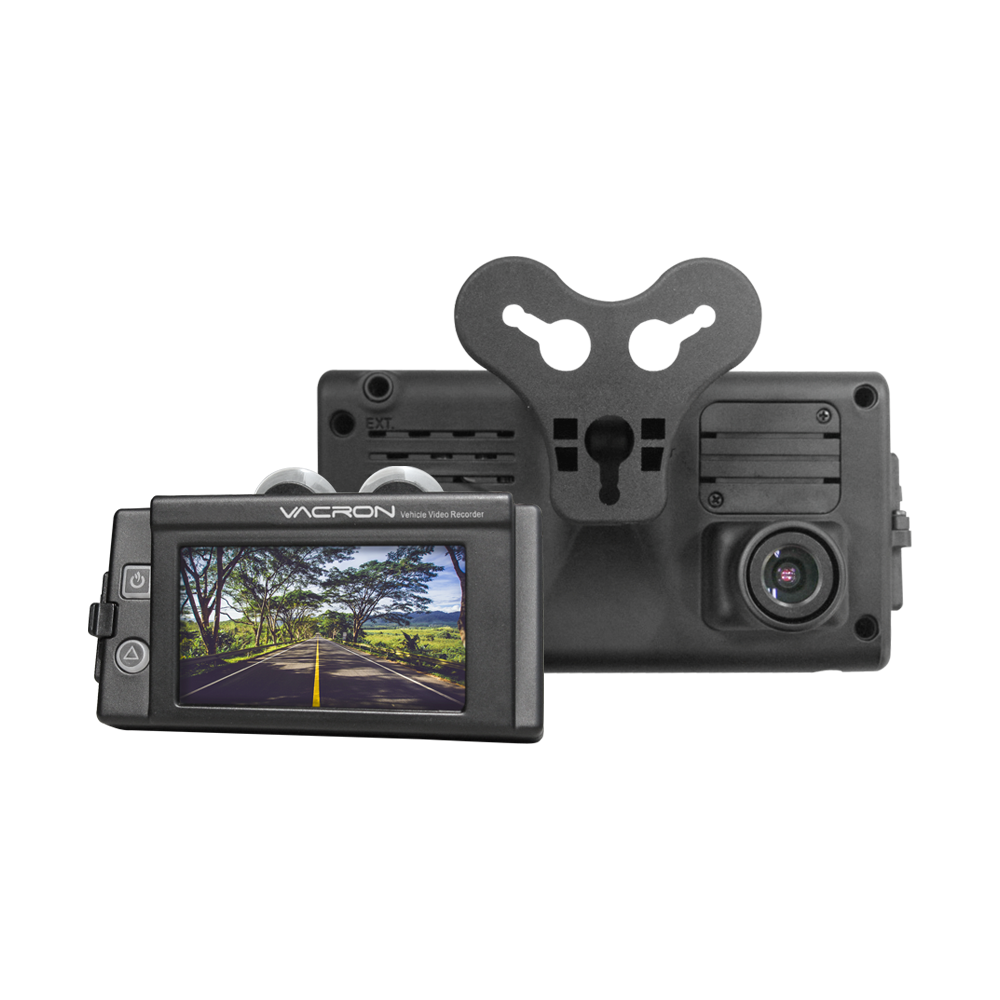

Dash Cam

VVN-CBN37A

1+2CH / 1080P / SD card / GPS

  • H.265

  • -10~45°C

  • G-Sensor

  • GPS

  • SD

  • 160º

Download Catalog

Product Features

  • Built-in 1080P CMOS Sensor, Viewing angle approx 160 degrees.
  • External 2 Channel Camera 1080P+720P (Optional)
  • Optional position for camera setting to record situations inside, outside, front or rear of the car.
  • Suitable for all types of vehicle use.
  • Small Design, Easy Installation.
  • Equipped with 3 inch TFT LCD (16:9) screen to make the adjustment of recording angle easily
  • SD card SDHC/SDXC Storage Class 10 or above recommended. MAX to 256GB.
  • G-sensor sensitivity can be adjusted according to vehicles and road situations. When detecting
    a strong shock, the system will start emergency recording and keep the files without being overwritten.
  • Built-in Superconductor. Delay for power off, make sure data are saved in SD card.
  • Route recorded, Displayed on playback compatible with Google Map.
  • Carry on Wi-Fi dongle for on line video immediately download and backup.

Sensor Front 1080P FULL HD CMOS Sensor
CAM 2: External 1080P FULL HD CAM
(AHD Interface) (OPTIONAL)
CAM 3: External 720P HD CAM
(AHD Interface) (OPTIONAL)
Camera view angle The viewing angle is approximately 160 degrees
Voltage Stable current consumption of 850mA
(external cam voltage 1A)
Start at 5V±5%；1A, The machine needs 4.8v to start
Operating temperature -10℃~+45℃ (Inside Vehicle).
Storage Device For the performance issue, use SD card Class 10 or
above SDHC/SDXC Max. 256GB
Recoding Frame Front: 1080P / External cam1: 1080P / External cam2: 720P
Auto record when powering up the system.
Recording Content Date, Time, Image, Sound, G-sensor data, GPS data
Recording Format A specific format for software player
Time Setup Local time = GMT GMT + time zone
GMT setting: GPS automatic calibration GMT.
Use the built-in calendar clock GMT when there is
no GPS signal.
Built-in calendar clock GMT
No GPS software version can be corrected with the player
local time.
Time setting: using the native menu or the player to adjust the
set time.
Time Zone: must use the software to set the time zone
Microphone Built-in high-sensitivity Single Microphone
Display 3 Inch Display
G-Sensor Internal 3D G-Sensor
WIFI USB WIFI Dongle(2.4G HZ)

All specifications shown are typical unless otherwise stated and are subject to change without notice
