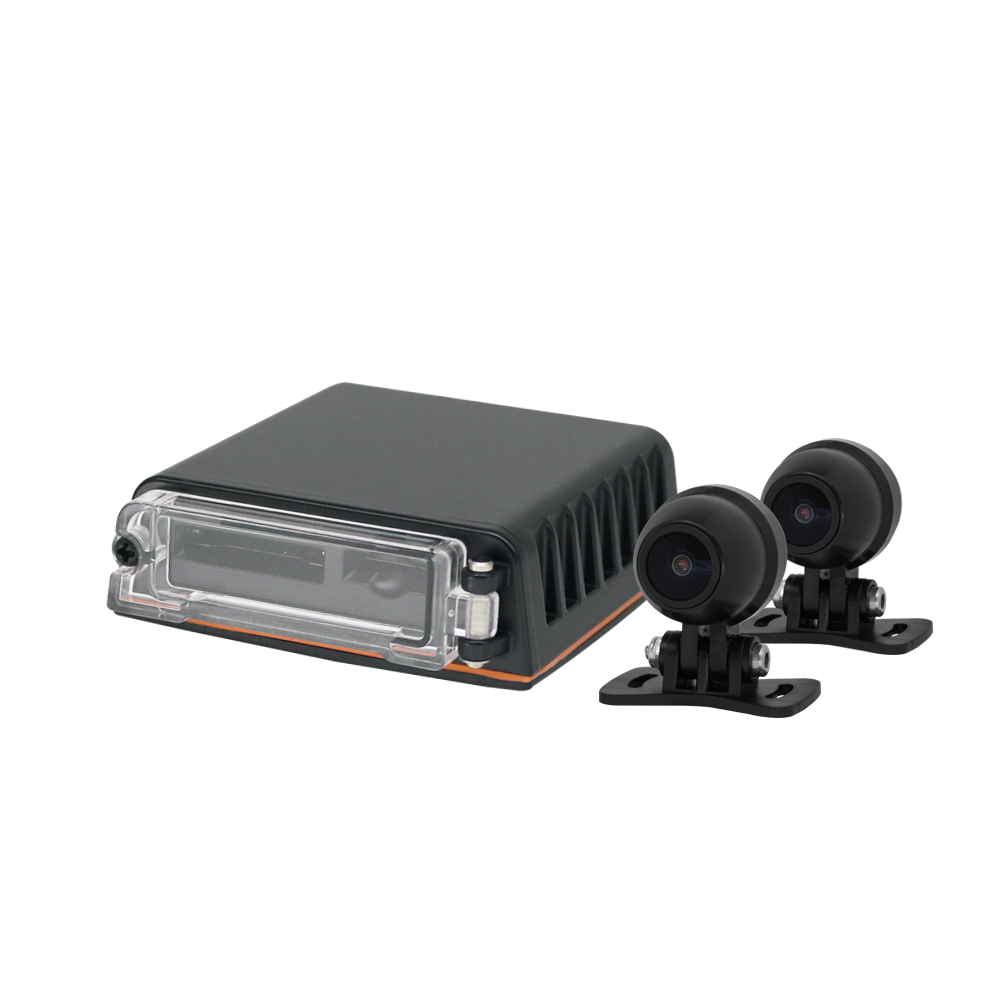

Dash Cam | VVN-MDE08C

Product Features

Miniature video recording system supports 2 CH 1080P video input, built-in LED indicator,
optional for Mic.
H.264 compression without distortion, FHD video resolution, upgrade to H.265 compression
saving space for storage
Vehicle power supply, low power consumption, good heat dissipation, no built-in lithium battery,
no fear of high temperature, no burst doubts.
The device will automatically boot and then loop-record after the vehicle engine is started;
automatically archive and then turn off after the vehicle engine is stopped.
The file is well formatted and saved securely with extension recording by a built-in supercapacitor.
USB WiFi dongle， through APP for live view /playback and video download.
M.I.T Novatek Soc Durable, Reliable, and Clear Image Solution.
Embedded OS, vision-based driver assistance system for long operation/Record Application
Professional file formats to ensure completed footage without loss and to avoid SD card damage.
Suitable for different kinds of SD Cards, Card health status can be checked if a Vacron Smart Card is used.

SPECIFICATIONS

Record Frame	2CH 1080P@30FPS
Display Mode	Dual CH Mode
Simplex	Rec / Playback
Resolution	Display:1920x1080 Rec:1920x1080
Backup/Record	SD ; Vacron Smart Card Supported
Indication LED	REC、WiFi
Video Lose	Yes
SD Card	Yes
G-SENSOR	Yes(Option)
WIFI	Yes, through APP
Systme	The recording will resume once power is restored
Built-in Super Capacitor	Yes
Power input	input voltage DC12V
Operation Temperature	-20°C∼60°C

Multifunction Monitor (Optional)

Camera Specification

Power Input	Input Voltage DC5V ±10% Power Consumption 100mA
Resolution	1920(H)X1080(V)
Sensor	1/3 CMOS Sensor
View Angle	H: 110° ±3 V: 65° ±3 D: 150° ±3
Temperature Range	Operating Temperature：-20°∼60° (Natural Convection Environment) Storage Temperature :-40°∼85°
Output terminal	Micro DIN
IP rating	IP67
Size	Ø25mm × 38mm
