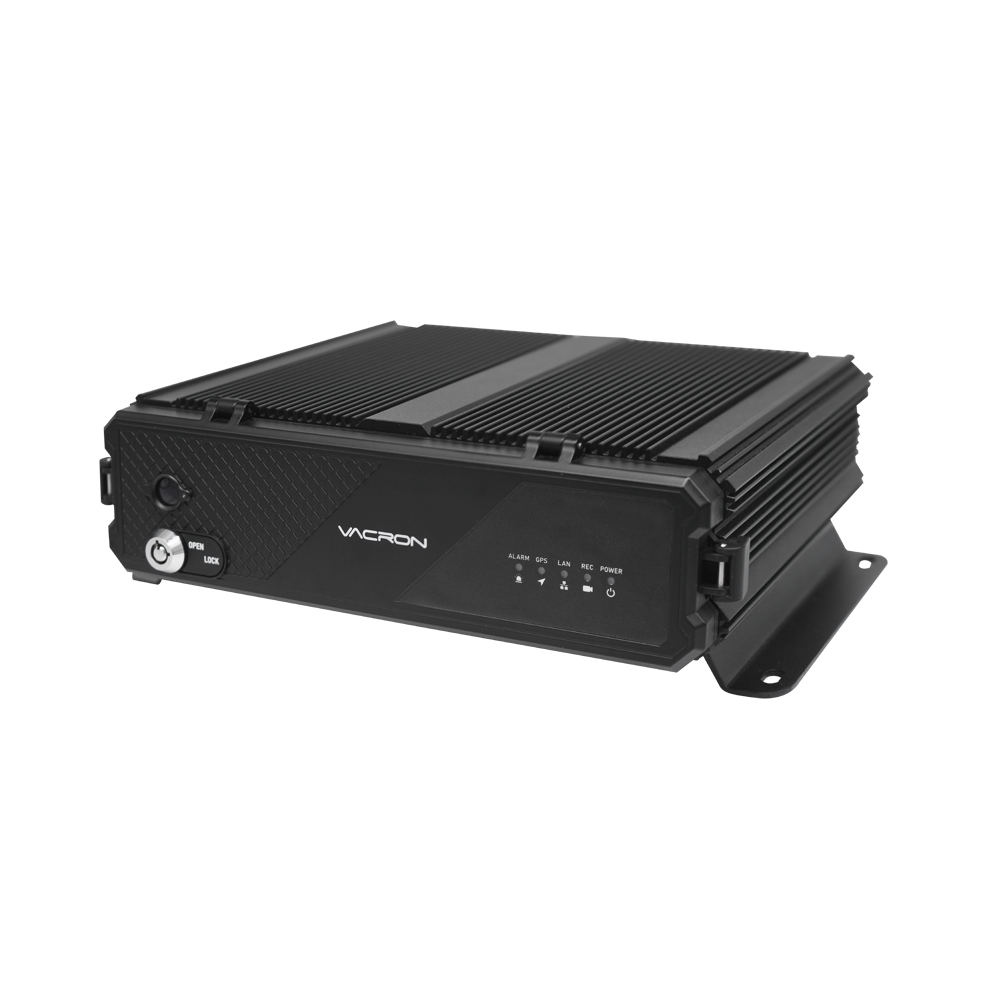

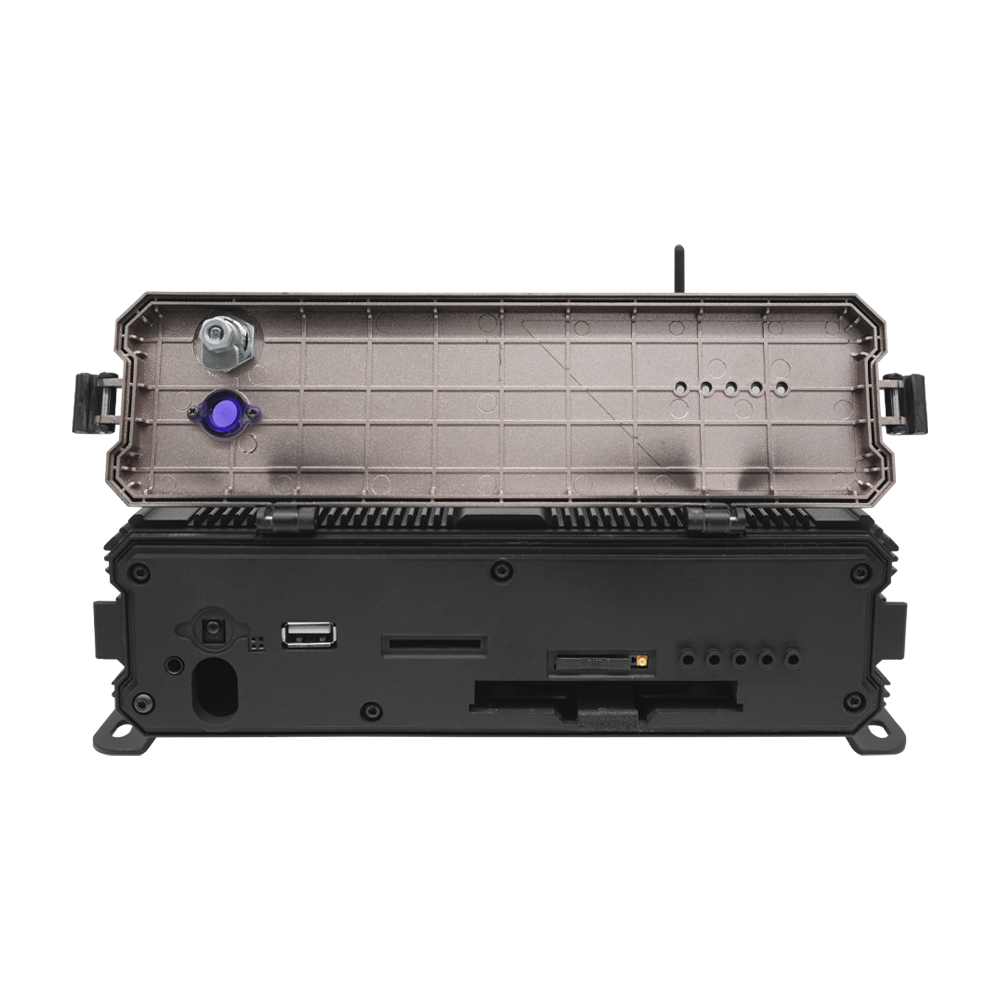

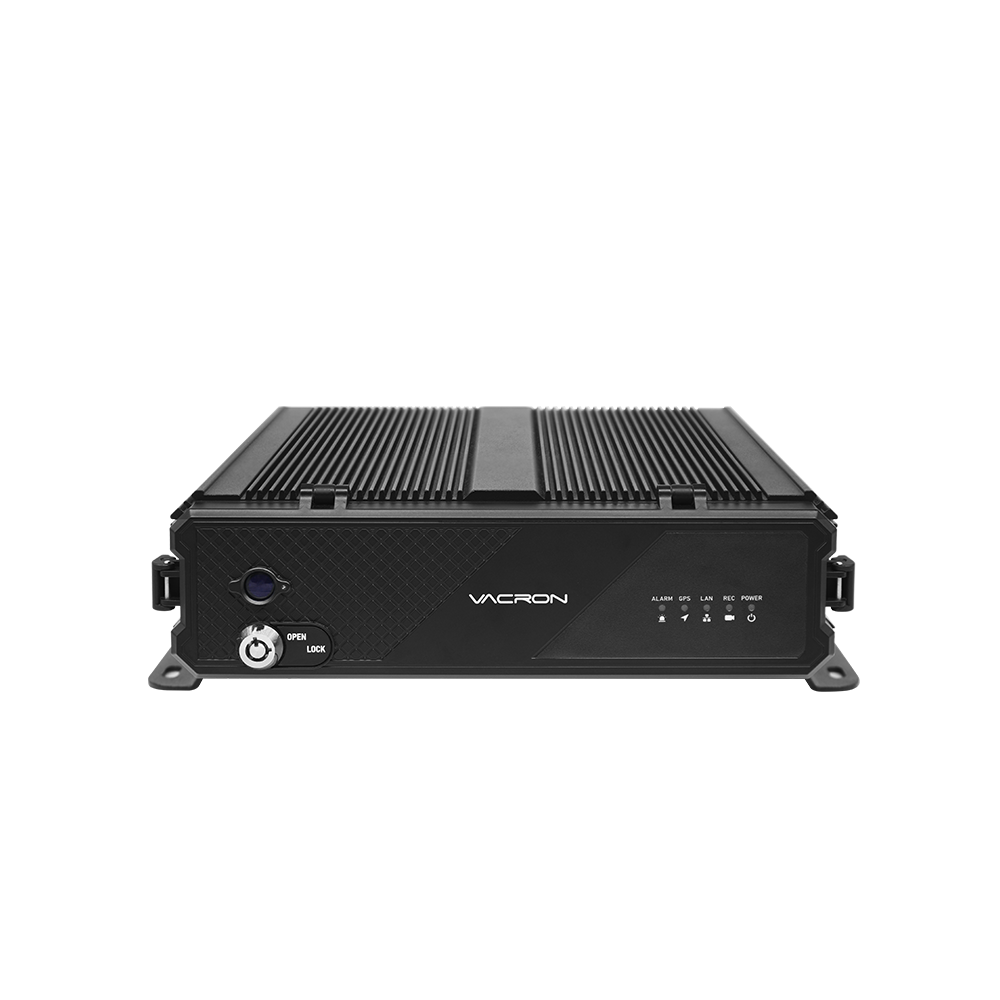

VVN-MD120

12 CH / 1080P / 4G / WIFI / H.265 / SD Card / HDD / GPS

  • H.265

  • G-Sensor

  • Alarm

  • TVout

  • GPS

  • GUI

  • SD

  • -20~65°C

  • Audio External

  • delayed

  • ADAS

  • DMS

  • 3G/4G

  • Bonus Rec

  • BSD

  • DC16~36V

Download Catalog

Product Features

  • Vehicle-machine firmware integrates intelligent AI algorithms(optional).
    With ADAS camera, it can detect/warn/report dangerous road conditions ahead of the vehicle
    in real time.
    With DMS camera, it can detect/warn/report driver fatigue or distracted driving behavior in real-time.
    With BSD cameras, could alert humanoid figures and pedestrians in the set area
    according to the risk level.
  • With LTE or Wifi module, you can monitor the car remotely at any time via Vacron back-end
    server(optional).
  • A complete and reliable image record list makes searching for image records more convenient.
  • The hidden file structure and exclusive player program make file security more secure. Provide AVI
    and MP4 conversion functions, allowing users to play directly on general home computers.
  • With G-Mouse to fully record your driving position and driving speed(optional).
  • Integrated with G-sensor to secure recordings of important events with automatic collision
    detection and force recording.
  • The power management function can delay shutdown after ACC is off, and support parking
    monitoring mode.

Signal Format

NTSC / PAL

Operation System

Embedded Linux

Video Input

12 ch input

Camera Power Output

12 Power input 12V / 0.35A (0.7A/2CH)

Video Output

VGA/CVBS (Synchronous output)

Audio Input

1 CH Input

Audio Output

1 CH Output

Alarm I/O

Alarm input x 6 (2 for back-ups),
2 alarm output ( voltage*1, current*1)

Operation Interface

GUI graphical Interface

Language

Multilingual (English, Traditional Chinese, Simplified Chinese, Japanese)
Video Recording

1080@12CH
720P @12CH
D1@12CH

Display Mode

Single Screen / 4-Split / 12-Split

Simplex

Playback
Recording resolution

1080
1280 x 720
720 x 480

Storage

2.5 inches SSD / SD
Searching Mode

Time / Date, Event Recording

Full-Screen Display

Yes

Indication Light

5 LED (ALARM、GPS、LAN、REC、PWR)

Disconnection Detection

Yes

Buzzer Output

Yes

GPS

G-MOUSE

G-sensor

6-axis gyro sensor (ICM-40608)

3G/4G

Yes

WiFi

Yes
SD Card

Yes
RS-232

Yes

IR

Yes
Gold Capacitor

Built-in 20F*2, 12 seconds of delay recoding when blacked out.

System

Automatically resume video recording mode after a blackout and back on.

Power Supply

(1) DC 16V~32V
(2) The ACC power-off delay is set by the software

(3) DC 12V / 0.5A OUT

Dimension

250mm x 174.8mm x 69.5mm

Operate Temperature

-20°C~65°C

Weight

About 2.5 KG (Including bracket and hard disk)






DESCRIPTION

Advanced Driver Assistance Systems, ADAS
Pedestrian Collision Warning, (PCW), Forward collision warning(FCW), Headway Monitoring & Warning (HMW), Lane Departure Warning (LDWS)

 Driver Status Monitor, DSM
Distraction warning (head up/down/looking left/right), talking on the phone, smoking, fatigue driving (eyes closed/yawning), abnormal (driver leaving seat/blocking camera), not wearing a mask, etc.

Blind Spot Detection, BSD
Set the areas for humanoid figures and pedestrian alerts according to the risk level.
