IP Surveillance System

IP Camera

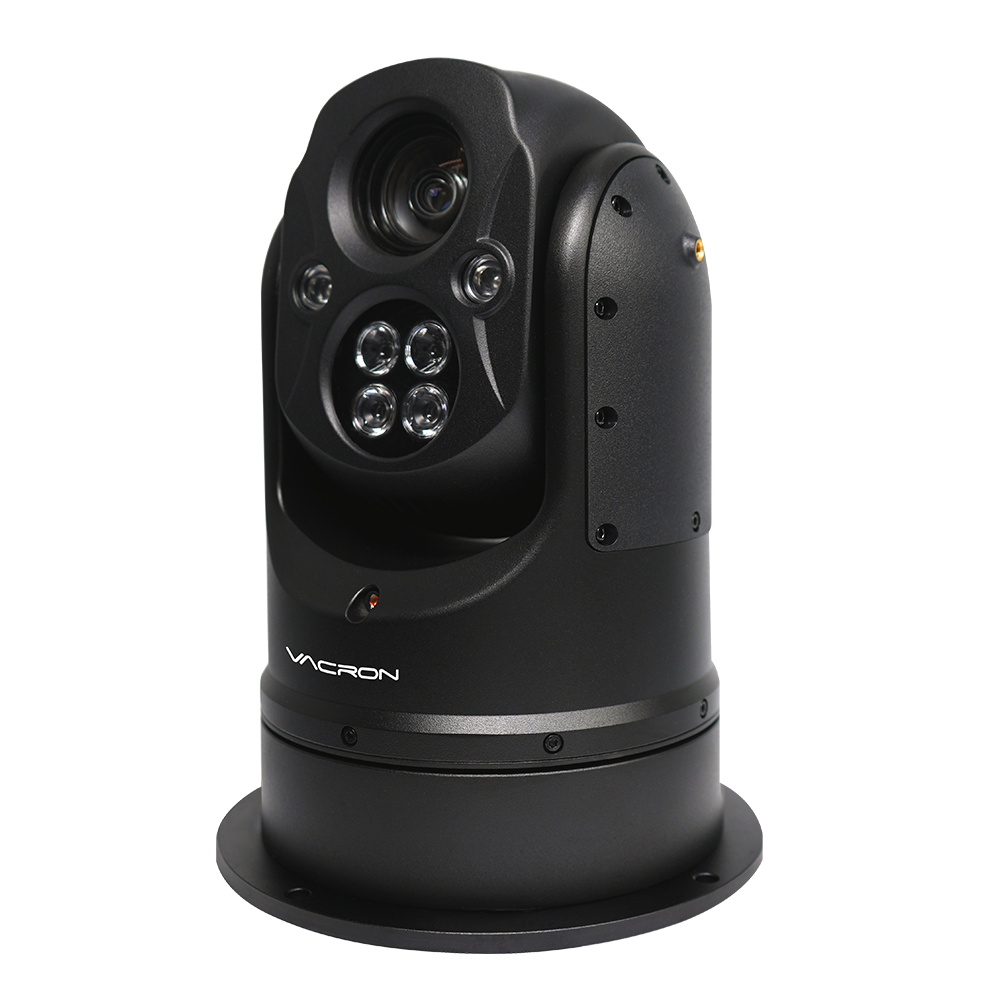

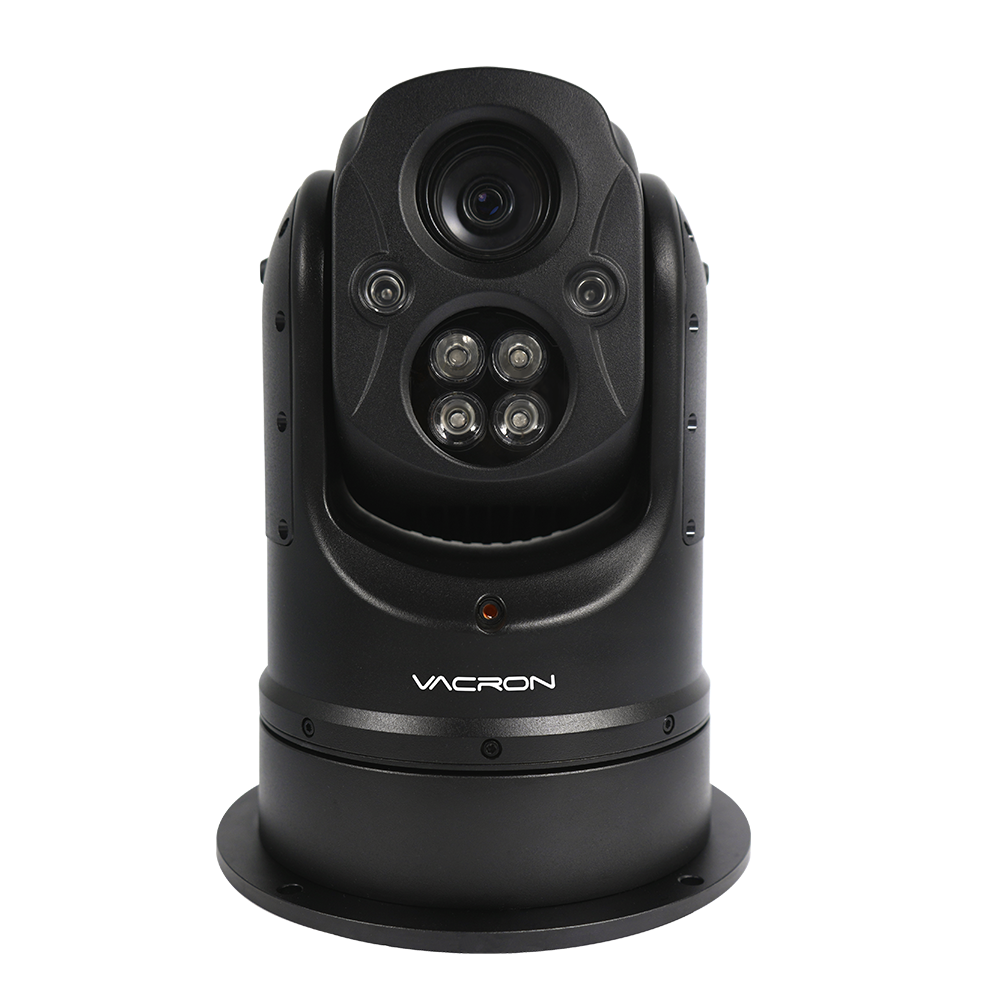

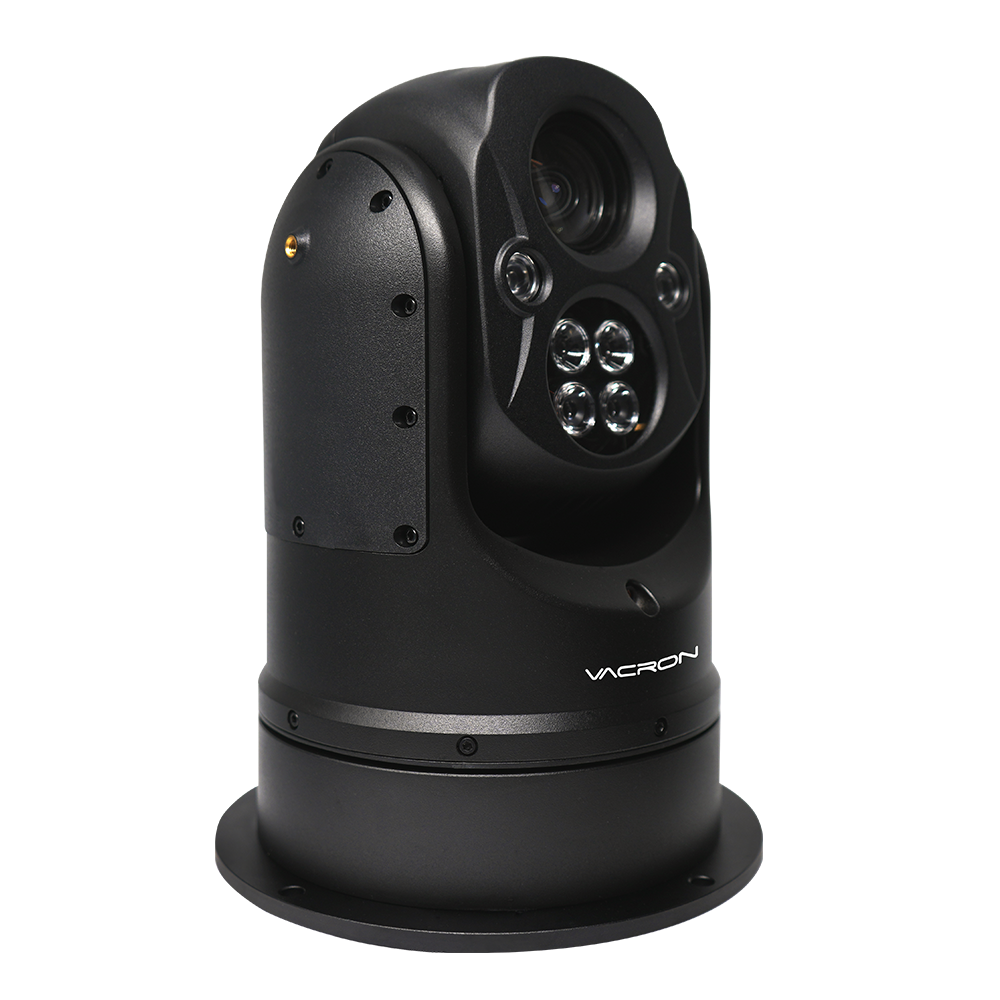

VFI-330B5

1080P / Speed Dome / IP66 / IR / H.265

  • H.265

  • 30x

  • CMS

  • 1/2.8"CMOS

  • 0.005 LUX

  • LENS 4.7~141mm

  • -30~60°C

Download Catalog

Product Features

  • Solid metal structure design, IP ratings up to IP66.
  • High-definition images, 2 million pixel and resolution up to 1080P
  • 360° continuous rotation, supports cruise, line scan, preset point, and starting point.
  • 30x Optical zoom, IR range could reach over 100 meters.
    It supports internet and RS485 interface control, as well as in-vehicle system.
  • Anti-vibration design for installing on the roof of the vehicle.
Horizontal Range 360° Continuous Rotation
Vertical Range -30°~90°
Horizontal / Vertical Speed 100°/S / 60°/S
Preset Position 16
Patrol Support 4 cruise paths
Horizontal Scan Support
Pre-setting Spot Support
IR Rates 10W
Angle 15°~65°
Range The IR range is over 100 meters.
Image Sensor 1/2.8" Low Lux CMOS Image Sensor
Resolution 1080P (1920*1080 25/30 fps/秒)
Optical Zoom 30X
Focal length 4.7-141mm
Aperture F1.0~F4.0
View Angle 6.0 (Proximal) / 3.9 (Remote)
Illumination Color: 0.005 Lux
Black and White: 0.001 Lux
Wide Dynamic Digital Motion
Day and Night Conversion Mode IR-Cut Filter Removable
Compression Standards H.264 / H.265
Code Rate 32Kbps-16Mbps
Data Rate Support Dual data rate
Mainstream (1080P;960P:720P)
Sub-stream (D1;VGA;CIF)
Recording Format Format CSF (with Audio)
Support Resolution D1/720P/1080P (Default)
Recording Length 10 Minutes (Default)
Frame Rate 25/30 FPS
Storage Singal Card for Max. 256GB
Snapshot Resolution D1/720P/1080P (Default)
Audio input Optional
Compression Standards G711
Sample Rate 16K、32K、64K、128K
Alarm 1 Channel Input & 1 Channel Output
Extension RS232 port, could input various sensor, such as
thermometers and radars
Power Input DC12V
Environment Protection Level IP66
Operation Temperature/Humidity -30°C ~ 60°C / 0 ~ 95%(non-condensing)
Dimensions Φ162.6*267mm
Weight 6kg
Fixation Metal plate (Applied with Tripod. Additional purchases
include bracket wall mounts, hanging mounts,
pole mounts, magnet suction, etc.)
Power Specifications Φ5.5*2.1
Tandem Port RS 232
Audio TRS connector
Alarm Output Interface 1 Channel
Power Supply Unit DC12V 5A
Tripod Mounting Plate Optional
Tripod Aluminum
1.5 kg in total, tripod stands for maximum 8 kg (optional)
Battery 15000MA/H (optional)
Magnetic Chassis Optional
